Small Size Phone Glass Microscope (EV-2515)

1 / 5

Small Size Phone Glass Microscope (EV-2515)

Customization:	Available
After-sales Service:	18 Months
Warranty:	18 Months

Send Inquiry

Product Description

Basic Information

Model NO.

EV-2515

Name

2D Vision Measuring Machine

Travel XY Axis

250*150mm

Travel Z Axis

200mm

Resolution

0.5micron

XY Accuracy

2.5+L/150 Micron

Repeatability

0.003mm

Stage Size

450*280mm

Origin

China

Trademark

Leader

Product Description

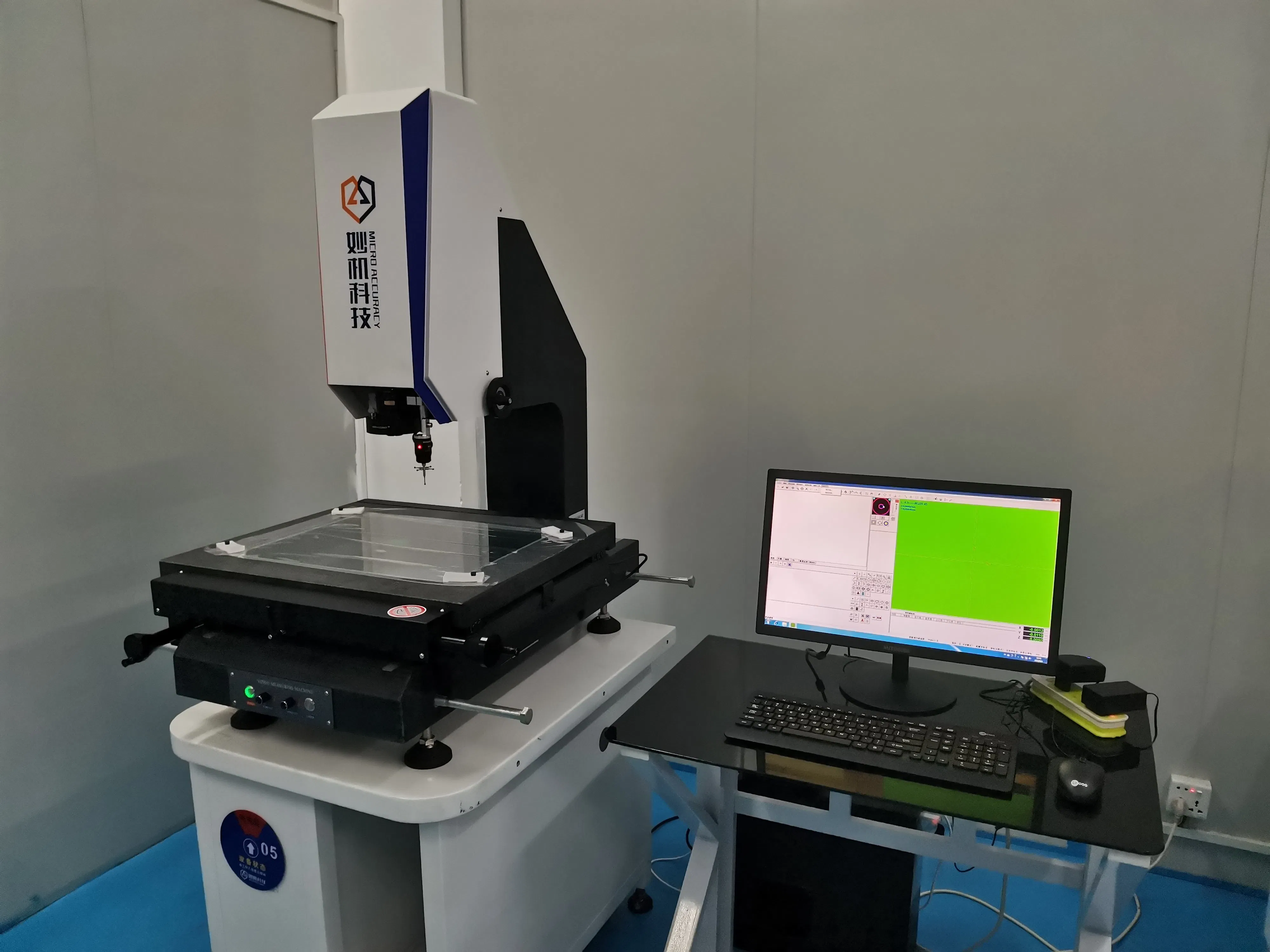

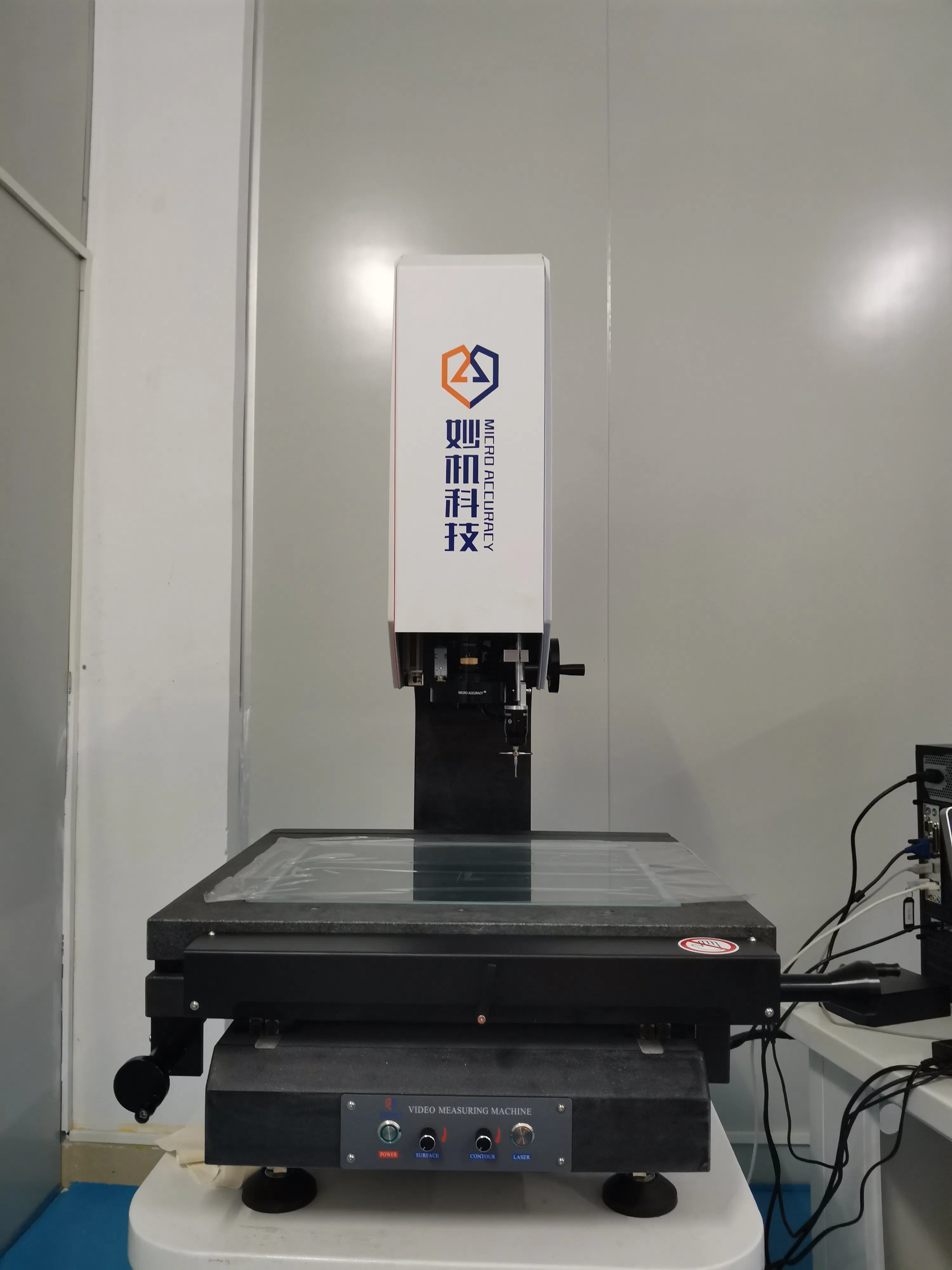

Small Size Phone Glass Microscope (EV-2515)

Usage: The EV-2515 comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency widely used in various precision industries.

Application: Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.

Technical Features

Video system: High resolution video camera
Magnification: 0.7X~4.5X (28X~180X); Optional: 0.5X, 2X, object lens
Illumination: Adjustable illumination for surface and contour
Power supply: AC110-120v, 200-240v, 50HZ, 30W
Linear scale: X. Y. Z axis with 0.05µm resolution
Digital readout: MC800 DRO systems with RS232 output
Accuracy: ± (3+L/75)µm (L = work piece length in mm)
Software: 2D Measurement software

Model No.	EV-1510	EV-2010	EV-2515	EV-3020	EV-4030
Travel-X. Y axis	150*100(mm)	200*100(mm)	250*150(mm)	300*200(mm)	400*300(mm)
Resolution	0.5µm	0.5µm	0.5µm	0.5µm	0.5µm
Repeatability	0.003mm	0.003mm	0.003mm	0.003mm	0.003mm
Stage size	354*228mm	404*228mm	500*330mm	500*330mm	606*466mm
Net weight	98kg	108kg	120kg	138kg	238kg
