Small Size Phone Glass Inspecting Microscope (EV-2515)

1 / 5

Small Size Phone Glass Inspecting Microscope (EV-2515)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

📊 Basic Specifications

Model

EV-2515

Travel XY Axis

250*150mm

Resolution

0.5 micron

Accuracy

2.5+L/150 Micron

Repeatability

0.003mm

Certification

SGS, ISO, CE

🔍 Product Overview

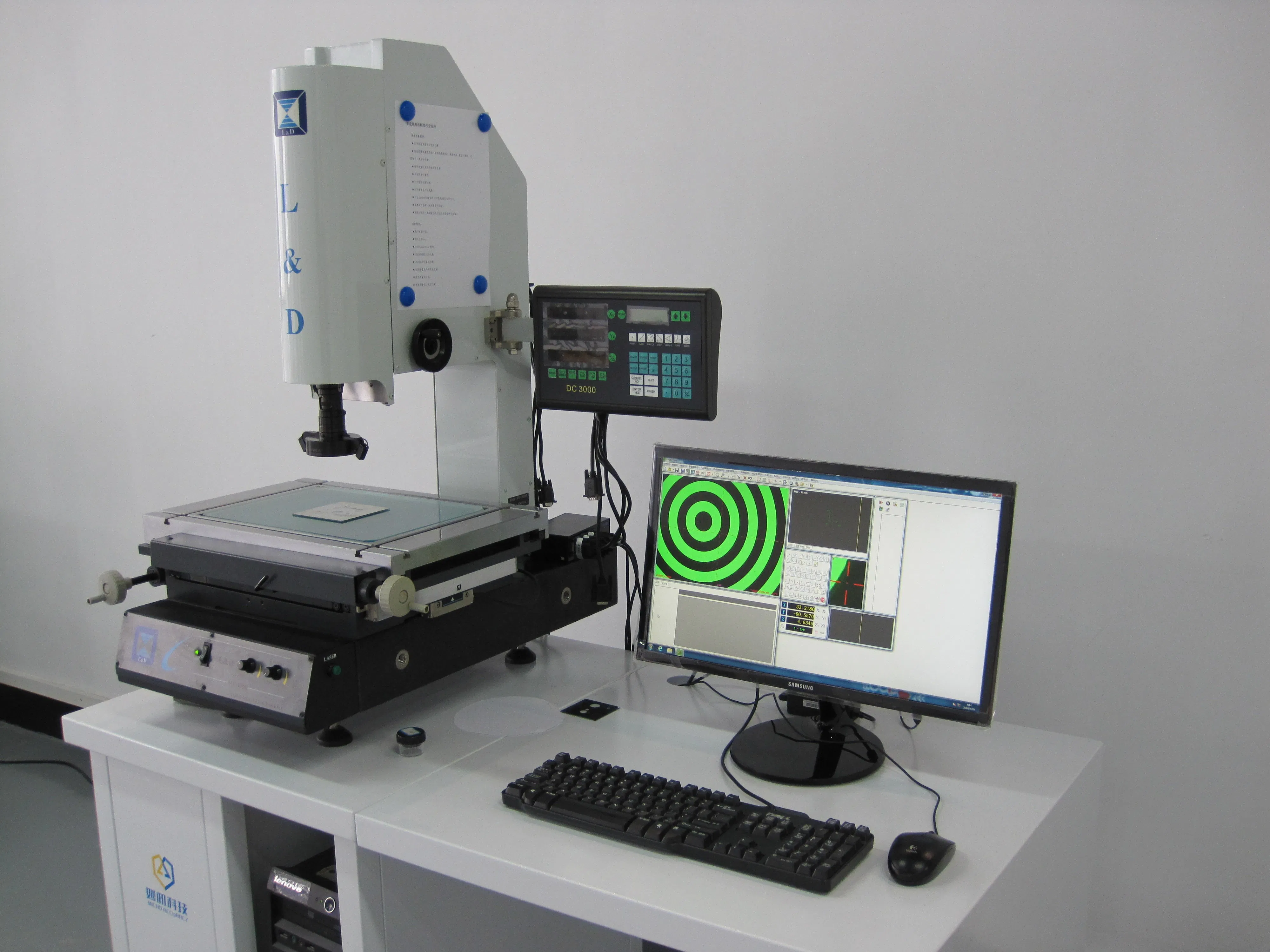

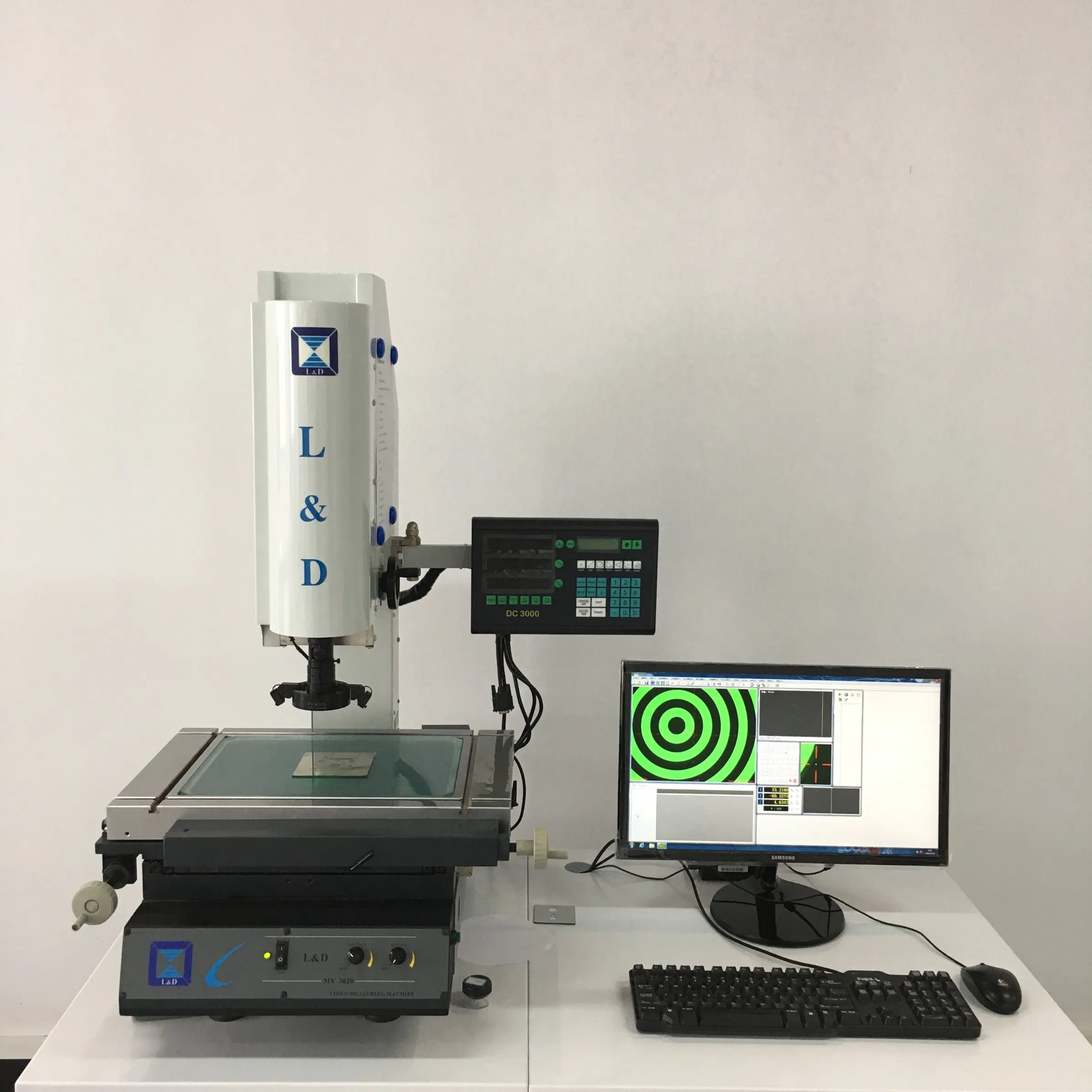

Small Size Phone Glass Inspecting Microscope (EV-2515)

Usage: EV-2515 comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.

⭐ Key Features

Video system: High resolution video camera
Magnification: 0.7X~4.5X (28X~180X); Optional extras available
Illumination: Adjustable surface and contour lighting
Linear scale: 0.05µM resolution on X, Y, Z axis
Digital readout: MC800 DRO systems with RS232 output
CCD camera: Japan 1/2'' color CCD camera

📏 Model Comparison

Model No.	Travel-XY (mm)	Resolution	Accuracy	Stage Size	Load Cap.
EV-1510	150*100	0.5µm	(2.5+L/150)µm	354*228mm	10kg
EV-2010	200*100	0.5µm	(2.5+L/150)µm	404*228mm	10kg
EV-2515	250*150	0.5µm	(2.5+L/150)µm	500*330mm	15kg
EV-3020	300*200	0.5µm	(2.5+L/150)µm	500*330mm	20kg
EV-4030	400*300	0.5µm	(2.5+L/150)µm	606*466mm	30kg

🛡️ Quality & After-Sales

Quality Assurance: Based on ISO9001 standards with full CE certification. All machines are hardware-adjusted for maximum linear accuracy.

Service Commitment:

18-month extended warranty
Free professional operation training
Lifetime technical support and free software upgrades

❓ Frequently Asked Questions (FAQ)

Q1: What is the measurement accuracy of the EV-2515?

The system offers an accuracy of ±(2.5+L/150)µm, where L is the length of the workpiece in millimeters.

Q2: Can this microscope be used for PCB inspection?

Yes, it is suitable for electronic components, PCBs, molding, press parts, and other precision industries.

Q3: What kind of lighting does it use?

It features adjustable LED lamp illumination for both surface and contour viewing.

Q4: Does the software support 2D measurement?

Yes, the system comes with professional 2D measurement software and an MC800 DRO system.

Q5: What is the load capacity of the measuring stage?

The EV-2515 model can support workpieces weighing up to 15kg.

Q6: Is technical training provided?

We provide free professional operation training and lifetime technical support for all our measuring systems.
