Small Size Phone Glass Checker (EV-4030)

1 / 5

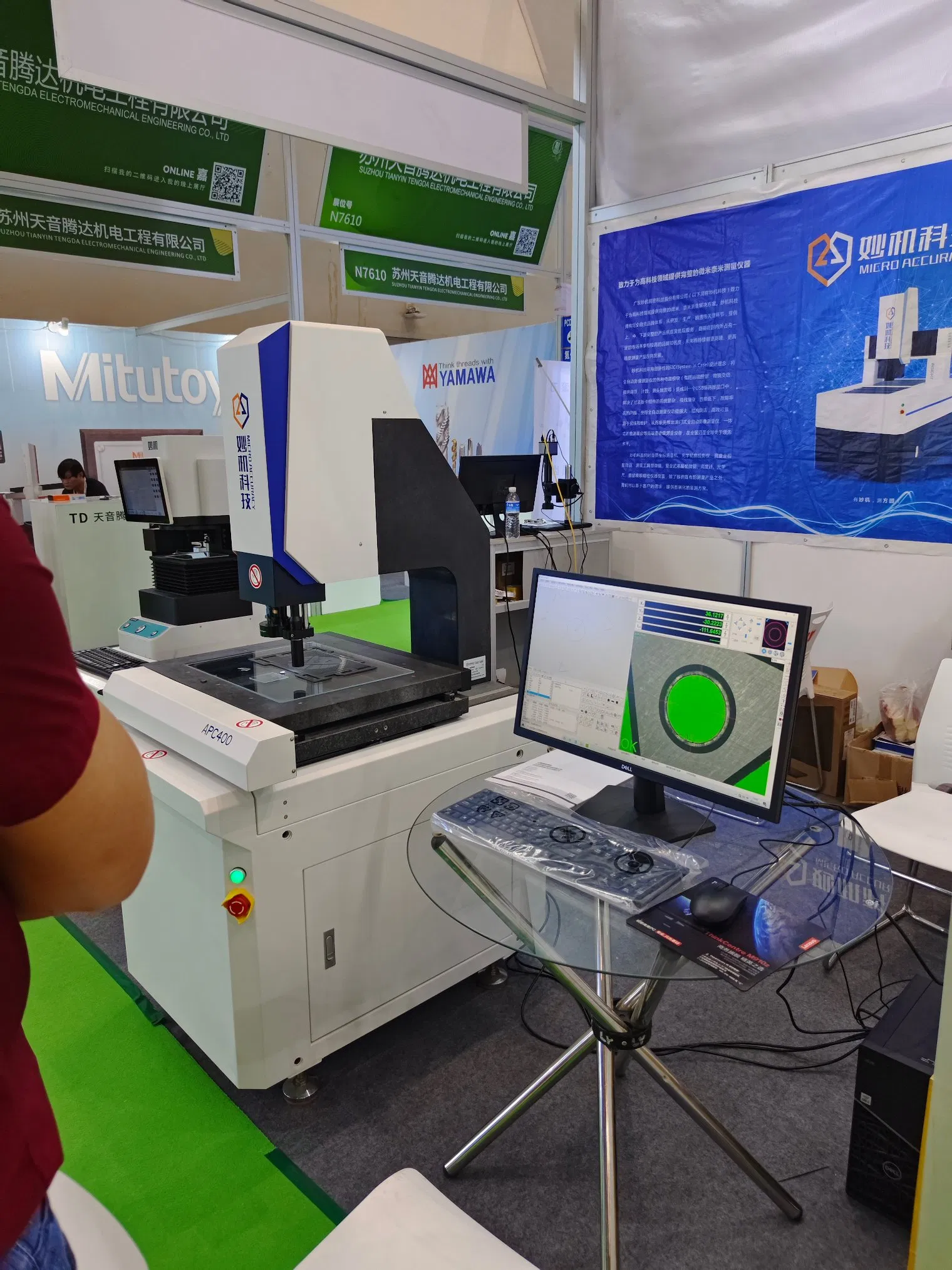

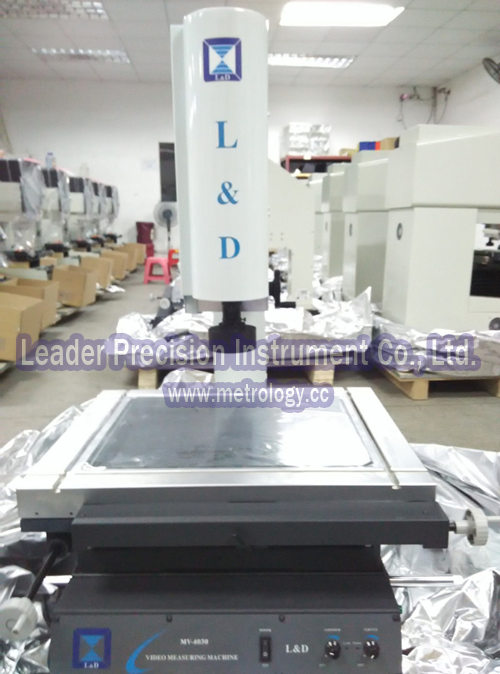

Small Size Phone Glass Checker (EV-4030)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.

EV-4030

Travel XY Axis

400*300mm

Travel Z Axis

200mm

Resolution

0.5 micron

XY Axis Accuracy

2.5+L/200 Micron

Repeatability

0.003mm

Stage Load Capacity

20kg

Illumination

LED Ring Light

Origin

China

HS Code

9031802000

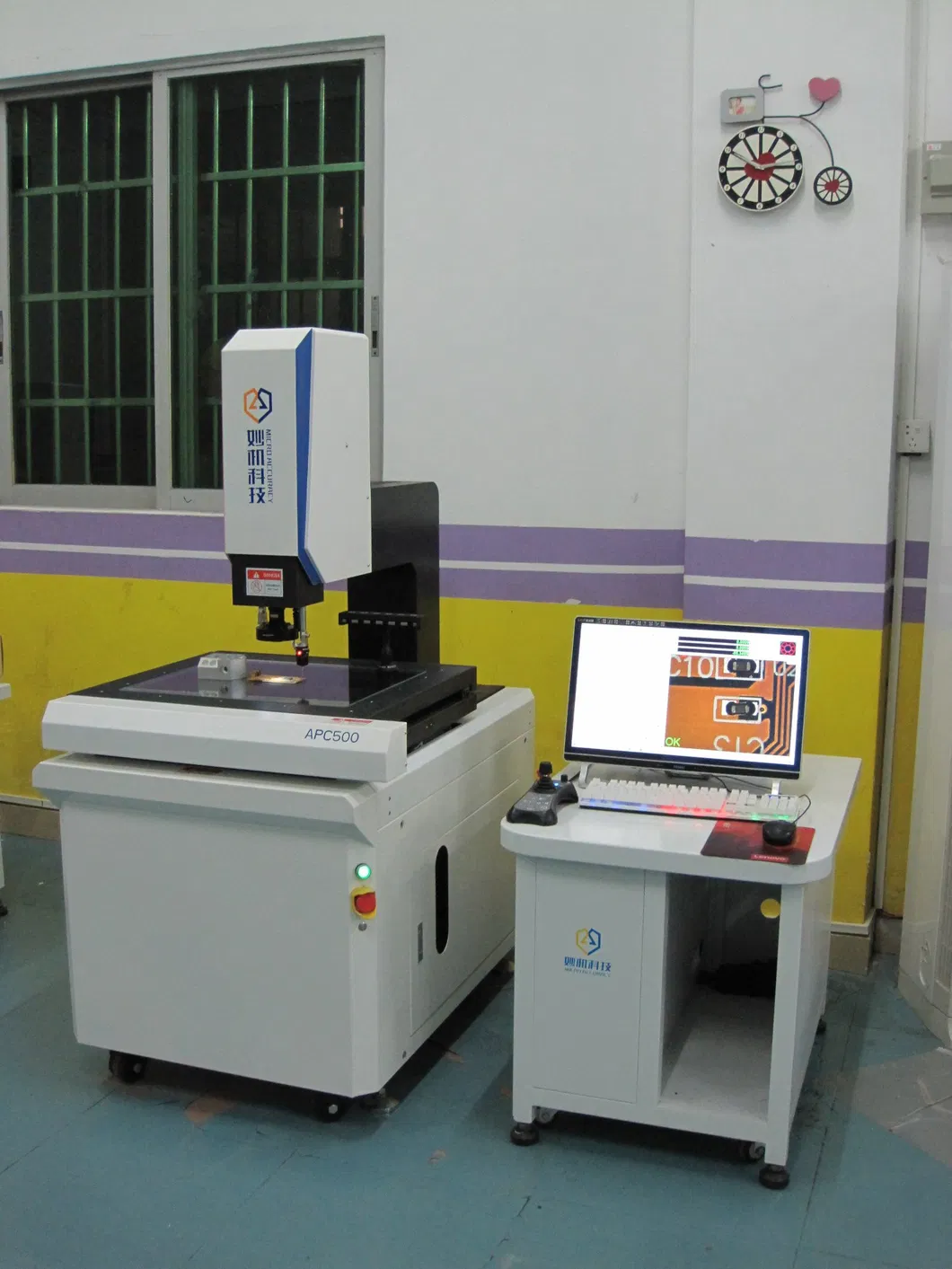

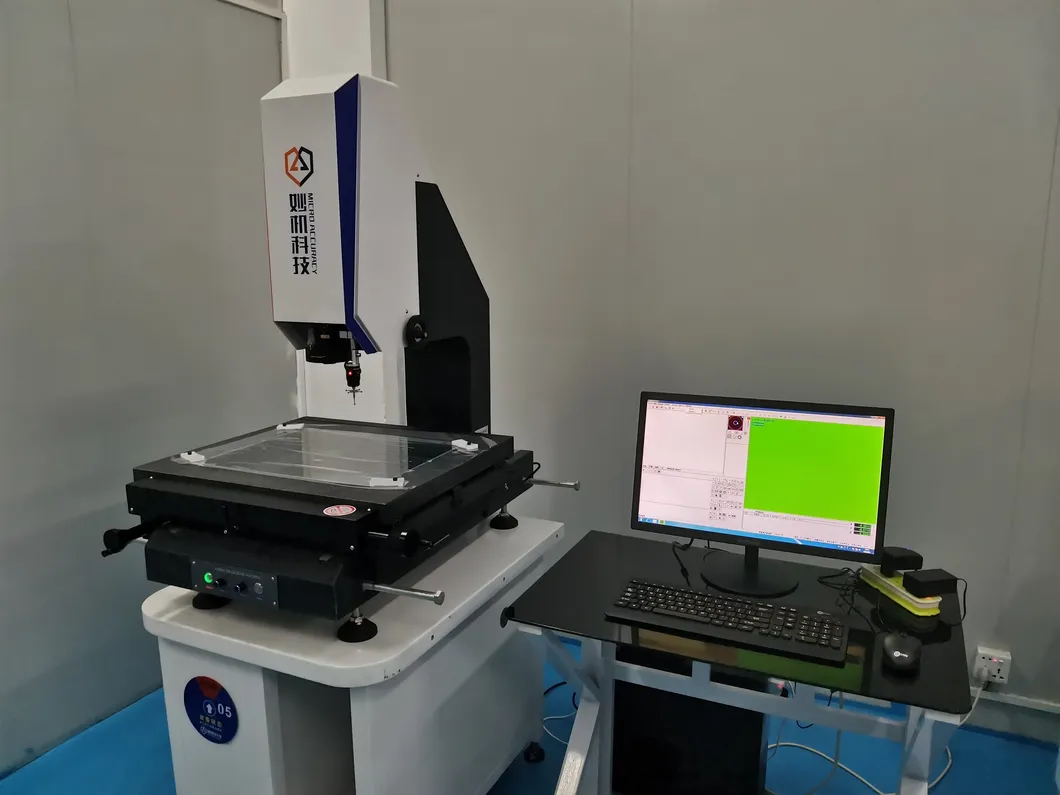

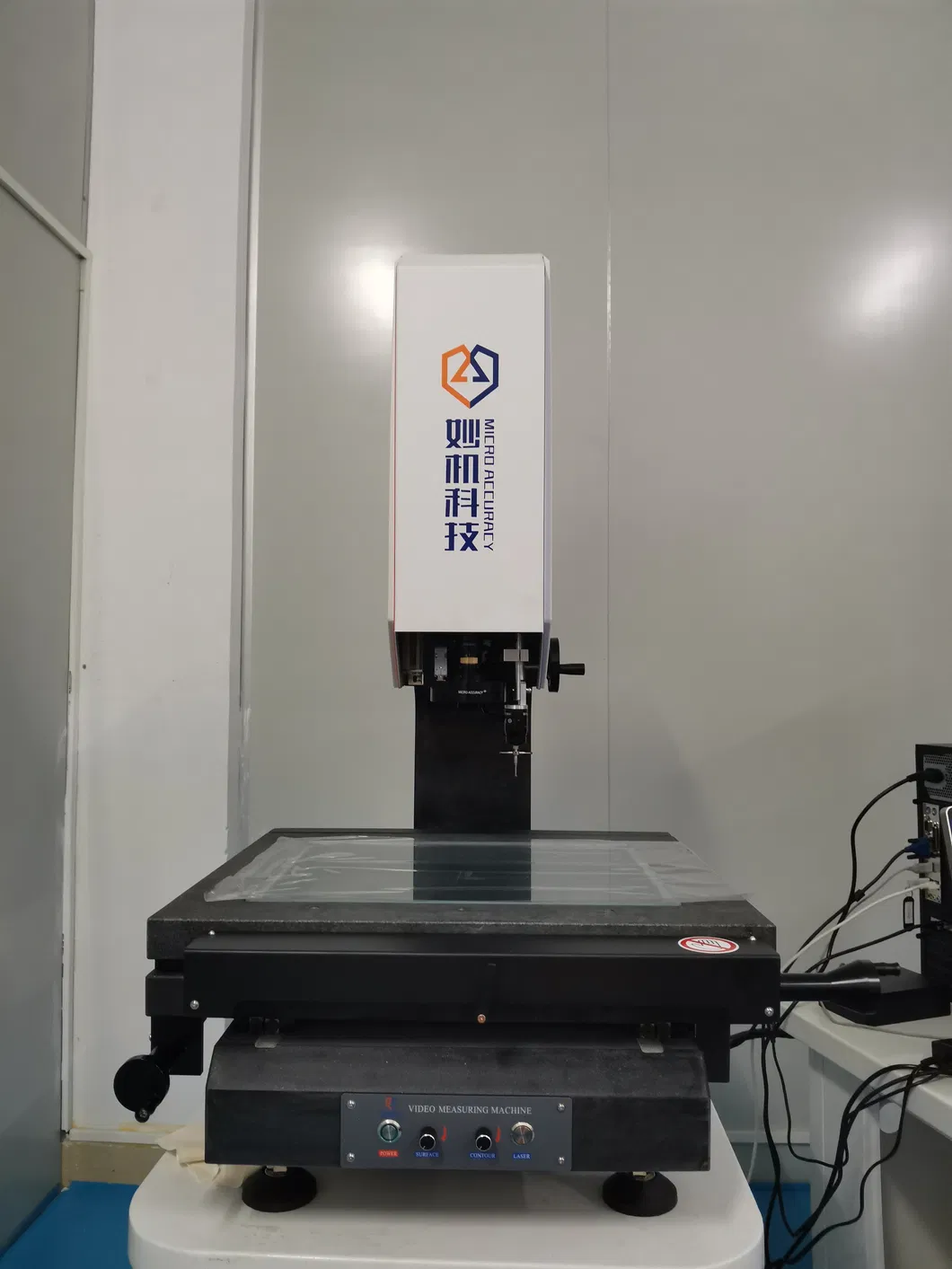

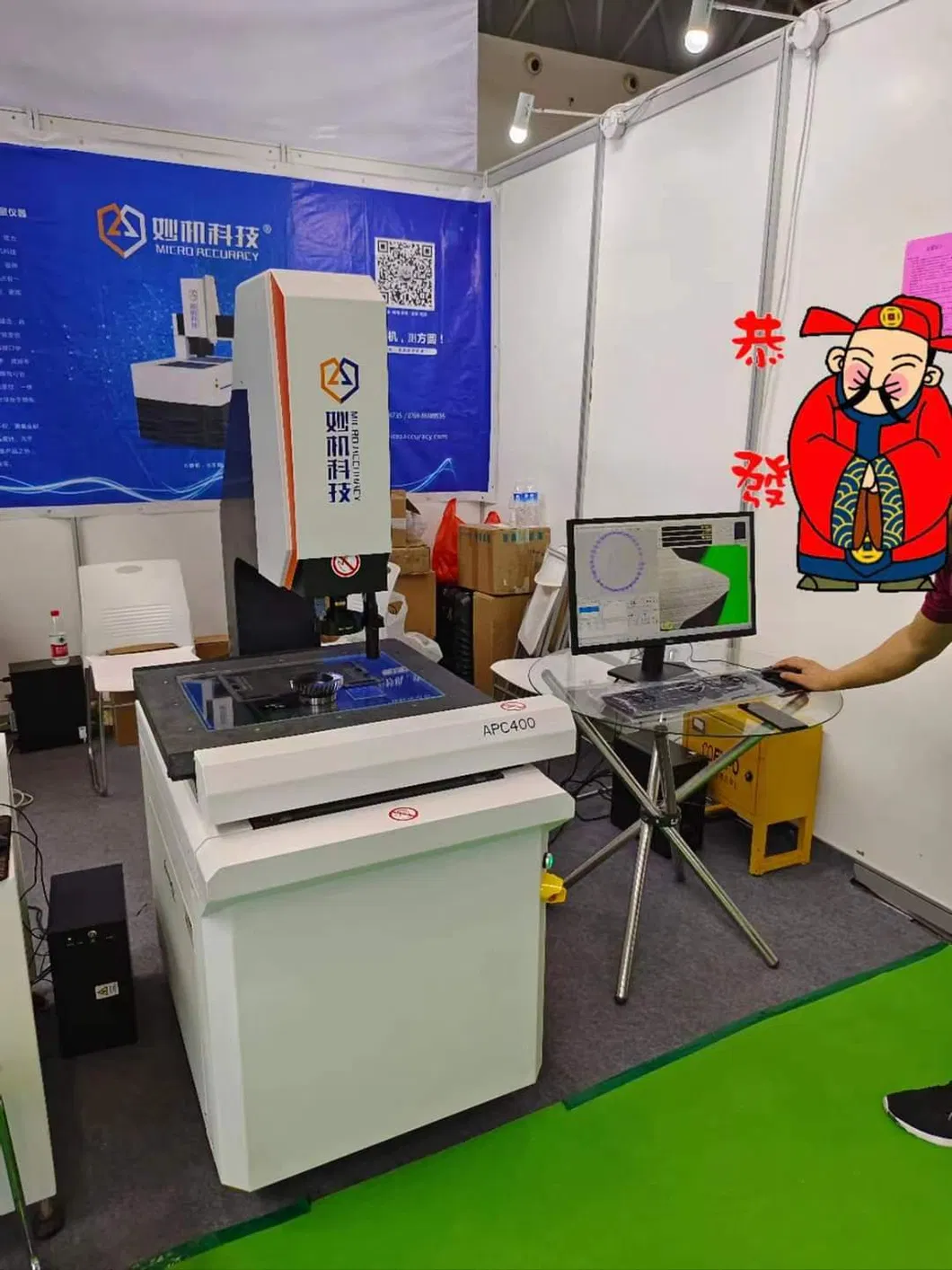

Product Overview

Phone Glass Checker Usage: Small Size Phone Glass Checker EV-4030 comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.

Application Fields: Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.

Key Features

Video system: High resolution video camera
Magnification: 0.7X~4.5X (28X~180X); Optional: 0.5X, 2X object lens
Illumination: Adjustable illumination for surface and contour
Linear scale: X, Y, Z axis with 0.05µm resolution
Digital readout: MC800 DRO systems with RS232 output
Accuracy: ± (3+L/75)µm, where L = length of the work piece (mm)

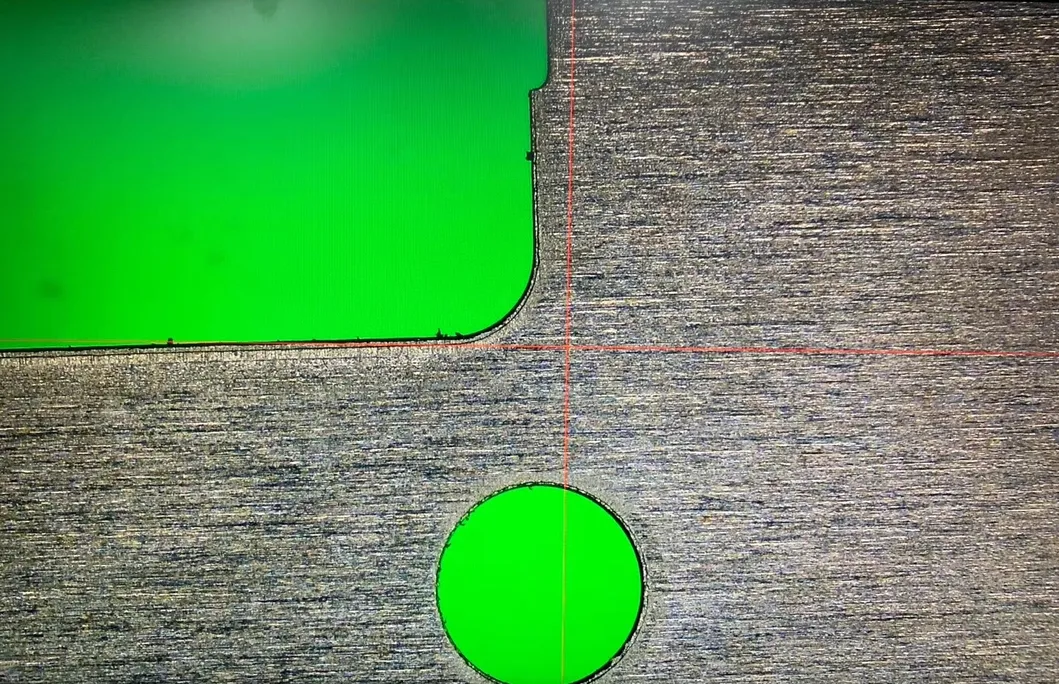

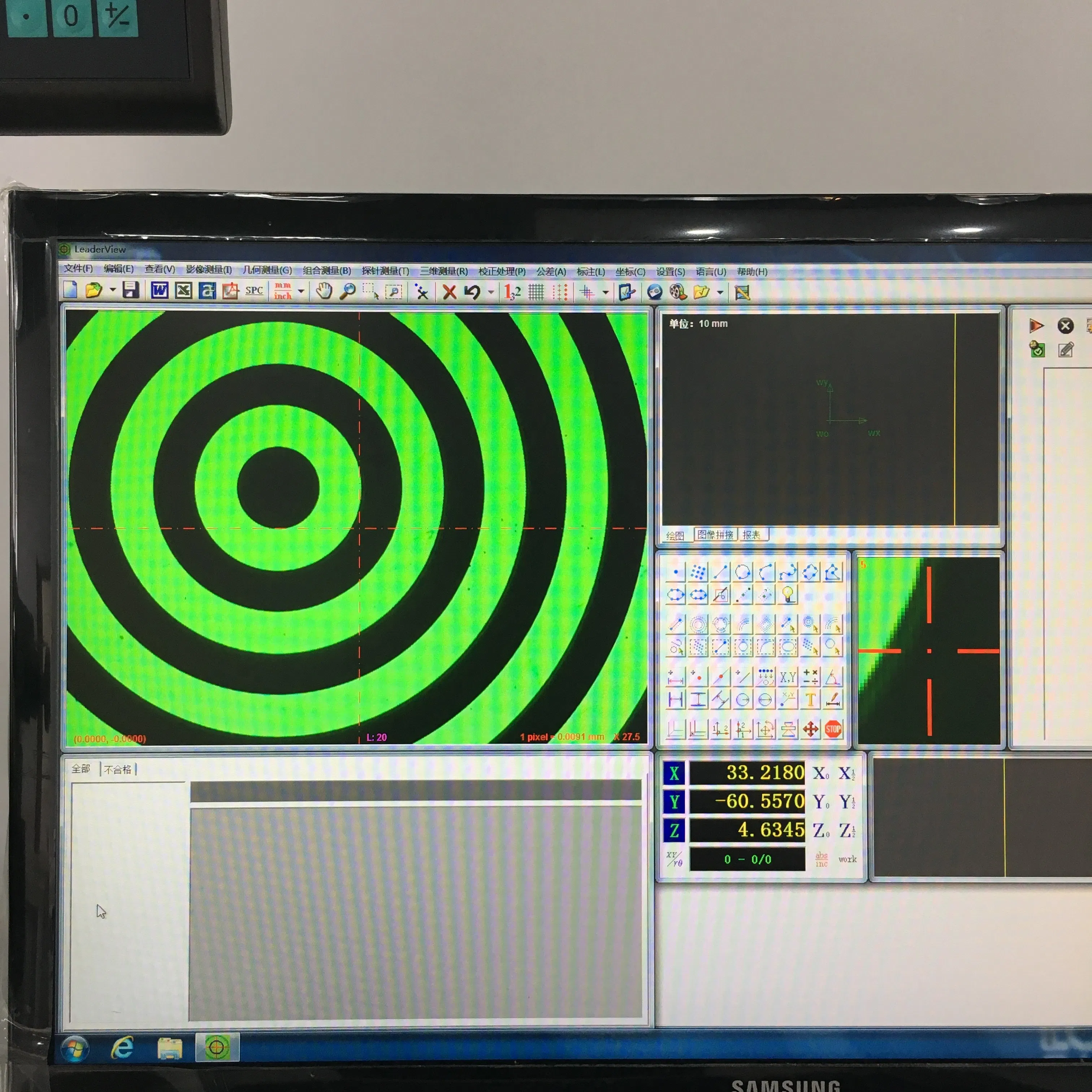

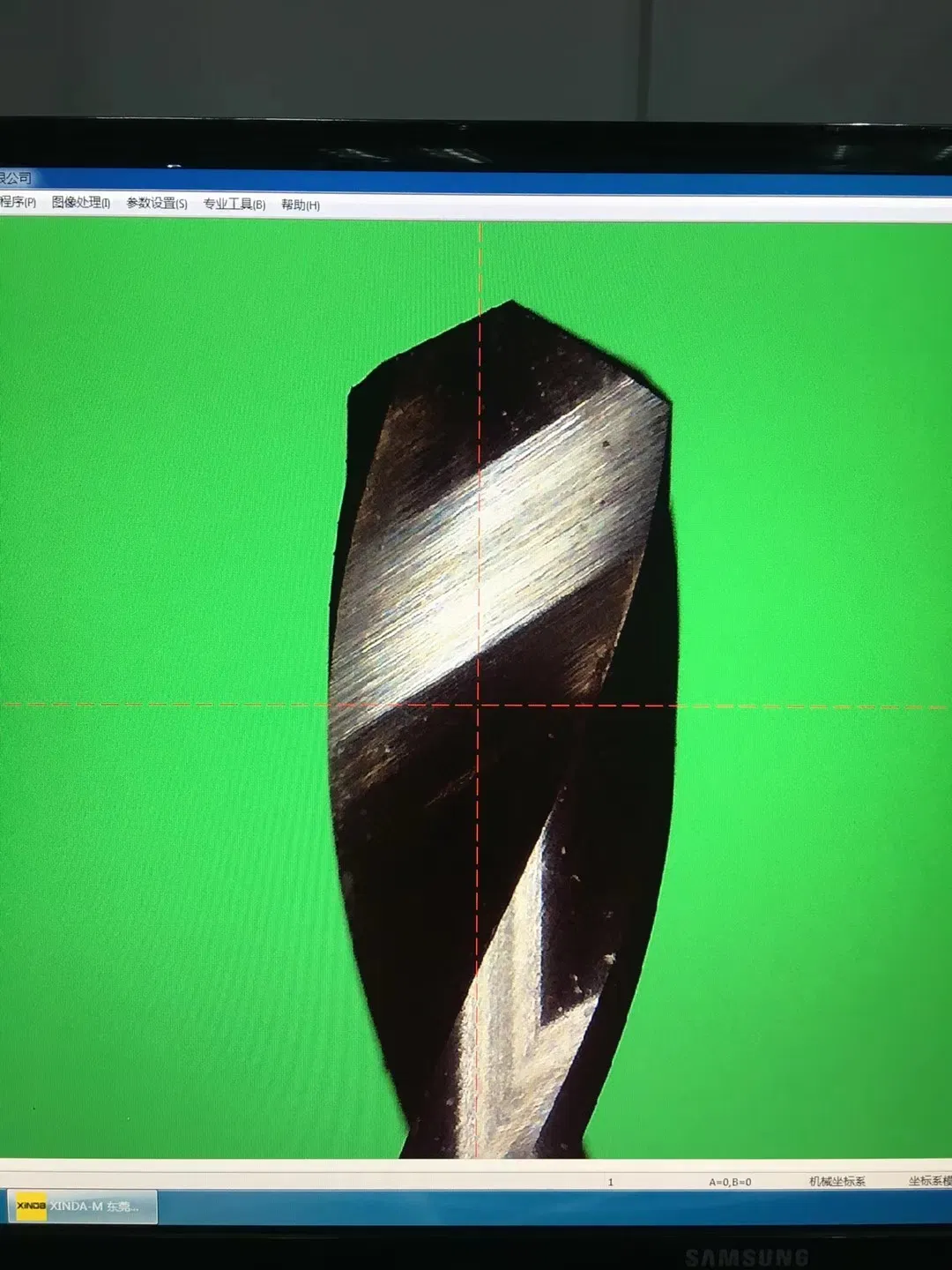

Software: Professional 2D Measurement software

Technical Data

Model No.	EV-4030
Travel-X.Y axis	400*300 (mm)
Travel-Z axis	200mm
Z-axis working range	100mm
Feed mechanism	Manual
Resolution	0.5µm
X,Y-axis accuracy(µm)	2.5+L/200
Repeatability	0.003mm
Stage load capacity	25kg
Illumination	Contour: LED lamp, Surface: LED ring light

Standard Delivery

Metrology 2D measuring software	Image Capturing Card
USB encoder interface (for Linear Scale)	Gigabit High resolution color camera
Optical Zoom lens 0.7x-4.5x	LED cold Light source
