Portable Partial Discharge Detector Transformer/Gis Motor/Insulator/Cable/Swithgear Handheld Pd Analyzer with Ua UHF Hfct Sensors dBuV

Customization: Available
After-sales Service: Yes
Warranty: 1year

Product Description

Basic Information
Model NO.
HYJF-H
Type
Universal Testing Machine
Max Capacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Display
Digital
Power Source
AC220V
Capacity Range
6PF--250f
Product Description

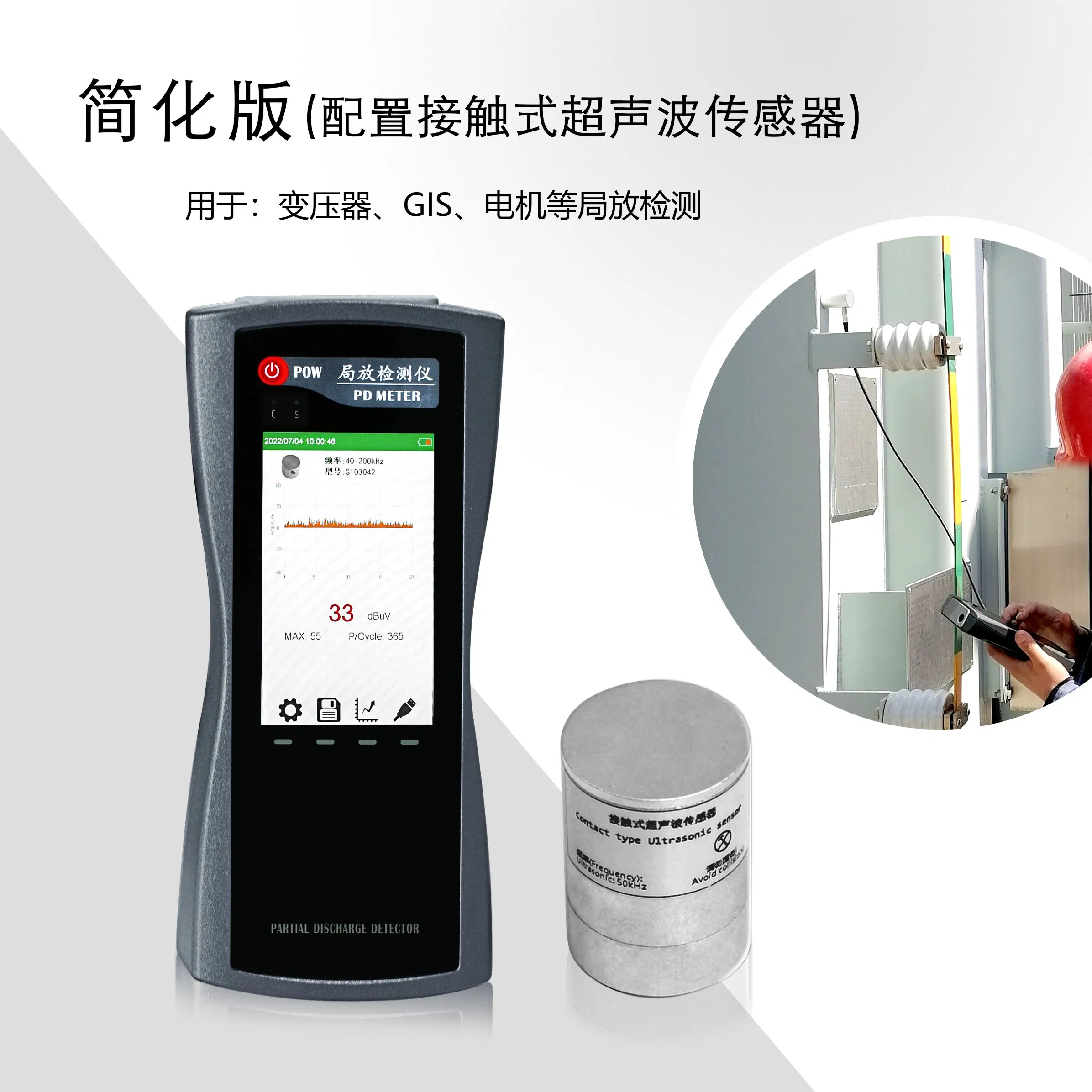

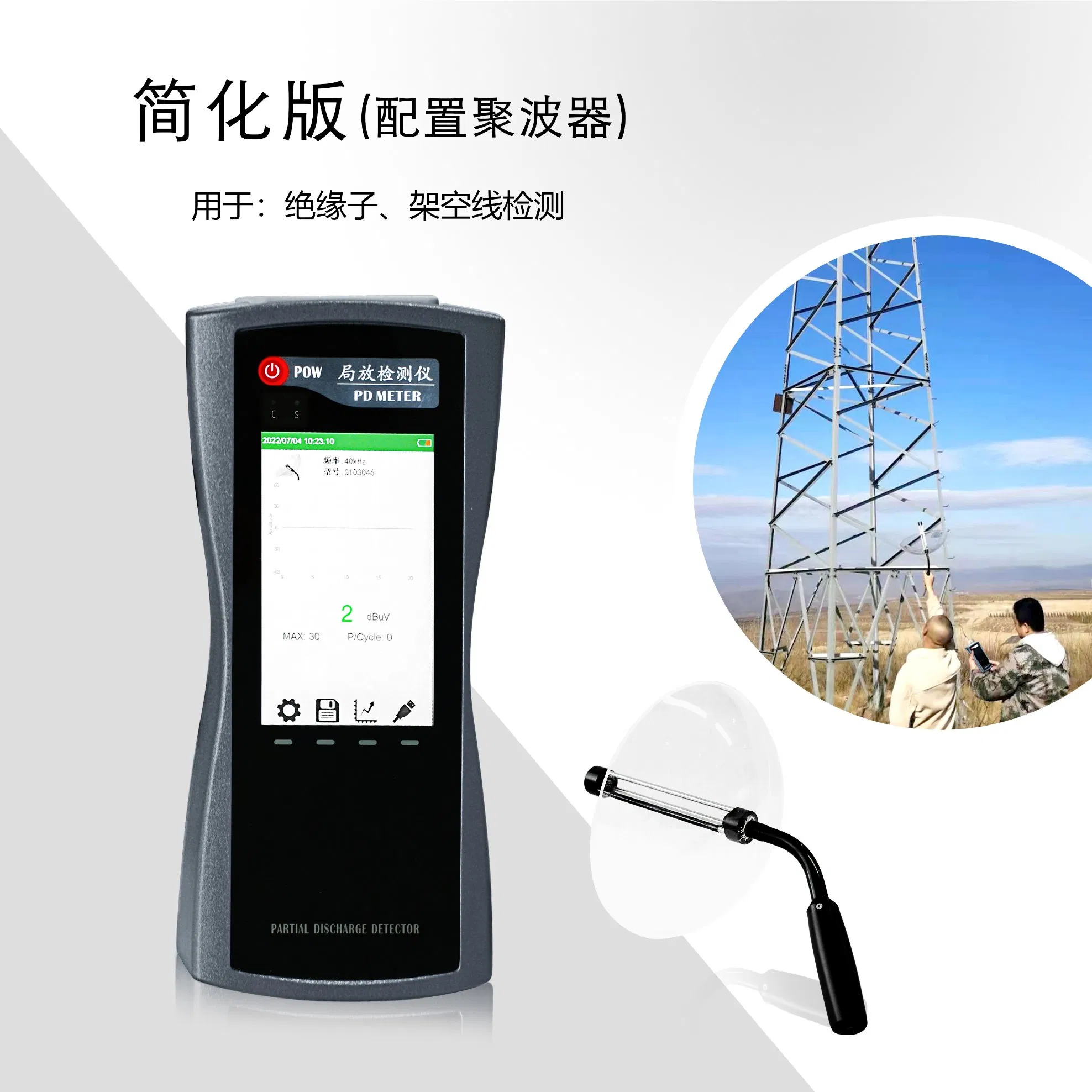

Portable Partial Discharge Detector Handheld PD Analyzer

Partial discharge usually has a very small amplitude value, but it will certainly cause the continuous deterioration of the property of the insulation layer and finally cause electric equipment fault. This non-intrusive partial discharge detection identifies potential insulation faults using Electromagnetic and Sound energy detection.

Technical Parameters
Detection Principles: UHF (Ultra High Frequency), UA (Ultrasonic Analysis), TEV (Transient Earth Voltage)
UA Frequency Range: 40-200KHz
TEV Frequency Range: 3-100MHz
UHF Frequency Range: 300-2000MHz
Sensitivity: Minimum 10pC
Display: 3.5" TFT color screen
Storage: 1000 groups of test data

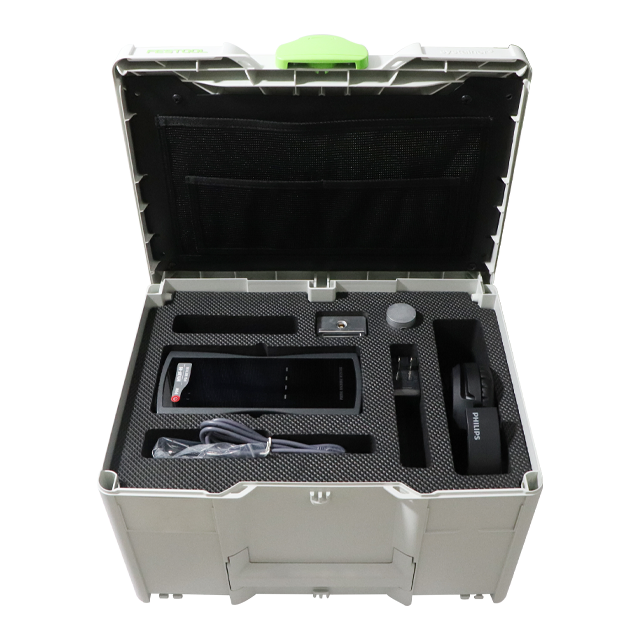

Accessory List
Serial Number Name Amount
1Mainframeone
2Specificationone
3Inspection Reportone
4Certificationone
Products Show

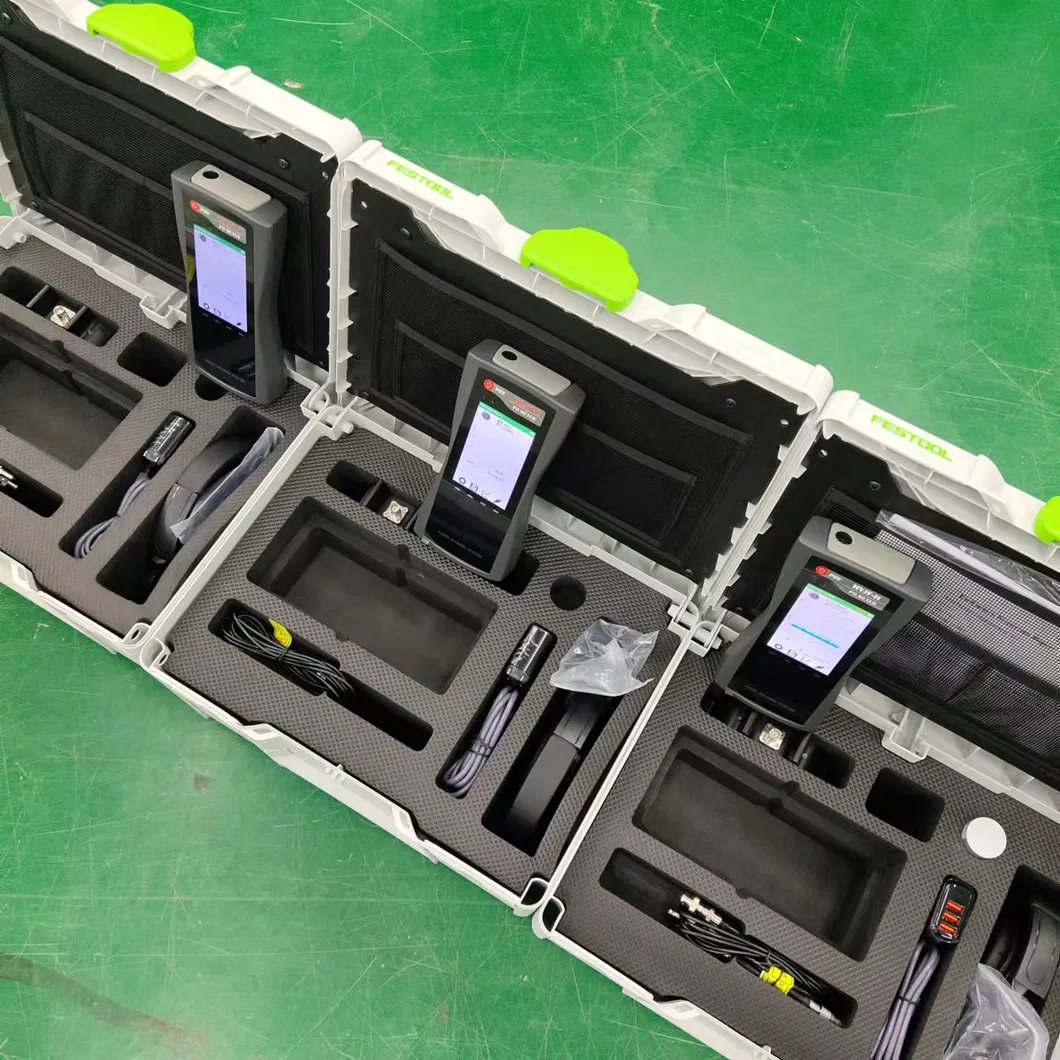

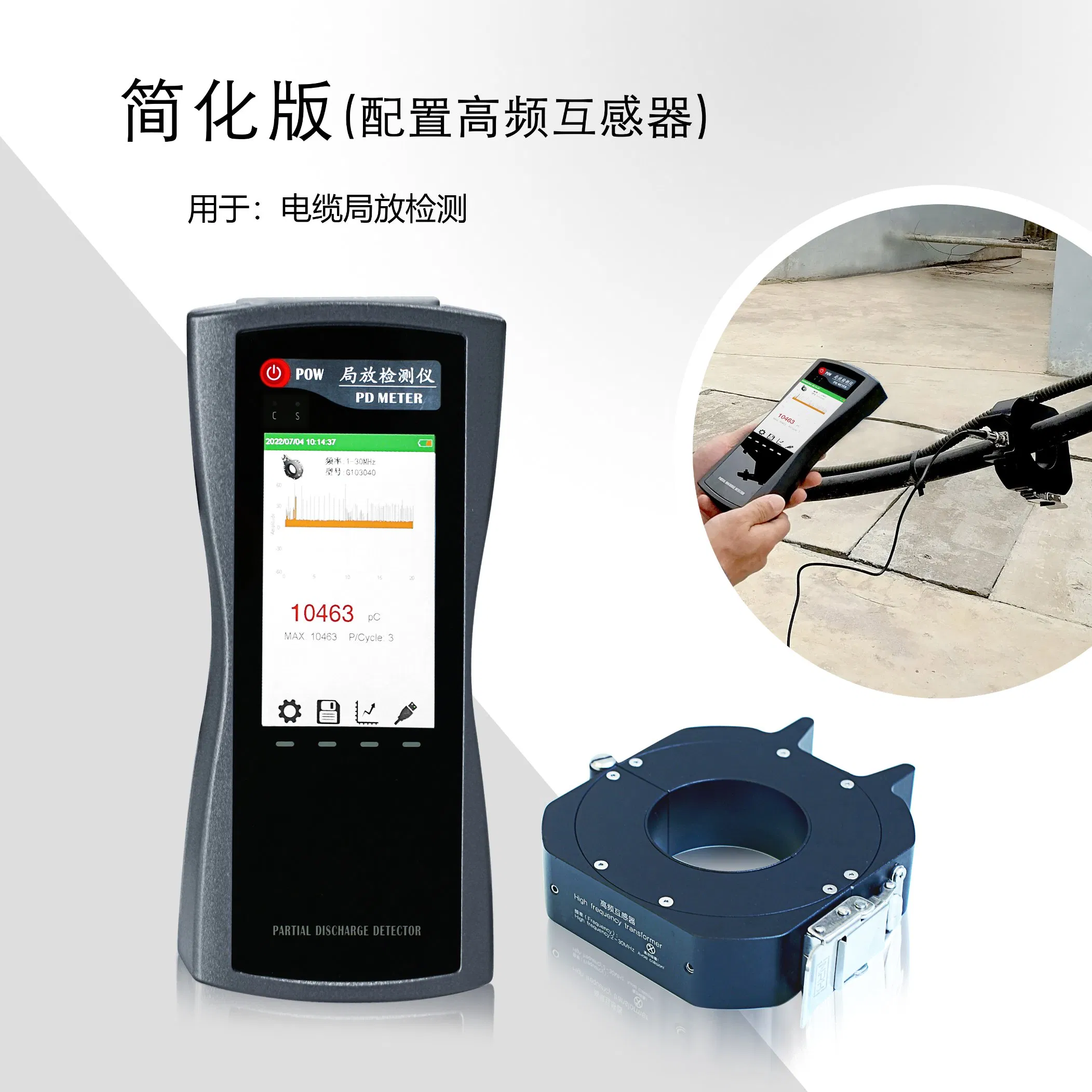

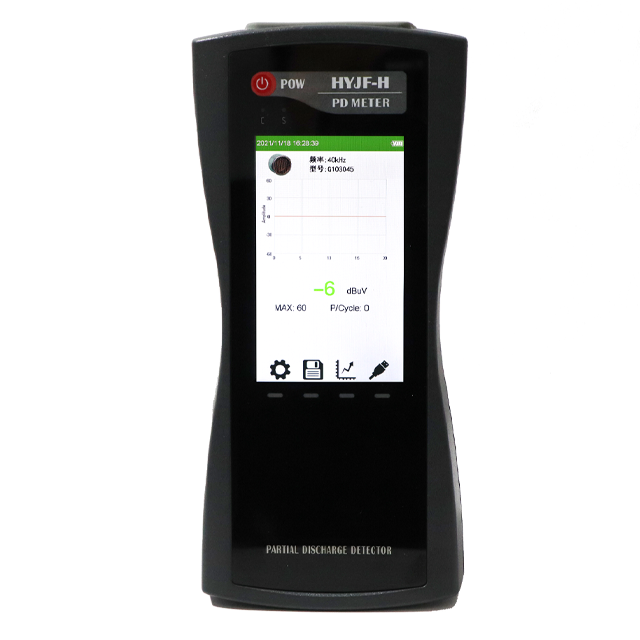

Partial Discharge Detector Display
About Our Expertise

Specializing in electric testing equipment with over 15 years of industry experience, we focus on high performance high voltage testers. Our product range includes AC/DC Hipot testers, series resonant test systems, transformer testers, and cable testers, widely adapted to electric power, water conservation, and industrial sectors.

Industrial Facility

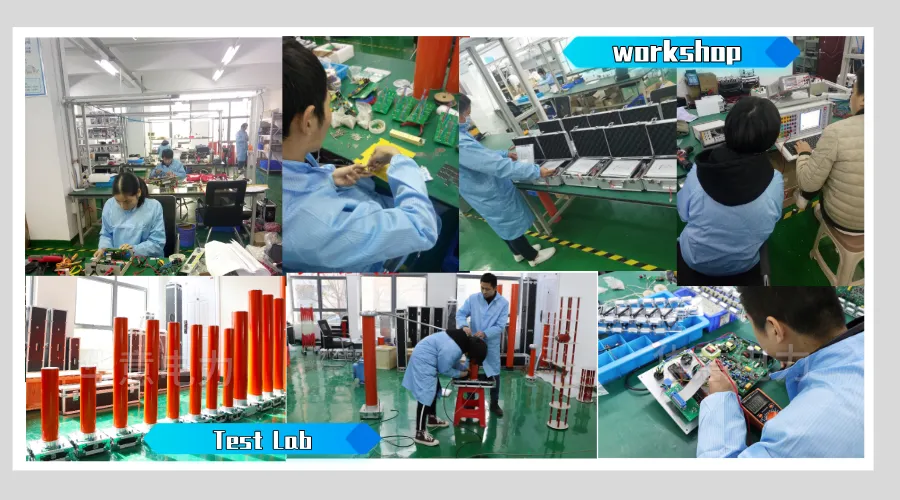

Production Line

Professional manufacturer with dedicated production lines and R&D teams to ensure high-quality standards.

Manufacturing Line
Field Testing & Services

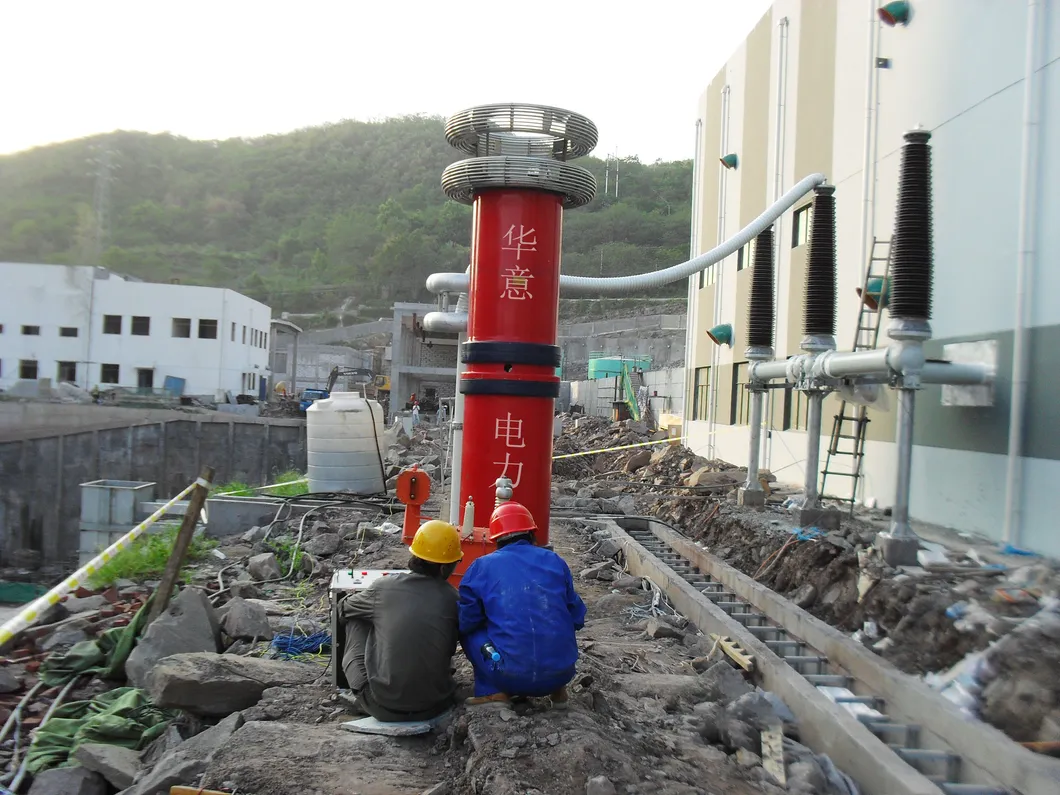

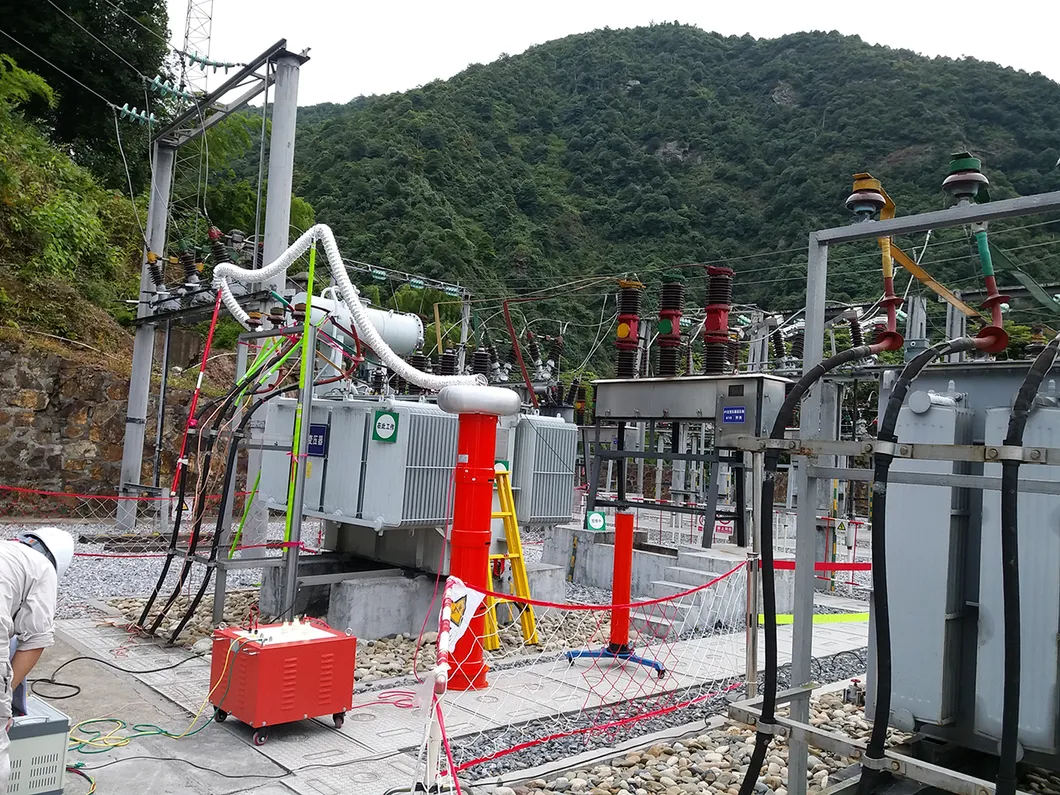

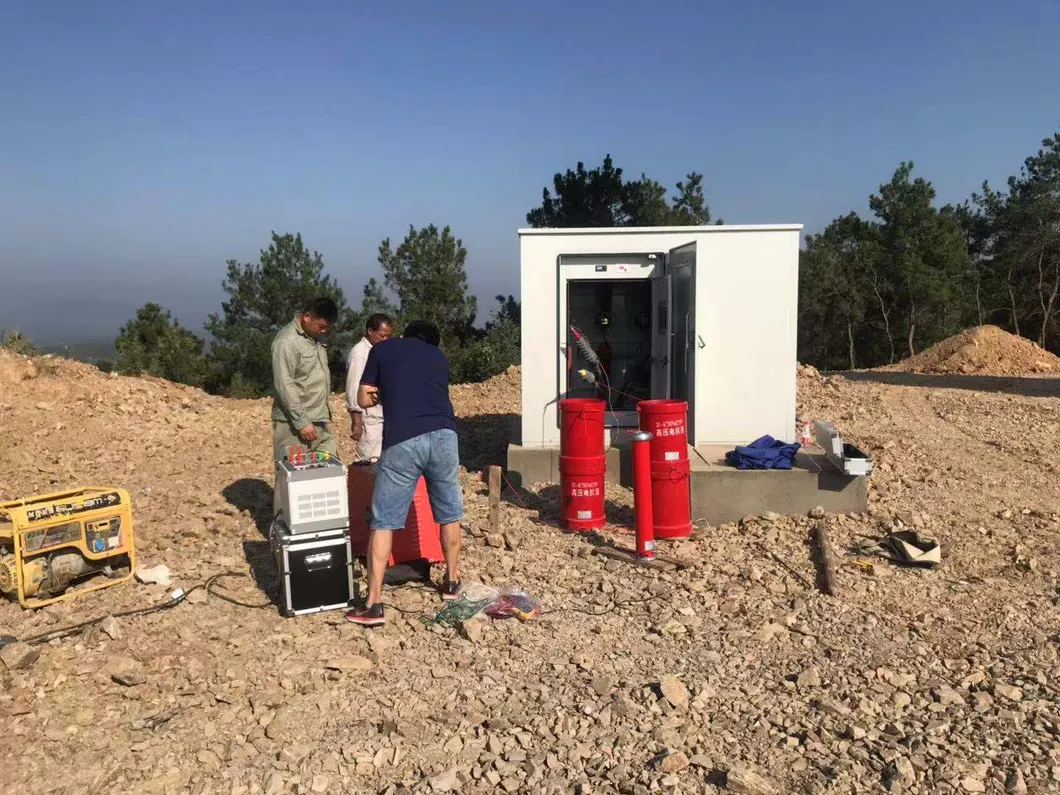

Field Test 1 Field Test 2 Field Test 3
Packing & Delivery

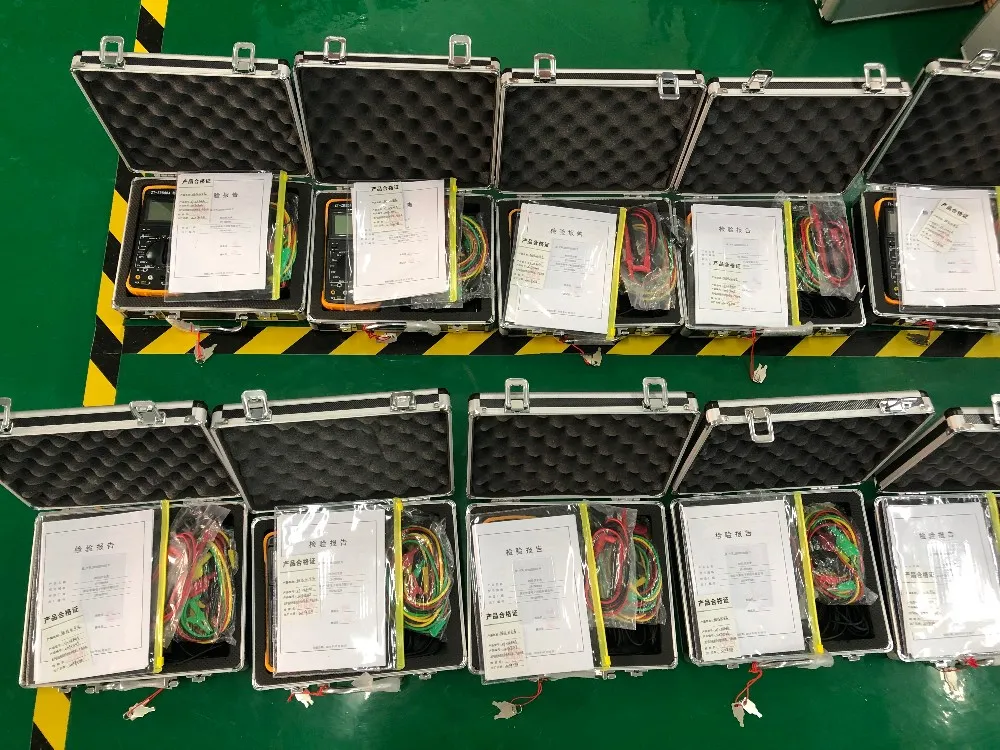

Packaging Box Delivery Ready
Certifications
Certificates Display
Frequently Asked Questions
How can I choose the most suitable model? Please provide your detailed requirements such as application type and testing range, and we will recommend the best fit for your technical needs.
What is the Minimum Order Quantity (MOQ)? The standard MOQ is generally 1 unit or set.
What payment methods are accepted? We accept various payment terms including T/T and Western Union for your convenience.
Is the equipment protected during transportation? Yes, all products are packed in standard export-grade wooden cases or plywood to ensure maximum protection.
What if I don't know how to operate the instrument? A detailed user manual is included with the shipment. Additionally, we provide ongoing technological support and guidance.
What is the standard delivery time? Standard delivery for the Partial Discharge Tester is approximately 7 days after order confirmation.
