Phone Glass Screen Measuring Microscope (EV-2515)

1 / 5

Phone Glass Screen Measuring Microscope (EV-2515)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

EV-2515

Magnification

0.7X~4.5X(28X~180X)

Illumination

Adjustable Surface & Contour

Power Supply

AC110-240V, 50Hz, 30W

Accuracy

2.5+L/150

Repeatability

0.003mm

Resolution

0.5µ M

Origin

China

🔍

Product Overview

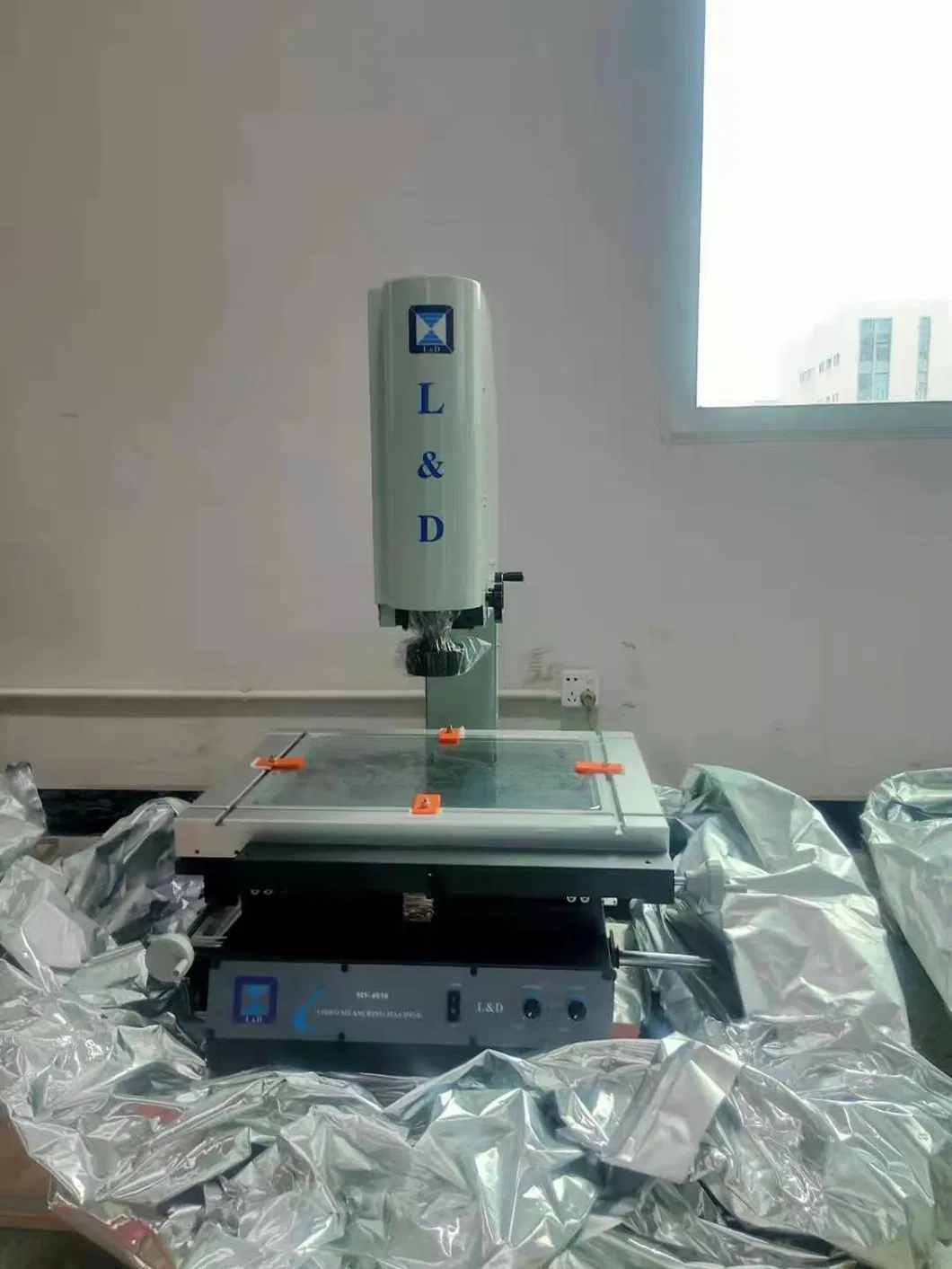

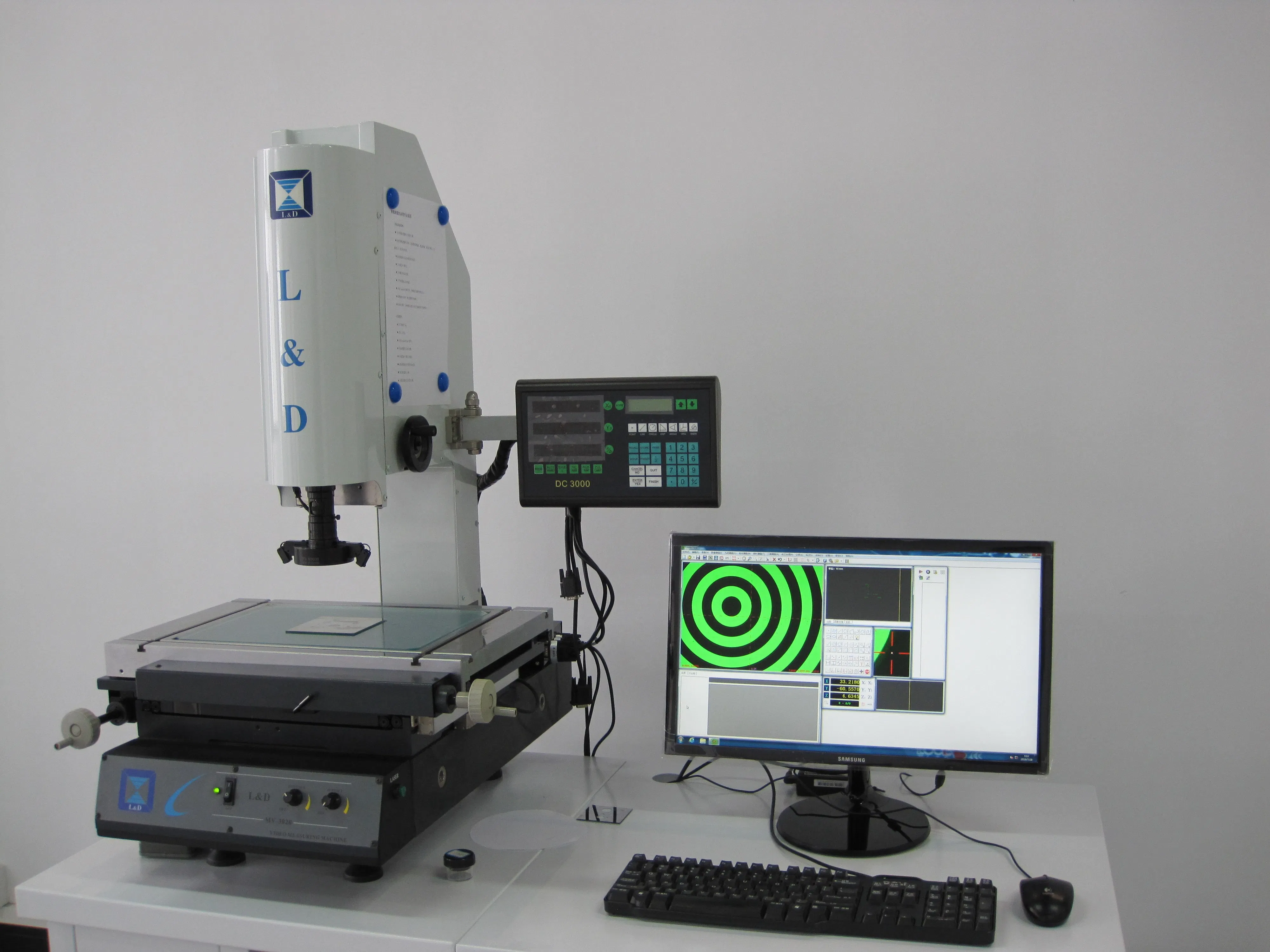

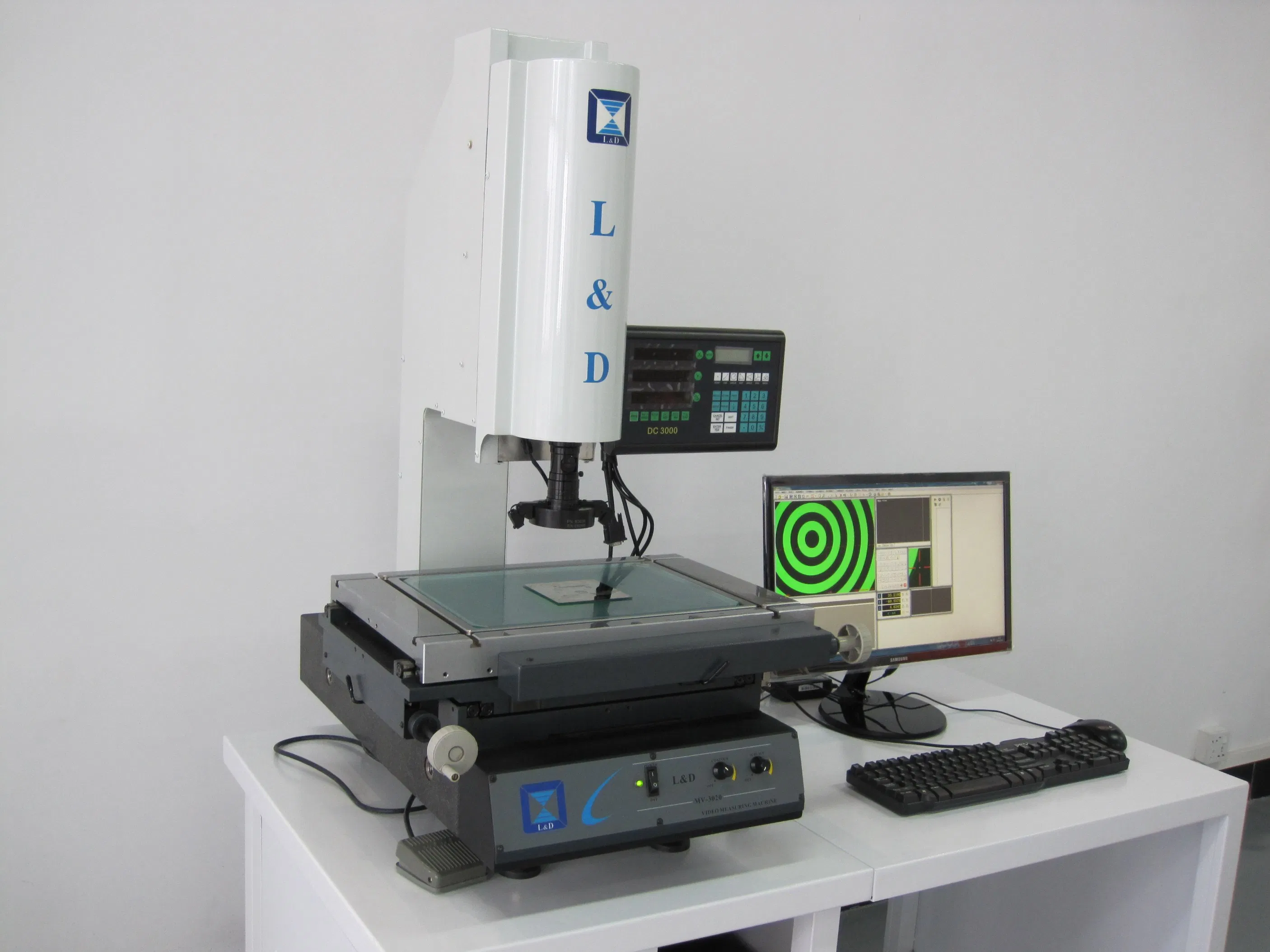

Phone Glass Screen Measuring Microscope (EV-2515)
The EV-2515 is a high-precision photoelectric measuring system comprising a high-resolution CCD, continuous zoom lens, and precision linear scales. It is engineered for industries requiring extreme accuracy and efficiency in dimensional inspection.

🛠️

Key Features

Video System: High resolution video camera for clear imaging.
Magnification: 0.7X~4.5X (28X~180X) with optional 0.5X and 2X lenses.
Digital Readout: DC3000 DRO systems with RS232 output for data export.
Sighting Device: Integrated Cross-hair for precise positioning.
Software: Professional 2D Measurement software included.

📈

Technical Comparison

Model No.	EV-1510	EV-2010	EV-2515	EV-3020	EV-4030
Travel-X. Y axis (mm)	150*100	200*100	250*150	300*200	400*300
Stage size (mm)	354*228	404*228	500*330	500*330	606*466
Max Load	10kg	10kg	15kg	20kg	30kg
Net weight	98kg	108kg	120kg	138kg	238kg

✅

Quality & Service

Quality Assurance: All machines are ISO9001 compliant and CE certified. Precision is guaranteed through rigorous hardware assembly and linear accuracy adjustment.

After-Sale Support: Includes 18 months warranty, free professional operation training, lifetime technical support, and regular software upgrades.

❓

Frequently Asked Questions

What is the measurement accuracy of the EV-2515?

The measurement accuracy is ± (2.5+L/150)µm, where L is the length of the measured work piece in millimeters.

Does the software support data output?

Yes, the system uses DC3000 DRO systems with RS232 output for seamless data transfer and 2D measurement software processing.

What industries is this microscope suitable for?

It is ideal for electronics, molding, PCB, lead frames, rubber, plastic, and various precision automotive or camera parts.

What is the warranty period for this equipment?

We provide an extended 18-month warranty instead of the standard 12 months to ensure long-term reliability.

Is training provided for the operators?

Yes, we offer free professional operation training to ensure your team can utilize the equipment's full potential.

Can the magnification be adjusted?

The standard magnification is 0.7X~4.5X (28X~180X), but optional 0.5X and 2X object lenses are available for different needs.
