Non-Contact Vision Measuring Machine (EV-2515)

1 / 1

Non-Contact Vision Measuring Machine (EV-2515)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.EV-2515

Travel XY Axis250*150mm

XY Axis Accuracy2.5+L/150

Resolution0.5micron

Stage Size450*280mm

Travel Z Axis200mm

Z Axis Range92mm

Repeatability0.003mm

Load Capacity15kg

IlluminationLED Lamp

OriginChina

HS Code9031802000

Product Overview

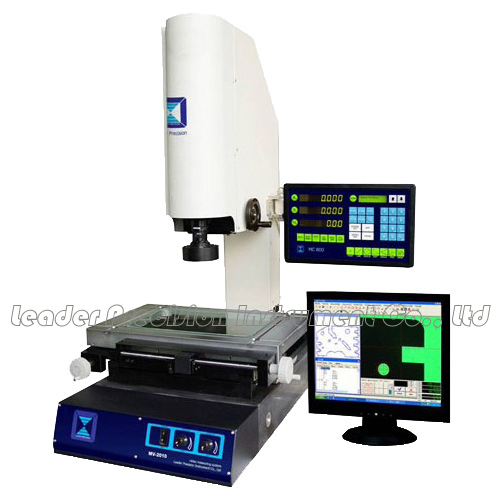

Non-Contact Vision Measuring Machine (EV-2515)

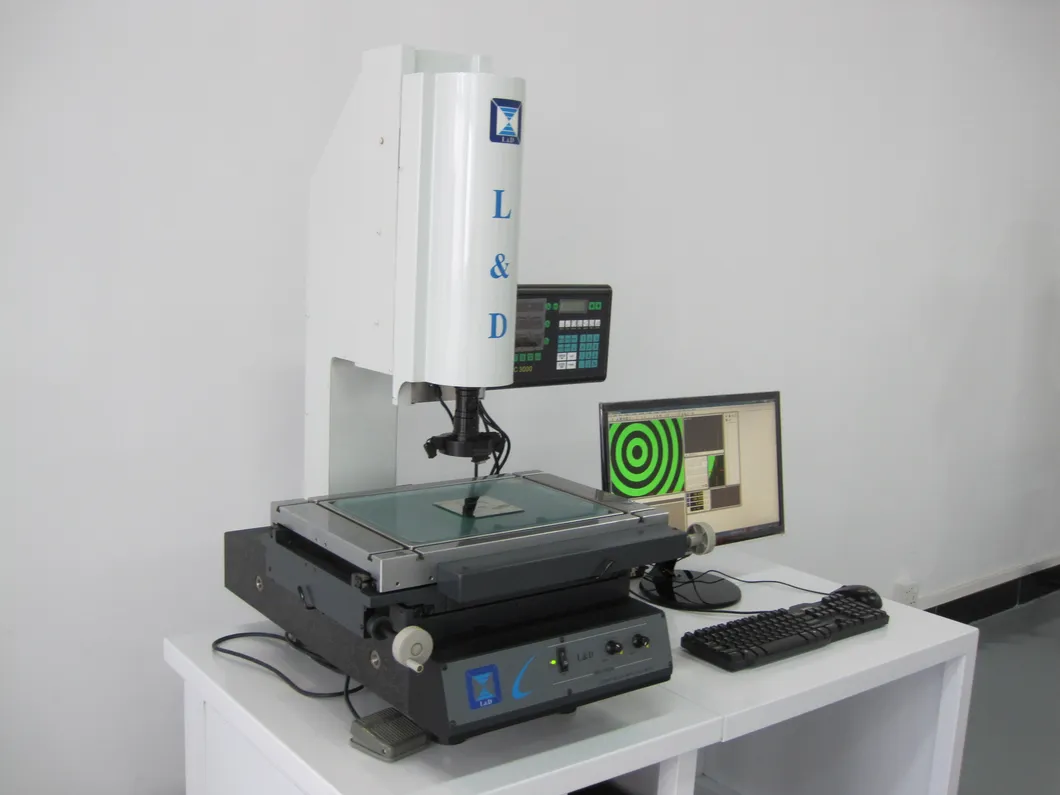

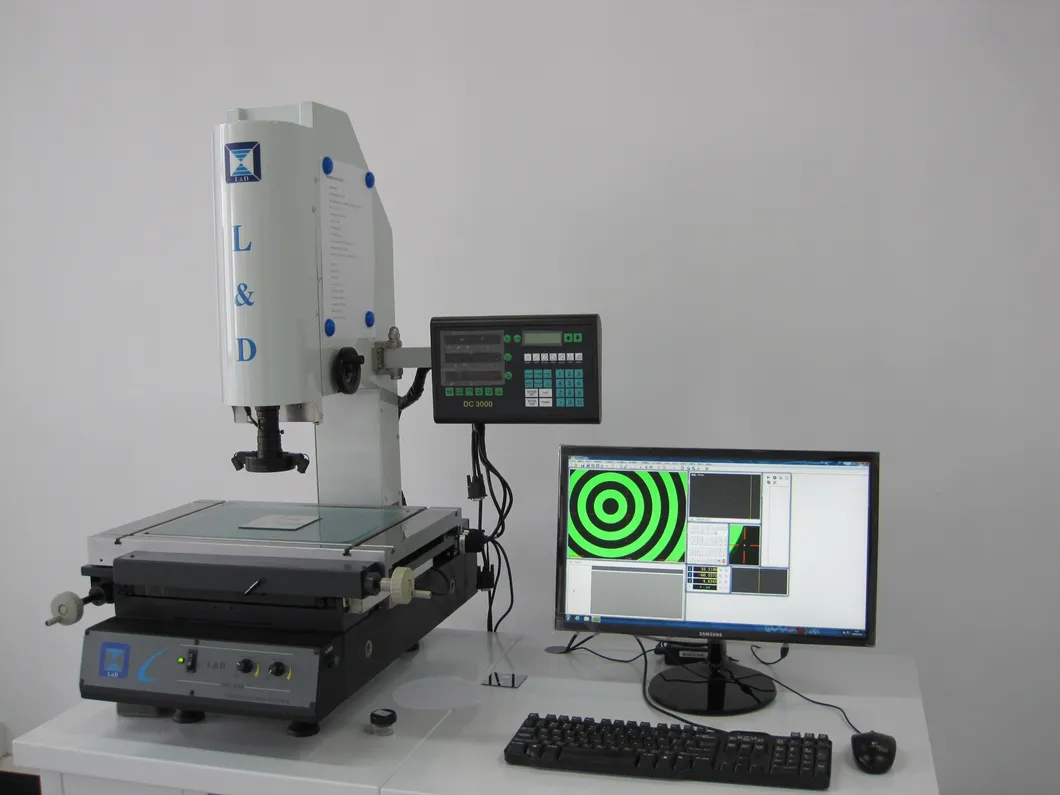

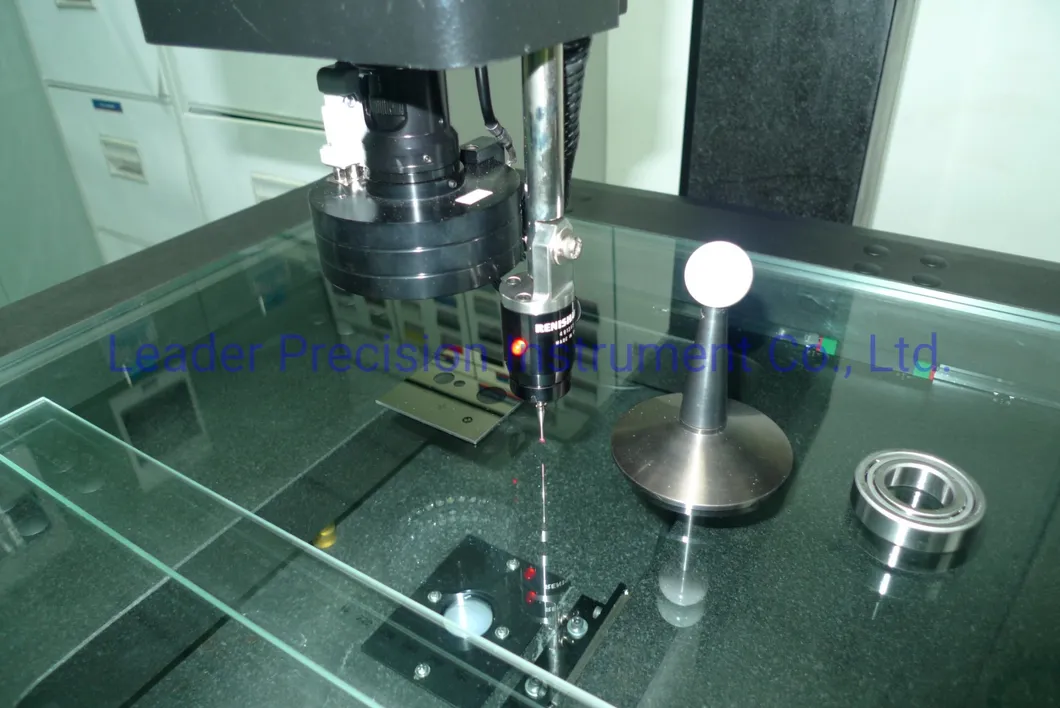

EV-2515 Non-Contact Vision Measuring Machine

This non-contact vision measuring system EV-2515 comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.

Key Features & Applications

■Applications: Electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, and lead frame.

■High Resolution: Equipped with a high resolution video camera and 0.05µM resolution linear scale.

■Magnification: 0.7X~4.5X (28X~180X); Optional lens available.

■Durability: 18 months warranty for key components including Linear encoder and CCD camera.

Technical Data Comparison

Model No.	EV-1510	EV-2010	EV-2515	EV-3020	EV-4030
Travel-XY (mm)	150*100	200*100	250*150	300*200	400*300
Travel-Z (mm)	150	150	150	150	150
Resolution	0.5µm	0.5µm	0.5µm	0.5µm	0.5µm
Accuracy (µm)	(2.5+L/150)µm
Repeatability	0.003mm	0.003mm	0.003mm	0.003mm	0.003mm
Weight (kg)	98kg	108kg	120kg	138kg	238kg
