| Model NO. | SGIC20K |
| Location | Public Use |
| Charging Interfaces | One Pile with One Charge |
| Protection | IP55 / IK10 |
| Type | Fast EV Charging Station |
| Package Size | 650 * 325 * 1605 cm |
| Gross Weight | 135.000kg |
| Transport Package | Wooden Box |
| Capacity | 2000 Pieces/Year |

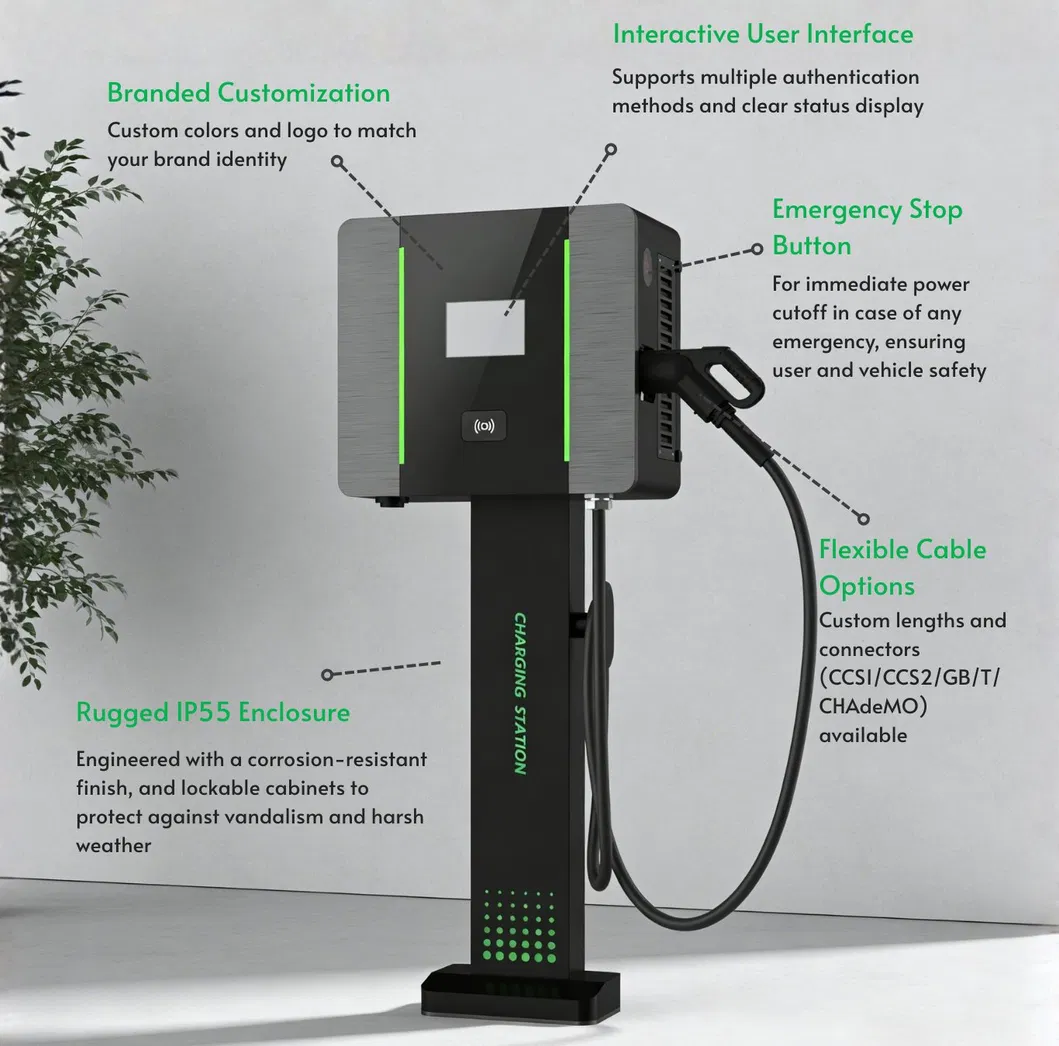

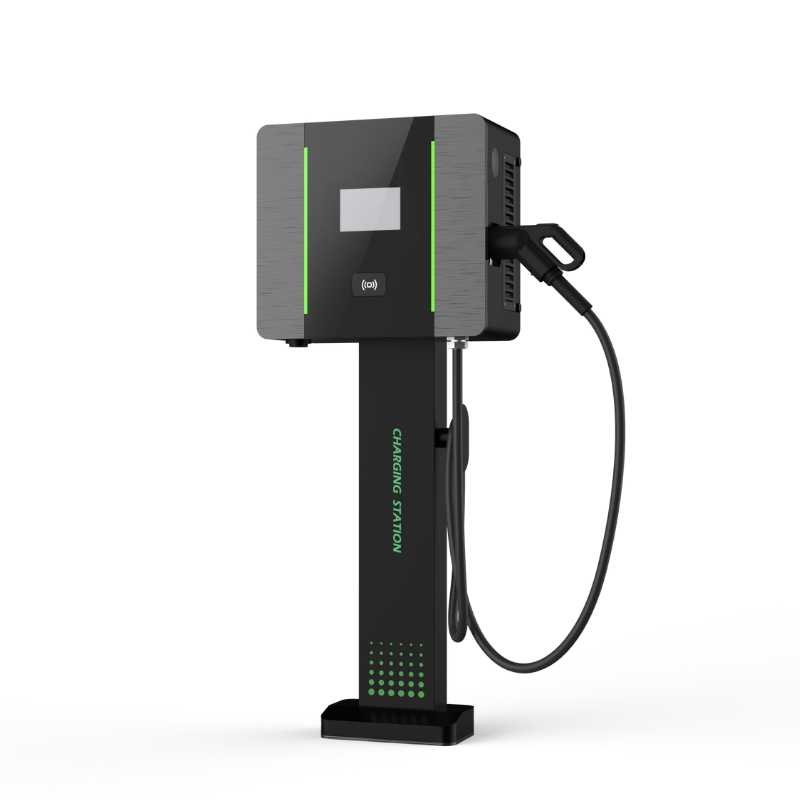

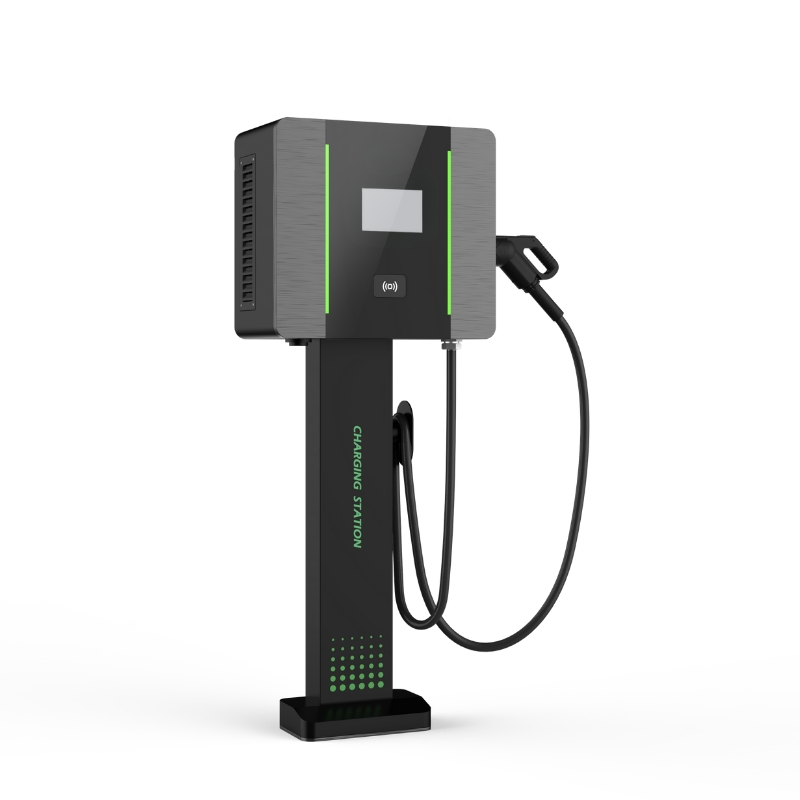

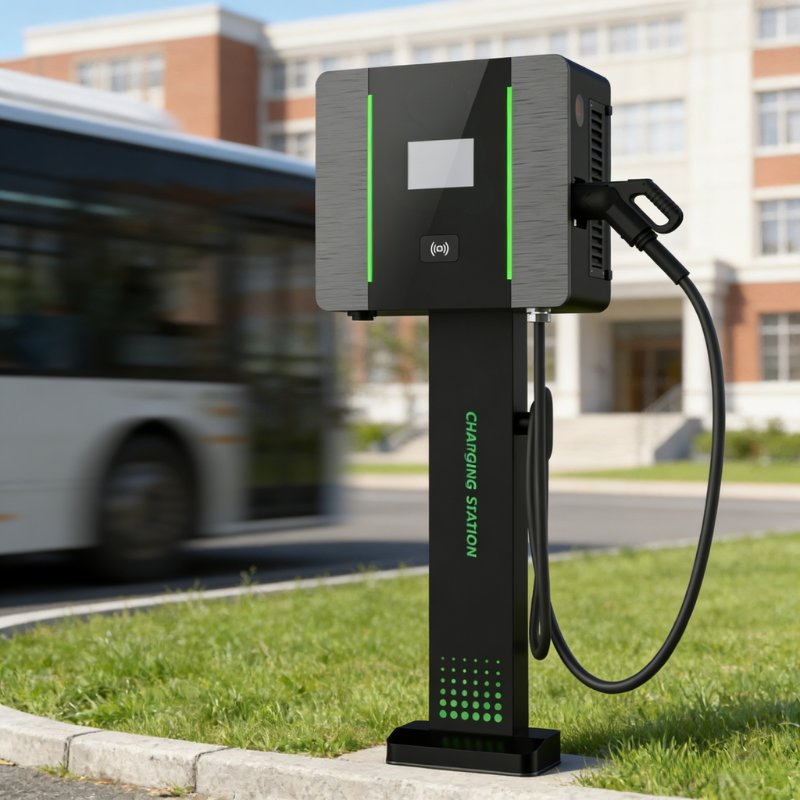

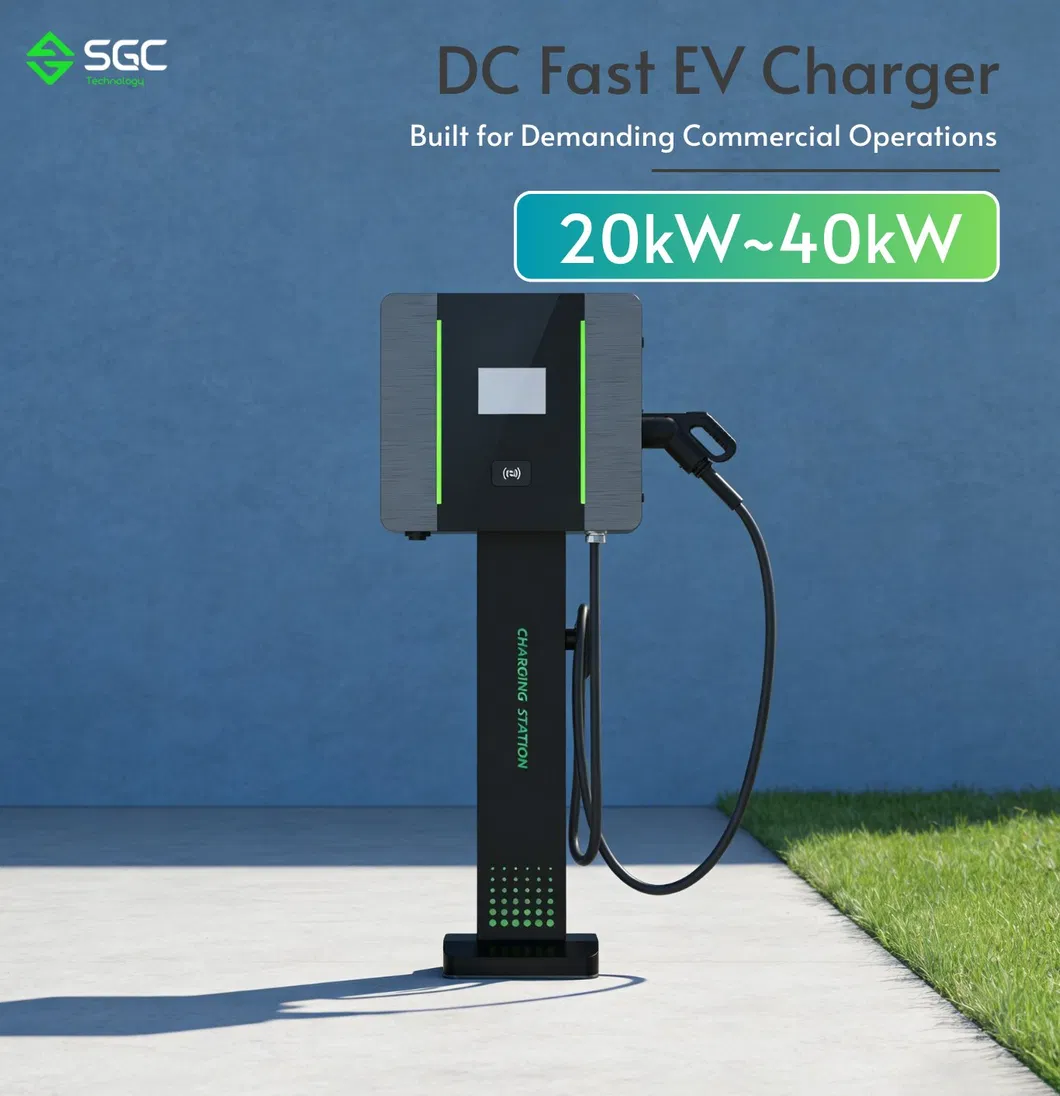

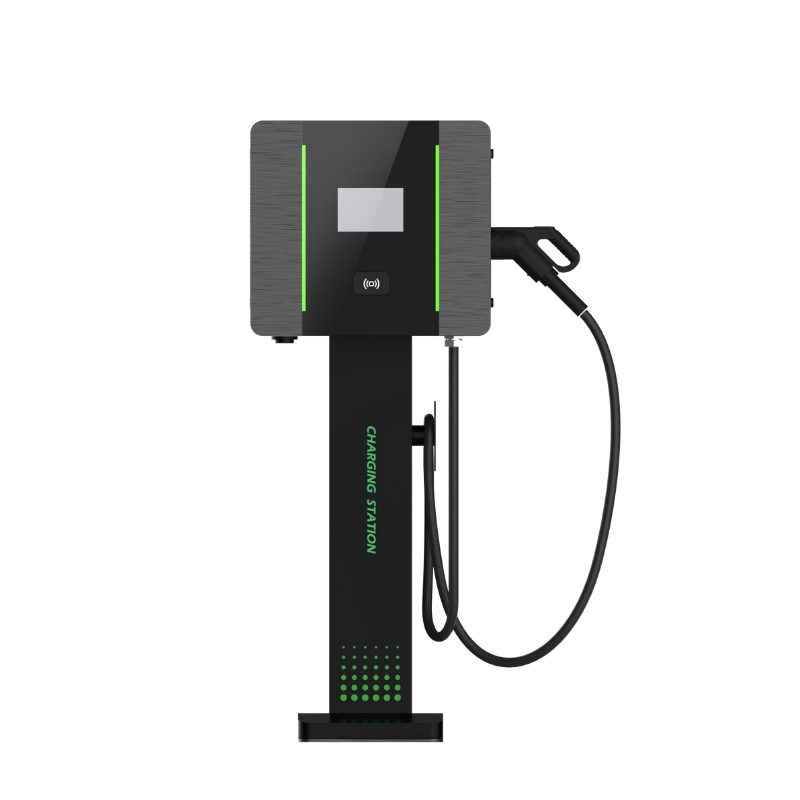

This 20-40kW compact DC EV charger is a versatile and space-efficient solution designed for diverse charging needs, including urban workplaces, retail destinations, fleet depots, and multi-unit residential buildings.
Supports single or double gun charging (CCS1, CCS2, GB/T, or CHAdeMO). Operates within -20°C to 55°C with IP55/IK10 protection for indoor/outdoor use.

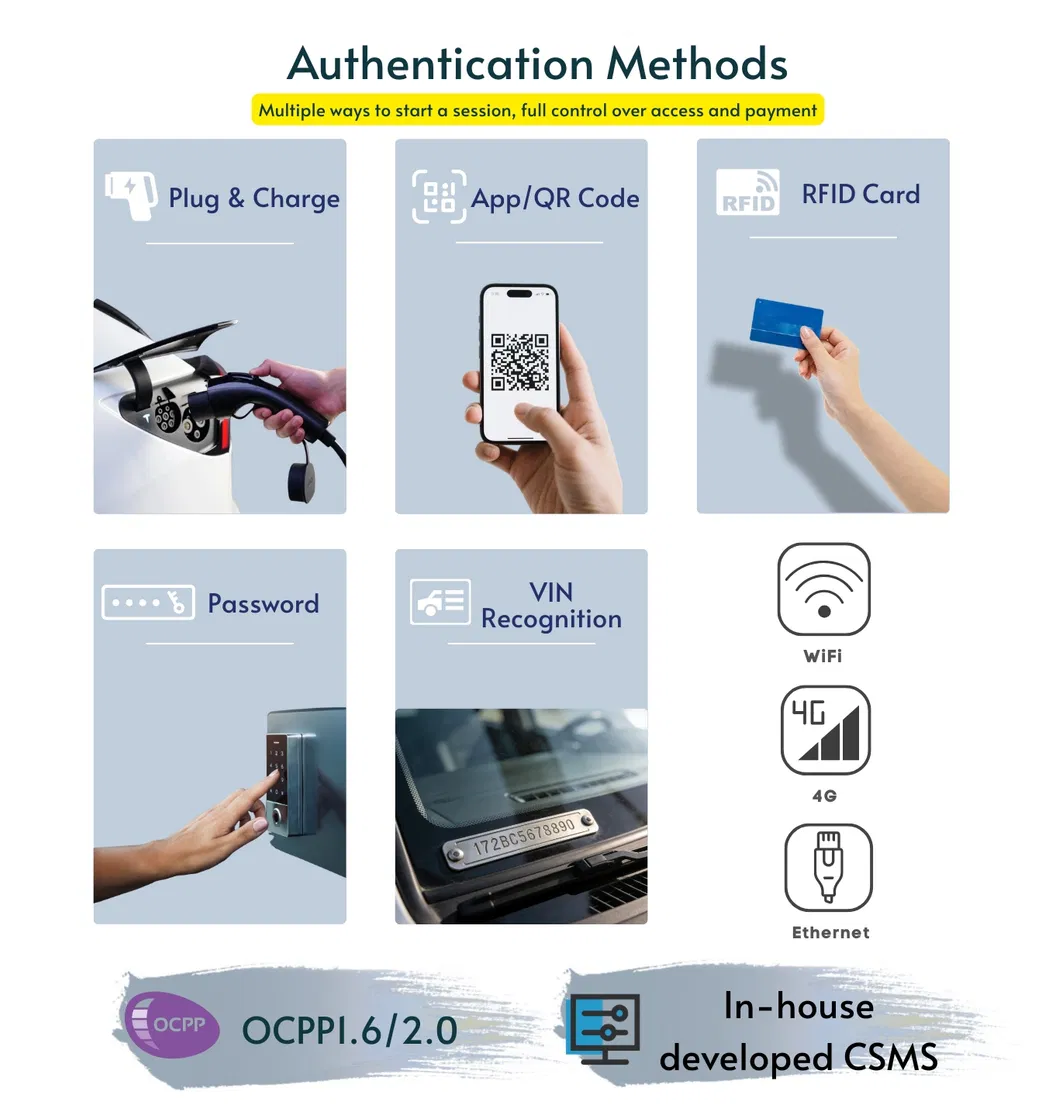

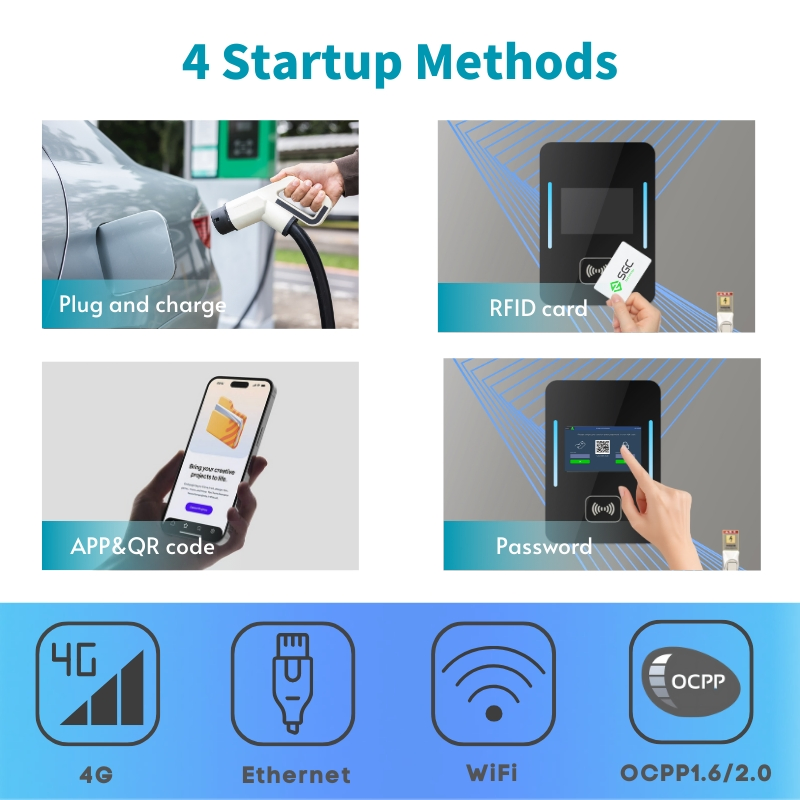

Features OCPP 1.6J/2.0 compliance, RFID/App authentication, and remote diagnostics via a cloud-based CSMS platform.
| Product Information | |
| Output Power | 20KW / 30KW / 40KW |
| Interface | 7" LCD Touch Screen |

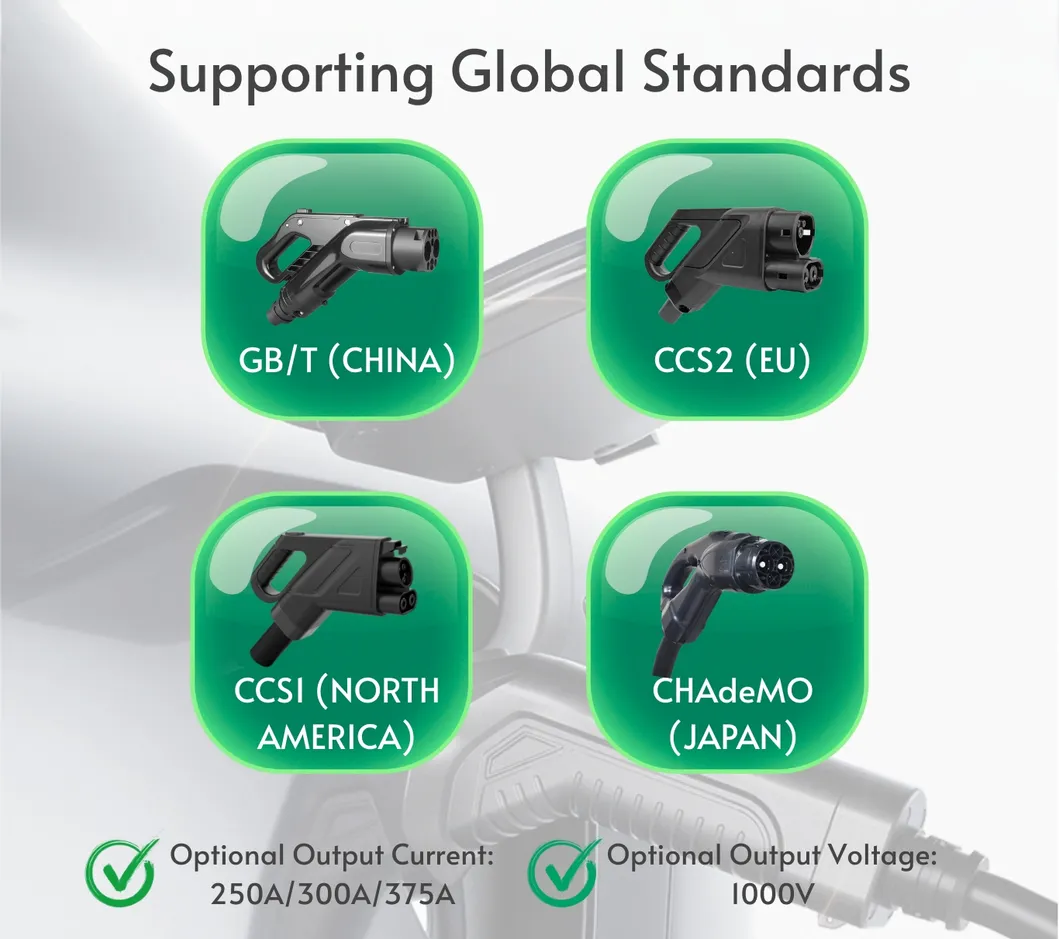

| Connector Type | CCS1 / CCS2 / GBT / CHAdeMO |
| Connectivity | 4G / Ethernet / WiFi |
| Design Life | ≥ 8 Years |
| Electrical Parameters | |
| Input Voltage | AC380V ± 15% |
| Output Voltage | 50~1000VDC |
| Operating Efficiency | ≥ 94% |
| Power Factor | ≥ 0.99 |
| Environmental Parameters | |
| Operating Temp | -20°C ~ +55°C |
| Operating Humidity | 0% ~ 95% |
| Cooling Method | Forced Air Cooling |

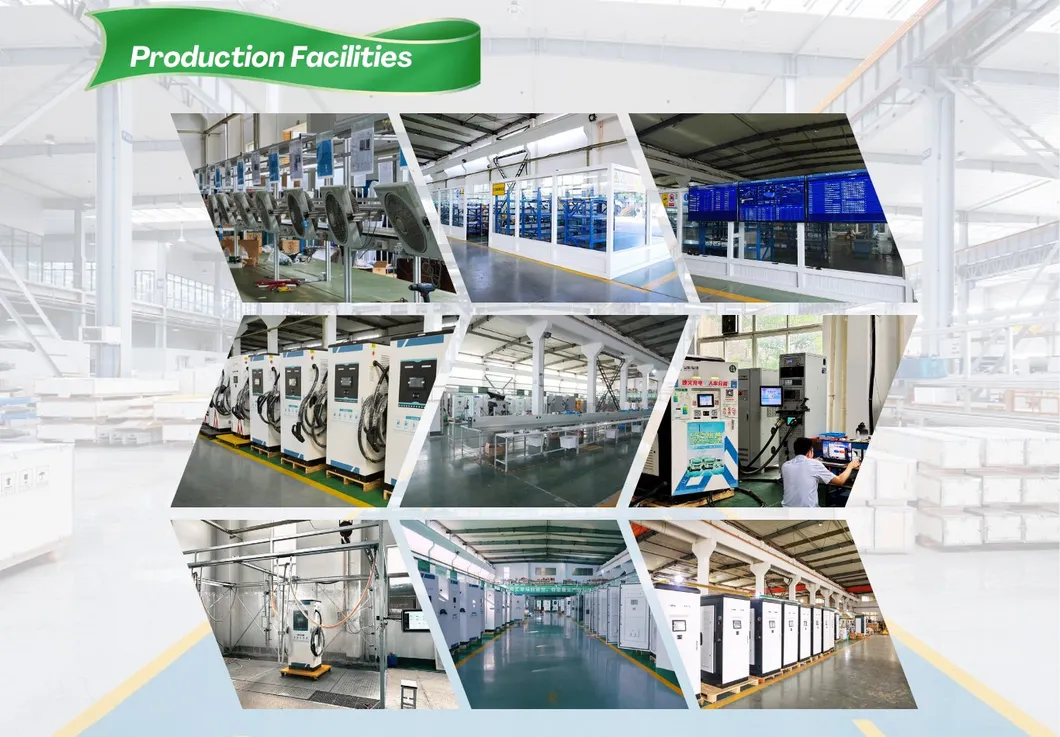

Specializing in the R&D, production, and sales of high-power DC fast chargers, AC chargers, and mobile charging solutions since 2008. We possess full in-house capabilities across hardware, software, and platform development.

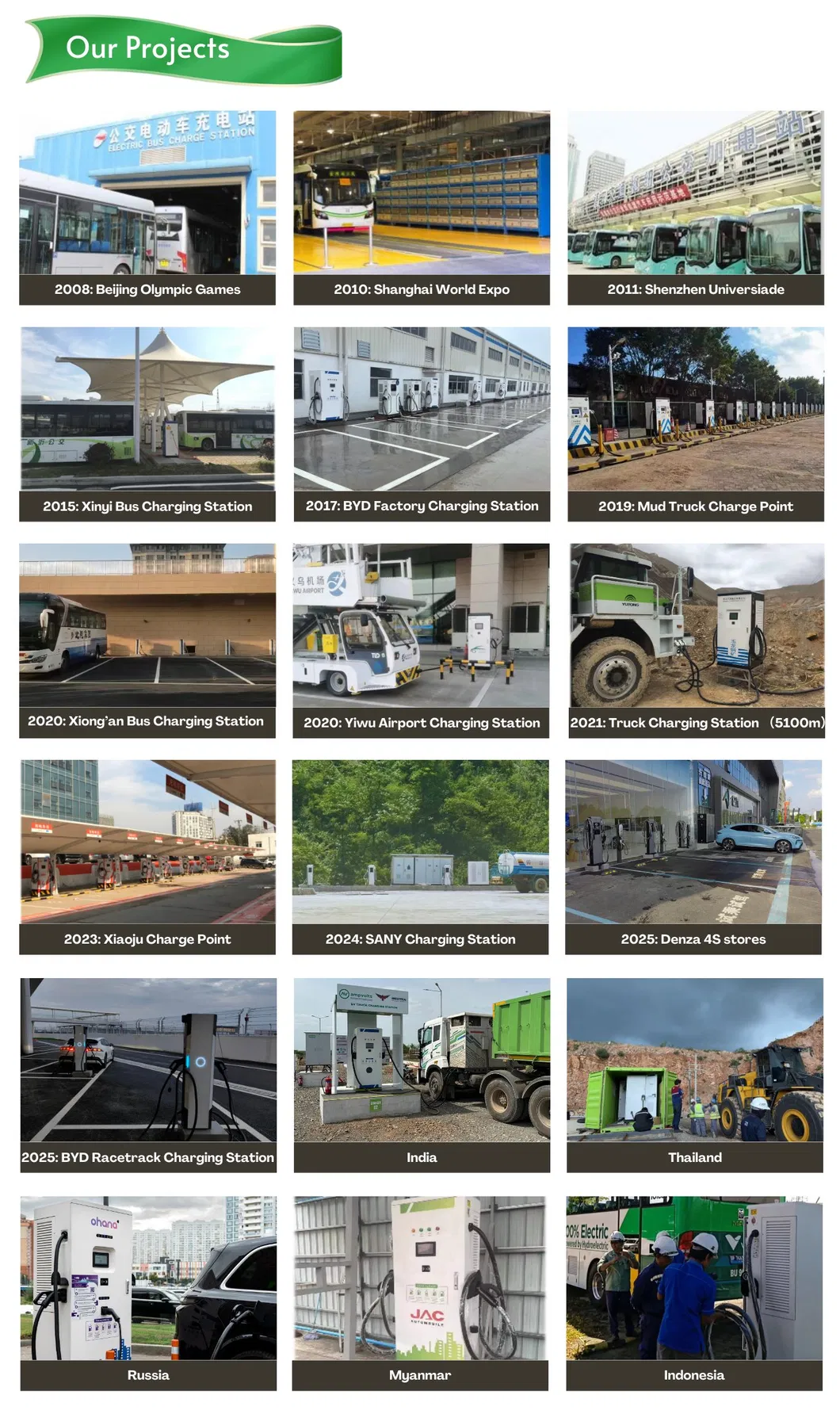

Our mission: "Making Quality Chargers, Powering a Greener Future." We've served clients in over 30 countries worldwide with innovative and reliable charging infrastructure.
