Digital Inspection and Measurement System (EV-2515)

1 / 5

Digital Inspection and Measurement System (EV-2515)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

Basic Specifications

Model

EV-2515

Magnification

0.7X~4.5X(28X~180X)

Power Supply

AC110-240V, 50Hz, 30W

Resolution

0.5µm (X.Y.Z Axis)

Accuracy

2.5+L/150

Repeatability

0.003mm

Digital Readout

DC-3000 DRO Systems

Software

2D Measurement Software

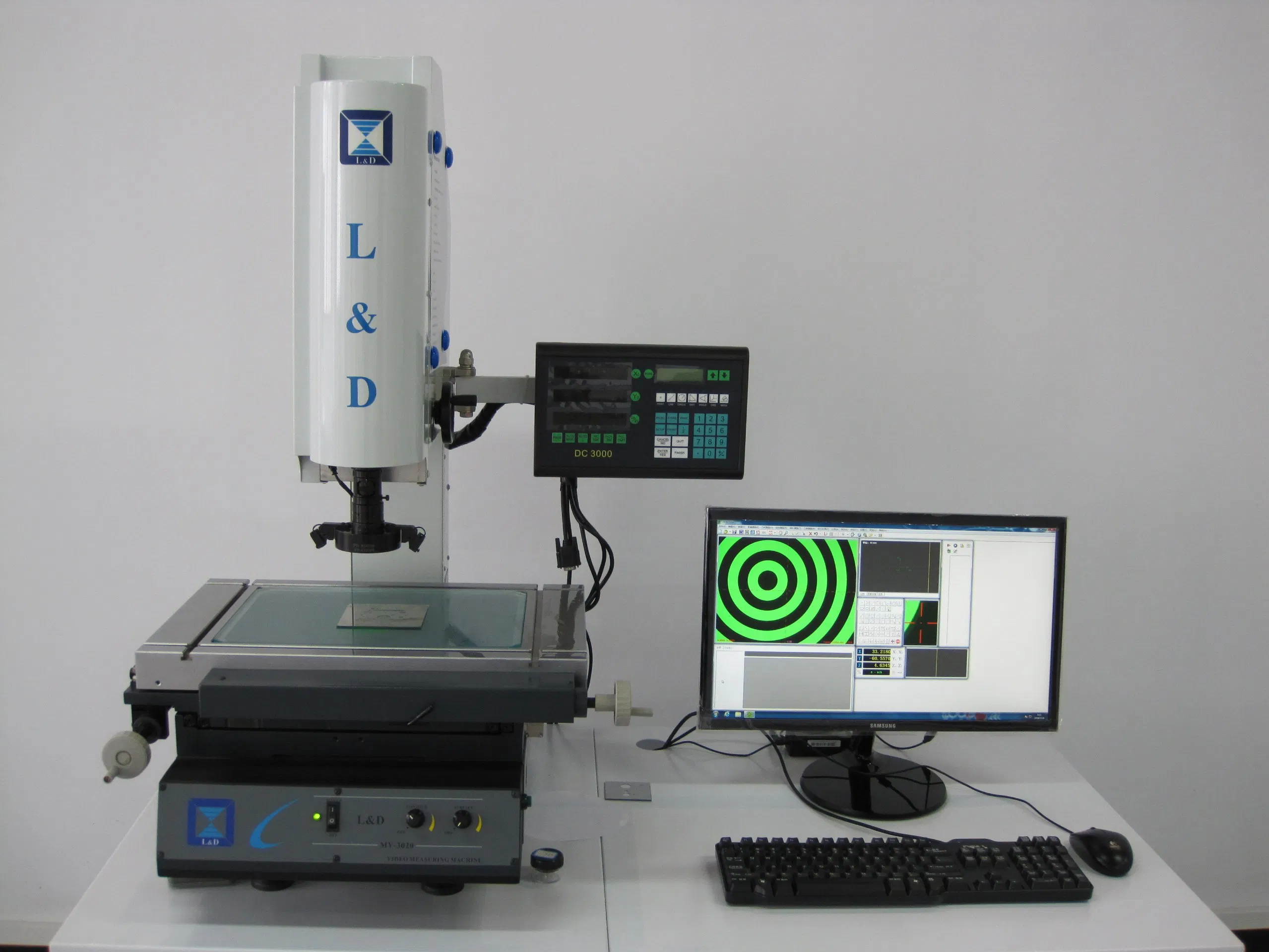

Digital Inspection and Measurement System (EV-2515)

The Digital Inspection and Measurement System EV-2515 comprises a high-resolution CCD, continuous zoom lens, high-precision linear scale, and stage. It is a photoelectric measuring system with high precision and efficiency, widely adopted in various precision engineering sectors.

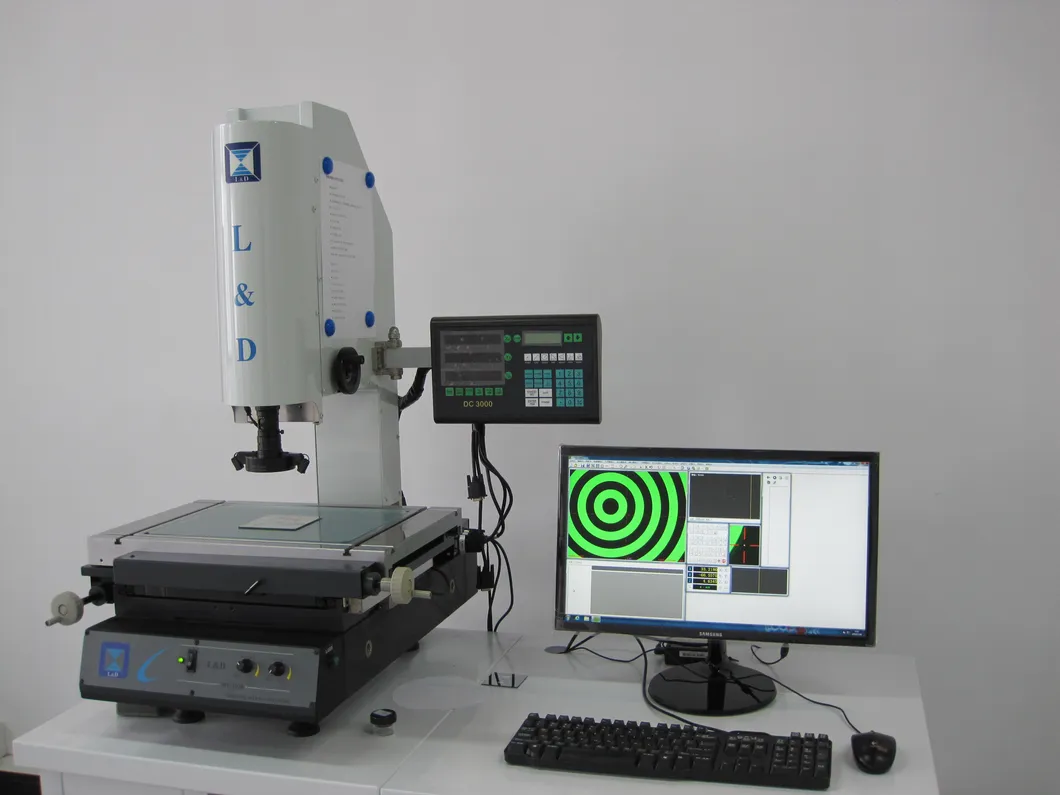

Digital Inspection and Measurement System Front

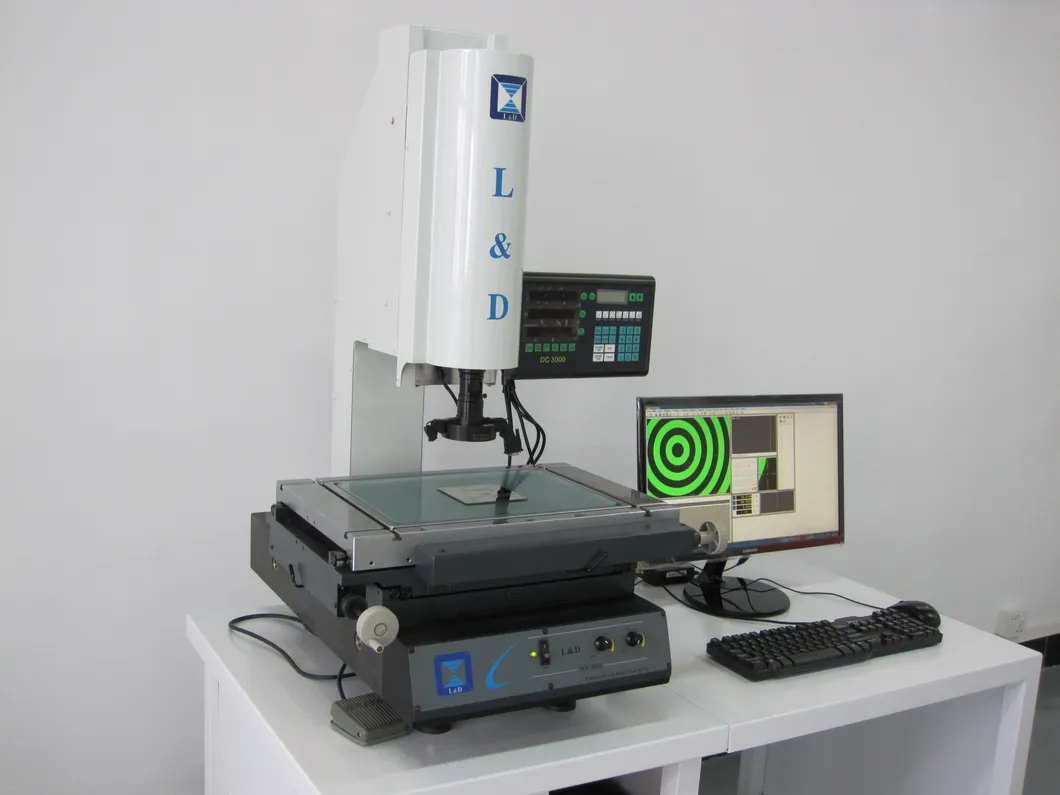

Digital Inspection and Measurement System Side

Core Features & Applications

Application Scope: Suitable for electronic, molding, press, spring, screw, plastic, rubber, valve, motor parts, PCB, and other precision industries.
Video System: Equipped with a high-resolution video camera for clear imaging.
Advanced Optics: 0.7X~4.5X Magnification (Optional 0.5X, 2X lens available).
Illumination: Fully adjustable surface and contour lighting.
Precision Hardware: 0.5µm resolution linear scales and DC-3000 DRO with RS232 output.

Model Comparison Table

Model No.	EV-1510	EV-2010	EV-2515	EV-3020	EV-4030
Travel-X. Y axis (mm)	150*100	200*100	250*150	300*200	400*300
X, Y Accuracy (µm)	(2.5+L/150)	(2.5+L/150)	(2.5+L/150)	(2.5+L/150)	(2.5+L/150)
Stage Load	10kg	10kg	15kg	20kg	30kg
Net weight	98kg	108kg	120kg	138kg	238kg

💎 Quality System & After-Sales Support

✅ Certified Quality: All machines are CE certified and built on ISO9001 standards.

✅ Hardware Accuracy: Instruments are assembled and adjusted with linear accuracy for maximum stability.

✅ Extended Warranty: Total 18 months warranty (standard is usually 12 months).

✅ Support: Lifetime technical support and free software upgrades are provided.

Frequently Asked Questions (FAQ)

What industries is the EV-2515 suitable for?

It is designed for precision industries including electronics, molding, PCB manufacturing, rubber, and motor parts inspection.

What is the measurement accuracy of this system?

The system offers an accuracy formula of ± (2.5+L/150)µm and a repeatability of 0.003mm.

Does the software require regular payments?

No, the 2D measurement software is included, and regular software updates are available free of charge.

What is the warranty period for this equipment?

We provide an extended 18-month warranty to ensure long-term reliability for our customers.

Is technical training provided for new operators?

Yes, we provide free professional operation training to ensure your team can utilize the equipment effectively.

Can the magnification be customized?

The standard magnification is 0.7X~4.5X, but optional 0.5X and 2X object lenses are available to meet specific needs.
