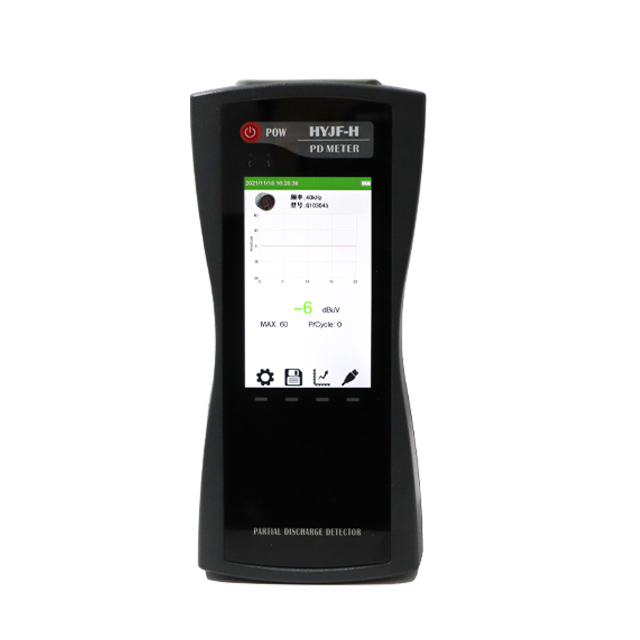

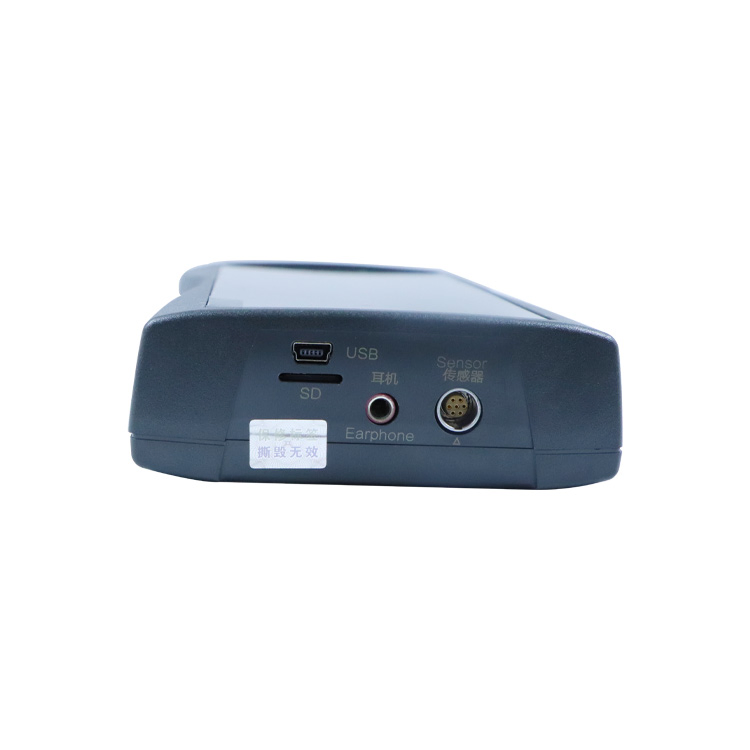

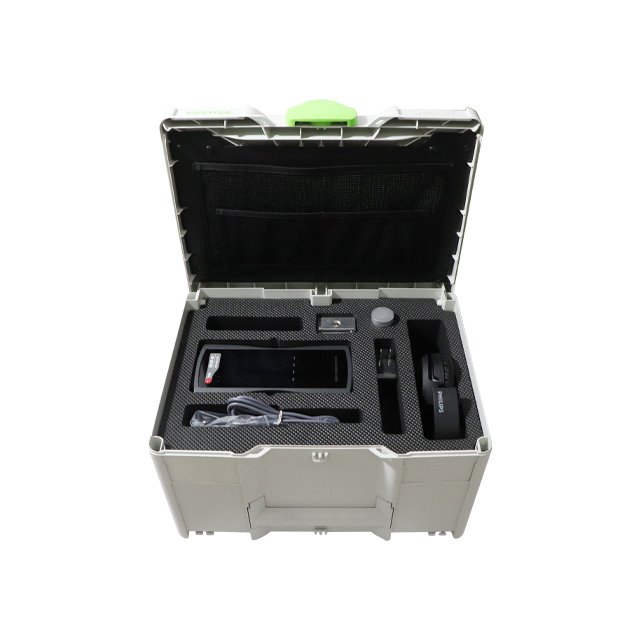

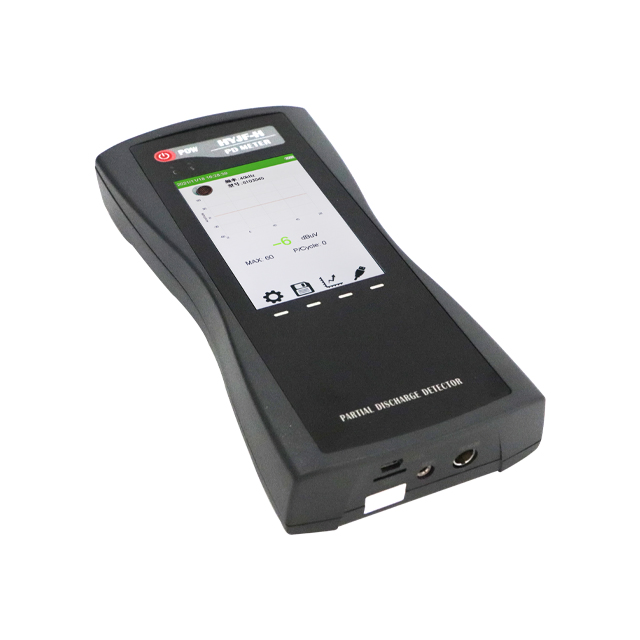

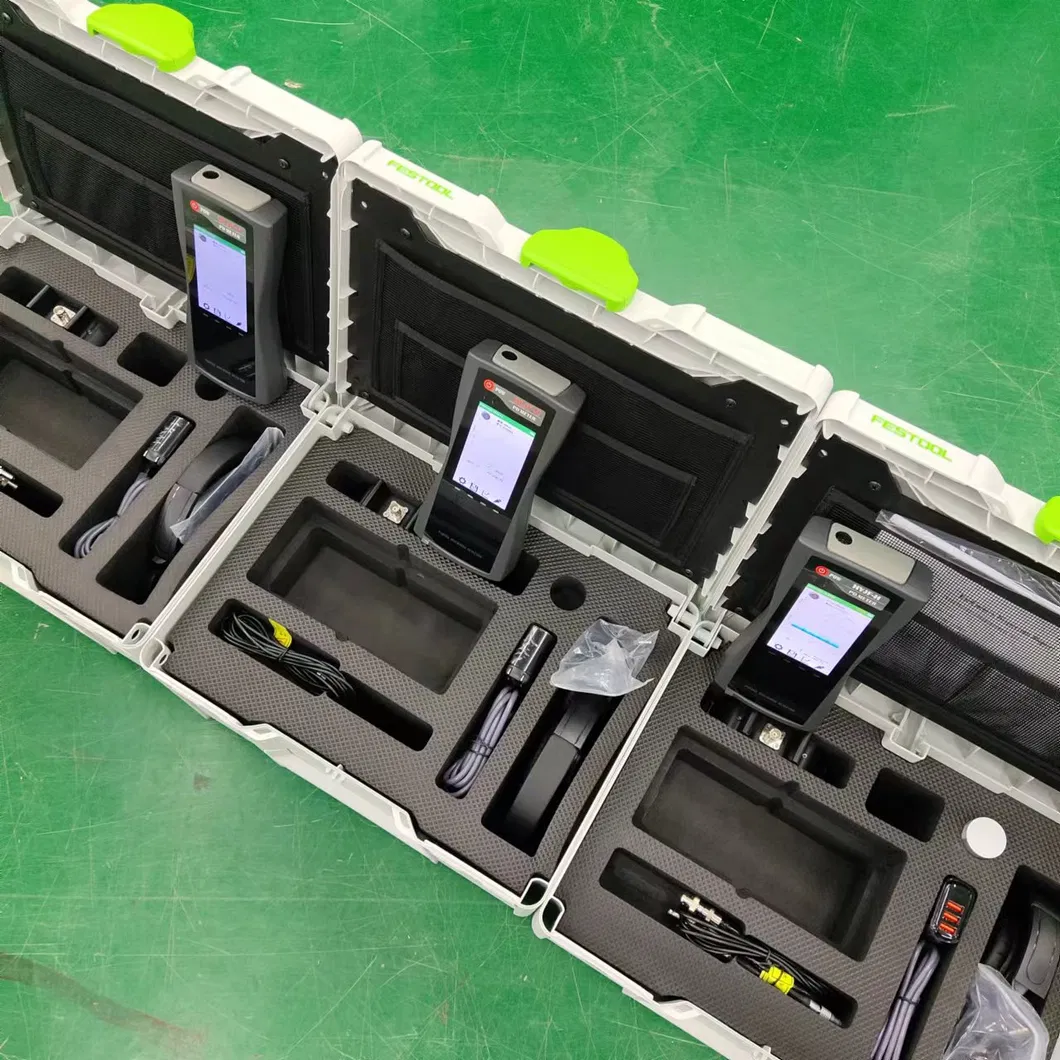

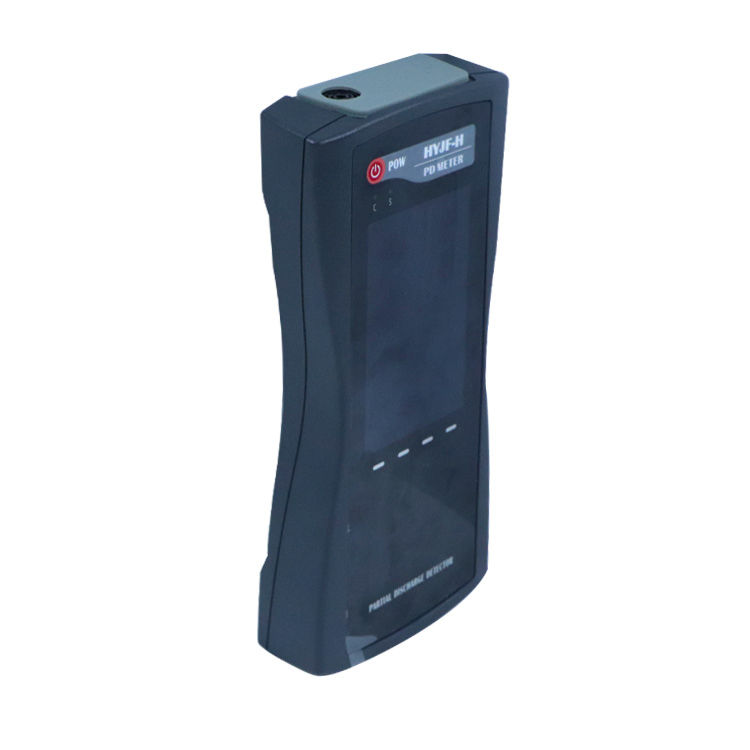

Cable PD Detector Partial Discharge Test Instrument Easy to Take

Partial discharge does not cause the electric discharge of a completely short-circuited electrode. Such discharge usually has a very small amplitude value, but it will certainly cause the continuous deterioration of the property of the insulation layer and finally cause electric equipment fault. The non-intrusive partial discharge detection, as a convenient and simple method, is used for identifying the potential insulation faults which may cause power cutoff or personal injury.

Technology Parameters:

• Detection Methods: UHF (Ultra High Frequency), UA (Ultrasonic Analysis) and TEV (Transient Earth Voltage).
• Detection Frequency: UA: 40-200KHz; TEV: 3-100MHz; UHF: 300-2000MHz.
• Sensitivity: Minimum 10pC.
• Display: 3.5" TFT color screen.
• Storage: 1000 groups of test data.
• Power: 8.4V lithium battery for 8h operation.

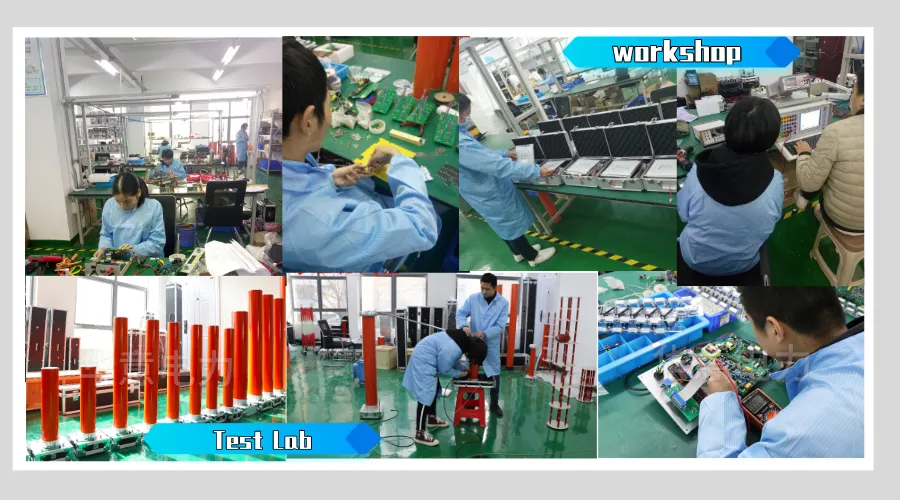

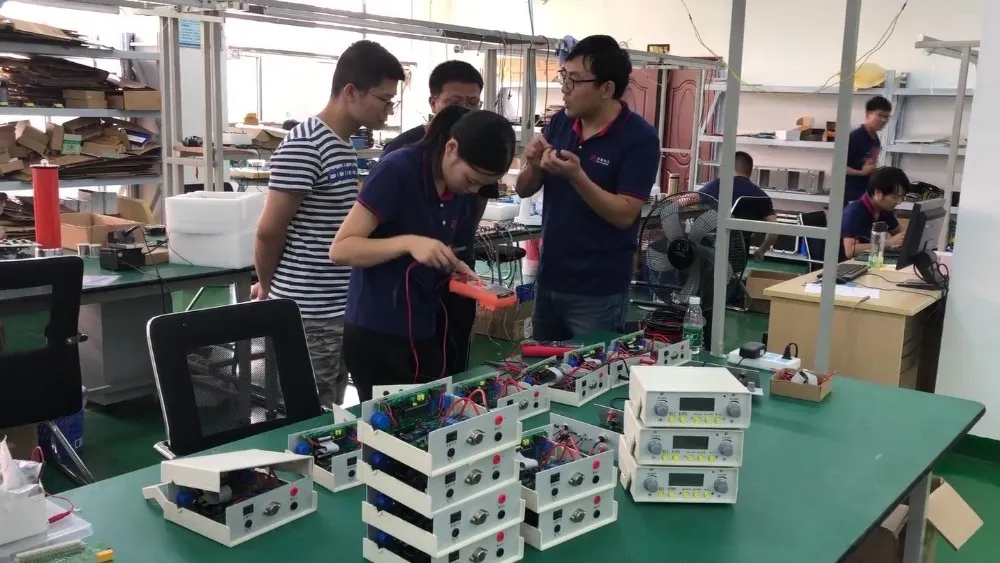

We have our own production line and R&D team, providing high-performance electric testing equipment including AC/DC Hipot testers, series resonant test systems, and transformer testers.
