Benshtop 2D Non-Contact Measuring Microscope (EV-2515)

1 / 5

Benshtop 2D Non-Contact Measuring Microscope (EV-2515)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

📦 Basic Information

Model NO.

EV-2515

Magnification

0.7X~4.5X(28X~180X)

Illumination

Adjustable Surface & Contour

Linear Scale

0.5µ M Resolution

Accuracy

(2.5+L/150)µ M

Software

2D Measurement Software

Stage Size

500*330mm

Dimension

760X600X900

Specification

SGS, ISO, CE

🖼️ Product Portrait

🔍 Product Overview

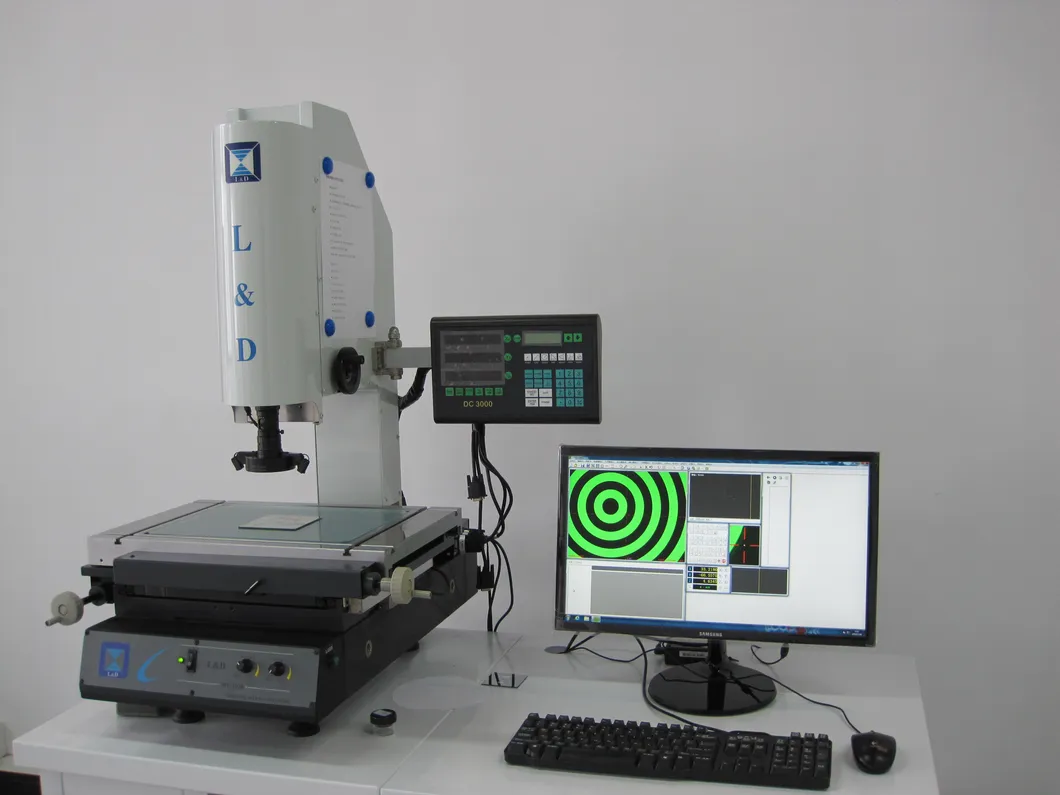

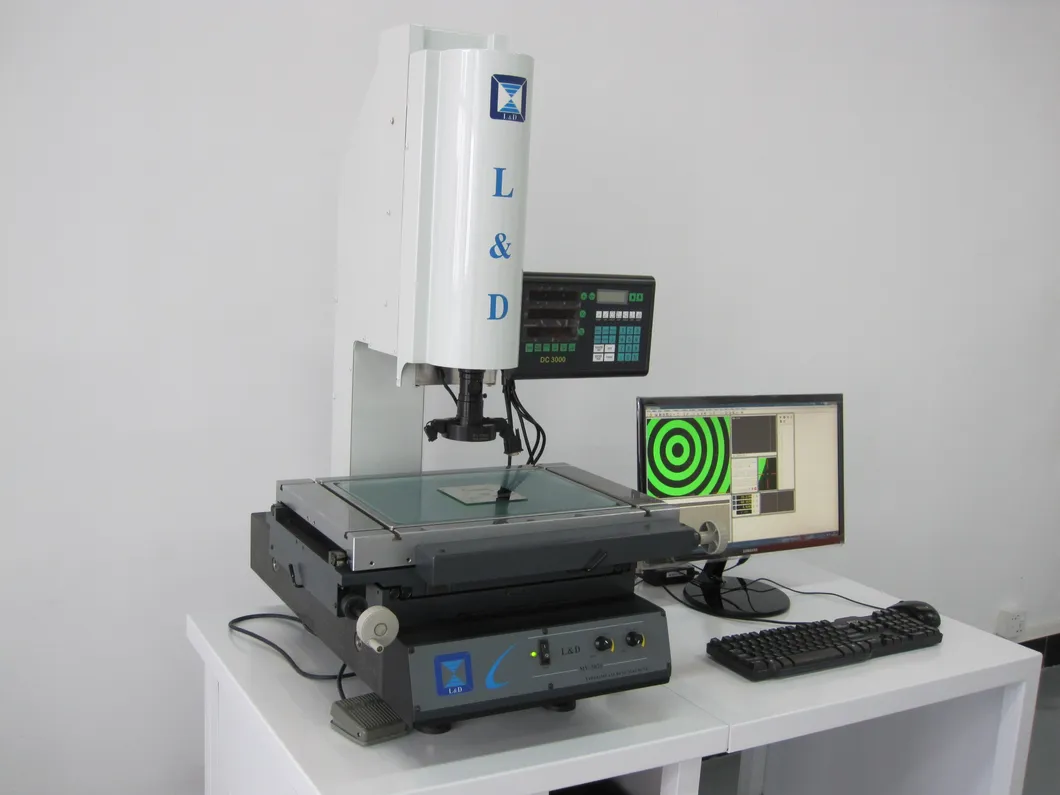

Benshtop 2D Non-Contact Measuring Microscope (EV-2515)

The EV-2515 comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency widely used in various precision industries.

Applications: Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, and other precision industries.

📊 Technical Specification Comparison

Model No.	EV-1510	EV-2010	EV-2515	EV-3020	EV-4030
Travel-X. Y axis	150*100(mm)	200*100(mm)	250*150(mm)	300*200(mm)	400*300(mm)
Resolution	0.05µ m	0.05µ m	0.05µ m	0.05µ m	0.05µ m
X, Y accuracy	(2.5+L/150)µ m	(2.5+L/150)µ m	(2.5+L/150)µ m	(2.5+L/150)µ m	(2.5+L/150)µ m
Net weight	98kg	108	120	138	238

🛡️ Quality System & After-Sale

Quality Management System based on ISO9001 with CE certification.
Instruments assembled and adjusted with linear accuracy for maximum stability.
Professional technical service team familiar with assembly and software debugging.
Extensive Warranty: 18 months instead of the standard 12 months.
Lifetime technical support and free regular software updates.

❓ Frequently Asked Questions

Q: What is the measurement accuracy of the EV-2515?

A: The accuracy is rated at (2.5+L/150)µ M, providing high precision for industrial applications.

Q: Does the system include software?

A: Yes, it comes with dedicated 2D Measurement Software for efficient data analysis.

Q: What industries is this microscope suitable for?

A: It is ideal for electronics, molding, PCB, automotive parts, and any industry requiring non-contact precision measurement.

Q: How long is the warranty period?

A: We provide an extended 18-month warranty for all our measuring machines.

Q: What kind of illumination does it use?

A: It features adjustable illumination for both surface and contour lighting to ensure clear imaging.
