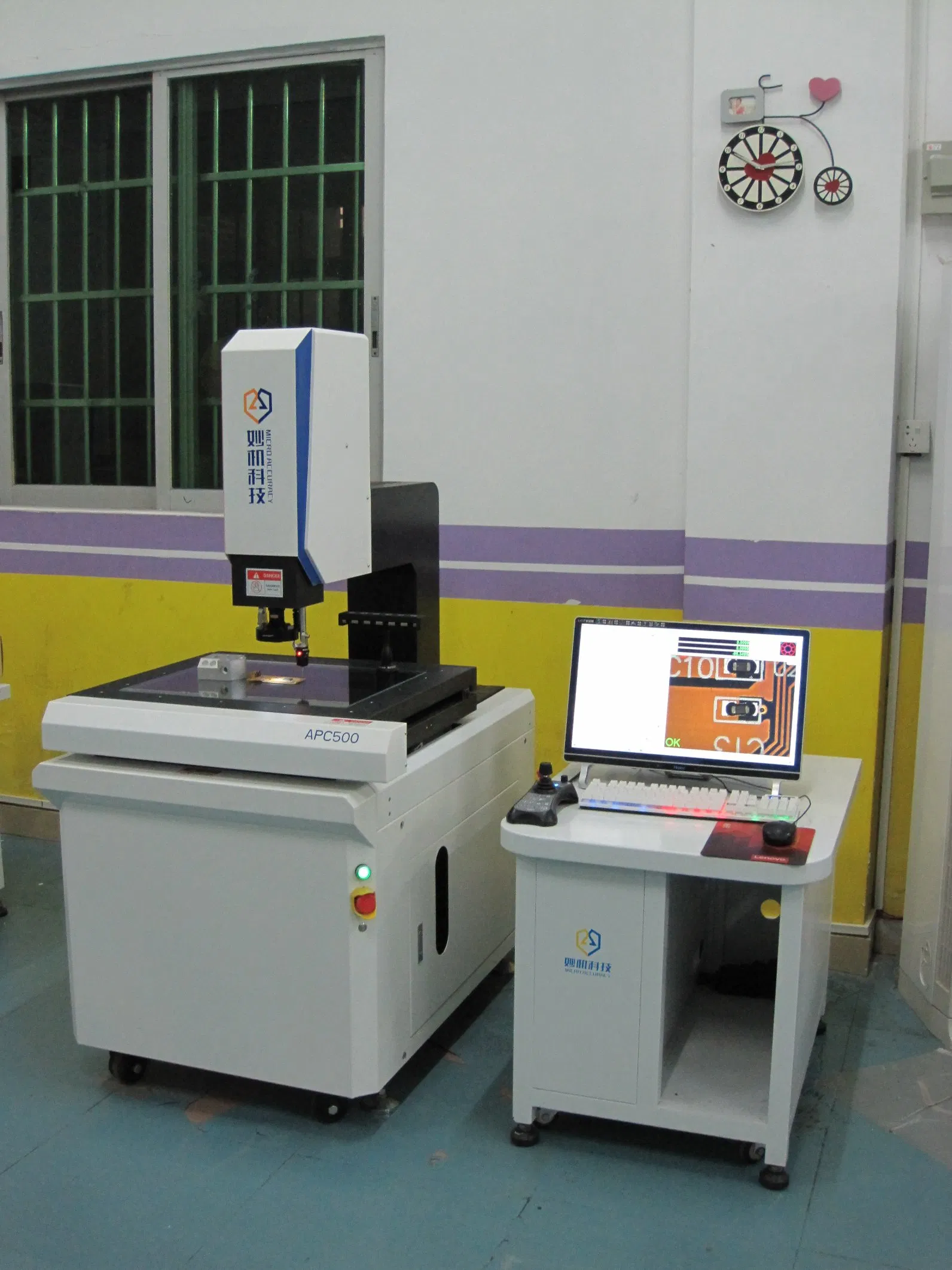

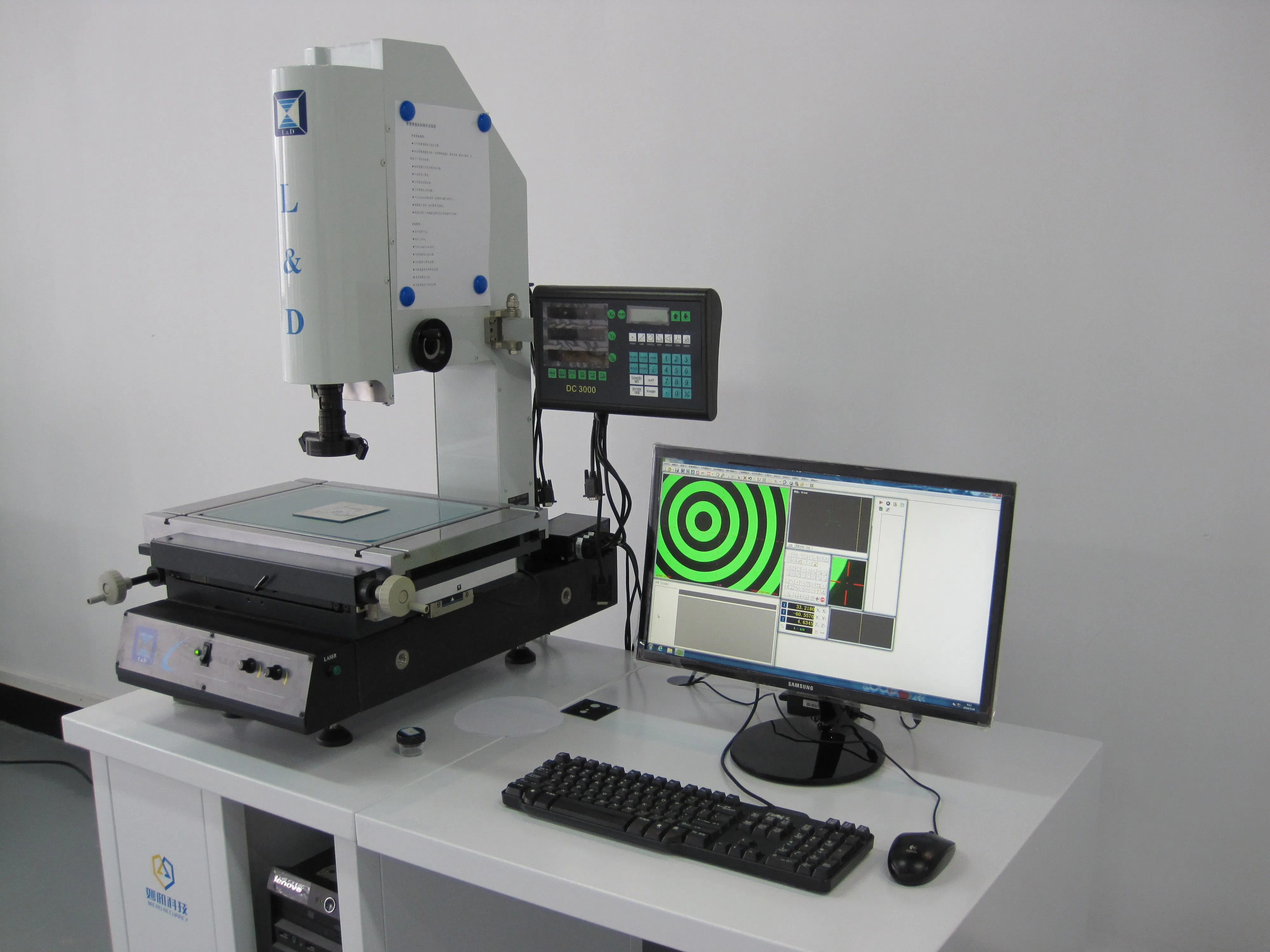

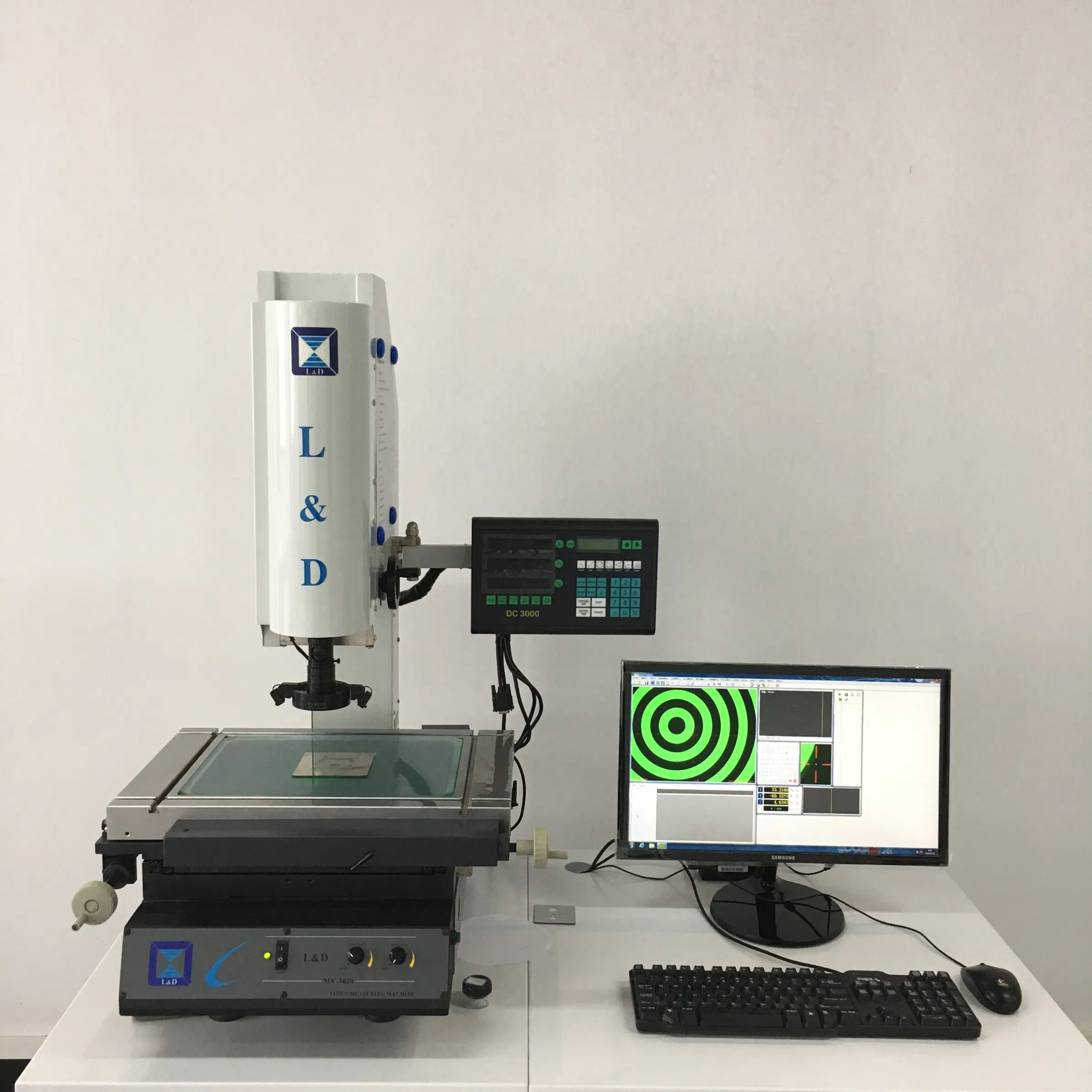

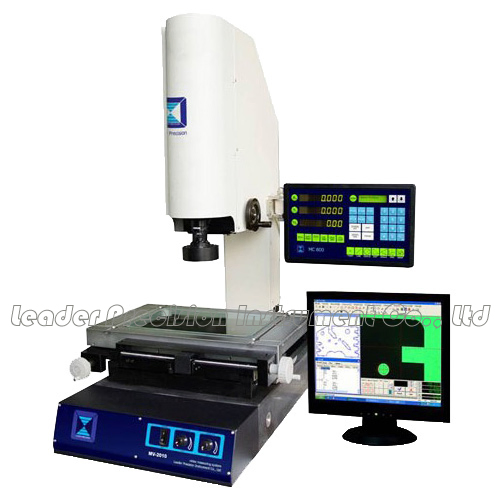

Workshop Benchtop Multi-Sensor Machine (EV-2515)

1 / 5

Workshop Benchtop Multi-Sensor Machine (EV-2515)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

📦 Basic Specifications

Model NO.:EV-2515

Name:Vision Measuring Machine

Travel-Xy Axis:250*150mm

Travel Z Axis:200mm

Resolution:0.5micron

Xy Axis Accuracy:2.5+L/150 Micron

Repeatability:0.003mm

Stage Size:450*280mm

Trademark:Leader

HS Code:9031802000

🔍 Product Overview

Workshop Benchtop Multi-Sensor Machine (EV-2515)

Usage: Workshop Benchtop Multi-sensor Machine EV-2515 comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.

🛠️ Applications

Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.

✨ Key Features

Video system: High resolution video camera

Magnification: 0.7X~4.5X(28X~190X); Optional: 0.5X, 2X, object lens

Illumination: Adjustable illumination for surface and contour

Linear scale-X. Y. Z axis: 0.05µ M resolution

Digital readout: MC800 DRO systems with RS232 output

Accuracy: ± (2.5+L/150)µ M

Software: 2D Measurement software

Model No.	EV-1510	EV-2010	EV-2515	EV-3020	EV-4030
Travel-X. Y axis	150*100mm	200*100mm	250*150mm	300*200mm	400*300mm
Resolution	0.5µm	0.5µm	0.5µm	0.5µm	0.5µm
Repeatability	0.003mm	0.003mm	0.003mm	0.003mm	0.003mm
Stage size	354*228mm	404*228mm	500*330mm	500*330mm	606*466mm

🛡️ Quality & Service

Quality System:

ISO9001 based management and CE certification

Hardware assembly adjustment ensures maximum instrument accuracy

After-sale Service:

Free professional operation training

Warranty: 18 months

Lifetime technical support and free software upgrades

Frequently Asked Questions

Q1: What industries is the EV-2515 suitable for? A: It is ideal for electronic, molding, press, spring, tool, plastic, and other precision manufacturing industries requiring high-accuracy measurements.

Q2: What is the measurement accuracy of this machine? A: The accuracy is ± (2.5+L/150)µm, where L is the length of the workpiece being measured in millimeters.

Q3: Does the software support regular updates? A: Yes, we provide regular upgrades of the 2D measurement software free of charge.

Q4: What is the warranty period for this vision measuring machine? A: We offer an extended 18-month warranty instead of the standard 12 months for better customer peace of mind.

Q5: Is operational training provided? A: Yes, we include free professional operation training to ensure your team can utilize the machine effectively.

Q6: What is the resolution of the linear scales on the EV series? A: The X, Y, and Z axes all feature a high-precision resolution of 0.5 microns (0.05µm scale feedback).
