Basic Information
Model NO.EV series
Travel-Z Axis150mm
Resolution0.5 Micron
X, Y-Axis Accuracy2.5+L/150
Z-Axis Accuracy0.05-0.03mm
Repeatability0.003mm
Stage Load Capacity10-30kg
CameraJapan Sentech CCD Camera
LensZoom Lens 0.58X-7.5X
Production Capacity500 PCS/Year

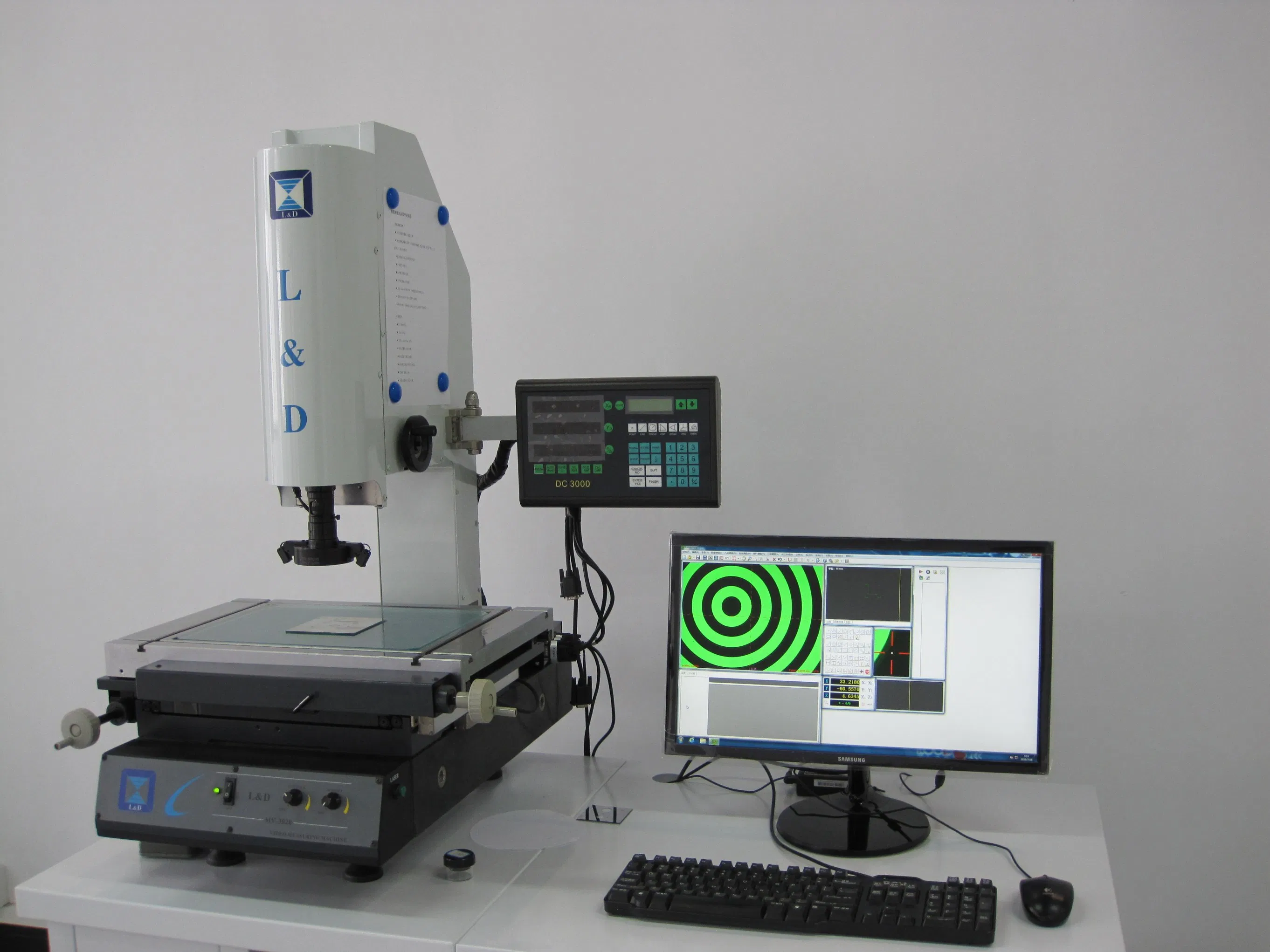

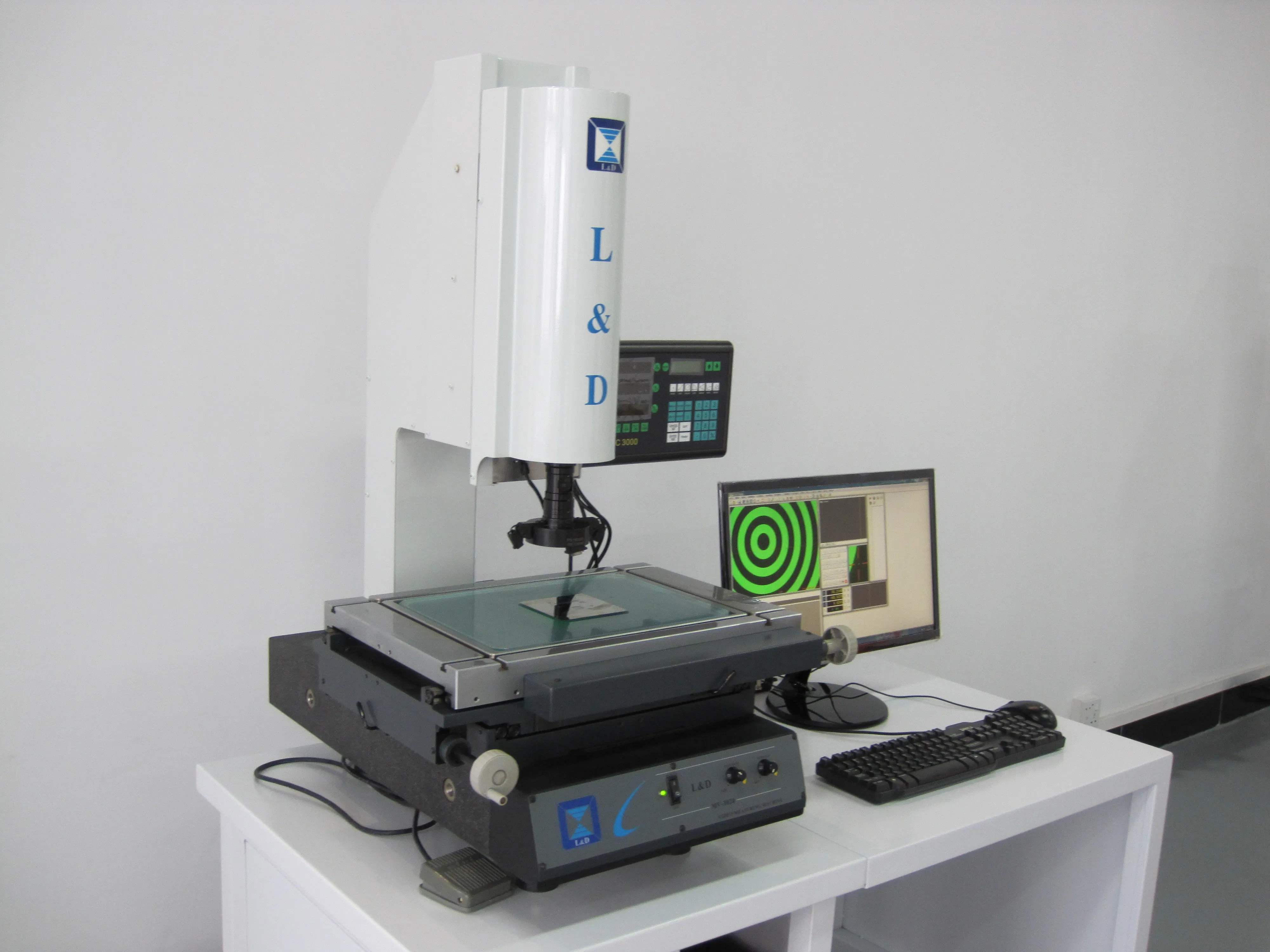

3D High Precision Video Measuring Machine (EV Series)

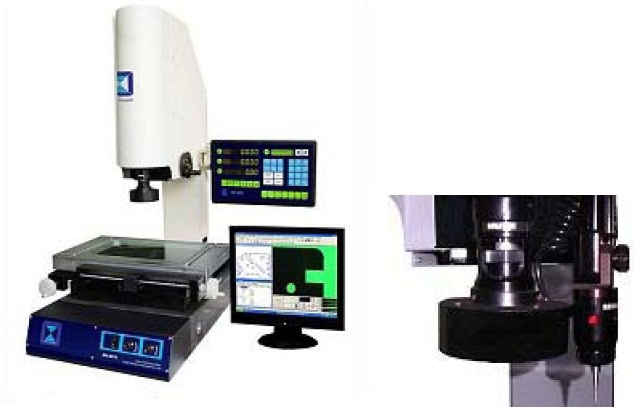

3D High Precision Video Measuring Machine EV Series is a photoelectric measuring system with high precision and efficiency. This non-contact optical measurement device is composed of a series of precision components, such as Color CCD Camera with high resolution, continuous Zoom Lens, Precise Linear Scale, USB exchanger box or Metrology Counter (DRO), 2D Metrology measuring software and high precision Working Table.
Key Features
Solid granite frame guarantees strength and stability
Higher resolution linear encoder 0.5µ M
Superb full-color high resolution image
One-click edge detection technology

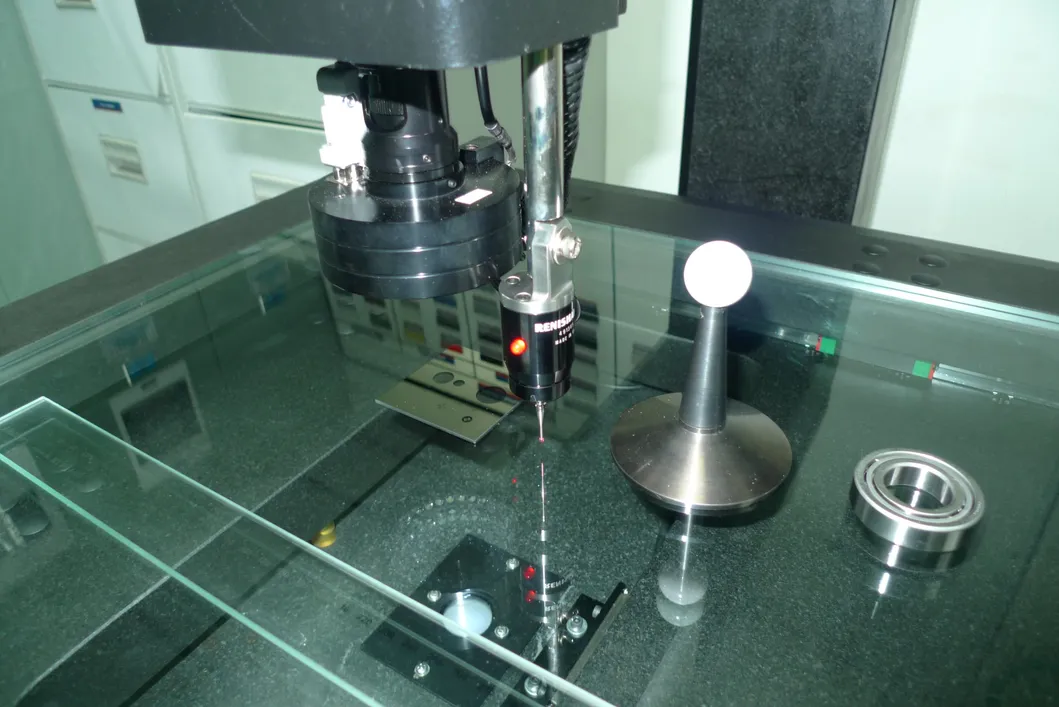

Includes Renishaw MCP Probe set
RS232 or USB software connection
Technical Specifications
| Model Specifications |
| Model No. | EV-1510 | EV-2010 | EV-2515 | EV-3020 | EV-4030 |
| Travel-X. Y (mm) | 150*100 | 200*100 | 250*150 | 300*200 | 400*300 |
| Travel-Z (mm) | 150 | 150 | 150 | 150 | 150 |
| Resolution | 0.5µ m | 0.5µ m | 0.5µ m | 0.5µ m | 0.5µ m |
| Accuracy (µ m) | 2.5+L/150 | 2.5+L/150 | 2.5+L/150 | 2.5+L/150 | 2.5+L/150 |
| Net weight | 98kg | 108kg | 120kg | 138kg | 238kg |
Quality Assurance & Support
✅ Establish quality management system based on ISO9001.
✅ All measuring machines carry CE certification.
✅ 18-month warranty provided for all units.
✅ Lifetime technical support and free software upgrades.
Frequently Asked Questions (FAQ)
Q1: What is the measurement accuracy of the EV series?
The X, Y-axis accuracy is (2.5+L/150)µ m and the resolution reaches 0.5 Micron.
Q2: Does this machine support 3D measurement?
While primarily applied in 2D measurement, it can also perform 3D measurements using the integrated Renishaw MCP Probe.
Q3: What industries is this machine suitable for?
It is widely used in electronics, precision molds, tools, springs, PCB processing, and the automotive industry.
Q4: What is the warranty period?
We provide an extended 18-month warranty instead of the standard 12 months.
Q5: Is operational training included?
Yes, we provide free professional operation training and lifetime technical support.
Q6: What software is used with the device?
The machine comes with QIM measuring software and supports regular free upgrades.
