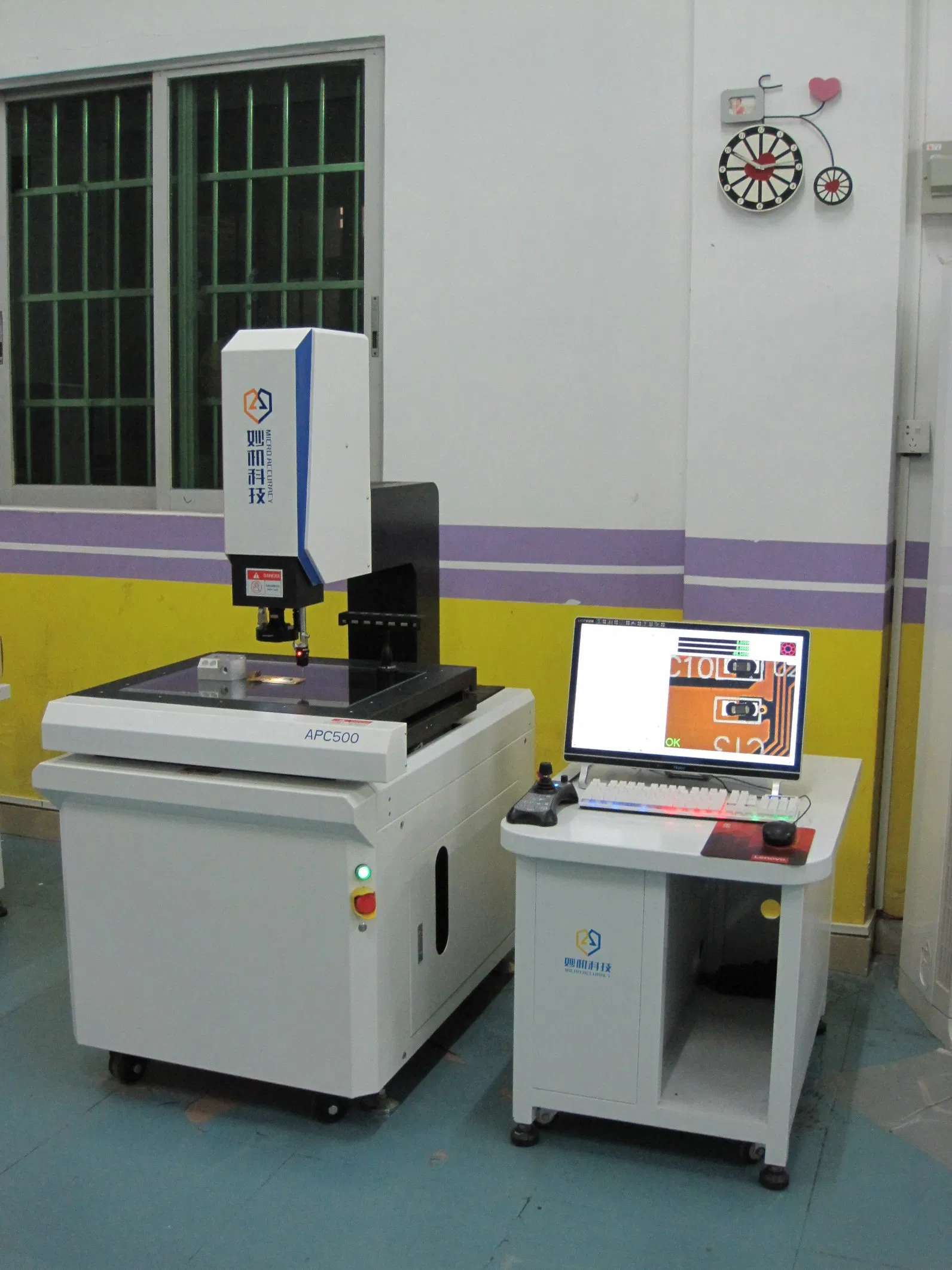

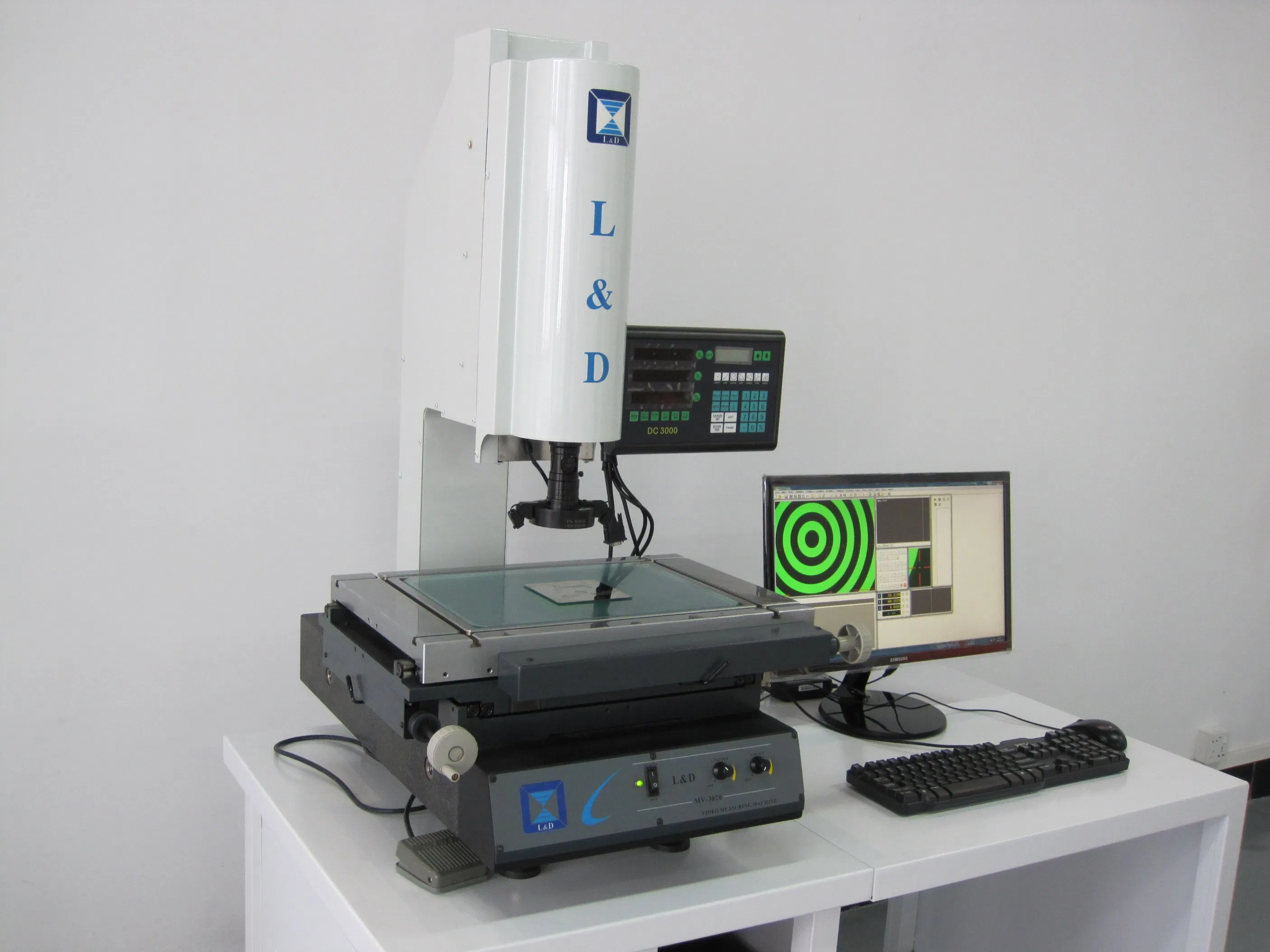

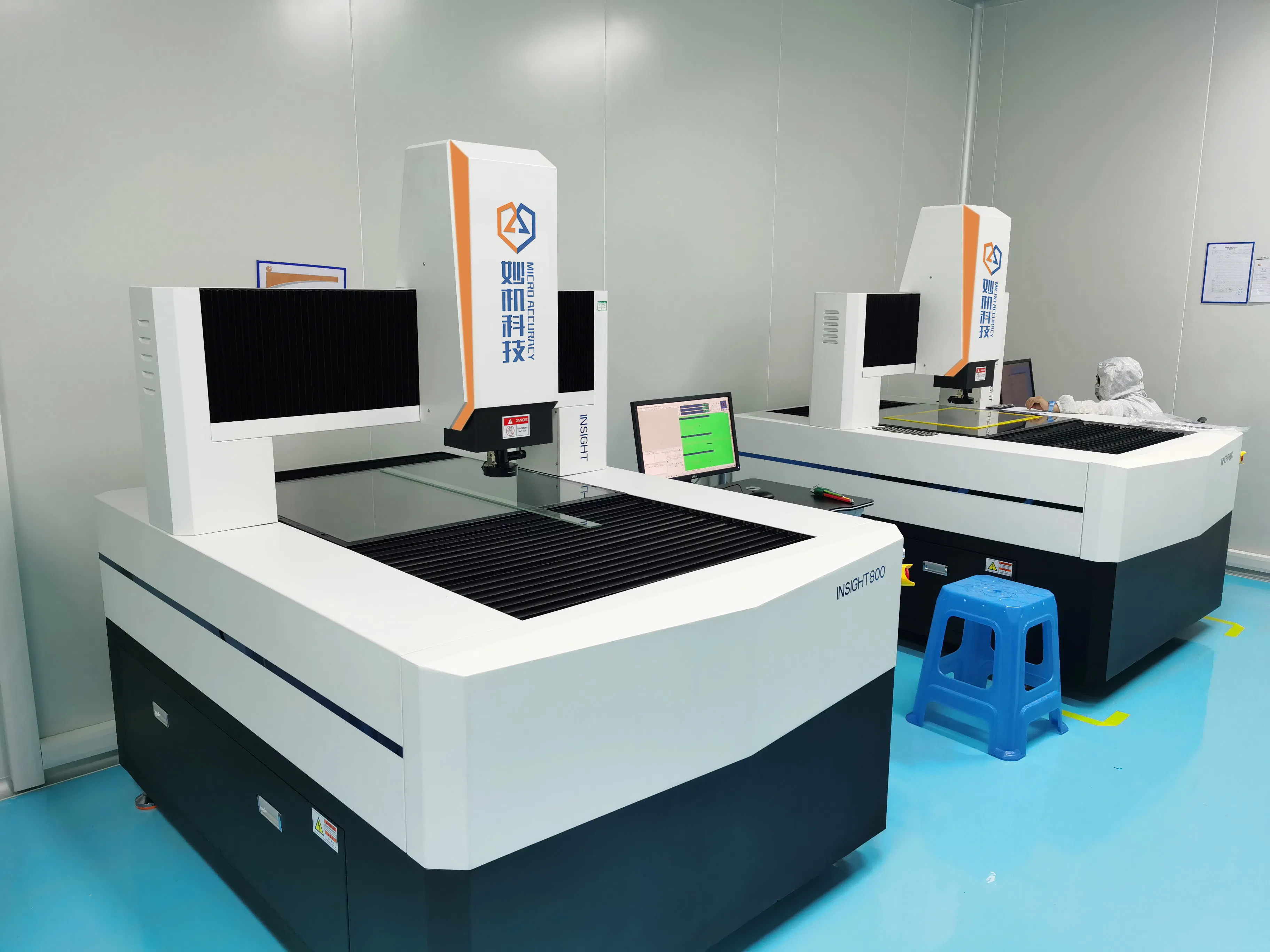

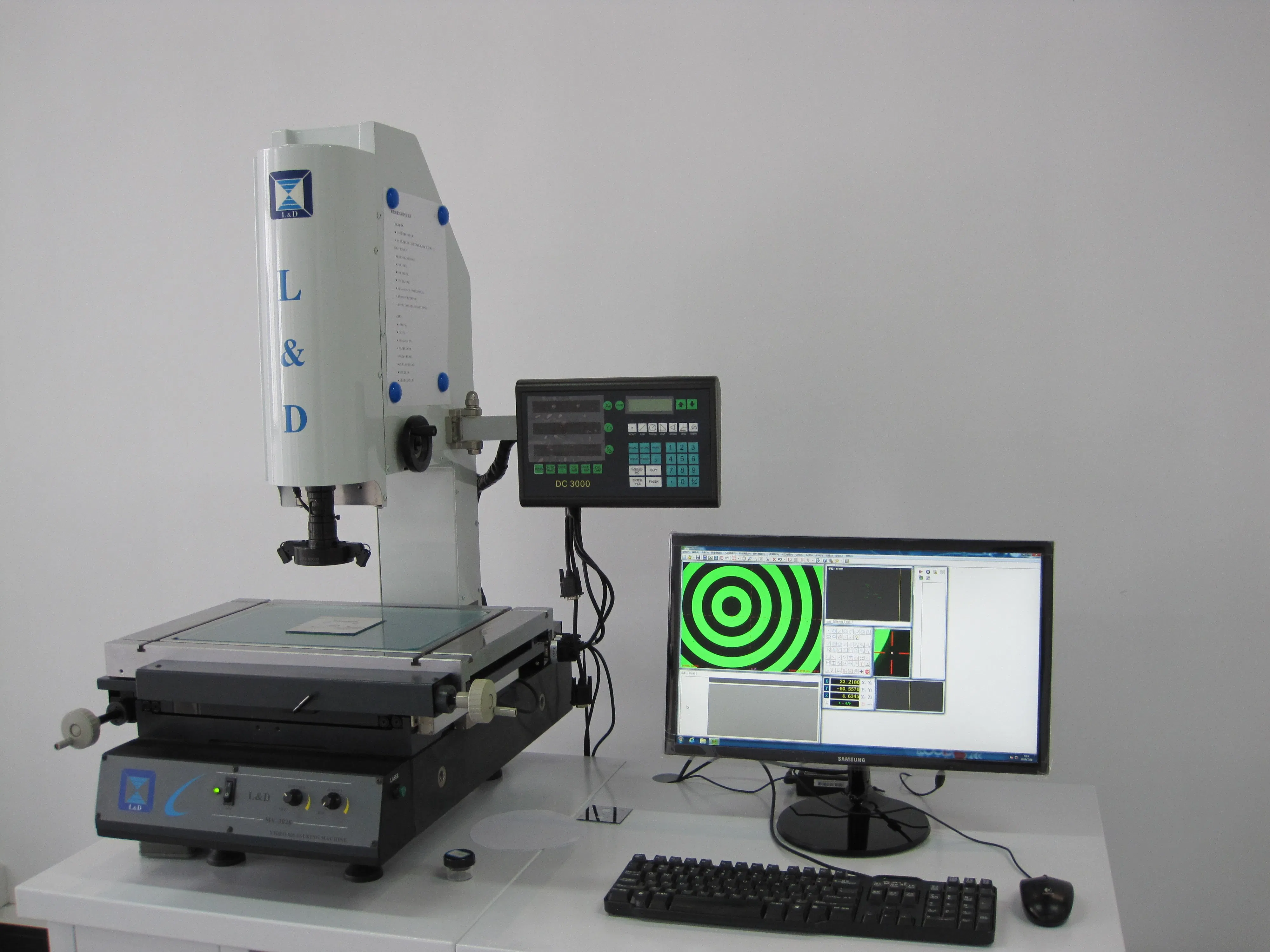

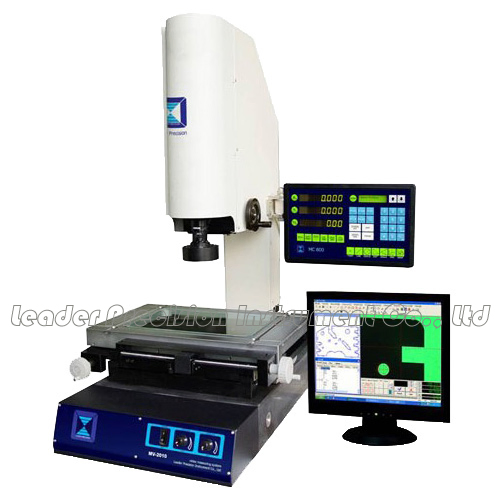

2D Video Measuring Machine (EV-4030)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

Basic Info.

Model NO.

EV-4030

Travel-X. Y Axis

400*300(mm)

Travel-Z Axis

150

Resolution

0.5µ M

X, Y-Axis Accuracy

2.5+L/150

Repeatability

0.003mm

Stage Size

606*466

Stage Load Capacity

30kg

Dimension L*W*H

970X670X940mm

Net Weight

238kg

Trademark

Leader

Origin

China

Product Description

2D Video Measuring Machine (EV-4030)

This not-contact vision measuring system comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.

Application: Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.

Model No.	EV-1510	EV-2010	EV-2515	EV-3020	EV-4030
Travel-X. Y axis	150*100(mm)	200*100(mm)	250*150(mm)	300*200(mm)	400*300(mm)
Travel-Z axis	150	150	150	150	150
Resolution	0.5µ m	0.5µ m	0.5µ m	0.5µ m	0.5µ m
Accuracy (µ m)	2.5+L/150	2.5+L/150	2.5+L/150	2.5+L/150	2.5+L/150
Repeatability	0.003mm	0.003mm	0.003mm	0.003mm	0.003mm
Stage size	354*228	404*228	500*330	500*330	606*466
Net weight	98kg	108kg	120kg	138kg	238kg

🌟 Quality System

Quality management based on ISO9001 standards.
All measuring machines carry CE certification.
Instrument accuracy guaranteed by hardware assembly and adjustment.
Professional measurement solutions for large and medium enterprises.
Expert technical service team for assembly and software debugging.

🛠️ After-sale Service

Free professional operation training.
Extended warranty: 18 months.
Free regular software upgrades.
Available lifetime technical support.

Frequently Asked Questions

Q1: What is the measuring accuracy of the EV-4030? A: The X and Y-axis accuracy is 2.5+L/150 µm with a repeatability of 0.003mm.

Q2: What industries is this machine suitable for? A: It is ideal for electronic, molding, press, spring, tool, plastic, rubber, PCB, and other precision manufacturing industries.

Q3: Does the machine come with any certifications? A: Yes, all measuring machines are ISO9001 compliant and have CE certification.

Q4: What kind of after-sales support do you provide? A: We provide 18 months of warranty, free professional training, free software upgrades, and lifetime technical support.

Q5: What is the maximum stage load capacity for the EV-4030? A: The stage can handle a maximum load of 30kg.

Q6: Is the measuring system contact or non-contact? A: This is a non-contact vision measuring system using high-resolution CCD and optical zoom lenses.
