2D Non-Contact Optical Measurement Device (EV-2515)

1 / 5

2D Non-Contact Optical Measurement Device (EV-2515)

Customization:	Available
After-sales Service:	18 Months Warranty
Warranty:	18 Months Warranty

Send Inquiry

Product Description

Basic Specifications

Model:

EV-2515

Travel Xy Axis:

250*150mm

Travel Z Axis:

200mm

Resolution:

0.5 micron

Xy Axis Accuracy:

2.5+L/150 Micron

Repeatability:

0.003mm

Stage Size:

450*280mm

Stage Load Capacity:

15kg

Illumination:

LED Lamp

Origin:

China

HS Code:

9031802000

Capacity:

50,000 PCS/Year

Product Description

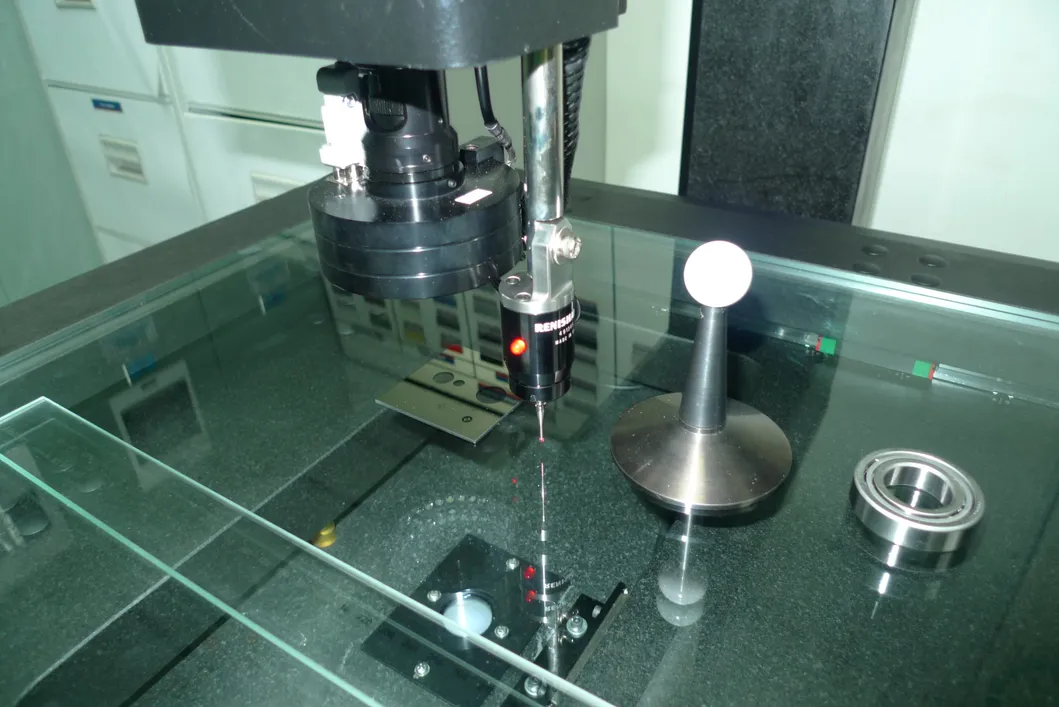

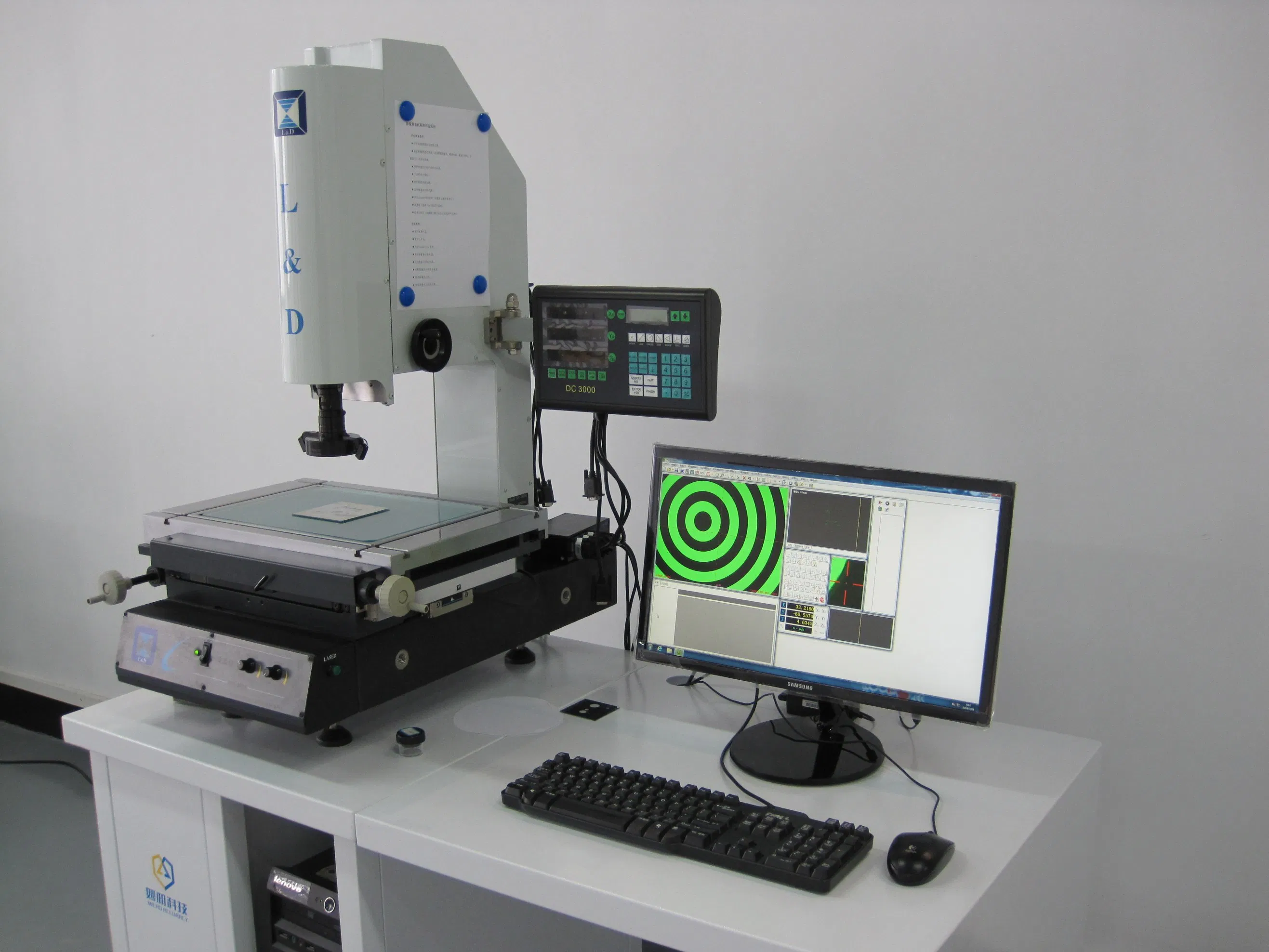

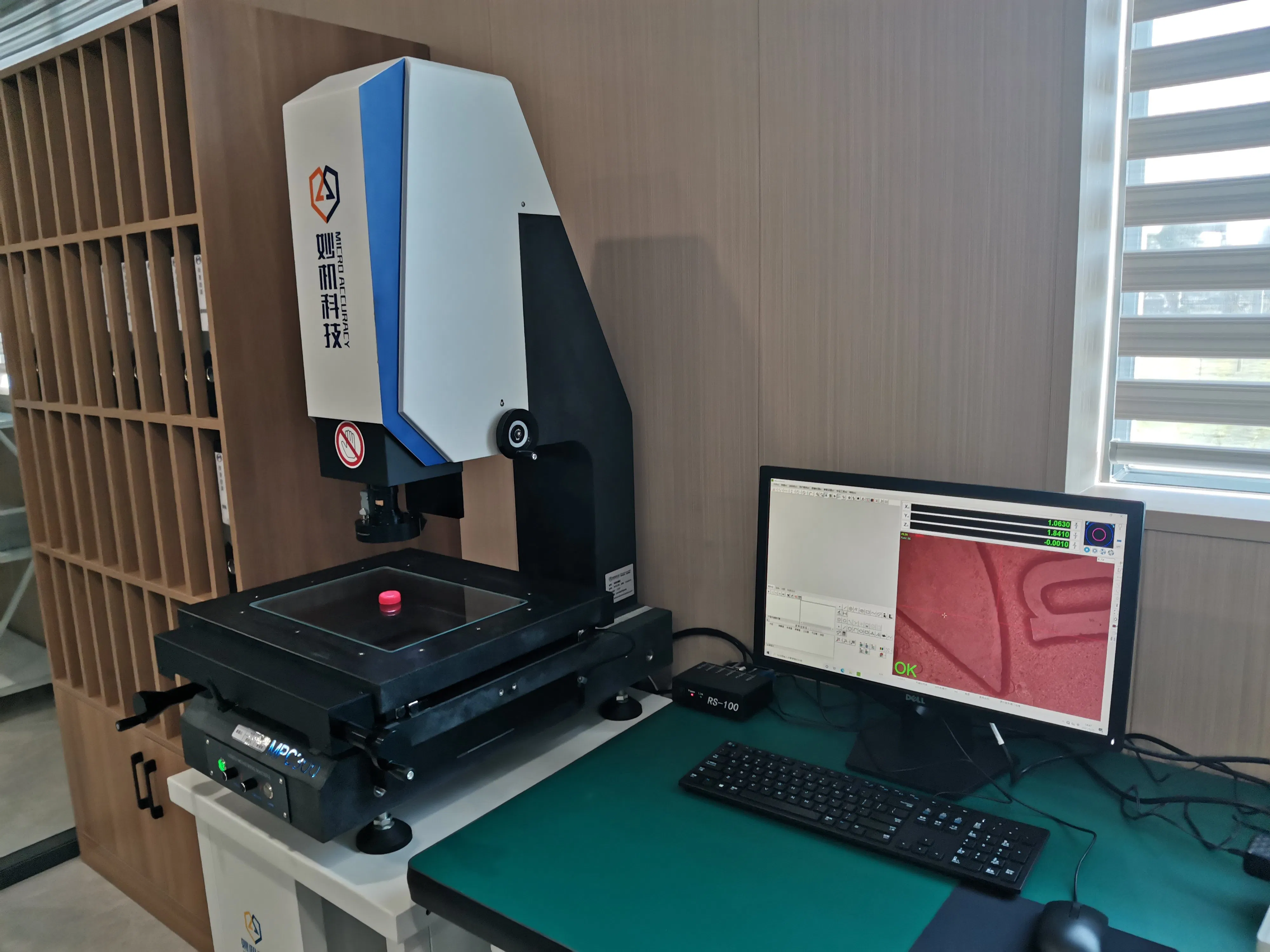

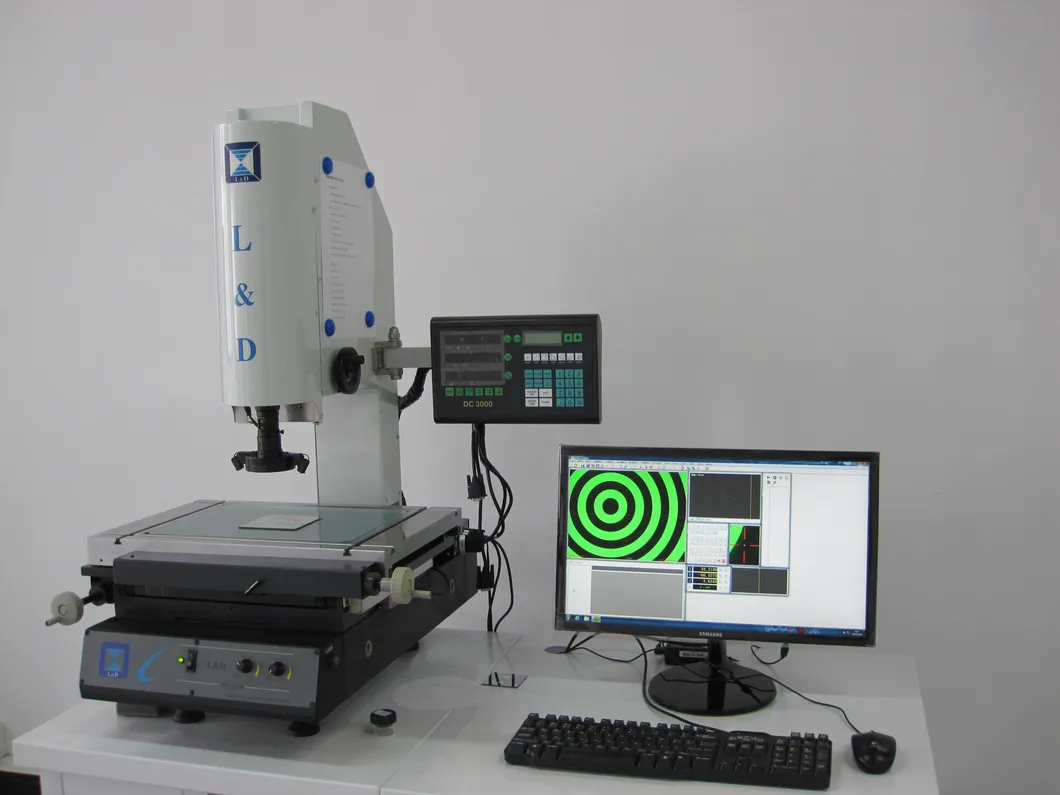

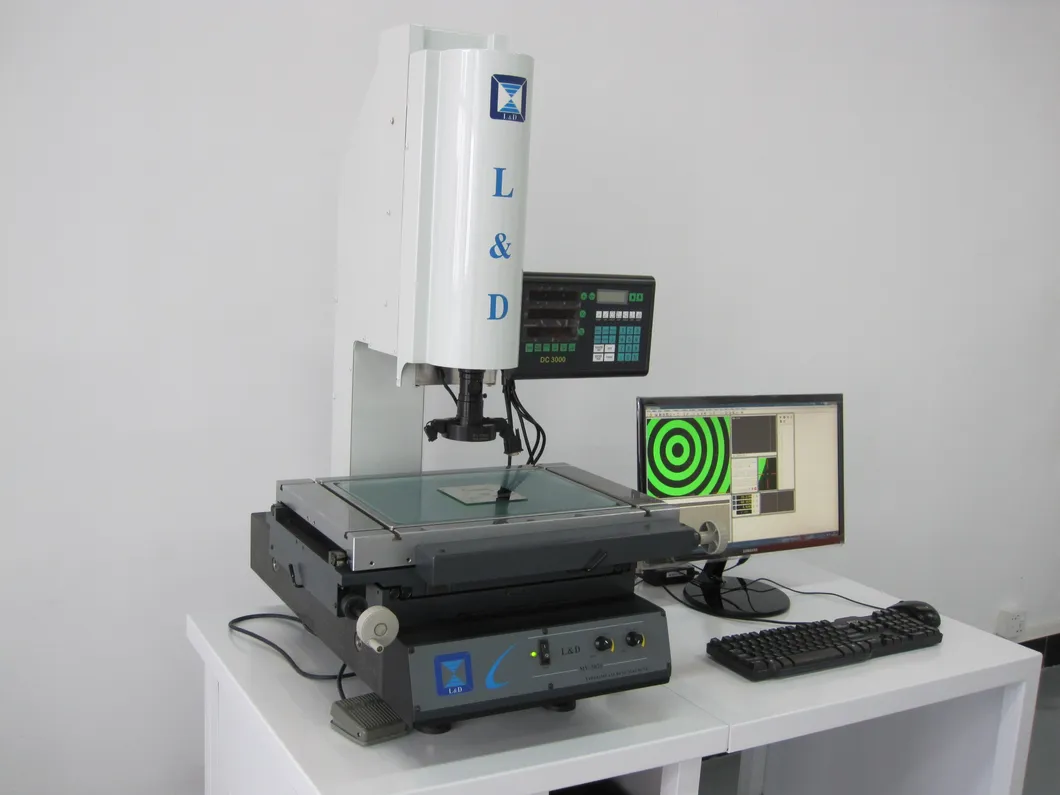

2D Non-Contact Optical Measurement Device (EV-2515)

Usage: 2D Non-contact Optical Measurement Device EV-2515 comprises of high resolution and accuracy CCD, continuous zoom lens, high precision linear scale and stage. It is a photoelectric measuring system with high precision and efficiency which is widely used in various precision industries.

Application: Suitable for electronic, molding, press, spring, screw, tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.

Technical Features

Video system: High resolution video camera
Magnification: 0.7X~4.5X (28X~180X); Optional: 0.5X, 2X lens
Illumination: Adjustable illumination for surface and contour
Linear scale: X. Y. Z axis with 0.05µm resolution
Digital readout: MC800 DRO systems with RS232 output
Software: Professional 2D Measurement software

Model No.	EV-1510	EV-2010	EV-2515	EV-3020	EV-4030
Travel-X. Y axis (mm)	150*100	200*100	250*150	300*200	400*300
Resolution	0.5µm	0.5µm	0.5µm	0.5µm	0.5µm
X, Y accuracy	(2.5+L/150)µm	(2.5+L/150)µm	(2.5+L/150)µm	(2.5+L/150)µm	(2.5+L/150)µm
Stage load	10kg	10kg	15kg	20kg	30kg

Quality & Service

Quality System:

1. ISO9001 based management system with strict inspection.
2. All measuring machines hold CE certification.
3. Hardware assembly ensures maximum instrument accuracy.
4. Professional technical service for assembly and software debugging.

After-sale Service:

1. Free professional operation training.
2. 18-month extended warranty.
3. Free regular software upgrades.
4. Lifetime technical support.

Frequently Asked Questions

Q1: What industries is the EV-2515 suitable for?

It is ideal for high-precision industries such as electronics, molding, PCB manufacturing, motor parts, and various metal/plastic components.

Q2: What is the measurement accuracy of this device?

The X, Y-axis accuracy is (2.5+L/150) µm, and it features a repeatability of 0.003mm.

Q3: Does the software support regular updates?

Yes, we provide regular software upgrades free of charge to ensure your system stays up-to-date with current standards.

Q4: What are the magnification options?

The standard magnification is 0.7X~4.5X (28X~180X), with optional 0.5X and 2X object lenses available.

Q5: How long is the warranty period?

We offer an industry-leading 18-month warranty compared to the standard 12 months, along with lifetime technical support.

Q6: Is technical training included?

Yes, we provide free professional operation training to ensure your team can operate the device efficiently and accurately.
