Customization: Available
After-sales Service: Technical Guidance
Warranty: 2 Years
Send Inquiry

Product Description

📋 Basic Information
Model NO.
AS(AV)
Type
Pump
Method
Combined Treatment
Usage
Industrial, Home, Agriculture, Hospital
Protection Grade
IP68
Insulation Grade
F
Voltage
380V
pH Range
5-9
Material
Cast Iron or Stainless Steel
Control Cabinet
QC Series
Cable Length
10m
Max Temperature
60°C or Less
Pump Type
Blade Pump
Package
Wooden Case
Package Weight
300.00kg
Dimensions
50x50x80 cm
💡 Product Description

The AS and AV submersible sewage pump is developed on the basis of absorbing foreign advanced technology, featuring a high technical starting point, significant energy conservation, and robust safety. With its unique functionality and reliable quality, it has been widely praised and selected as a replacement for imported products by many users.

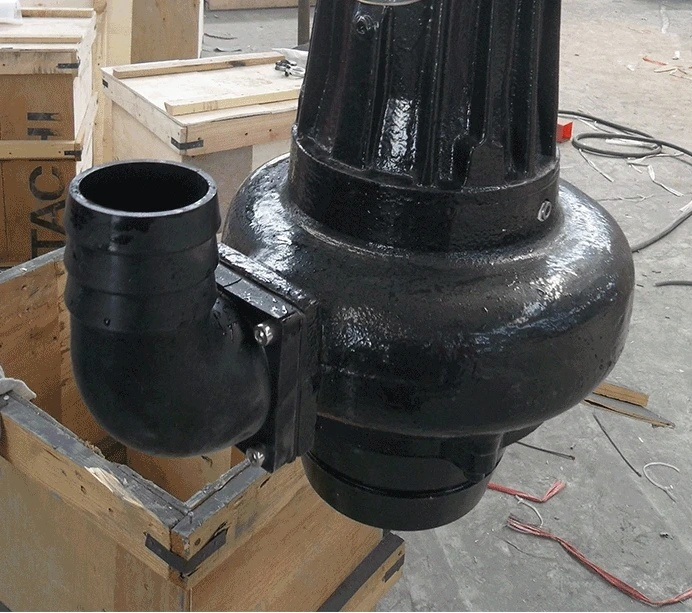

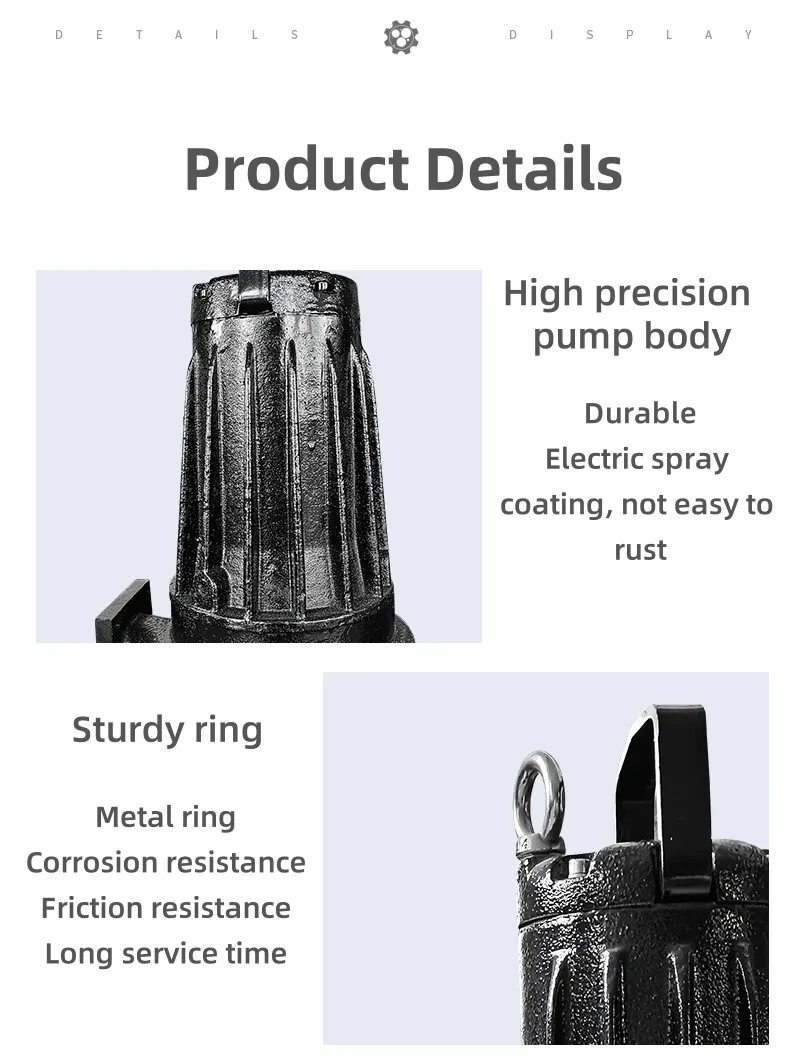

Sewage Pump 1

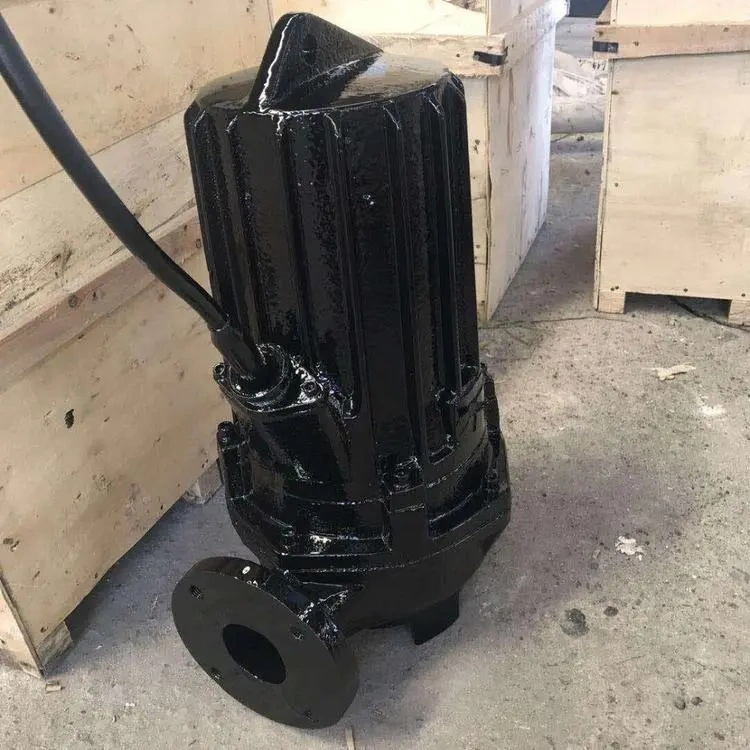

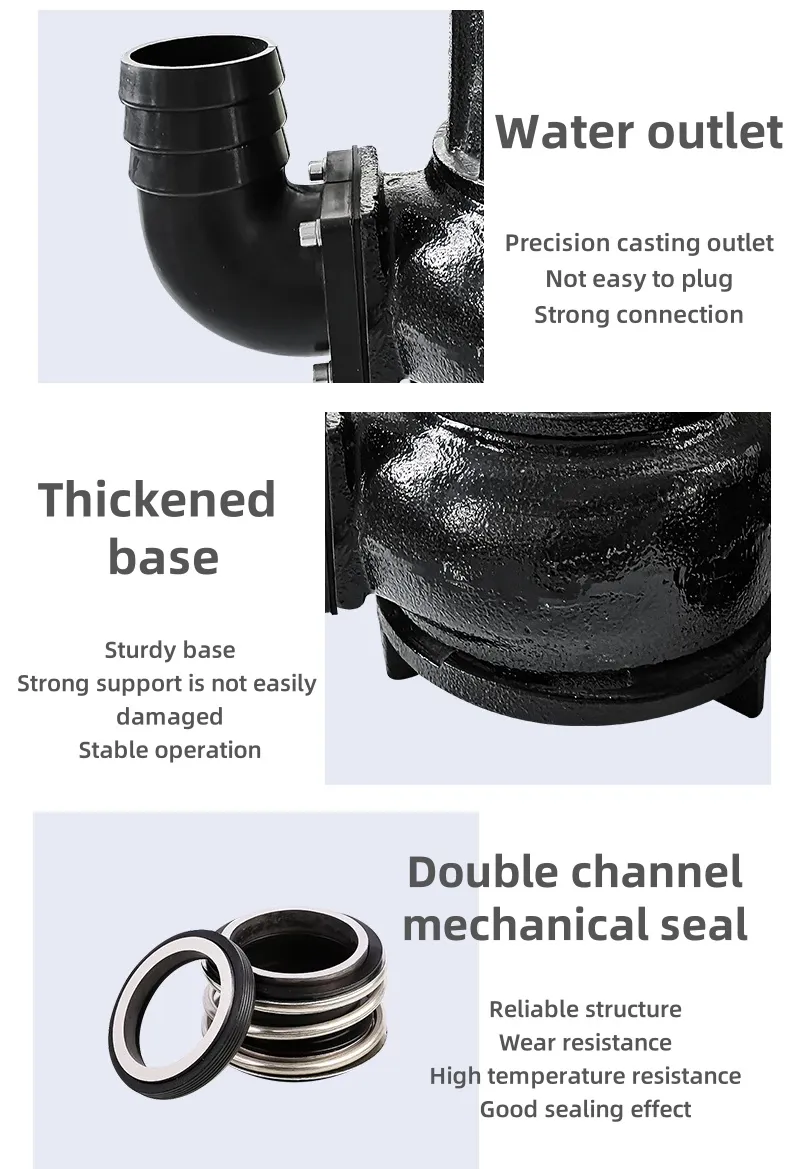

Sewage Pump 2

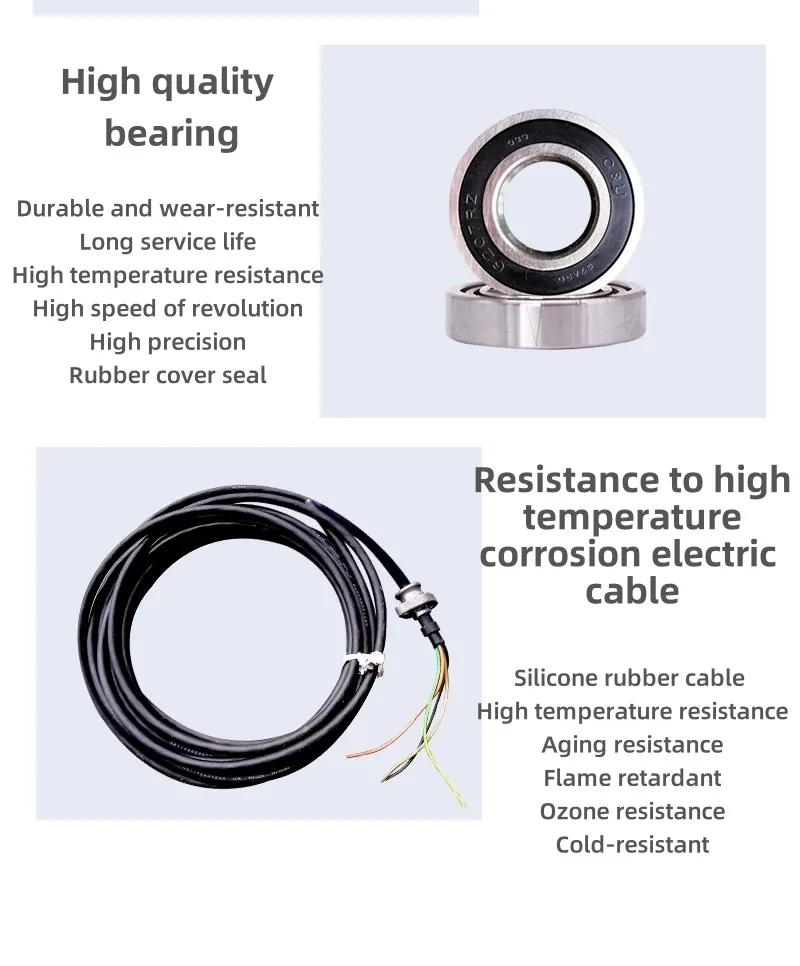

Sewage Pump 3
🚀 Product Features
  • Large channel anti-blocking design, passing through 25~70 mm diameter solids.
  • Strong winding capacity and highly reliable anti-blocking mechanism.
  • Advanced seals allowing continuous operation for over 8000 hours.
  • Compact structure, easy installation, and reduced project costs.
  • Double guide rail automatic installation system for easy maintenance.
  • Float switch for automatic water level control without manual intervention.
  • Built-in protection for leakage, water ingress, and overloads.
📍 Scope of Application
  • Industrial wastewater discharge
  • Hospitals and residential sewage
  • Water plant drainage systems
  • Municipal engineering & sites
  • Civil air defense systems
  • Agriculture and mining auxiliaies
🔧 Installation Instructions

Fixed Wet Installation: Utilizes an automatic coupling system. The pump slides down guide rods and seals automatically by its own weight.

Fixed Dry Installation: Fixed on a foundation with connected inlet/outlet pipes, perfect for space-saving in pump houses.

Movable Installation: Supported by a stand, ideal for temporary drainage and construction maintenance.

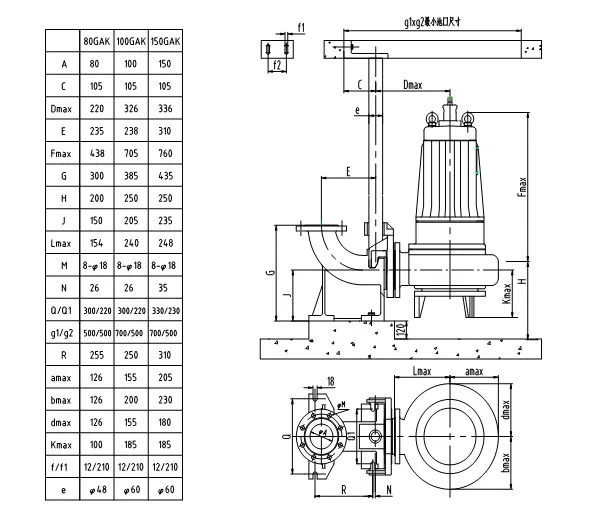

Installation Diagram
📊 Technical Parameters

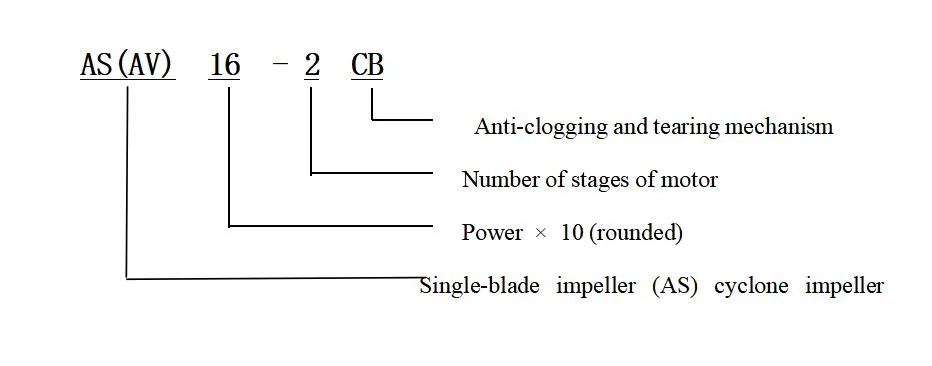

Model Description

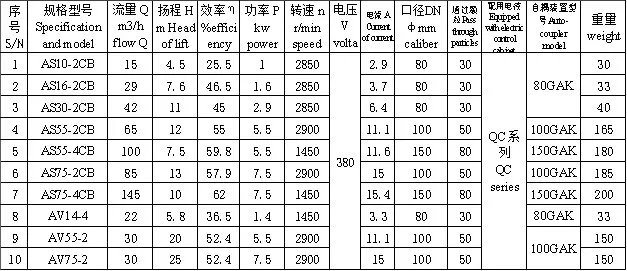

Performance Table

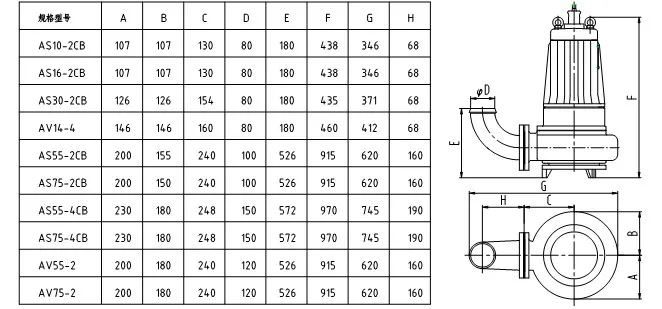

Dimensions
🖼️ Product Display

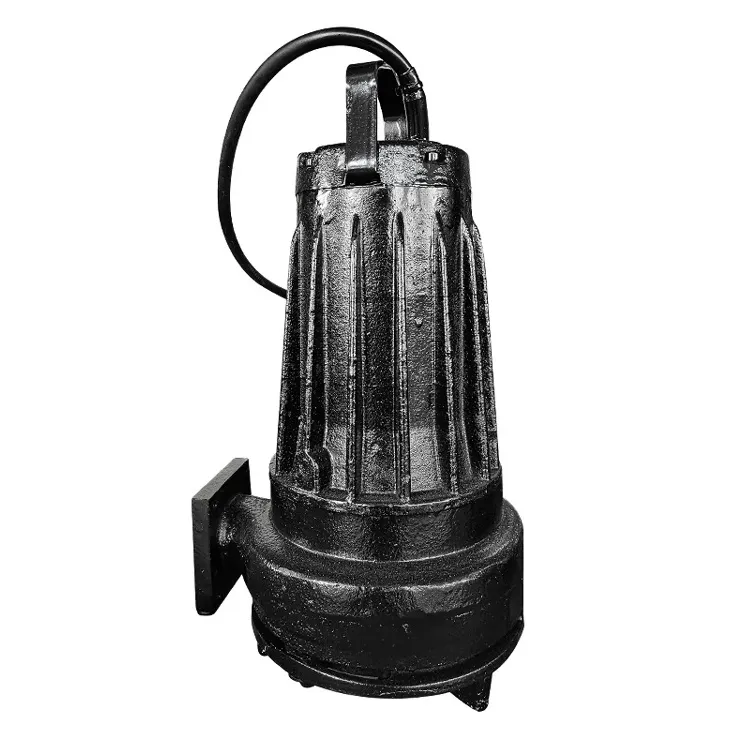

Product View 1

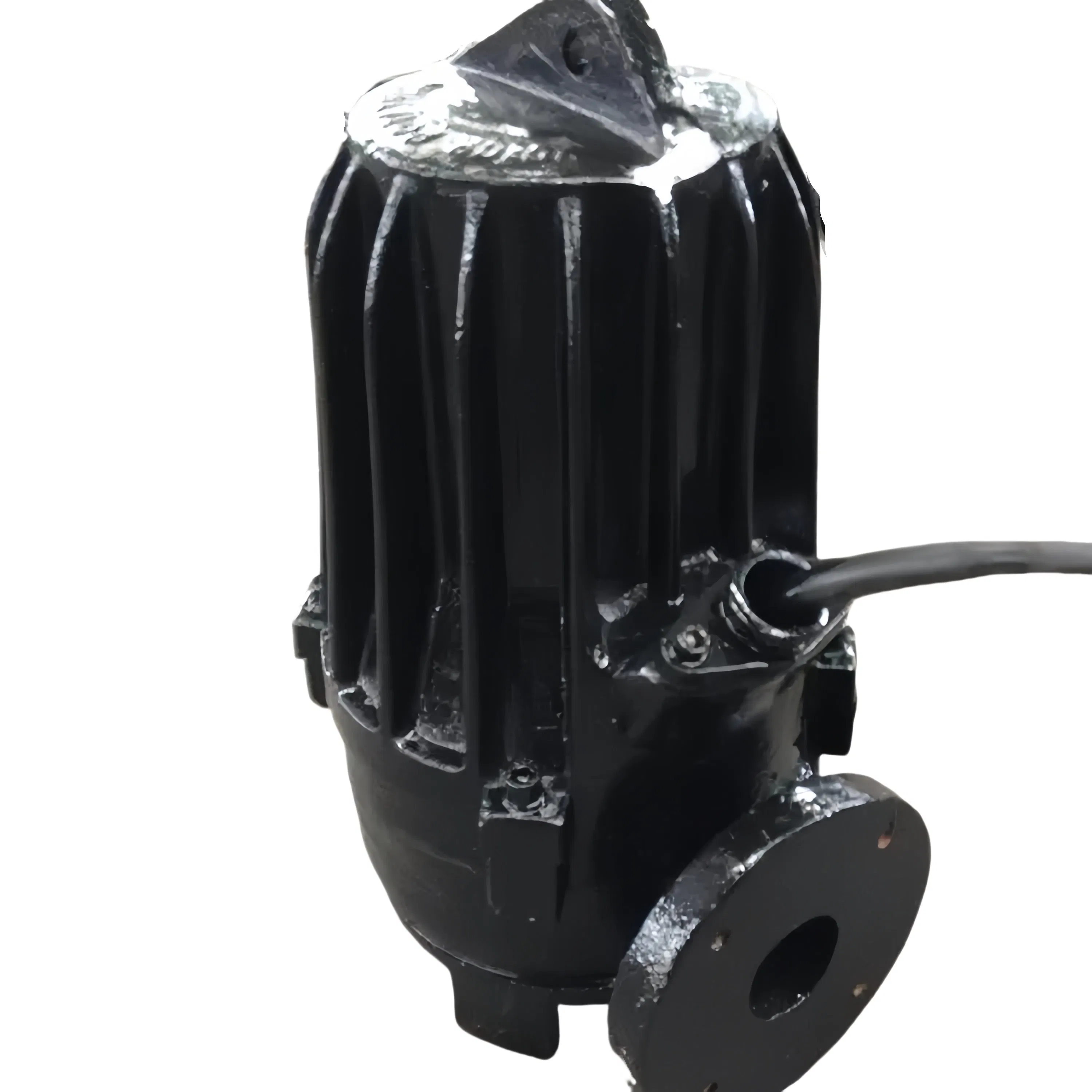

Product View 2

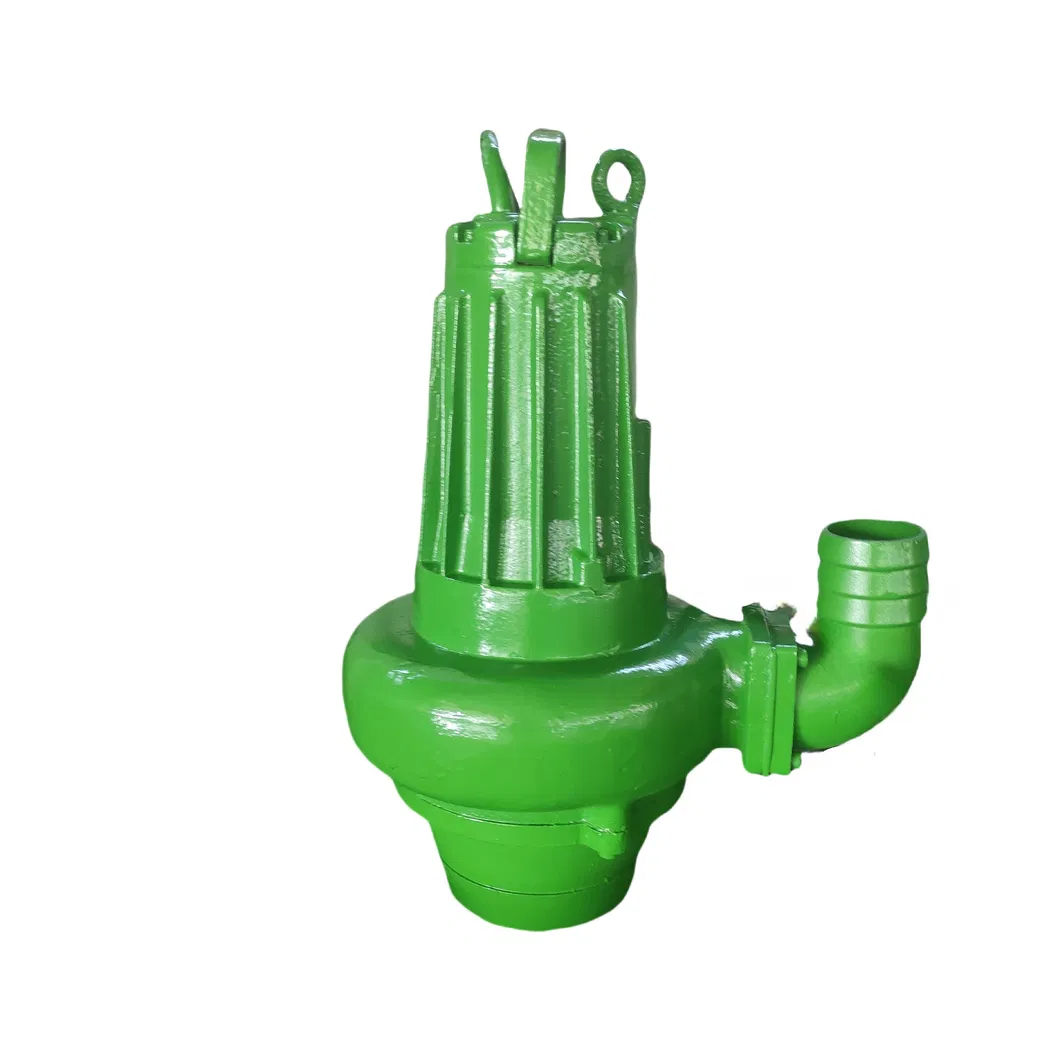

Product View 3

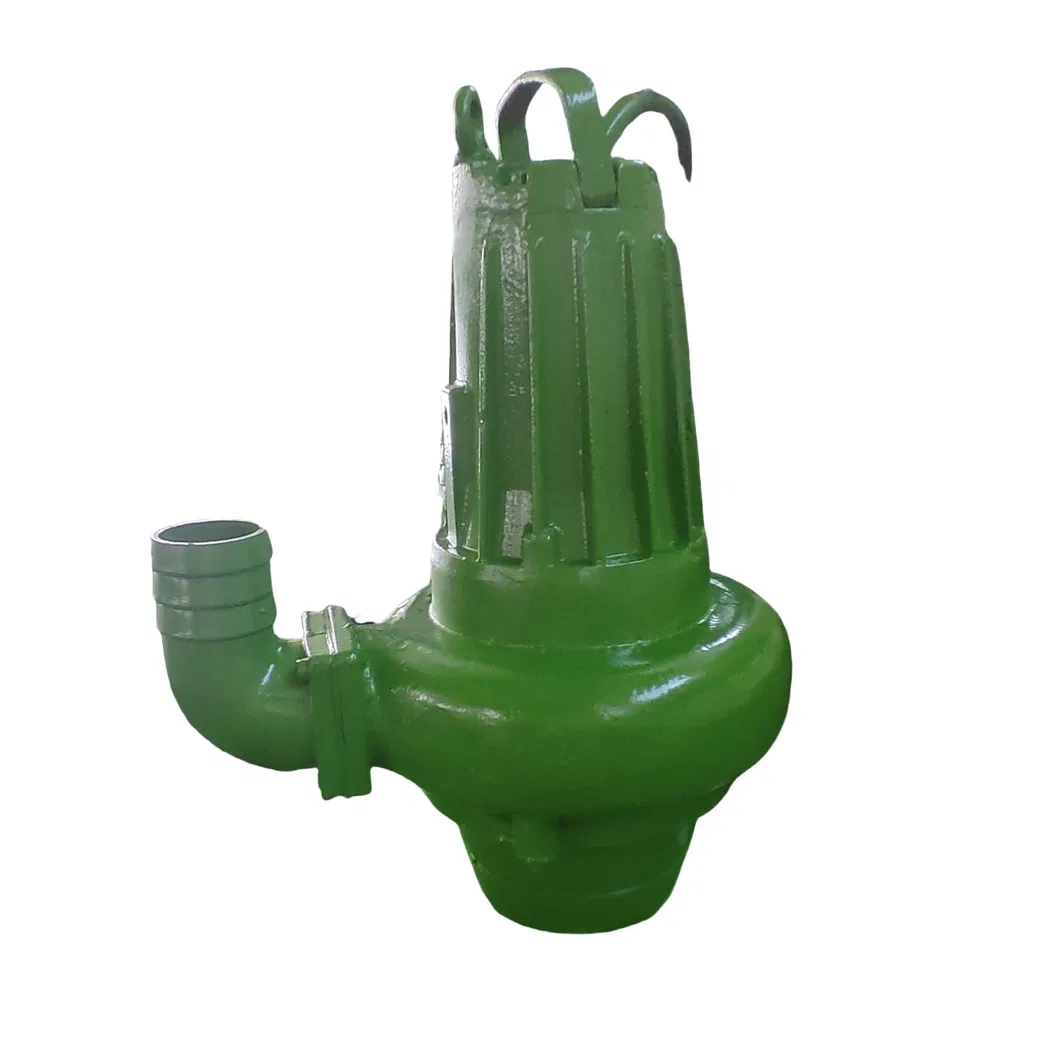

Product View 4
❓ Frequently Asked Questions
Q1: What is the maximum solid particle size the pump can handle?
A: Thanks to the large channel design, the pump can effectively pass solid particles ranging from 25mm to 70mm in diameter.
Q2: What are the required working conditions for this pump?
A: The medium pH should be between 5-9, the water temperature should not exceed 60°C, and the impurity weight ratio should be under 25%.
Q3: How long can the mechanical seals last?
A: The seals are made of the latest durable materials, allowing the pump to operate safely and continuously for more than 8000 hours.
Q4: Is maintenance difficult for the wet installation model?
A: Not at all. The automatic coupling system allows the pump to be lifted out of the sump for maintenance without personnel having to enter the pit.
Q5: Can the pump operate automatically?
A: Yes, it is equipped with a float switch that automatically starts and stops the pump based on the water level changes.
Q6: What materials are available for the pump construction?
A: Depending on the application requirements, the pump can be constructed from durable Cast Iron or Stainless Steel.
