Basic Specifications
Model NO.:ECH-GY
Type:Oil-Water Separator
Method:Physical Treatment
Usage:Canteens, Residential, Commercial Complexes
Manufacturing:30+ Years Experience
Certification:ISO9001, ISO14001, ISO45001
QC System:Multiple Pre-shipment Inspections
Specification:SS304 / SS316

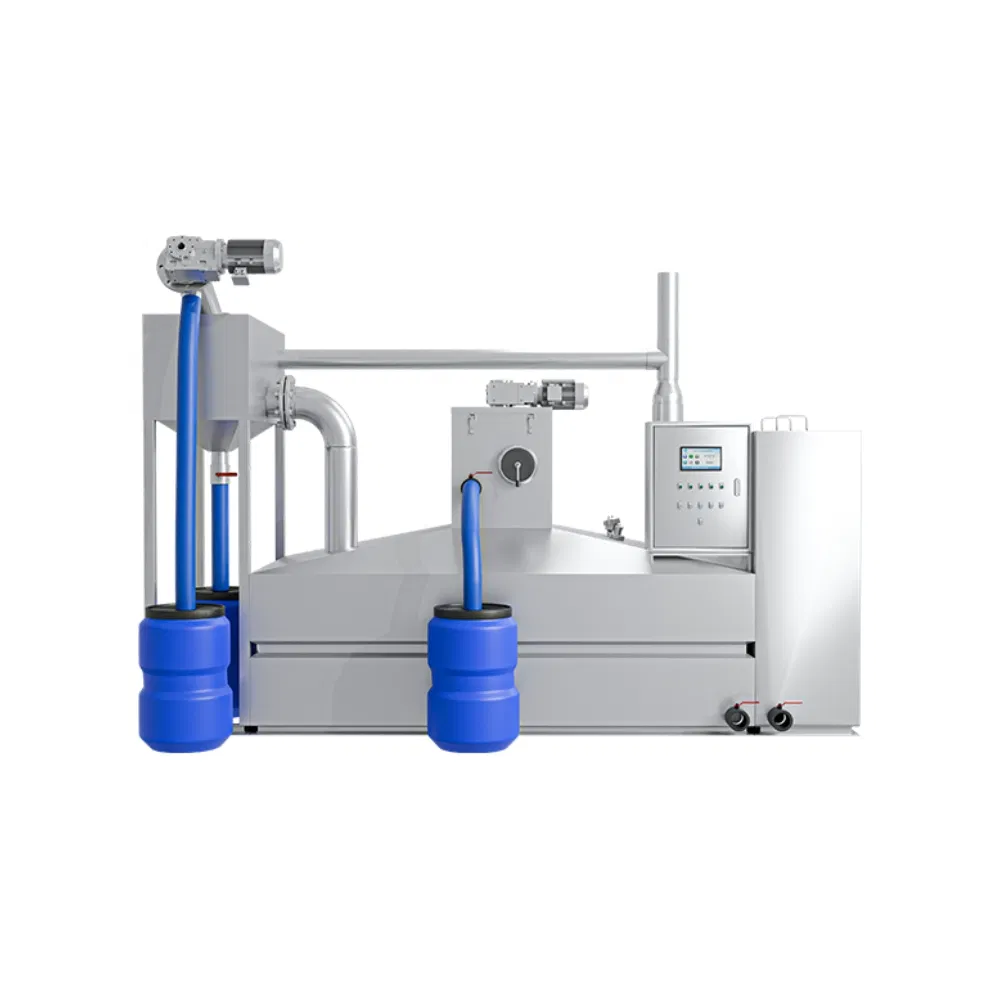

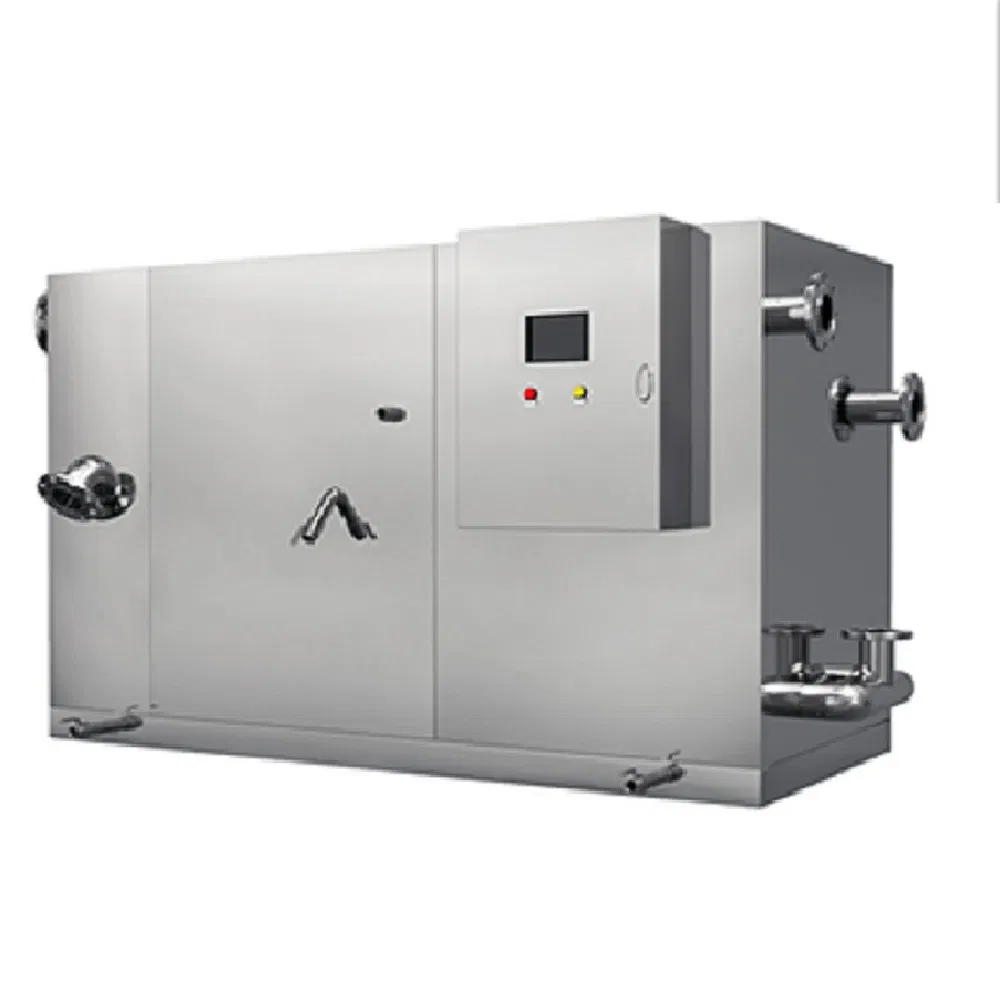

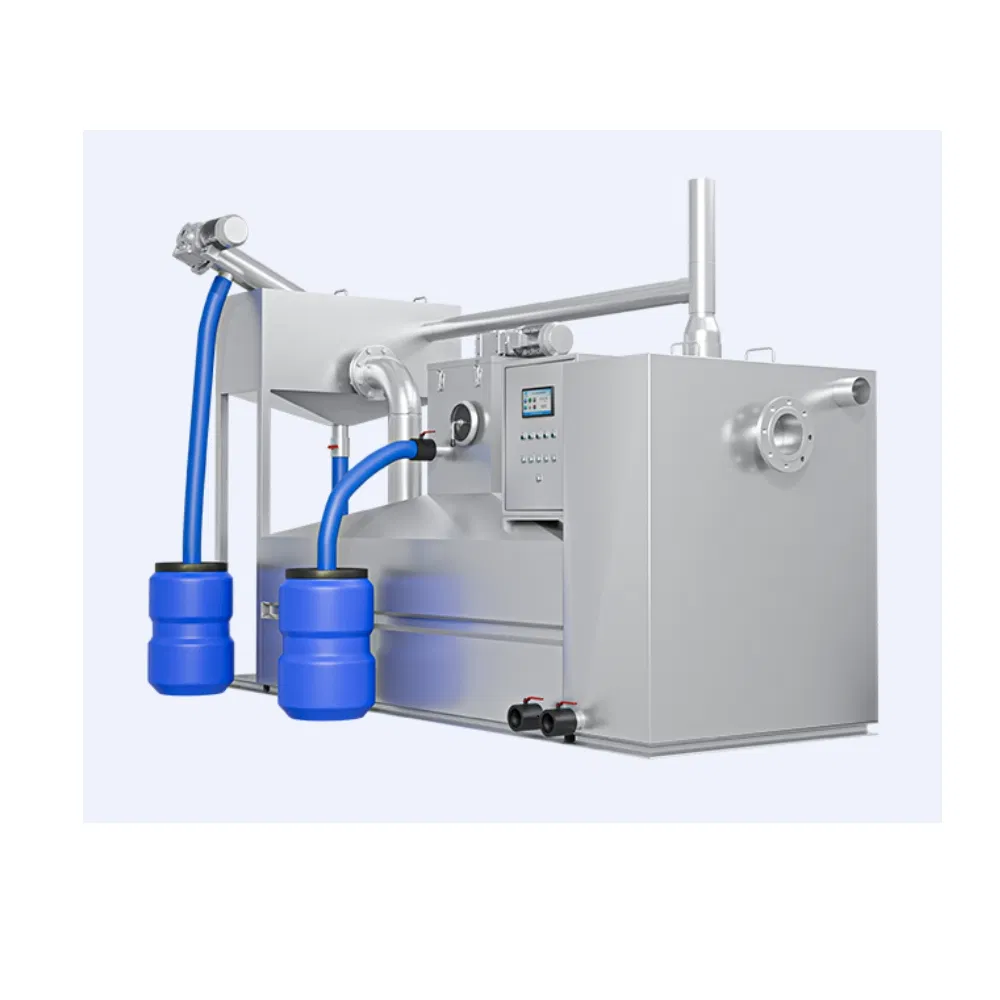

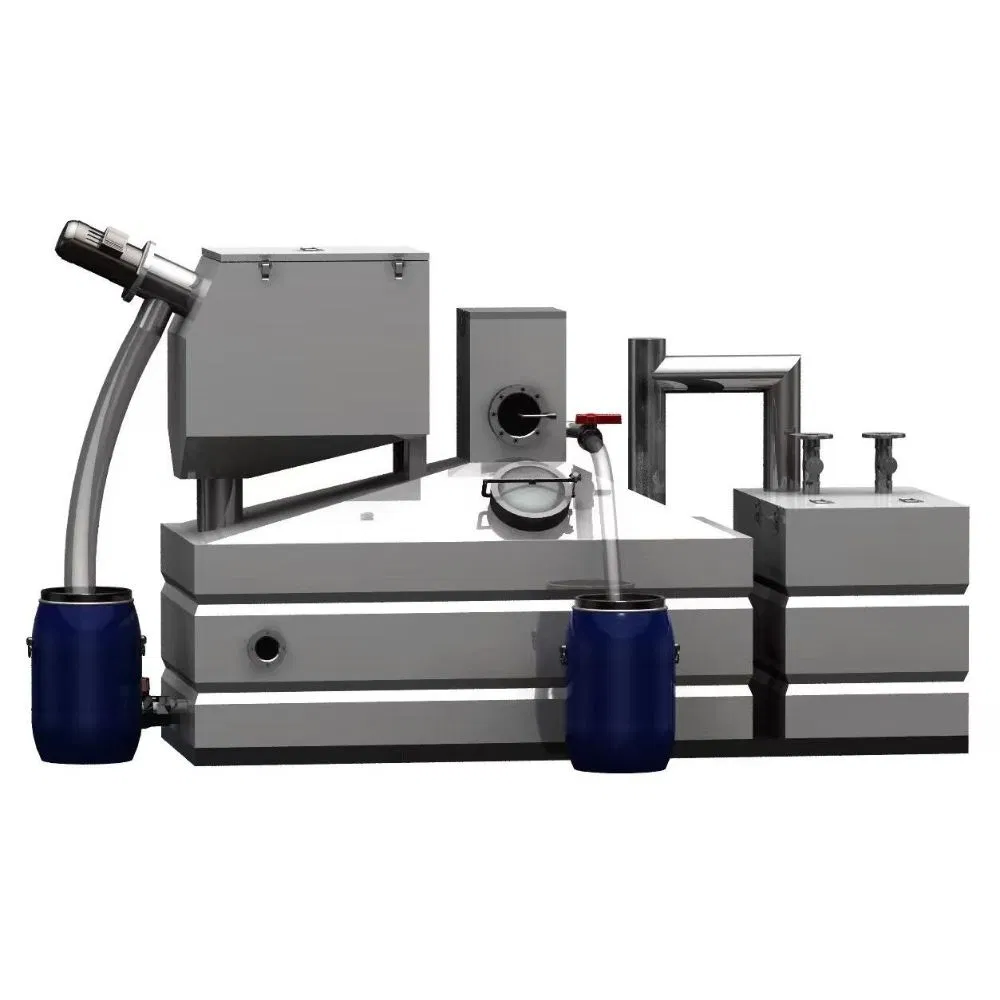

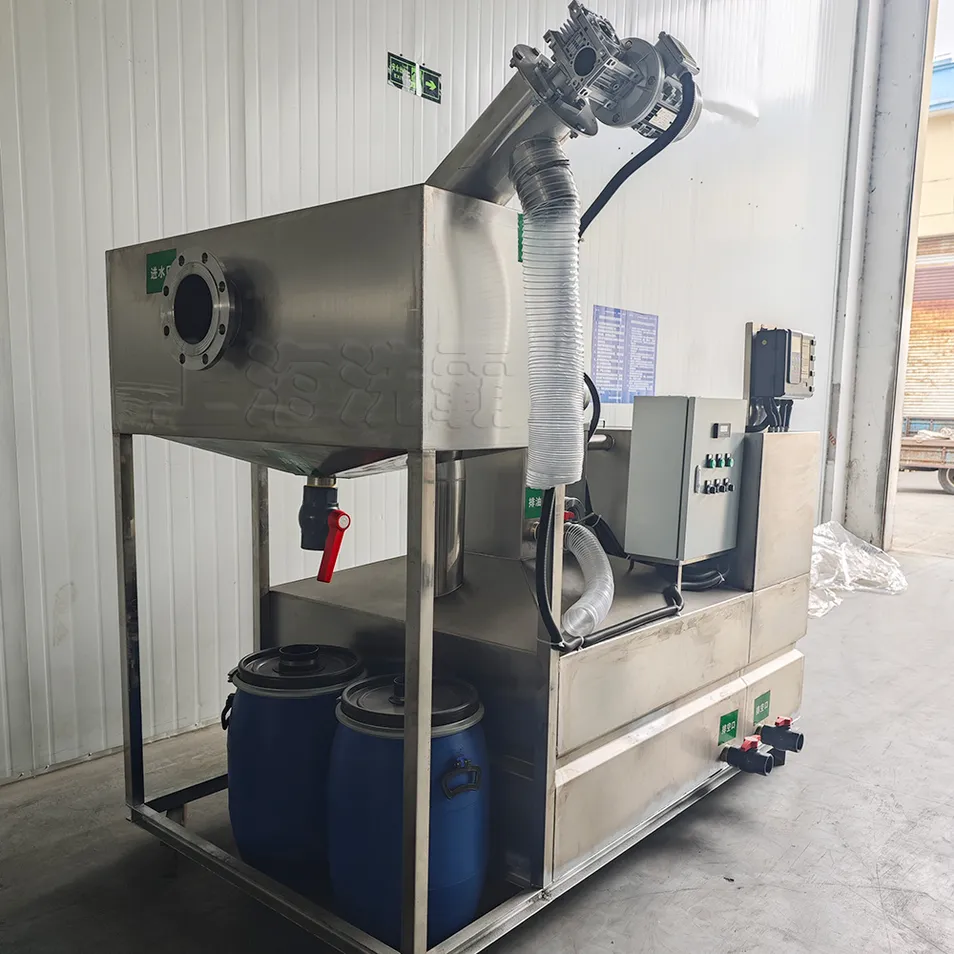

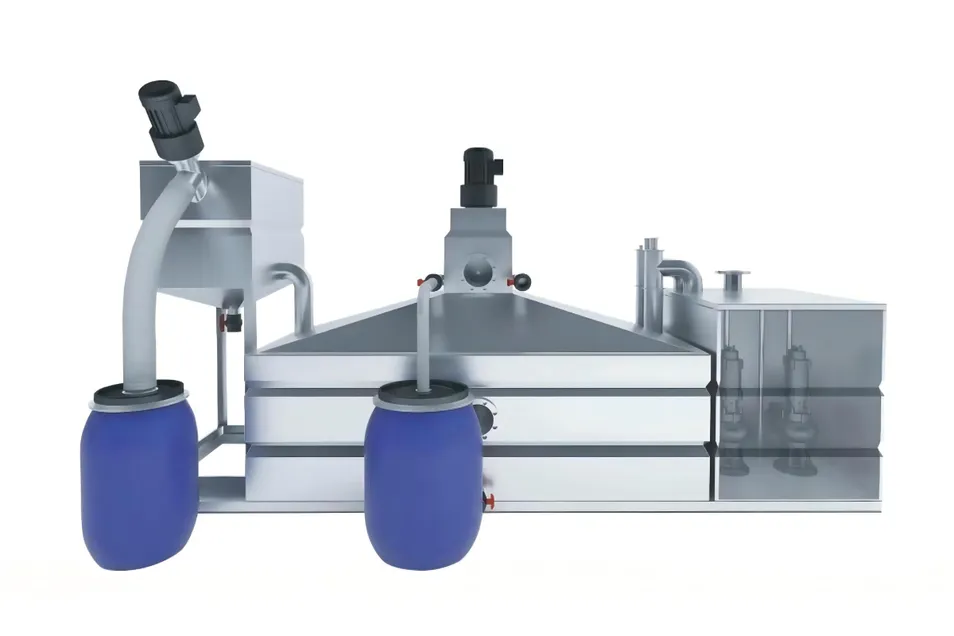

Integrated Oil Isolation Lifting Equipment
🔹
The integrated oil separation and lifting treatment equipment is an environmentally friendly device specifically designed for treating oil-containing wastewater from the catering industry. It is ideal for underground restaurants, hotels, kitchens, and food processing facilities.
Model Decoding (Example: ECH-GY-5/2-W/N)
- 📍 GY: Grease Separator
- 📍 5: Hourly Processing Capacity
- 📍 2: Dual Pump System
- 📍 W/N: External / Internal Type
Technical Data & Working Principle

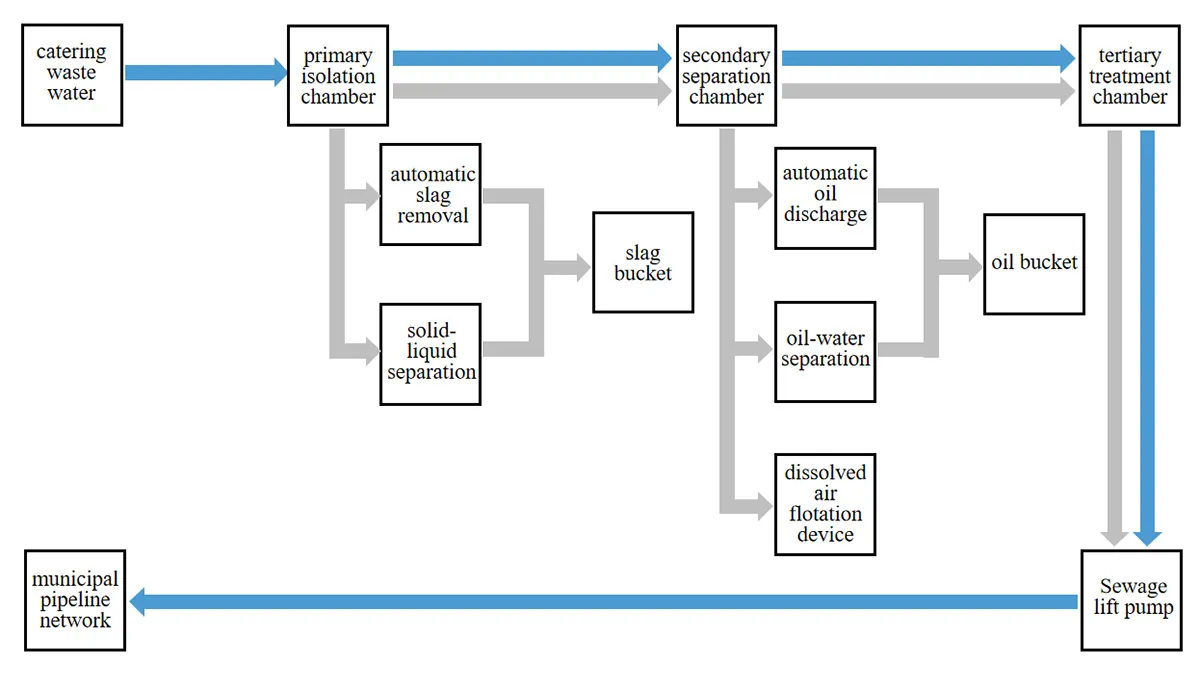

Working Principle Diagram:
| Models |
Flow rate (m³/h) |
Lift height (m) |
Power (kw) |
Dimensions (L*W*H) |
| External(W) |
Internal(N) |
| ECH-GY-5/2 | 5 | 10-20 | 0.75-1.5 | 2600*800*1400 | 1900*800*1400 |
| ECH-GY-10/2 | 10 | 10-20 | 0.75-1.5 | 2600*800*1400 | 2000*800*1400 |
| ECH-GY-20/2 | 20 | 15-28 | 2.2-4.0 | 3000*1000*1450 | 2300*1000*1450 |
| ECH-GY-30/2 | 30 | 15-30 | 3.0-5.5 | 3300*1200*1500 | 2600*1200*1500 |

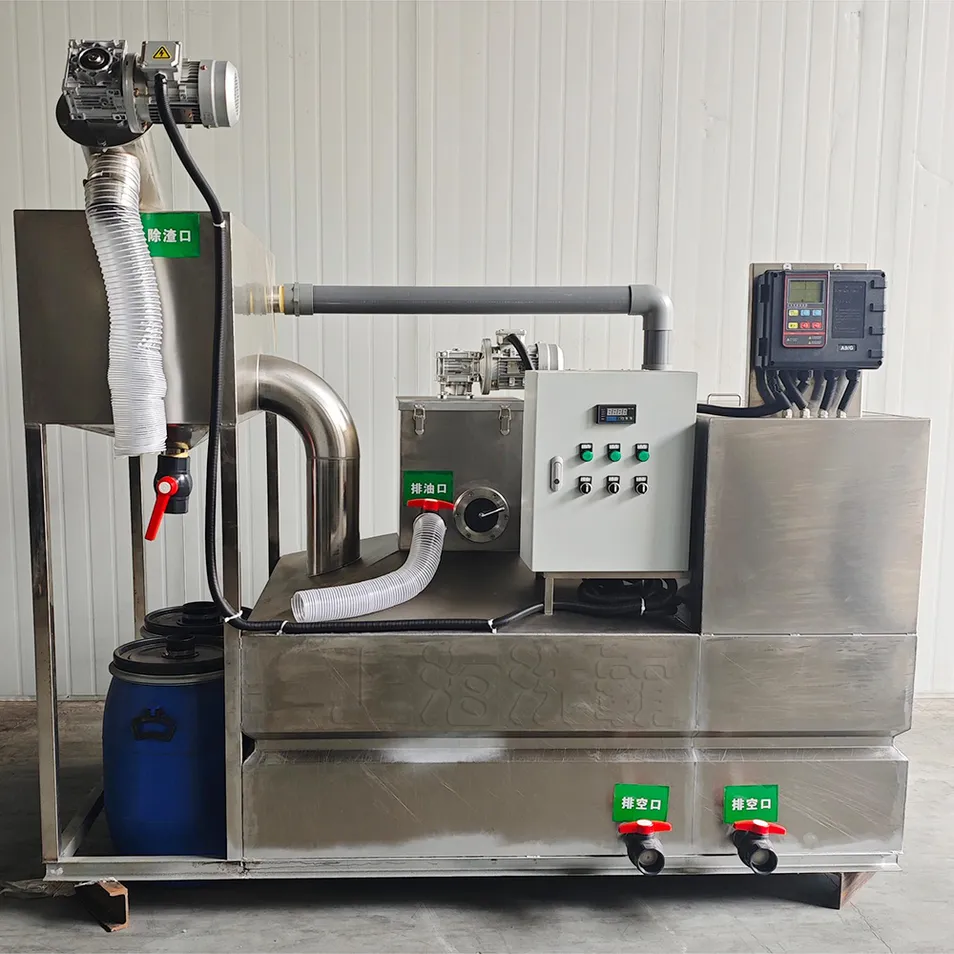

Core Technology Assets
1. Intelligent Integration: Three-stage separation, enclosed odor-free structure.
2. Solid-Liquid Separation: Automatic slag removal and particle recovery device.
3. Smart PCU Control: Liquid level monitoring, automatic alarms, and dry-run protection.
4. Constant Temperature: Electric heating mechanism for optimal grease flow.
5. Self-Cutting Pump: Spiral structure with blades to shred liquid impurities.
Company Capabilities & R&D

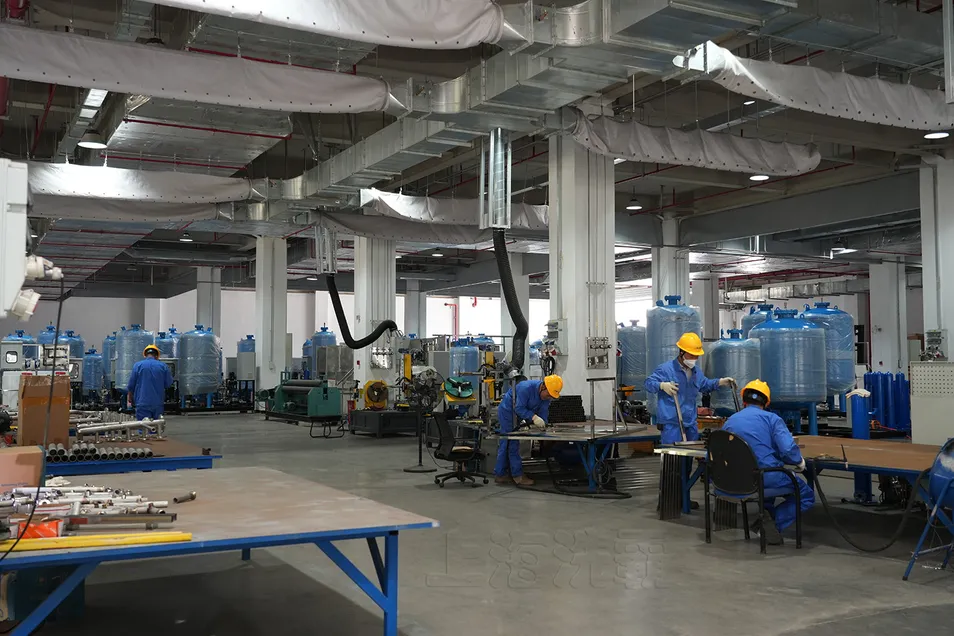

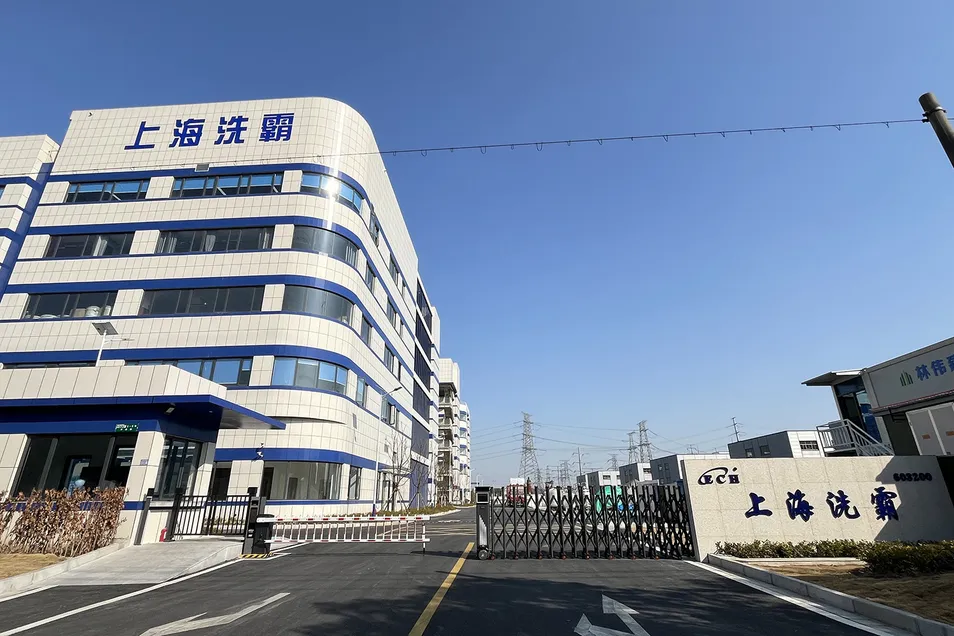

Established in 1994, our organization is a listed professional service provider (Stock Code: 603200) specializing in water treatment technology. With a 31,000 sqm site, we hold over 126 authorized patents, including 60 invention patents.
Frequently Asked Questions
Q1: What is the core technology of this oil-water separator?
A: It features a cone-shaped sealed separation chamber, automatic solid-liquid separation, a smart control system, and a self-cleaning discharge pump.
Q2: What makes your equipment unique compared to traditional grease traps?
A: Our intelligent control enables fully automatic operation with constant temperature heating, while the self-cutting pump eliminates clogging risks.
Q3: Can the equipment be customized for specific project needs?
A: Yes, we provide full OEM/ODM customization based on flow rate requirements, installation space, and material specifications.
Q4: Are you a manufacturer or a trading company?
A: We are a manufacturer with integrated R&D, manufacturing, and international trade capabilities, offering direct factory support.
Q5: Does the equipment require a special foundation for installation?
A: No specific foundation is required; however, the ground must be level, and we recommend flexible rubber joints on pipelines to manage vibration.
Q6: What certifications does your factory hold?
A: Our facility is ISO9001, ISO45001, and ISO14001 certified, ensuring high standards for quality and environmental management.
