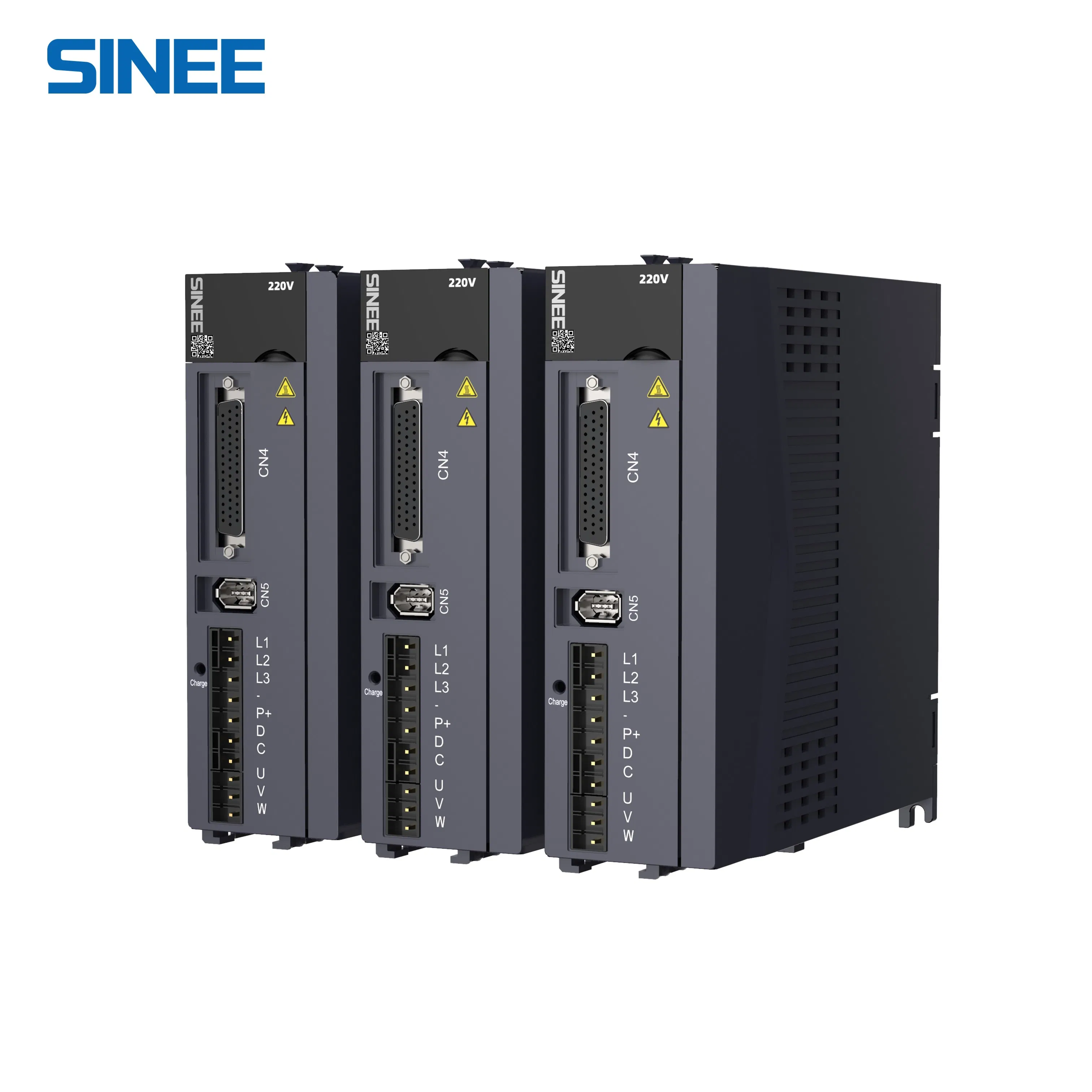

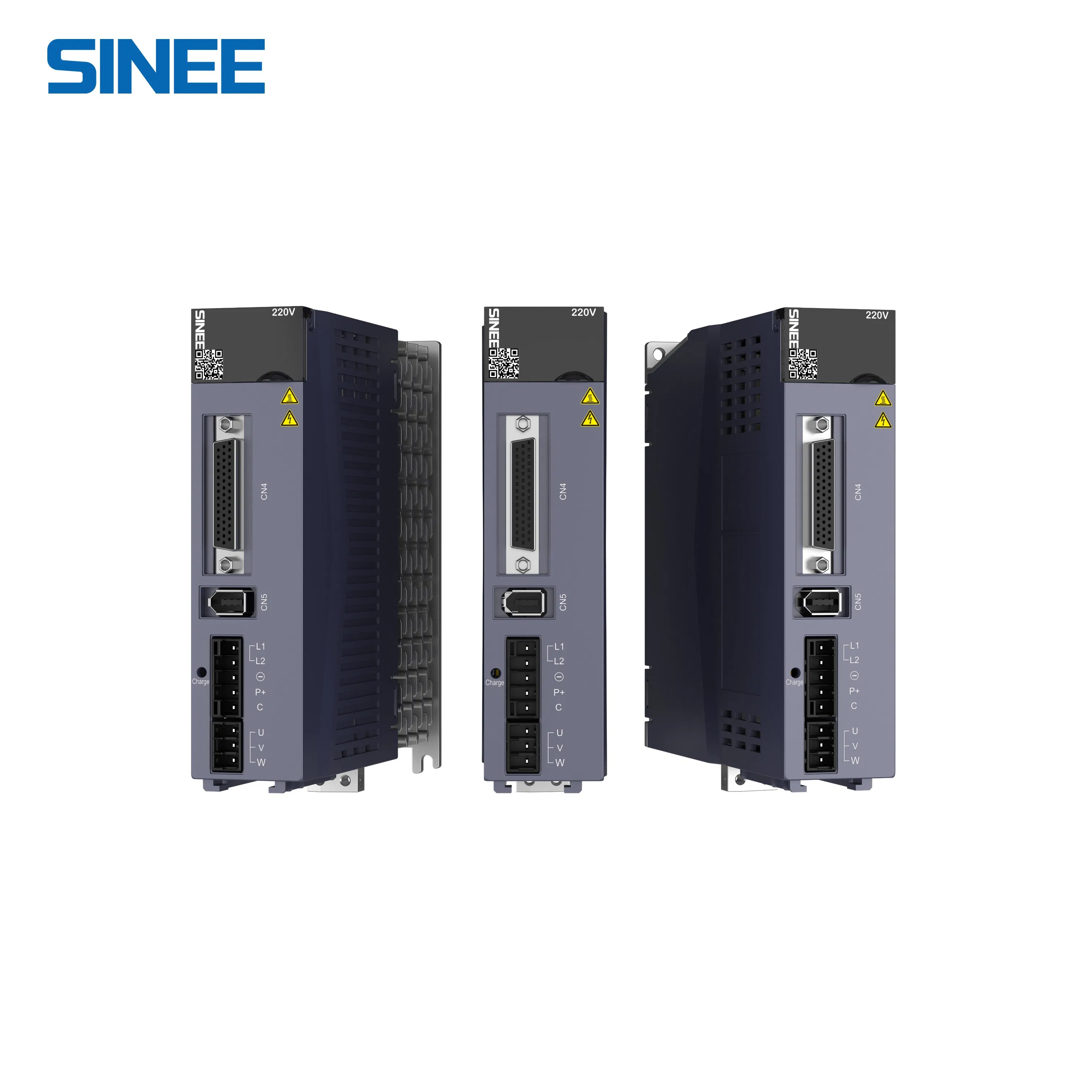

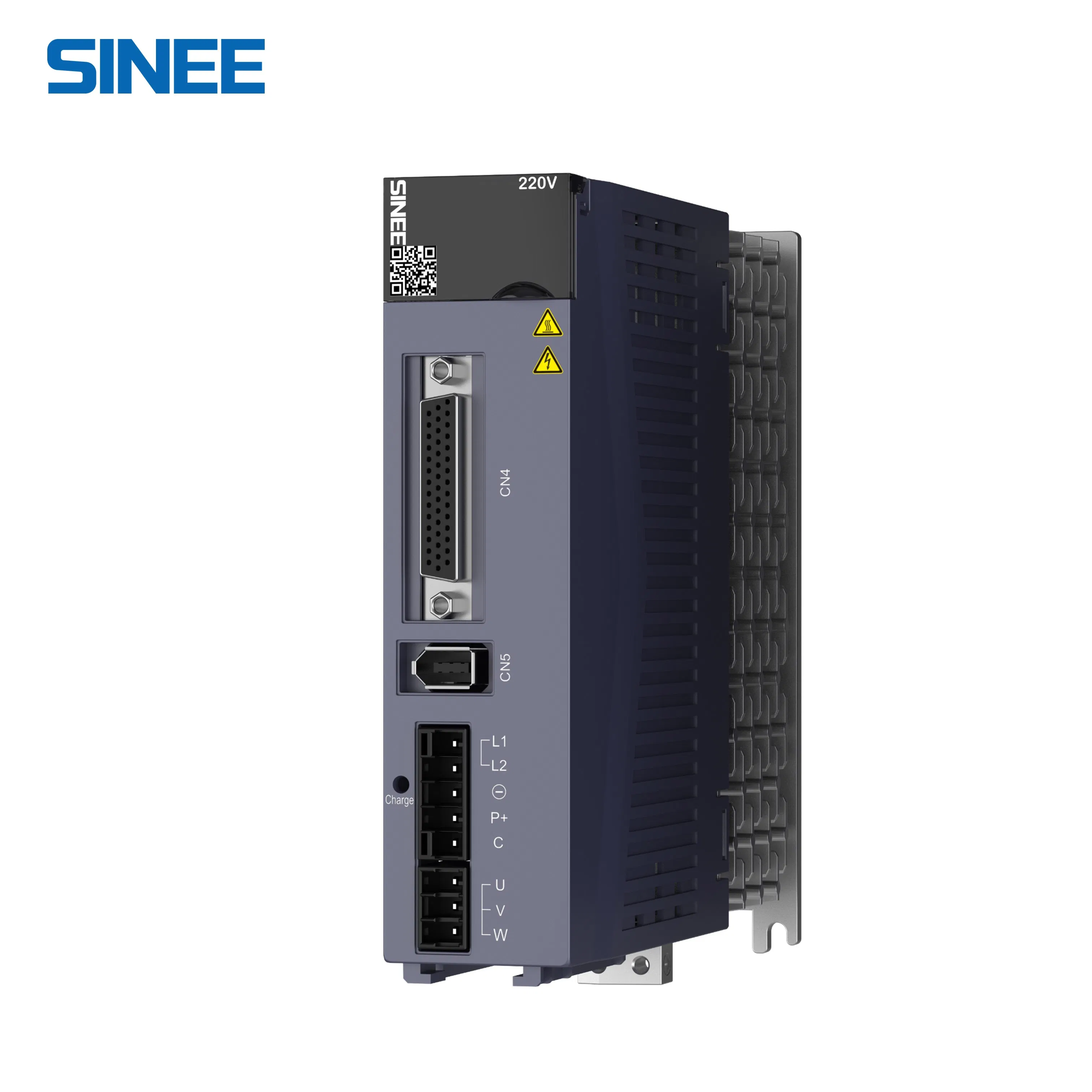

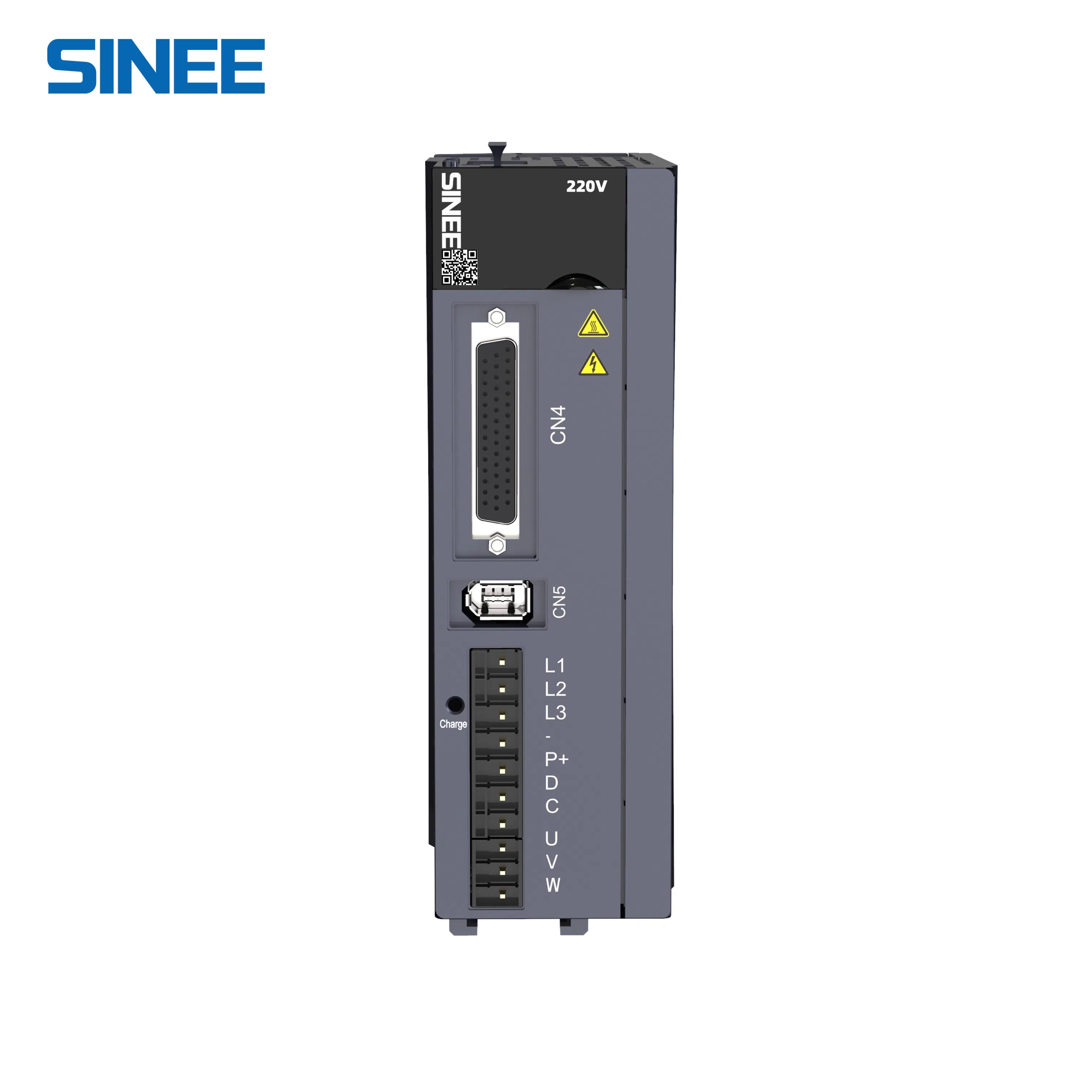

Emy Car
1 / 5

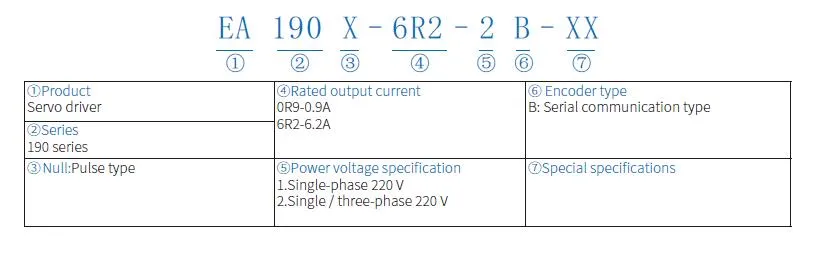

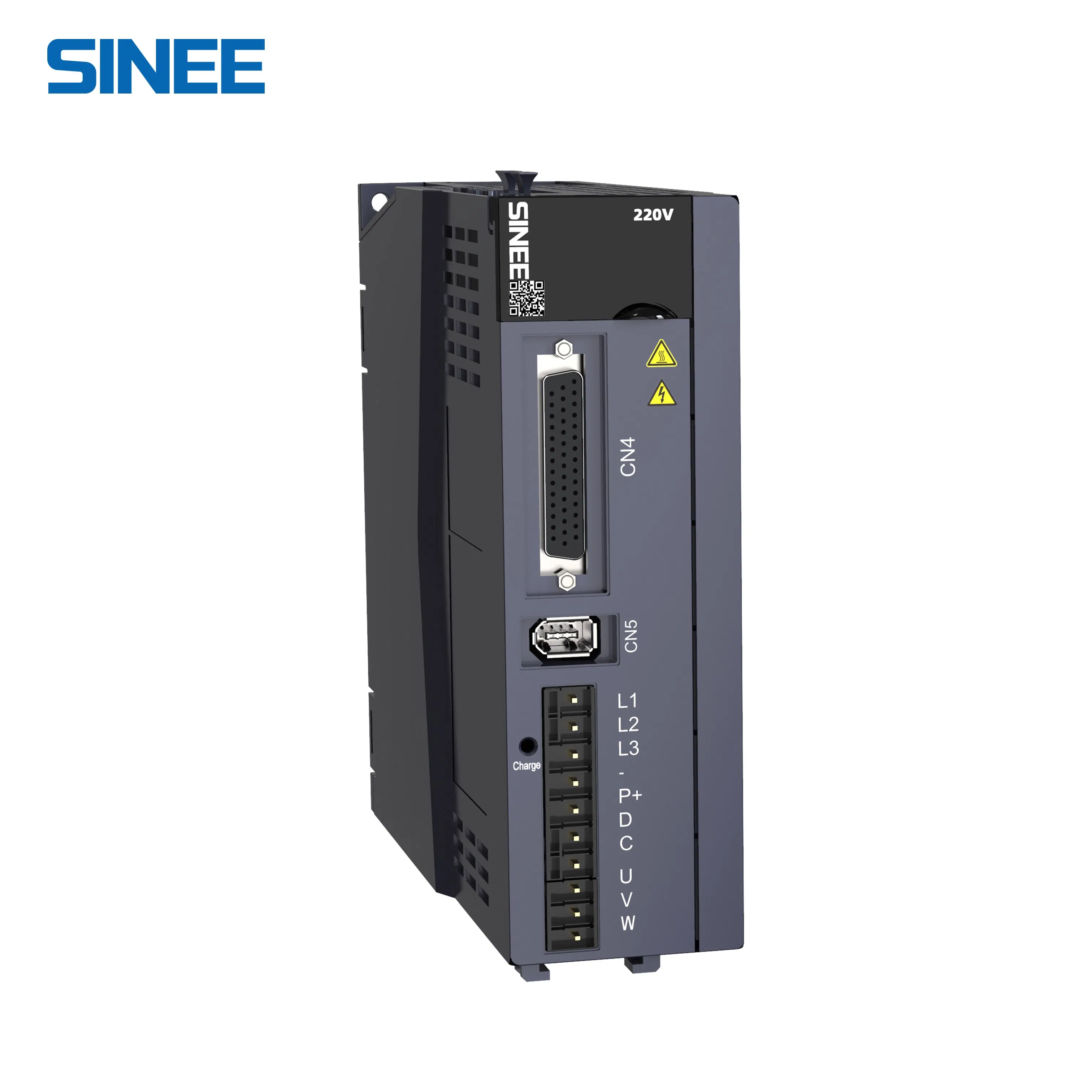

| Model NO. | EA190 | Mathematical Model | Linear |
| Signal | Continuous | Function | Automatic Control |
| Certification | ISO: 9001, CE | Material | Aluminum Alloy |
| Control Method | Svpwm, Vector Control | Cooling Method | Fan Cooling |
| Command Control Mode | Digital Torque Command | Origin | China |
Single/three-phase 220V ~ 240V | Power Range: 50W ~ 1kW
Reliable intelligent sorting systems are helping distribution centers realize "intelligent sorting, fast transfer and less people-dependent operation" of parcels. The EA190 system is specifically designed to meet high flexibility and performance-cost ratio requirements for modern logistics and courier industries.
| Operating Conditions | Specifications | ||
| Temperature | Working 0~40°C, Storage -20~85°C | ||
| Vibration | ≤ 4.9 m/s², 10~60 Hz | ||
| Control Method | SVPWM, Vector Control | ||
| Feedback Mode | Support 17-bit incremental / 23-bit absolute encoder | ||
| Position Accuracy | ±1 pulse command | ||
| Communication | Modbus RTU | ||
A: It utilizes SVPWM and Vector Control for high-response performance.
A: The system supports both 17-bit incremental and 23-bit absolute encoders.
A: It uses the standard Modbus RTU communication protocol.
A: Yes, it includes hardware protection for over-voltage, under-voltage, over-speed, and overload, as well as software protection for position errors.
A: For Differential input mode, it is 500 Kpps; for Open-collector input mode, it is 200 Kpps.
A: The system uses Fan Cooling to maintain optimal operating temperatures.
