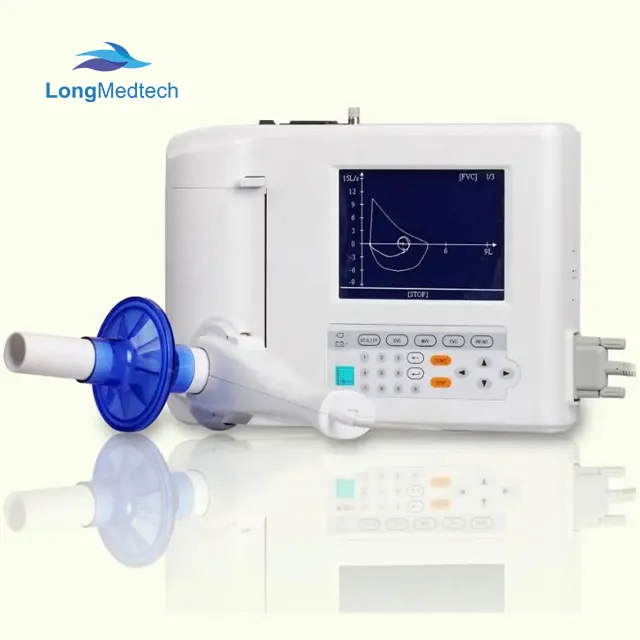

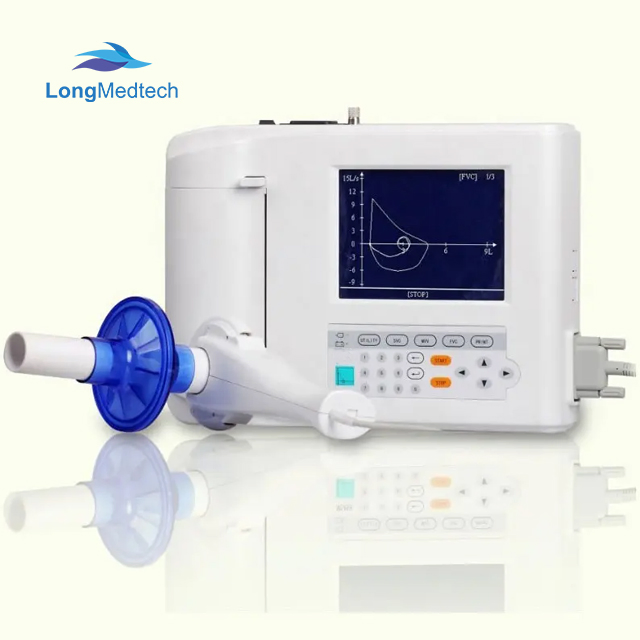

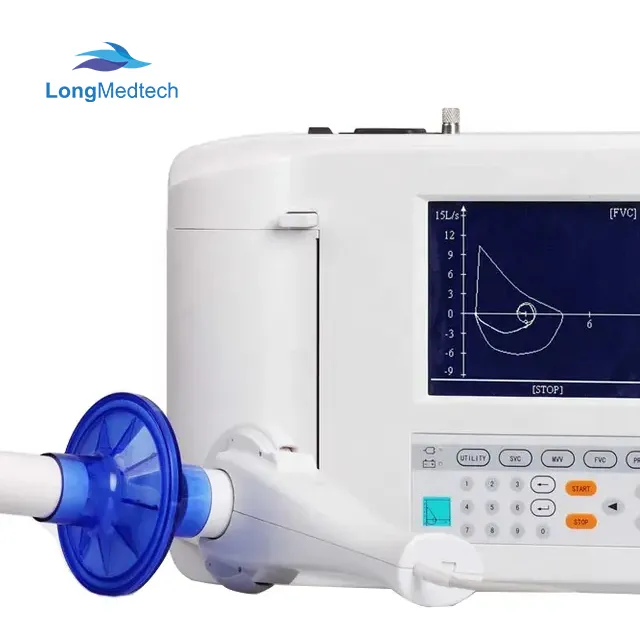

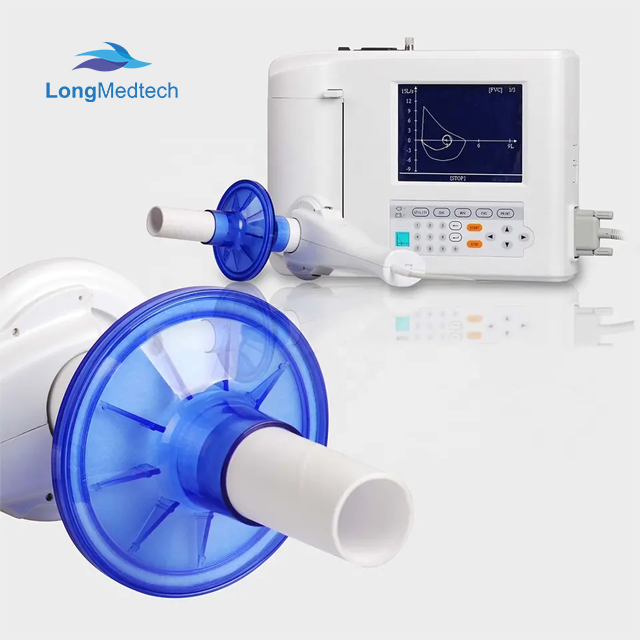

The portable pulmonary function measurement instrument can be used to measure vital capacity (VC), forced vital capacity (FVC), Maximum Ventilation Volume (MVV). Measurement algorithm refers to the ITS, ERS standards of the American Thoracic Society (ATS).
✅ Adopting pressure-flow sensor, sensitive, precise, easy to launder, clean and durable.
✅ All parameters can be displayed on the oversized screen(320x240), built-in memory can store maximum 300 cases of patient measurement results.
✅ The instrument can calibrate automatically, all English operation, more convenient to operate.

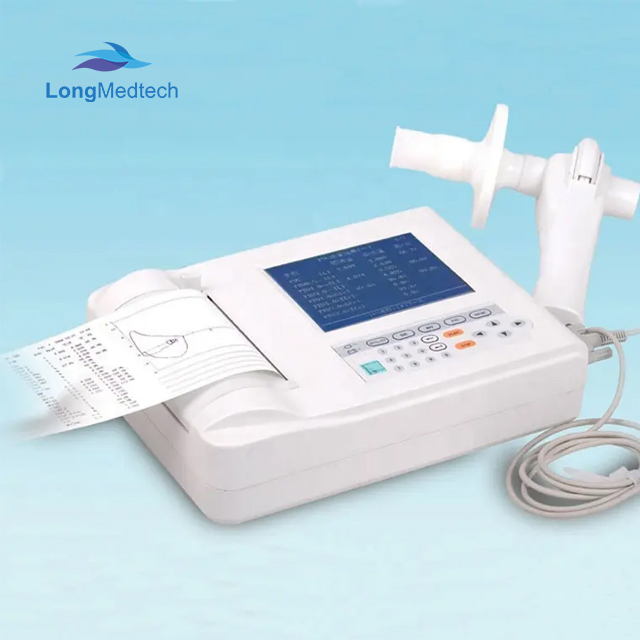

✅ 110mm thermal printer built-in, can print out a clear clinical report, predicted value, measured value.
✅ Measurement of breathing time: VC time 50 seconds, FVC measuring time 25 seconds, MVV time 12 seconds.
| Items | Technique Specification |
|---|---|
| Display Screen | 5.7 inches Monochrome LCD, Resolution 320*240 |
| Control Keys | SVC, FVC, MVV, PRINT, START/STOP, UTILITY |
| Measurement Means | Pressure gradient pneumatic flow sensor |
| Capacity Range | 0L ~ 9L (Accuracy: ±3% or ±50ml) |
| Flow Velocity Range | 0 ~ 14L / s (Accuracy: 5% or 0.2L / s) |
| Paper Recorder | Thermal dot matrix, 110mm width, speed 12.5/25/50mm/s |
| Power Supply | AC 100V-240V / DC Rechargeable NI-MH battery |
| Safety Class | IEC60601-1 class I, type CF |
A1: This device can measure Vital Capacity (VC), Forced Vital Capacity (FVC), and Maximum Ventilation Volume (MVV).
A2: Yes, the built-in memory can store up to 300 patient measurement results for later review.
A3: Yes, the device features a built-in 110mm thermal printer for clearing clinical reports immediately.
A4: The algorithm refers to the ITS and ERS standards of the American Thoracic Society (ATS).
A5: Yes, in addition to AC 100V~240V power, it includes a rechargeable NI-MH battery for portable use.
A6: The pressure gradient pneumatic flow sensor is designed to be sensitive, precise, and easy to launder and clean.
