OEM Conversion 62196 IEC Type 1 to Type 2 EV Charging Adapter

1 / 5

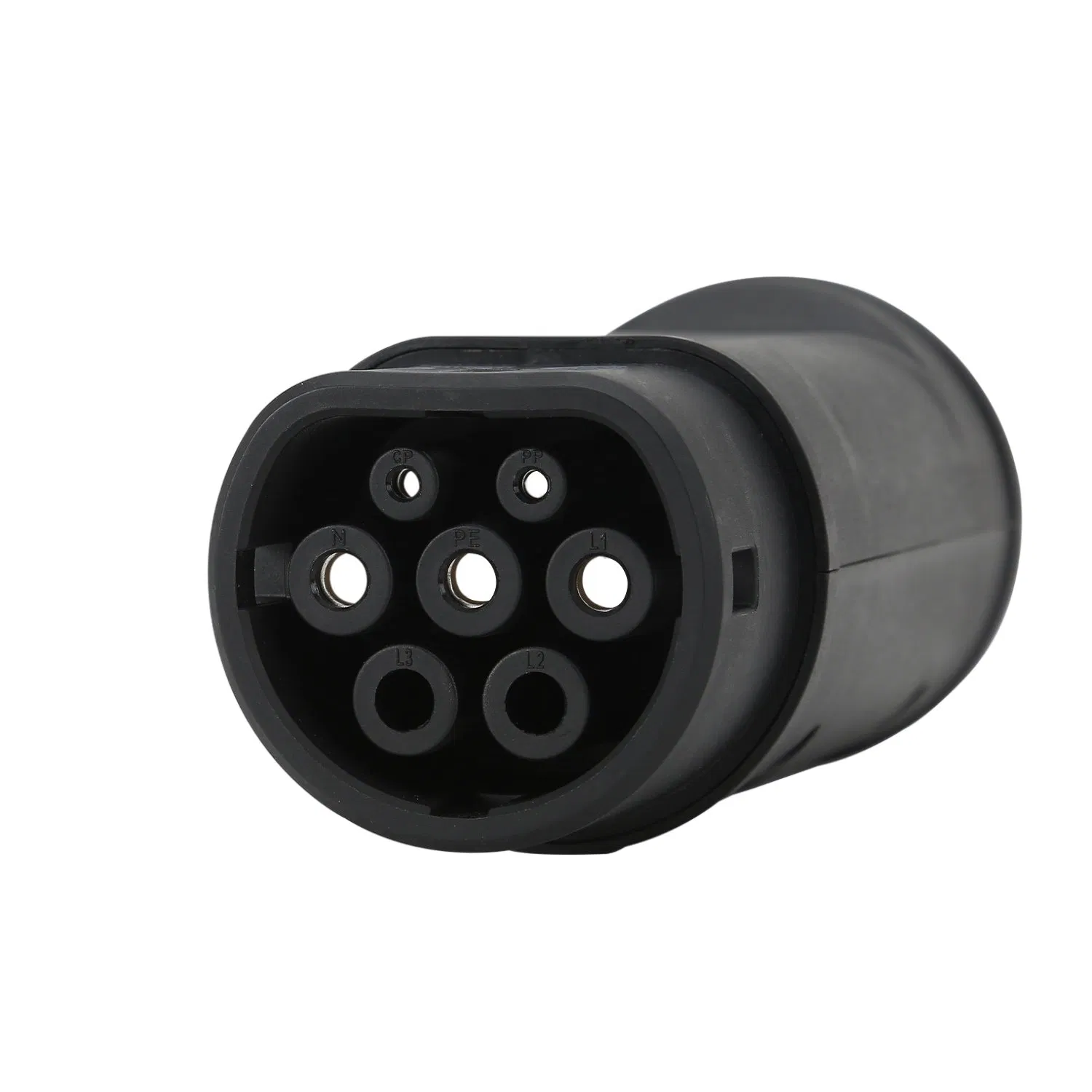

OEM Conversion 62196 IEC Type 1 to Type 2 EV Charging Adapter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.ZL-S&I-C

TypeSlow EV Charging Station

Insulation ResistanceMore Than 1000m Ohm(DC500V)

Contact Resistance0.5m Ohm Max

Terminal Temp RiseLess Than 50K

CertificationCE, TUV

Warranty12 Months

Specification164.6mm*60mm

Production Capacity30000PCS/Month

OriginChina

Packaging & Delivery

Package Size42.50cm * 42.50cm * 41.00cm

Package Gross Weight14.050kg

Transport PackageCarton Box (Customized)

Product Description

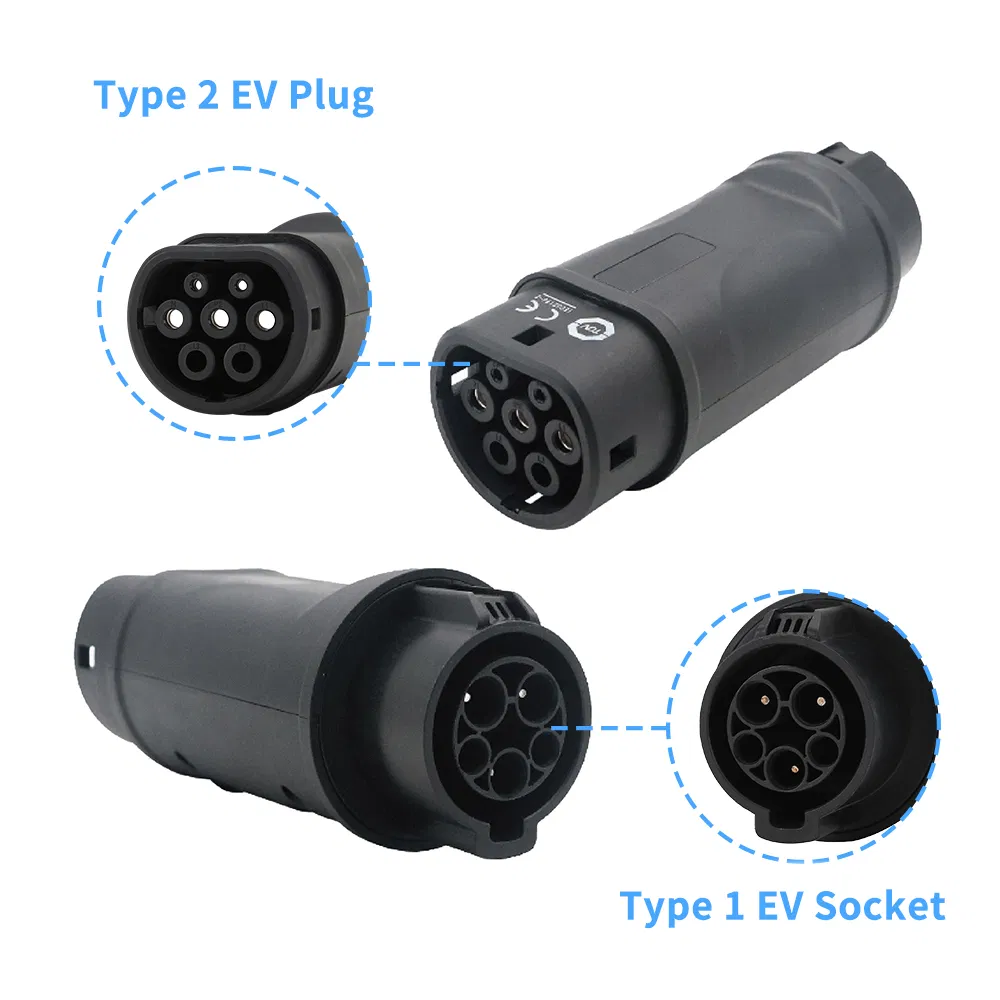

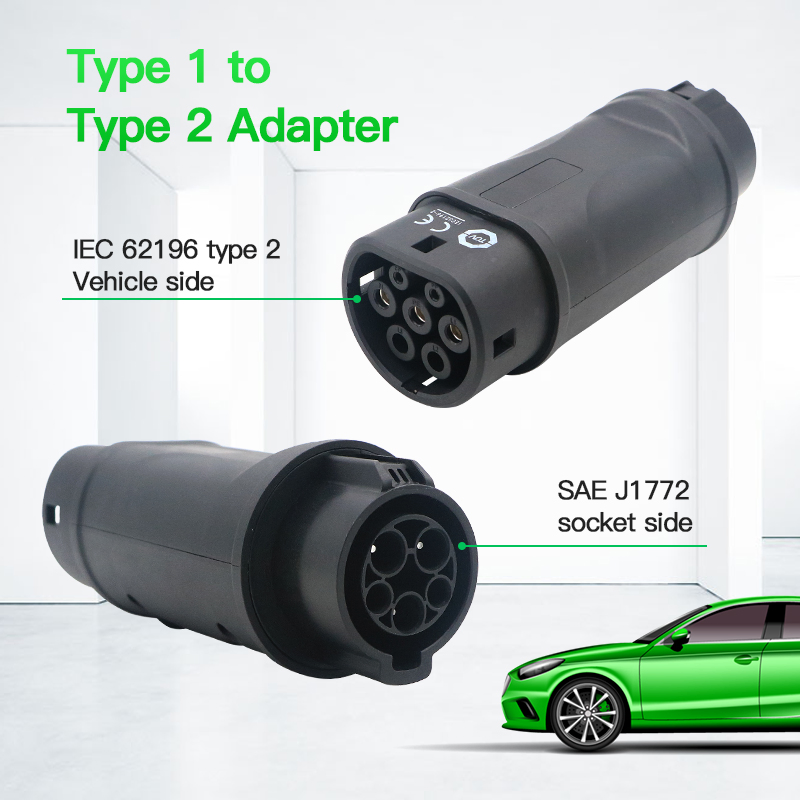

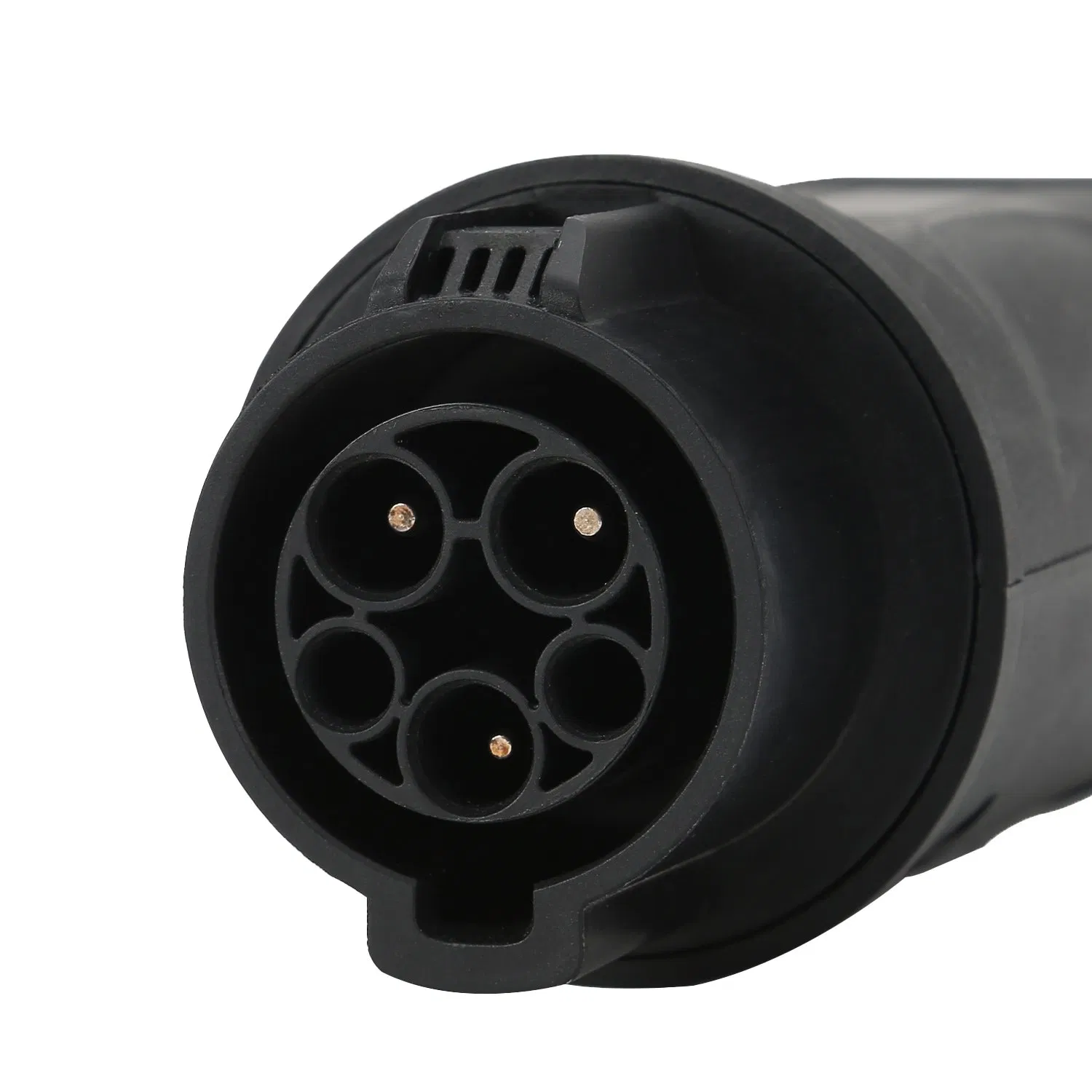

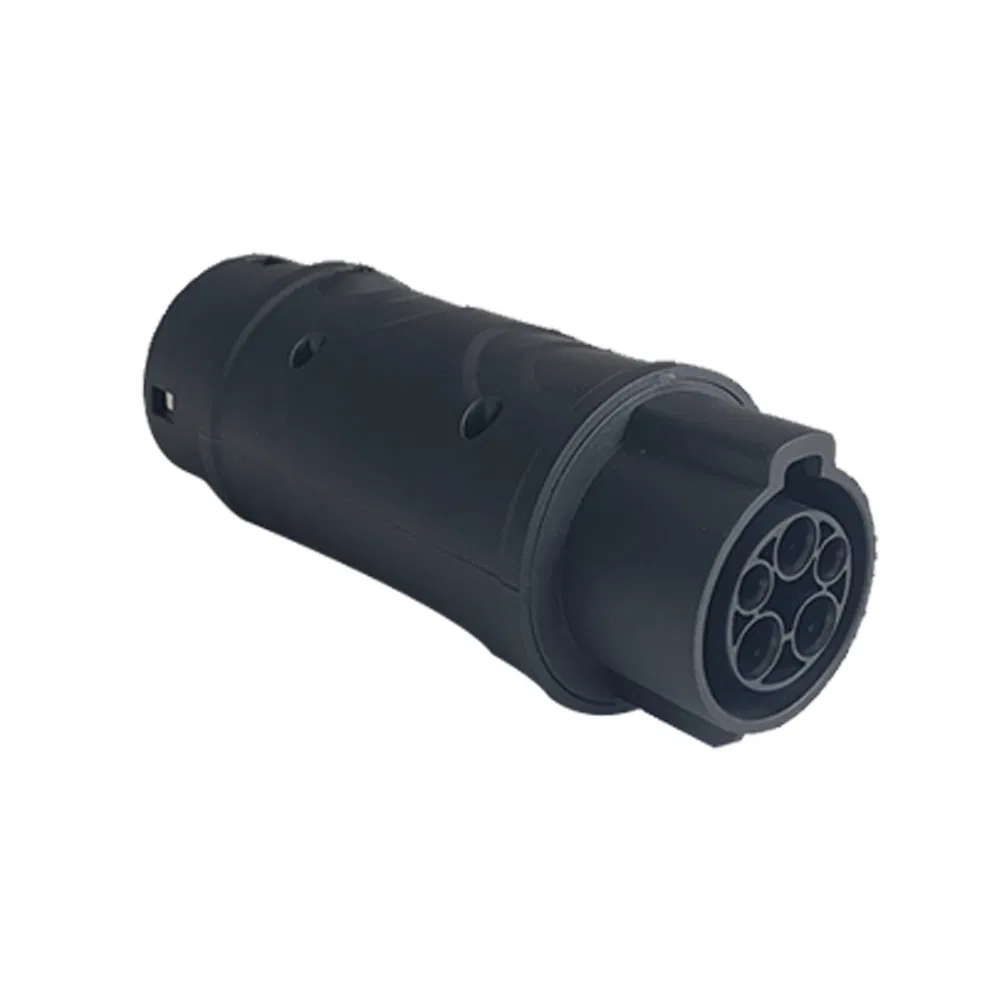

T1-T2 EV Charging adapter for SAE charger station to IEC electric vehicle

Product Name	T1-T2 EV Charging adapter
Electrical Performance
Rated current	16A/32A
Operation Voltage	110V/250V AC
Insulation resistance	more than 1000M Ohm(DC500V)
Contact resistance	0.5m Ohm max
Terminal temperature rise	less than 50K
Withstand voltage	2000V
Mechanical Properties
Mechanical life	no-load plug in/out > 10000 times
Coupled insertion force	45N~80N
Environmental & Material
Operating Temperature	-30ºC ~ +50ºC
Case material	Thermoplastic, UL94 V-0
Terminal	Copper alloy, silver plating

Manufacturing & Quality

Frequently Asked Questions

Q1: What is the main function of this T1-T2 adapter? It allows electric vehicles with Type 2 (IEC) inlets to charge from SAE J1772 Type 1 charging stations.

Q2: What are the rated current options? The adapter supports both 16A and 32A rated currents, operating at 110V to 250V AC.

Q3: Is the adapter weatherproof for outdoor use? Yes, it is designed to operate in temperatures ranging from -30ºC to +50ºC with flame retardant UL94 V-0 material.

Q4: How long is the mechanical lifespan? The adapter is durable enough for more than 10,000 cycles of no-load plugging in and out.

Q5: Does it come with a warranty? Yes, it includes a 12-month standard warranty to ensure reliable performance.

Q6: What safety certifications does this product have? The product is fully certified by CE and TUV, ensuring compliance with international safety standards.
