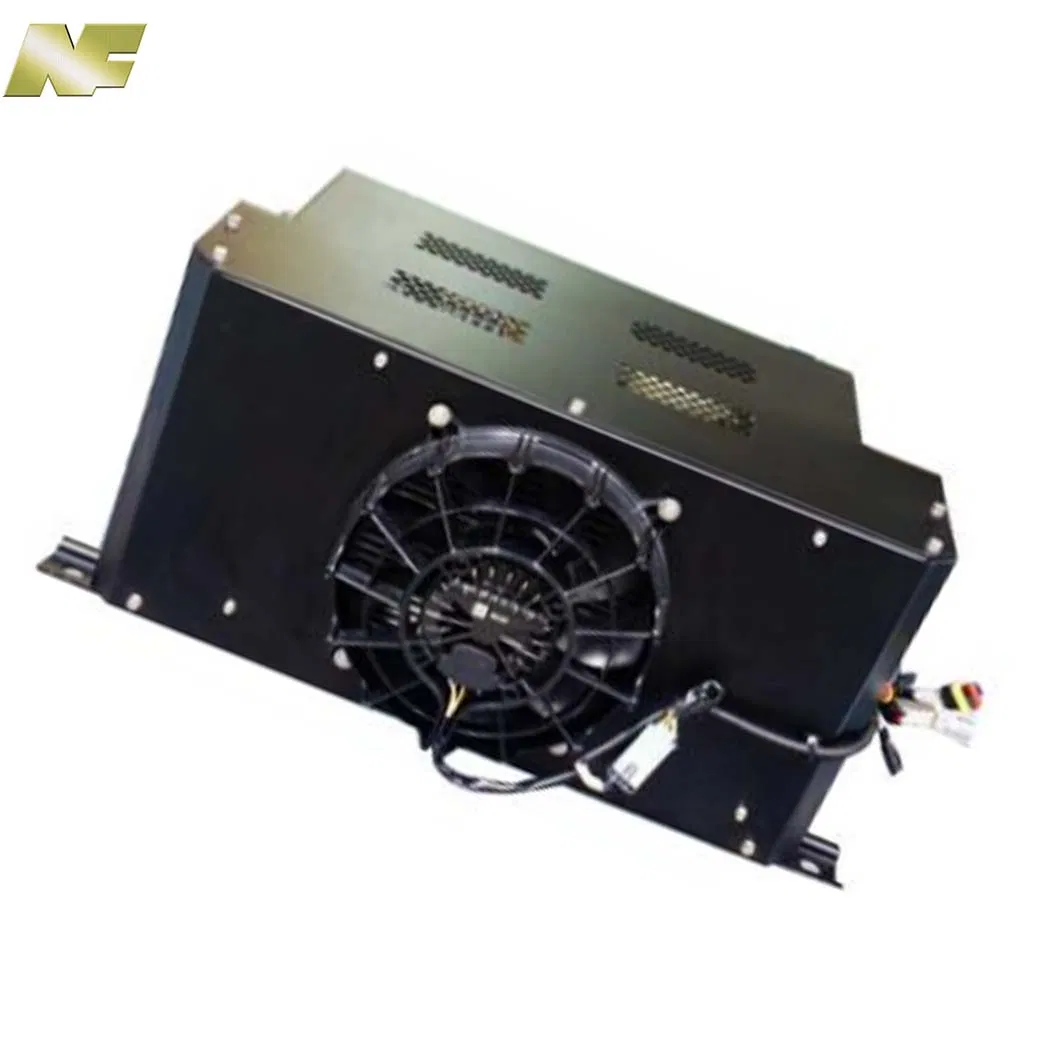

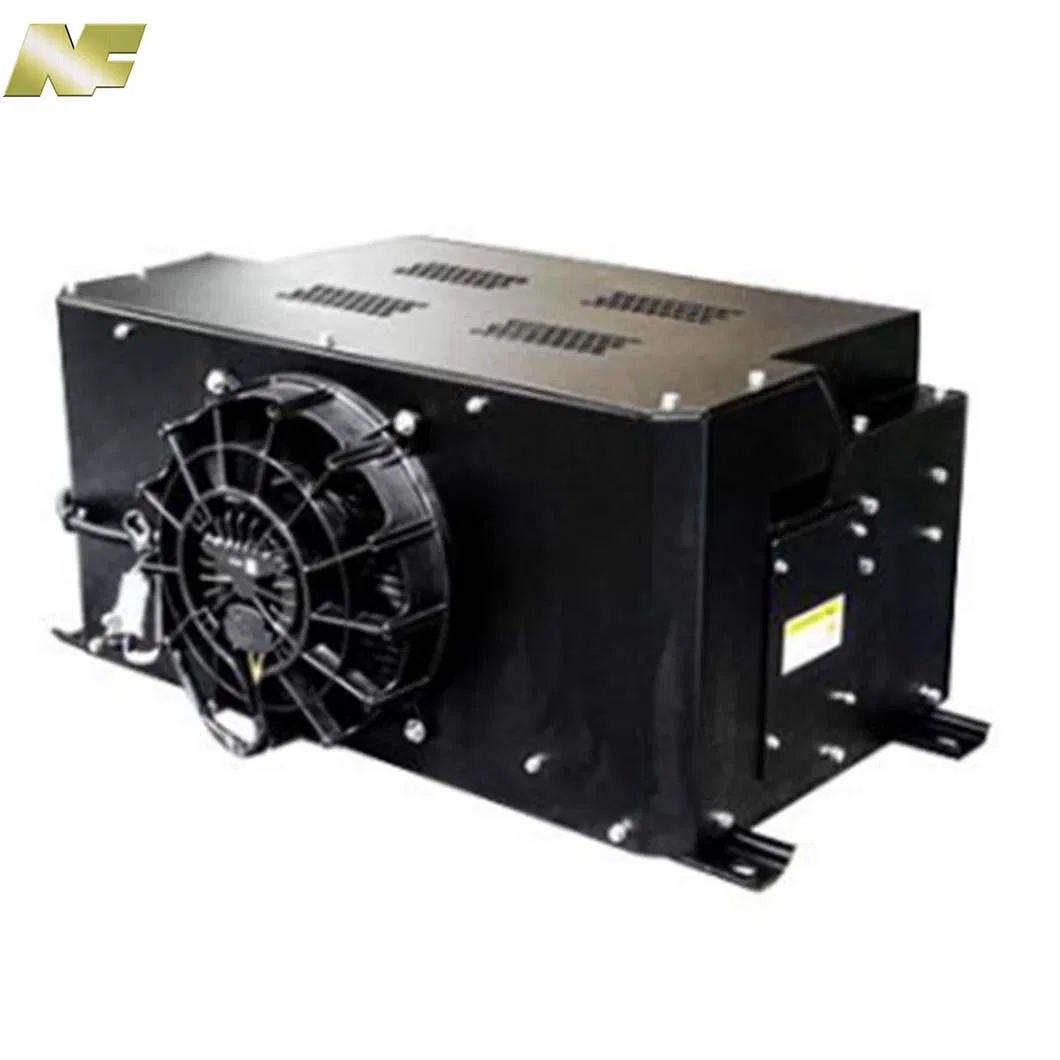

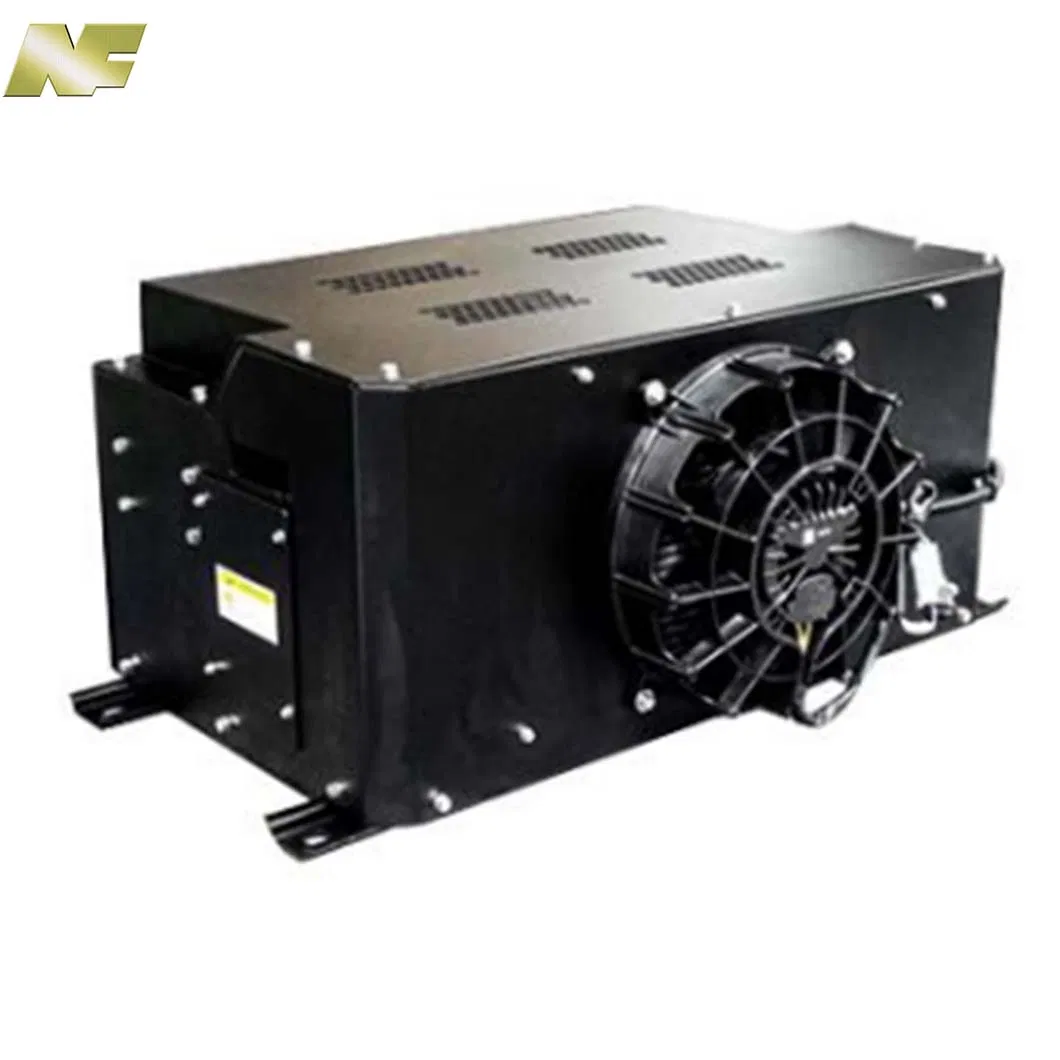

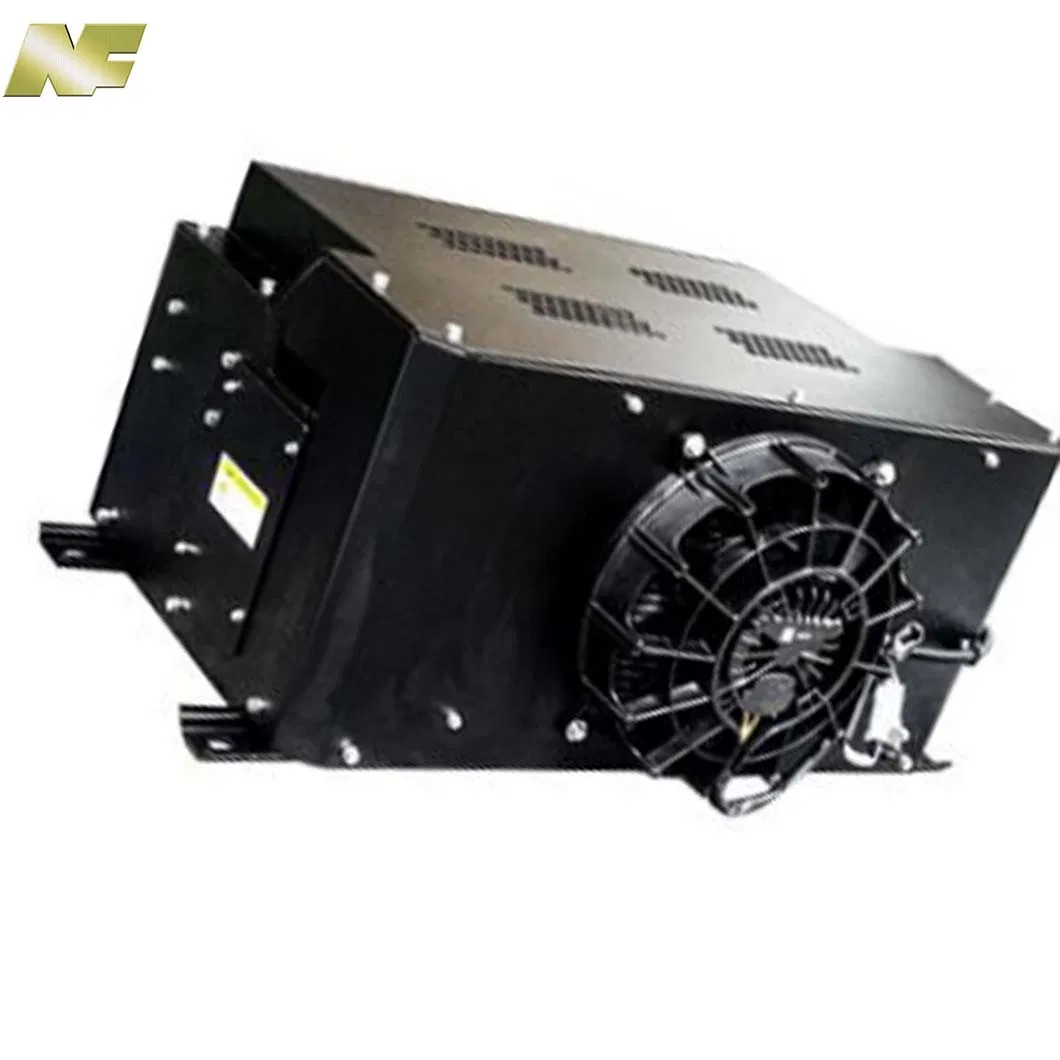

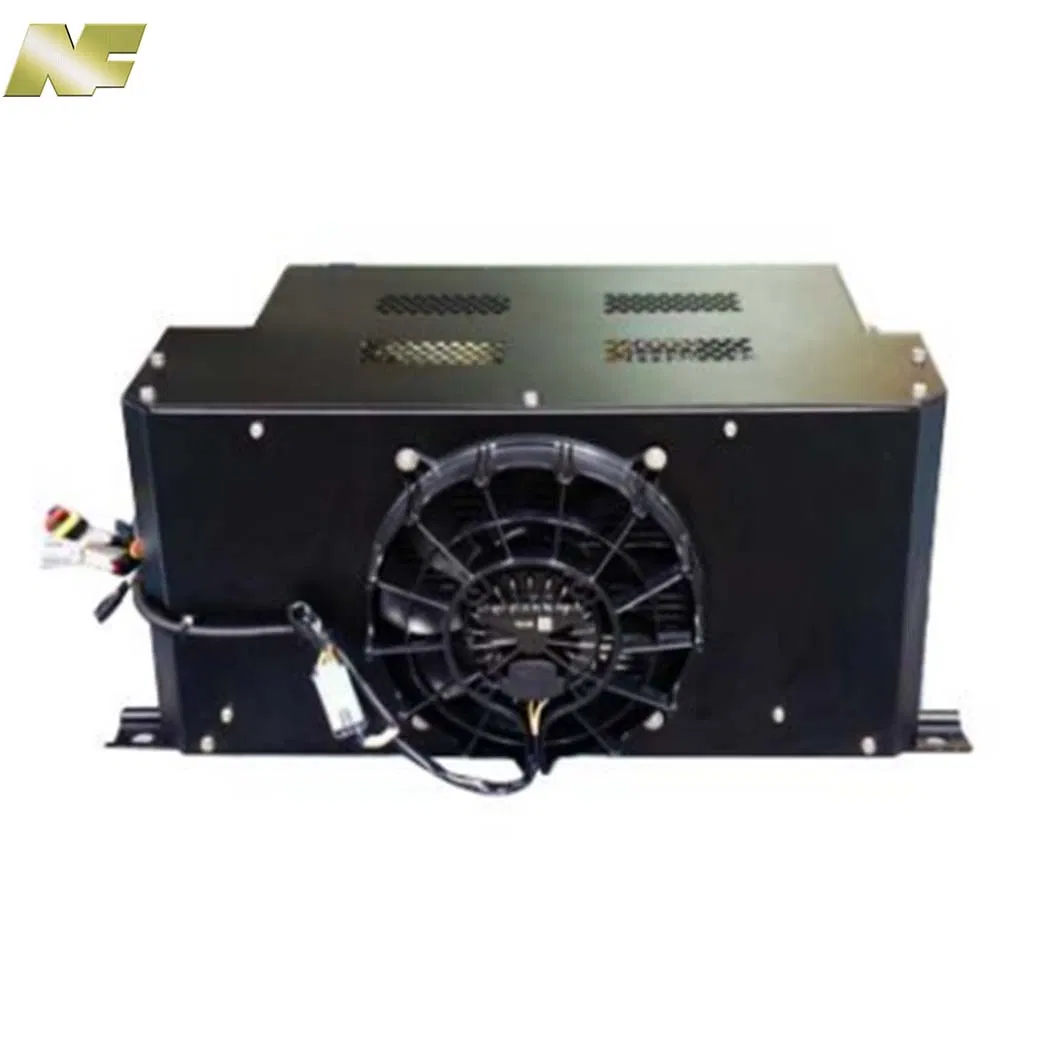

📋 Basic Information
Name:
Battery Thermal Management
Max Compressor Power:
11.6kw
Max Fan Air Volume:
2200m³/H
Application:
8-12m Electric Bus

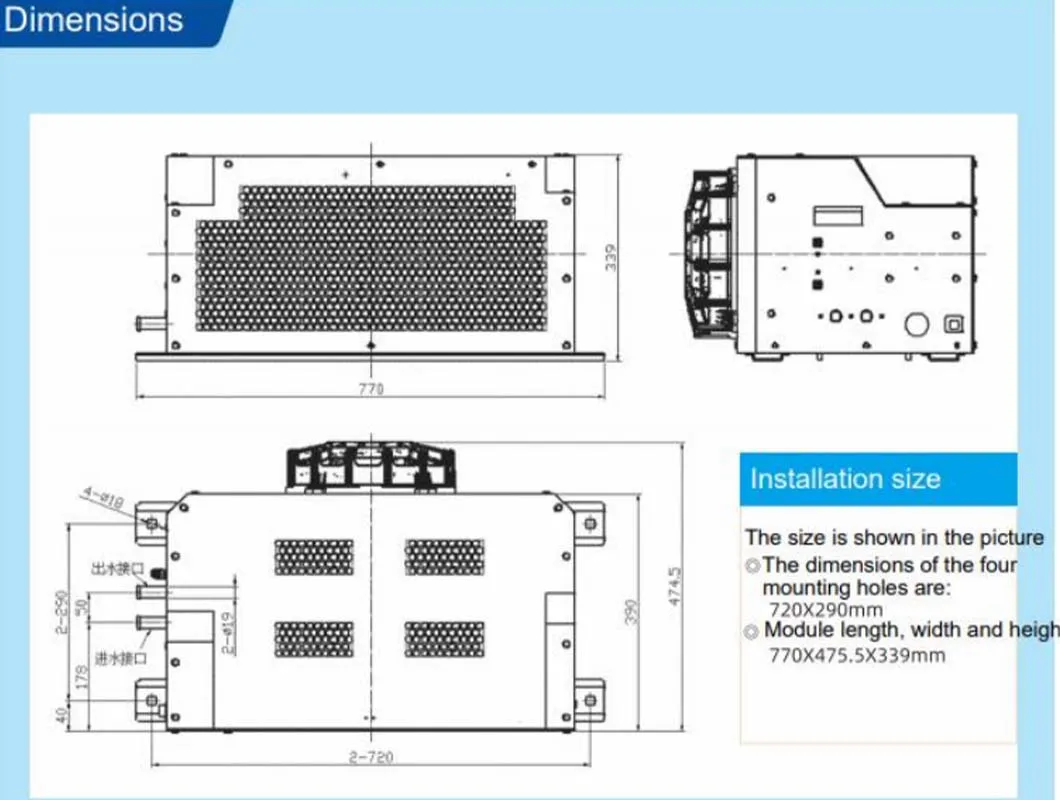

Dimensions:
770*475.5*339mm
🔍 Product Description

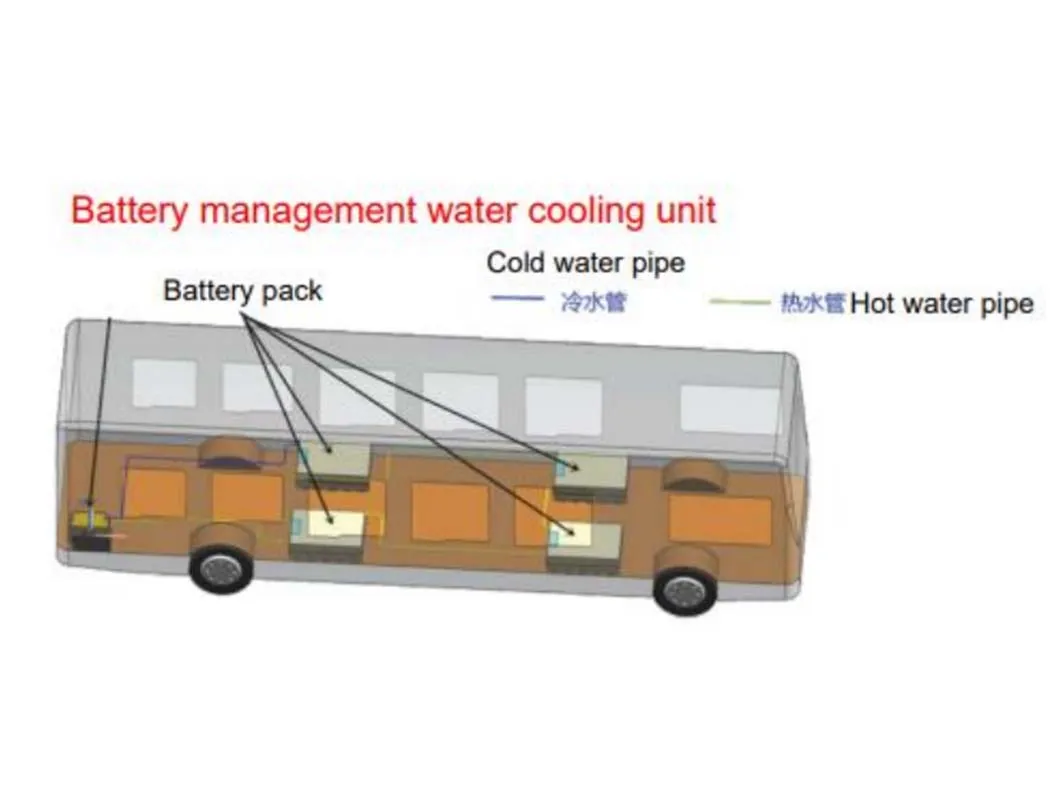

The battery thermostatic management water-cooling unit obtains low-temperature antifreeze by evaporative cooling of refrigerant. The low-temperature antifreeze takes away the heat generated by the battery through convection heat exchange under the action of the water pump. The liquid heat transfer coefficient is high, the heat capacity is large, and the cooling speed is fast, which is better for reducing the maximum temperature and maintaining the temperature consistency of the battery pack.
Similarly, when the weather is cold, it can utilize the high-temperature antifreeze heater, and convection exchange heats the battery pack to maintain the optimal performance of the battery pack.
📊 Technical Specifications
| Item |
Value |
| Product | Battery thermal management unit |
| Rated voltage | 540V |
| Control voltage | 24V |
| Rated heat exchanger | 6Kw |
| Maximum heat exchange | 11.6kw |
| Maximum compressor power | 3Kw |
| Maximum flow of water pump | 50L/min |
| Refrigerant | R134a |
| Maximum air volume of fan | 2200m³/h |
💎 Our Advantages
1. Premium Construction: Specialized design for water, oil, and corrosion resistance. Variety of working modes with high control accuracy and long working life.
2. Intelligent Control: Parameters are readable and controllable via CAN communication. Equipped with full protection for voltage, current, temperature, and system pressure.
3. Space Efficient: Overhead unit design saves vehicle interior space. Modular structure simplifies installation and maintenance.
4. Excellent Compatibility: Strong EMC performance ensures no interference with surrounding equipment.
🚀 Application & Exhibition
🏭 Manufacturing Expertise

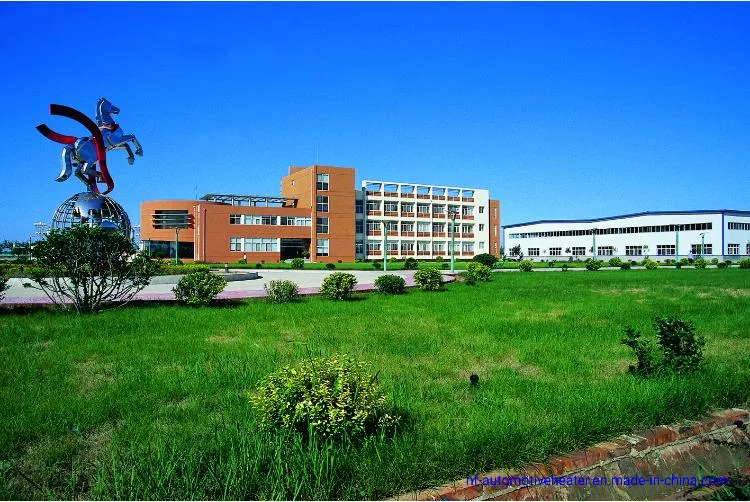

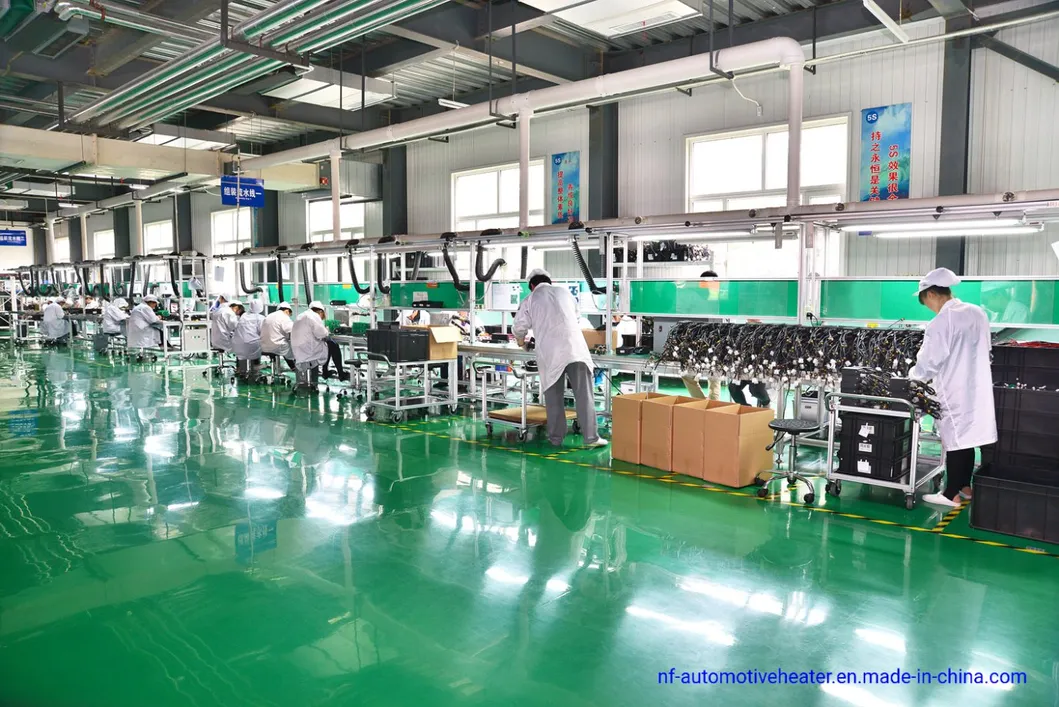

With over 30 years of experience, our group operates 5 factories specialized in parking heaters, air conditioners, and electric vehicle parts. We utilize high-tech machinery and strict quality control testing to ensure product authenticity. Our facilities are certified under ISO/TS16949:2002, CE, and E-mark standards, reflecting our commitment to global quality requirements.
❓ Frequently Asked Questions

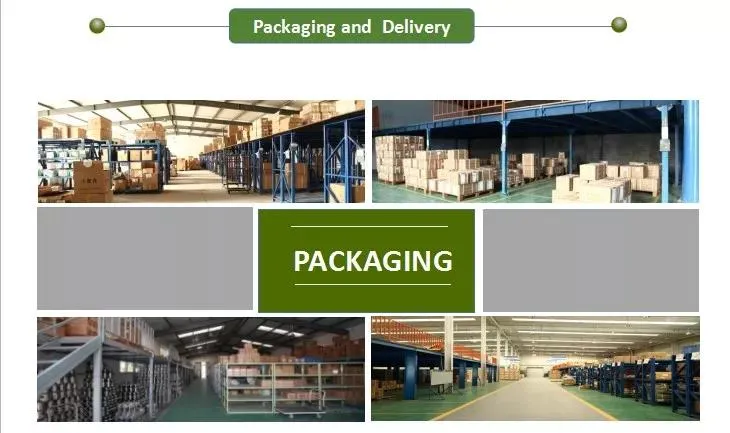

Q1. What are your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. Customized branded boxes are available with proper authorization.
Q2. What is your terms of delivery?
We support multiple delivery terms including EXW, FOB, CFR, CIF, and DDU.
Q3. How long does delivery take?
Generally, it takes 30 to 60 days after receiving advance payment, depending on the items and order quantity.
Q4. Can you produce according to samples?
Yes, we can produce based on your samples or technical drawings, including the construction of molds and fixtures.
Q5. Do you test all goods before delivery?
Yes, we conduct a 100% rigorous test on all products before delivery to ensure quality.
Q6. What is your sample policy?
We can supply samples if parts are in stock, but the customer covers the sample and courier costs.
