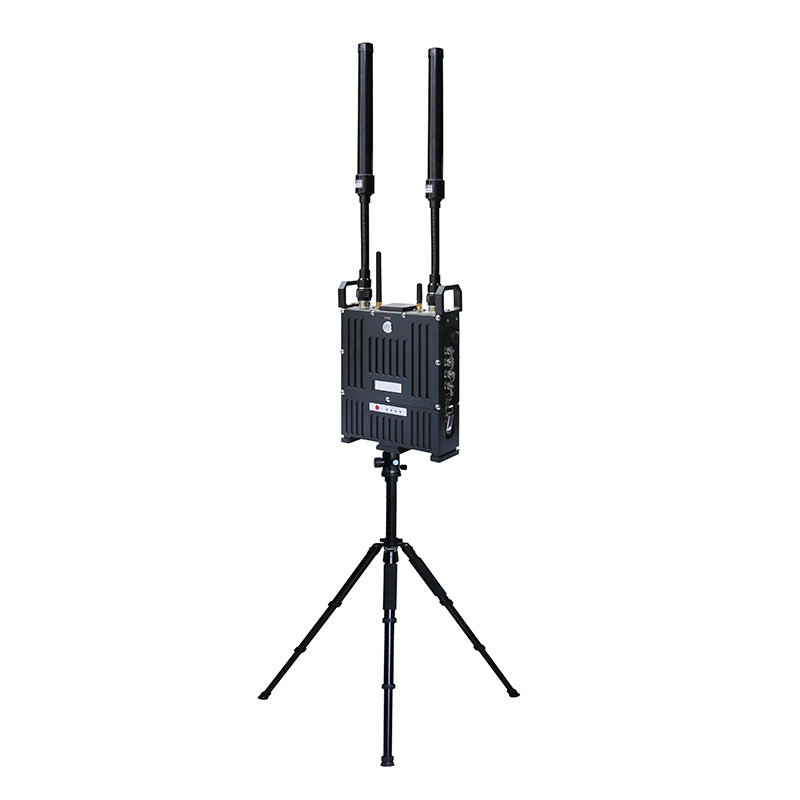

MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer

1 / 5

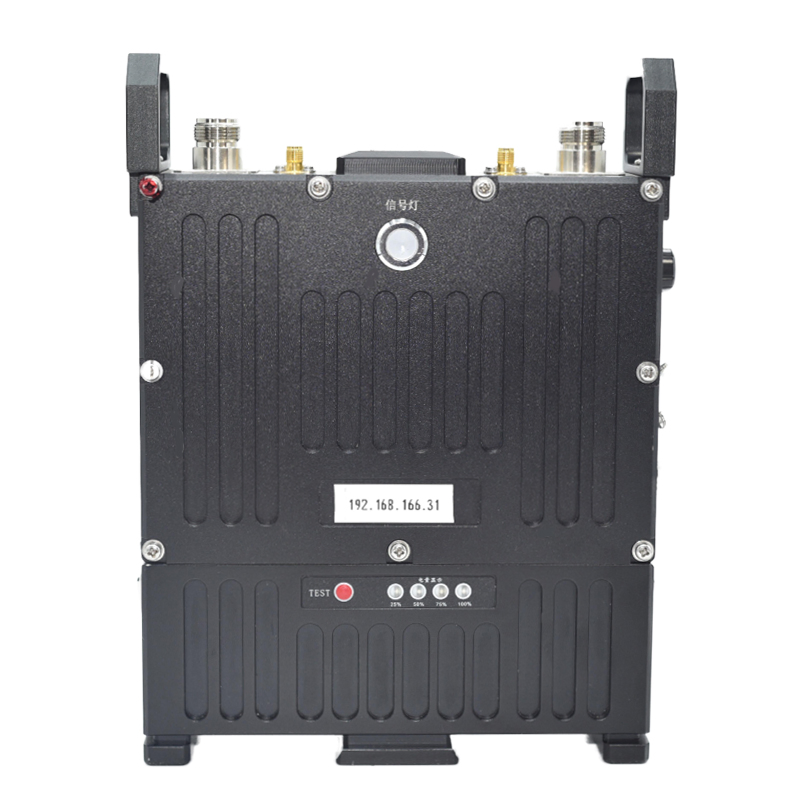

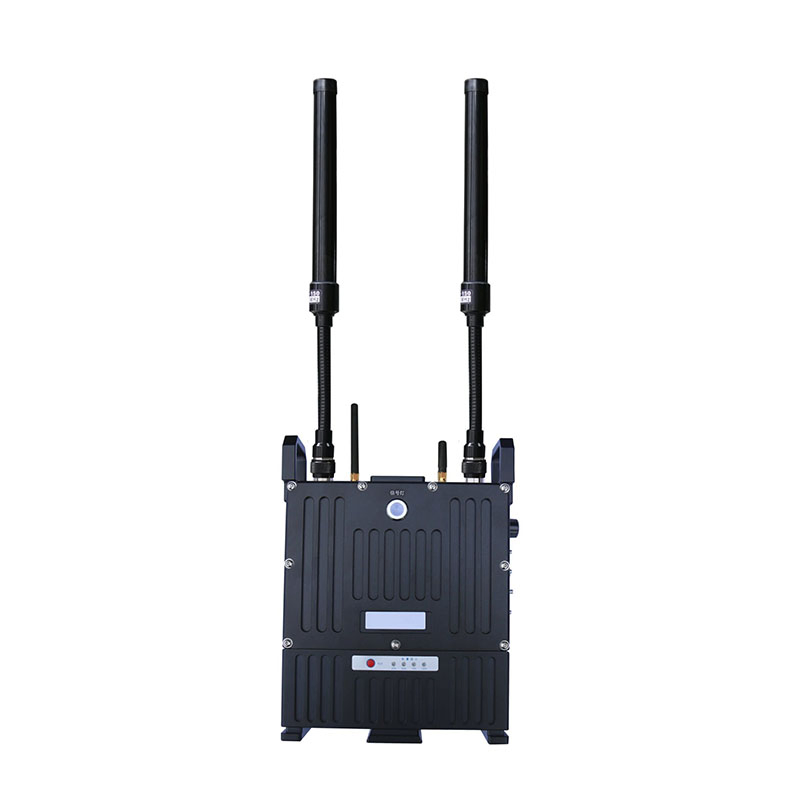

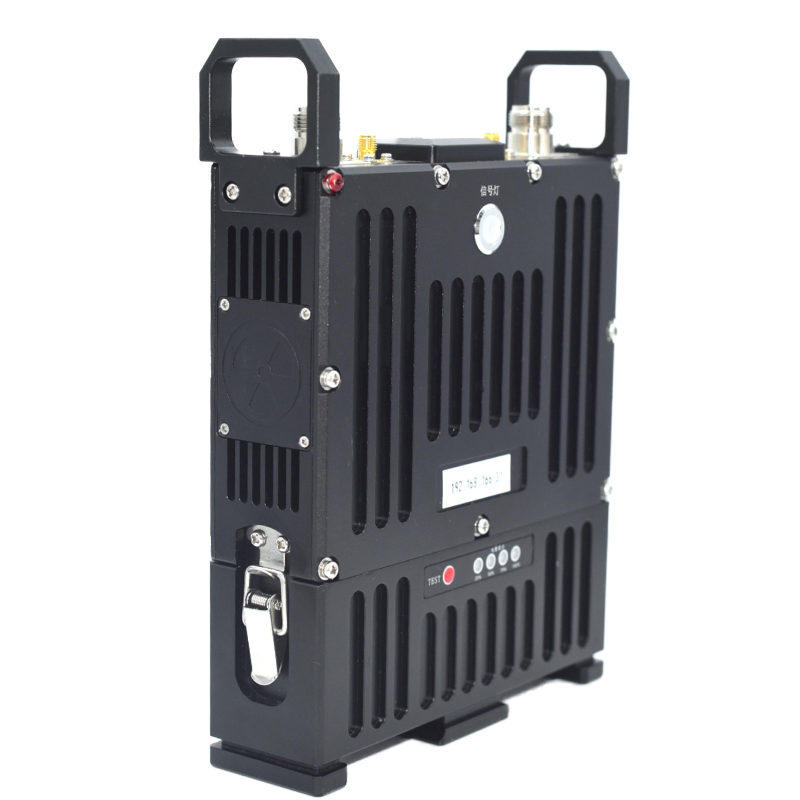

MIMO Wireless Mesh Networking Manback Vehicle Radio Multi Hop Ad Hoc Network Long Range Radio Communication Manufacturer

Customization:	Available
Operating Temp:	-30~+65degree Celsius
Storage Temp:	-45~+85degree Celsius

Send Inquiry

Product Description

Basic Specifications

Model NO.:XK-V103TE

Weight:1680g

Battery Life:3hrs Charge / 6~8hrs Operation

Package:Carton Packing

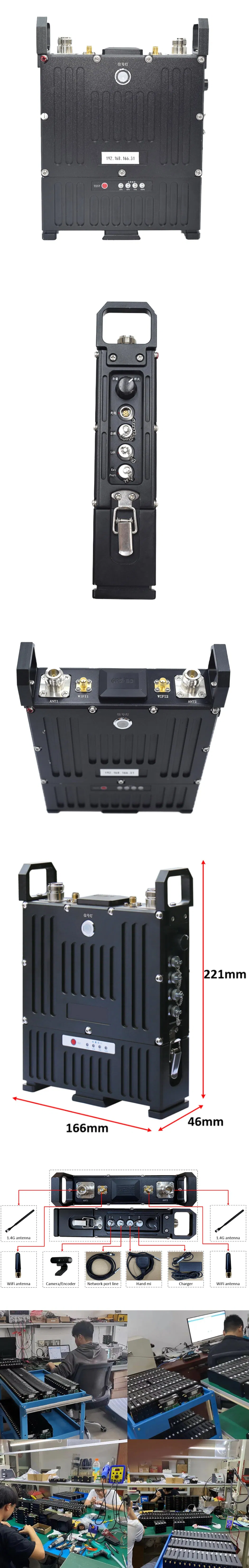

Specification:221x166x46mm

Trademark:Xingkaitech

Origin:China

Capacity:50000PCS/Year

Product Overview

XK-V103TE is a high-performance wireless ad-hoc communication device that supports automatic relay and multi-hop. Without using any central base station, wireless voice communication, HDMI/network video input, and 2-network data transmission among individual soldiers can be realized.

Core Features

✓ Long transmission distance
✓ Strong anti-interference
✓ Good diffraction
✓ Safe and reliable
● MIMO dual-channel network
● 350M-3.8GHz Frequency
● 120Mbp Maximum speed
● GIS topologic maps support

Technical Performance Parameters

Item	Performance Details
Networking frequency	1400-1485MHz @ 4W MIMO 2*2
Encryption mode	AES128
Modulation method	BPSK/QPSK/16-QAM/64-QAM
Transmitting power	36dBm
Receiving sensitivity	Up to -102dBm
Transmission delay	1~2ms

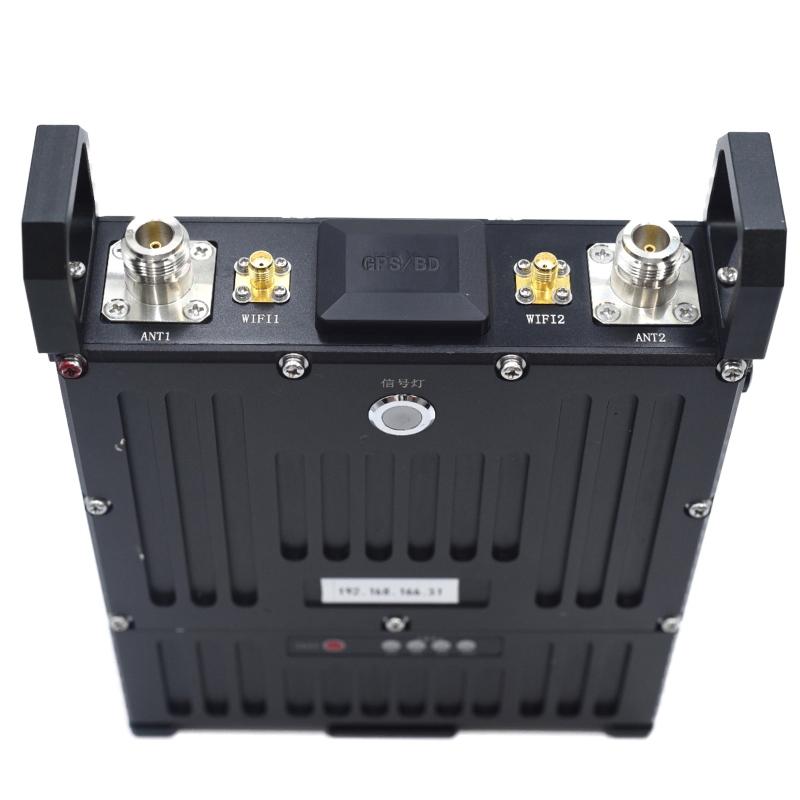

RF interface	MESH N2, WIFI SMA2
Effective distance	LOS: 3~5km; NLOS: 800m~2km
Network nodes	No less than 50 nodes
Power consumption	Average 12W

Related Professional Solutions

Key Advantages

1. Professional technical R&D team
2. Direct factory manufacturing pricing
3. Low MOQ for OEM & ODM services
4. Rigorous 100% QC testing protocol
5. Rapid delivery within 2-3 working days

Frequently Asked Questions

Q1: What is the maximum transmission distance of the XK-V103TE? A: It can reach 3~5km in Line-of-Sight (LOS) conditions and 800m~2km in Non-Line-of-Sight (NLOS) ground-to-ground environments.

Q2: How many nodes can the ad-hoc network support? A: The system supports no less than 50 nodes within a single mesh network.

Q3: Is the frequency customizable? A: Yes, it supports an ultra-wide frequency range from 350M to 3.8GHz which can be customized to specific needs.

Q4: Does it support wireless security encryption? A: Yes, it utilizes AES128 encryption mode to ensure safe and reliable data transmission.

Q5: What are the primary power requirements? A: The average device power consumption is approximately 12W, and it features a removable battery for extended field use.

Q6: What type of inputs does the device support? A: It supports HDMI input, network video input, 2.4G WiFi hotspots, and various interfaces like TTL, PTT, and Exp Ports.
