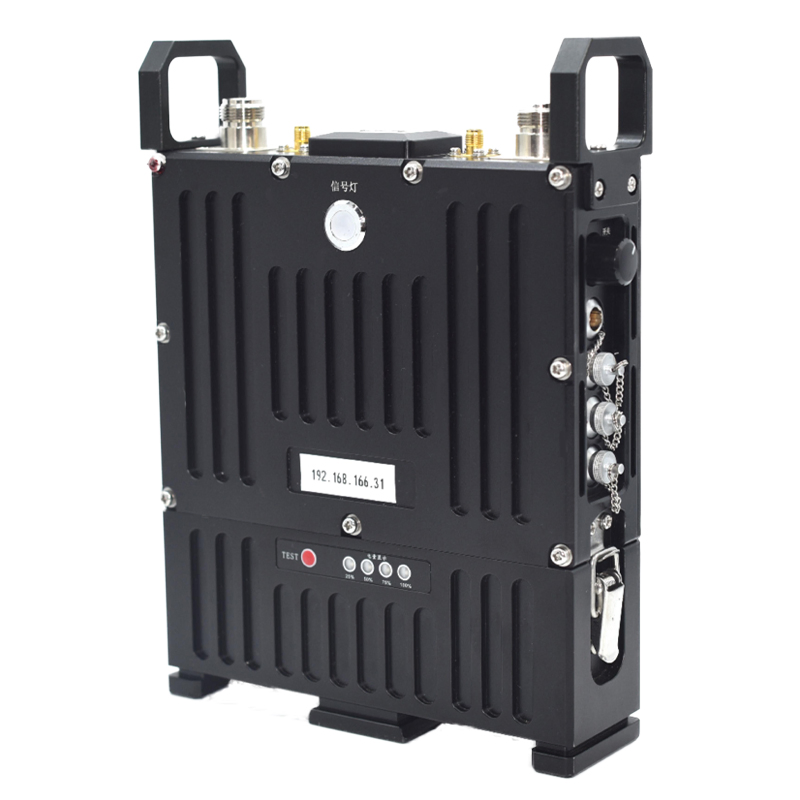

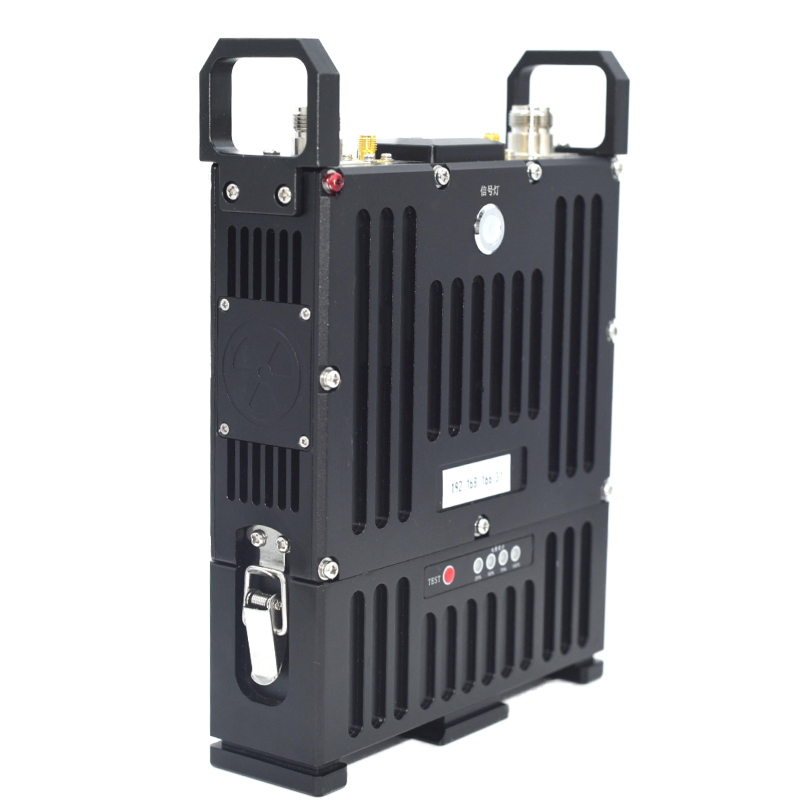

MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
1 / 5
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication
MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication

MIMO Mesh Network Manufacturer Mesh WiFi Wireless Internet Systems Multi Hop Ad Hoc Network Surveillance Long Range Communication

Customization: Available
Weight: 1680g
Operating Temp: -30~+65degree Celsius
Send Inquiry

Product Description

🌐 Basic Specifications
Model NO.
XK-V103TE
Storage Temp
-45~+85°C
Dimensions
221x166x46mm
Transmission
2*2 MIMO
Origin
China
Capacity
50,000 PCS/Year
📘 Product Overview

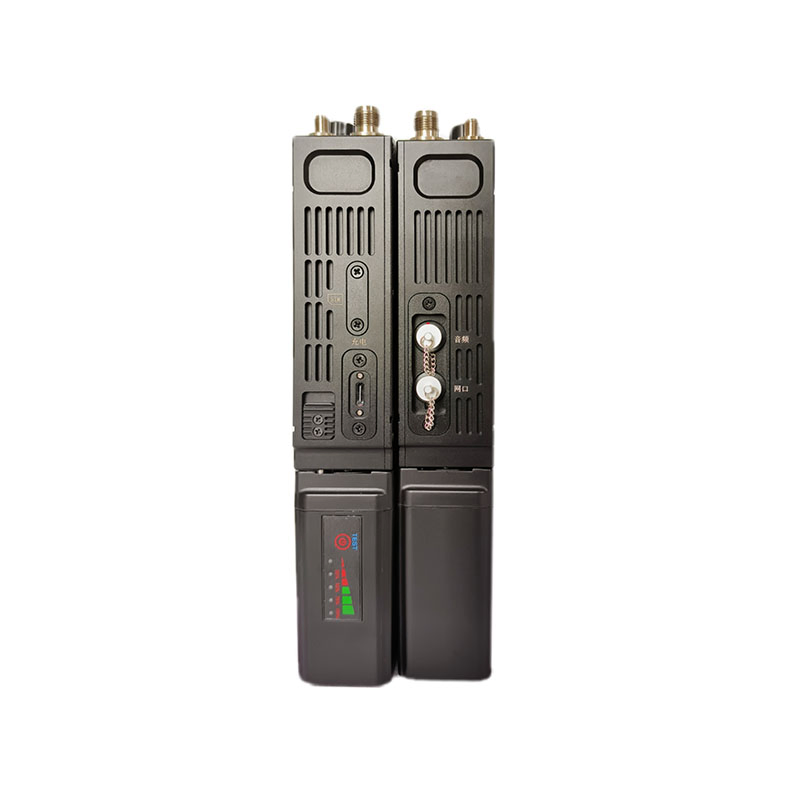

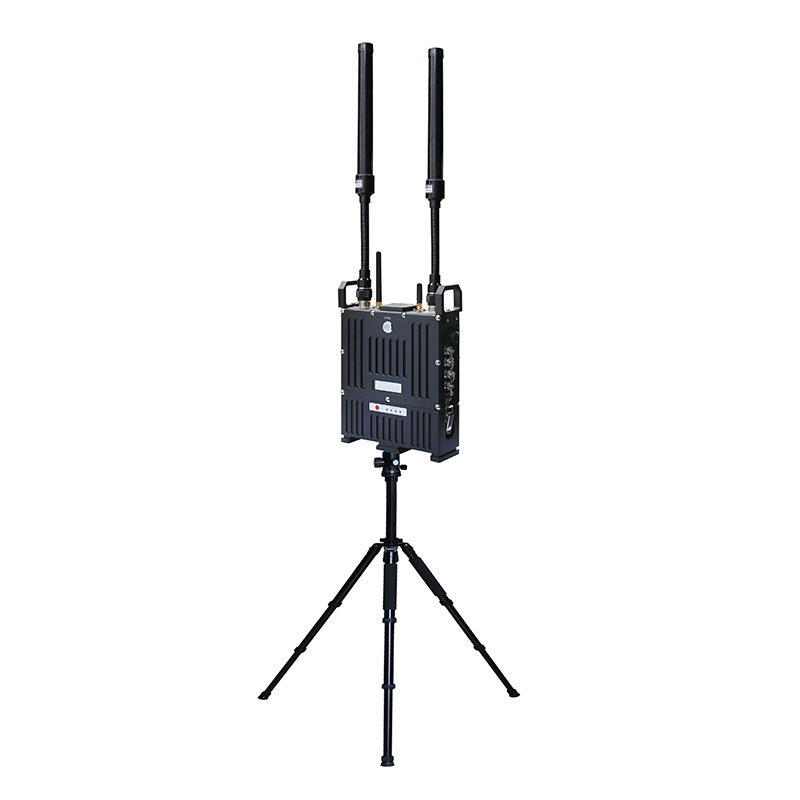

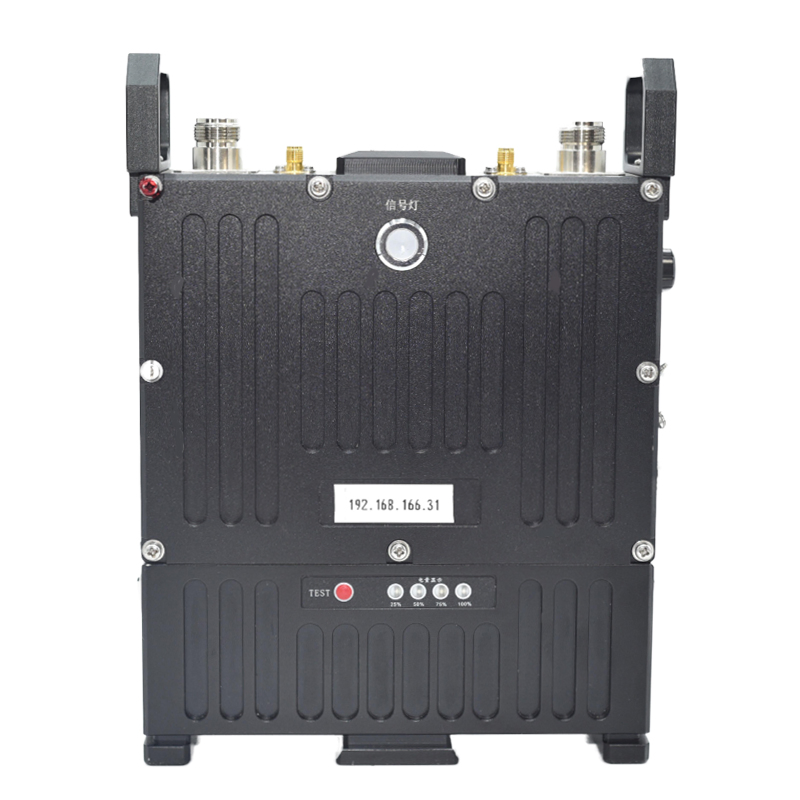

XK-V103TE is a high-performance wireless ad-hoc communication device that supports automatic relay and multi-hop. Without using any central base station, wireless voice communication, HDMI/network video input, and 2-network data transmission can be realized efficiently.

📡 Long transmission distance & Strong anti-interference
🛡️ Safe and reliable data encryption (AES128)
⚡ 120Mbp maximum wireless networking bandwidth
📱 Supporting 2.4G WiFi and HDMI input
🔋 Removable battery for extended operation
🗺️ Supports GIS topologic maps management
📊 Product Performance
Item Performance Details
Networking frequency1400-1485MHz @ 4W MIMO 2*2
Modulation methodBPSK/QPSK/16-QAM/64-QAM
Transmitting power36dBm
Transmission delay1~2ms
Channel bandwidth2M/5M/10M/20M/40M (adjustable)
Effective distanceLOS: 3~5km; NLOS: 800m~2km
Network nodesNo less than 50 nodes
Power consumptionAverage 12W / 6~8hrs operation

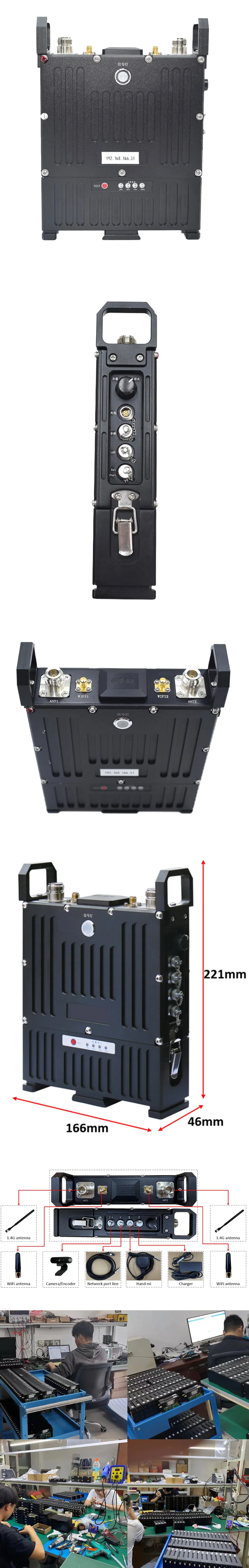

Mesh Network System
📦 Related Solutions

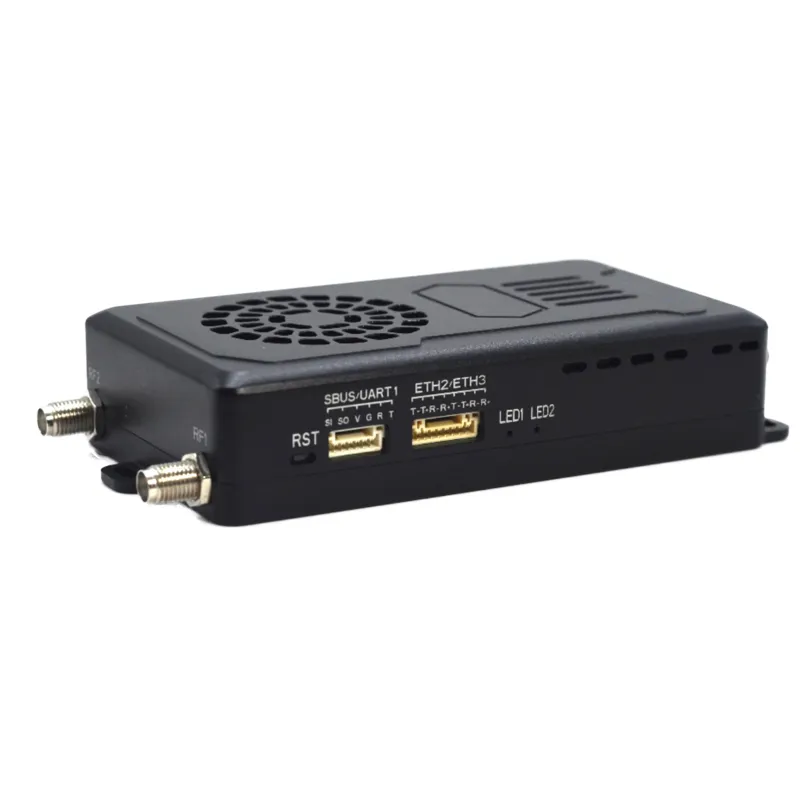

Communication Link

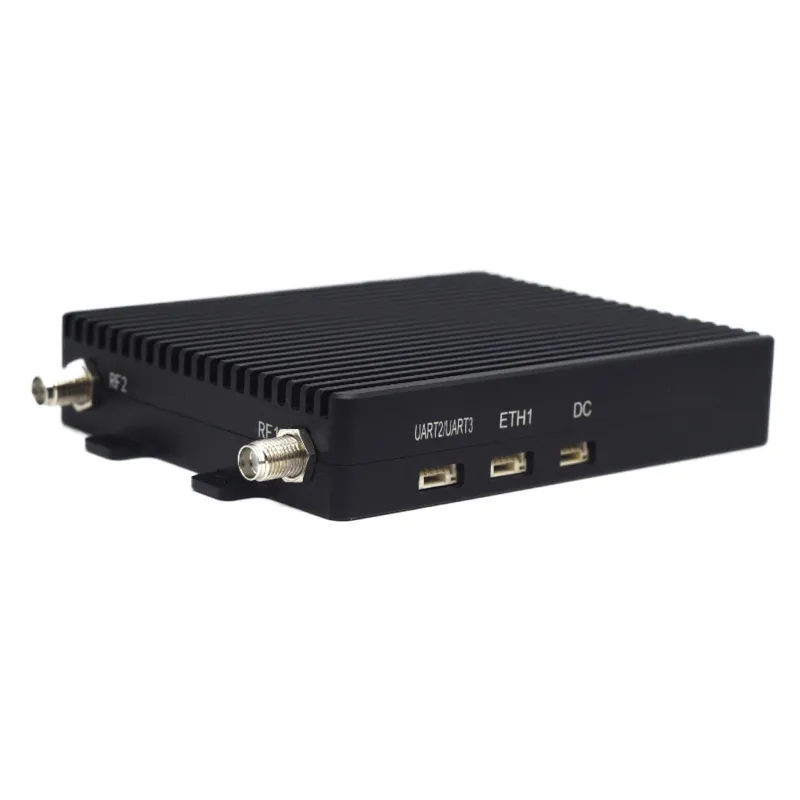

Video Data Link

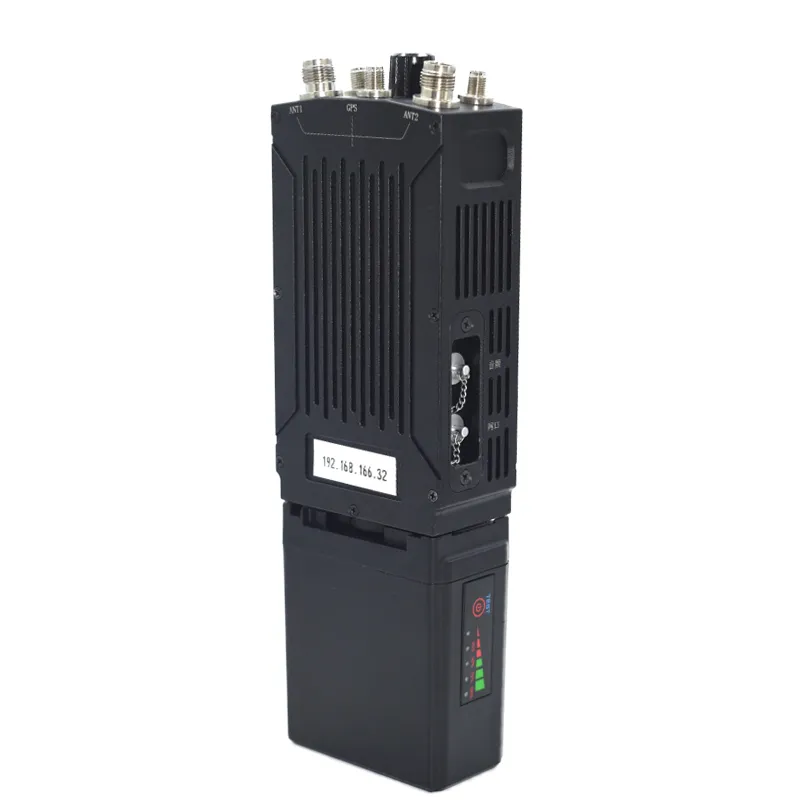

Tactical Radio

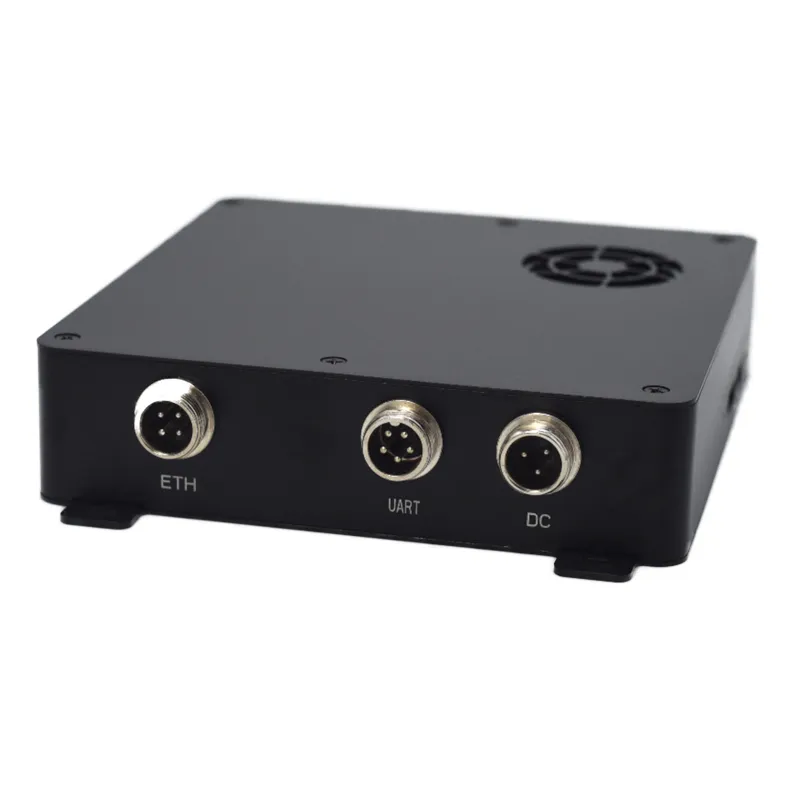

Receiver Transmitter

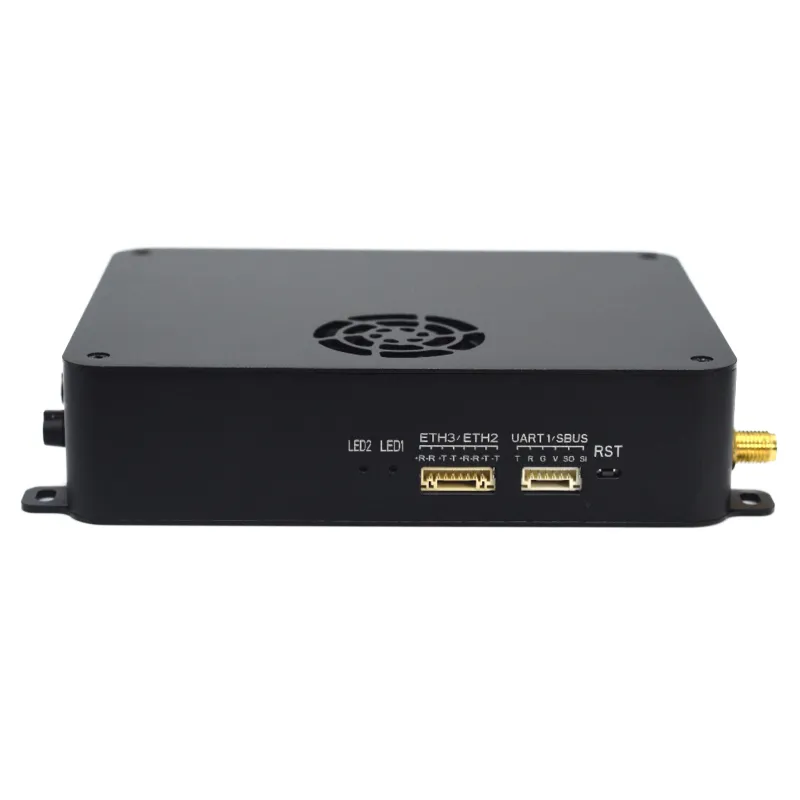

Telemetry Equipment

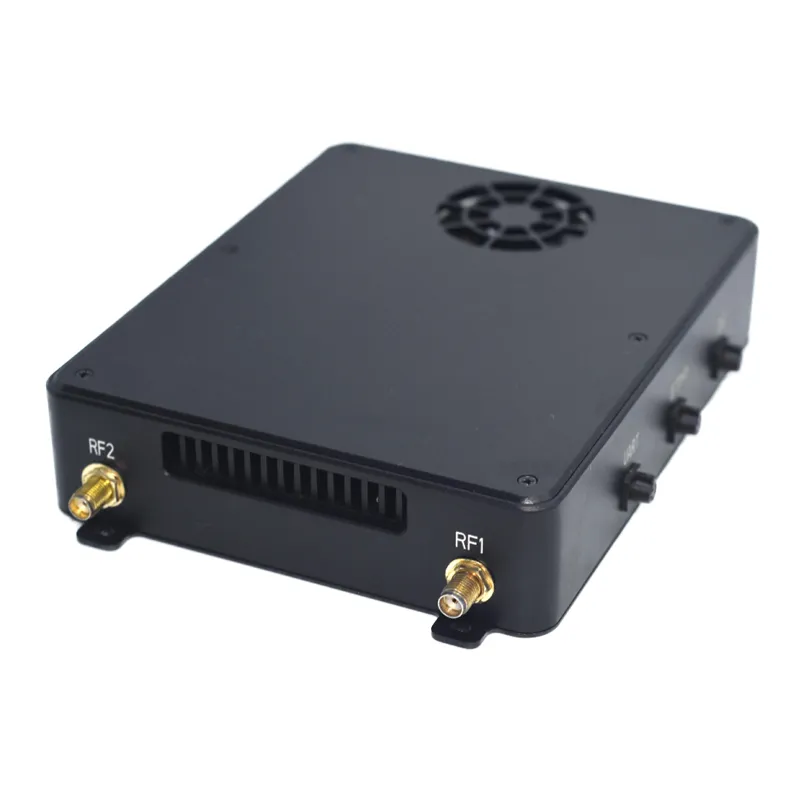

Broadband Wireless
🚀 Core Advantages

✔️ Professional Team: Over 20 years of technical experience in RF design and networking.

✔️ Direct Factory Access: Competitive pricing directly from the manufacturing source.

✔️ Flexible Customization: Supports OEM & ODM with low MOQ requirements.

✔️ Quality Assurance: 100% QC testing performed before every shipment.

✔️ Fast Delivery: Shipments typically processed within 2-3 working days post-testing.

💬 Frequently Asked Questions
Q1: What is the maximum transmission distance of the XK-V103TE? A: It supports Line-of-Sight (LOS) distances of 3~5km and Non-Line-of-Sight (NLOS) ground distances of 800m~2km.
Q2: How many nodes can the ad-hoc network support? A: The system supports a robust mesh network with no less than 50 individual nodes.
Q3: Does the device support video input? A: Yes, it supports HDMI input and network video input for real-time surveillance and transmission.
Q4: What is the typical battery life of the unit? A: After a 3-hour charge, the device provides approximately 6 to 8 hours of continuous operation.
Q5: Is the frequency customizable for specific needs? A: Yes, the ultra-wide frequency range of 350M-3.8GHz can be customized based on requirements.
Q6: What encryption method is used for security? A: The device utilizes AES128 encryption to ensure safe and reliable data communication.
