Customization: Available
Operating Temp: -30~+65degree Celsius
Storage Temp: -45~+85degree Celsius
Send Inquiry

Product Description

📦 Basic Info.
Model NO.
XK-V103TE
Weight
1680g
Use
3hrs of Charging for 6~8hrs of Operation
Transport Package
Carton Packing
Specification
221x166x46mm
Trademark
Xingkaitech
Origin
China
Production Capacity
50000PCS/Year
📝 Product Description

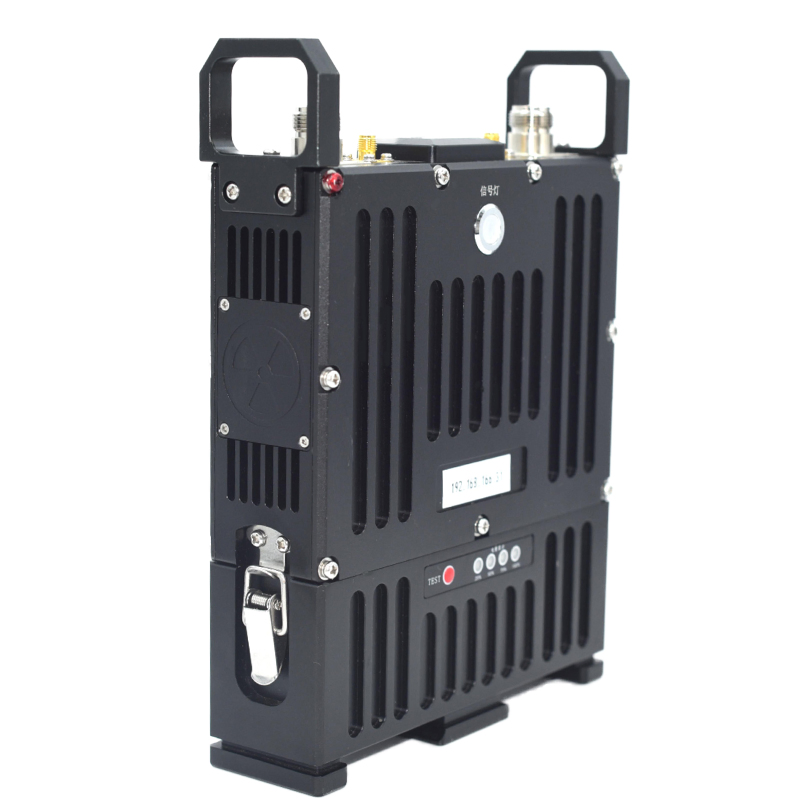

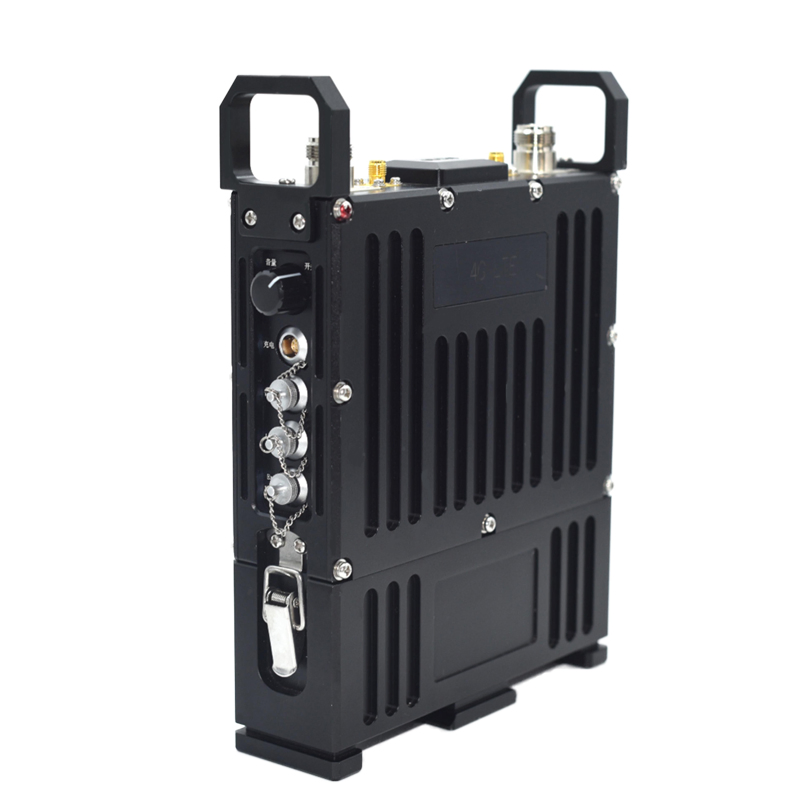

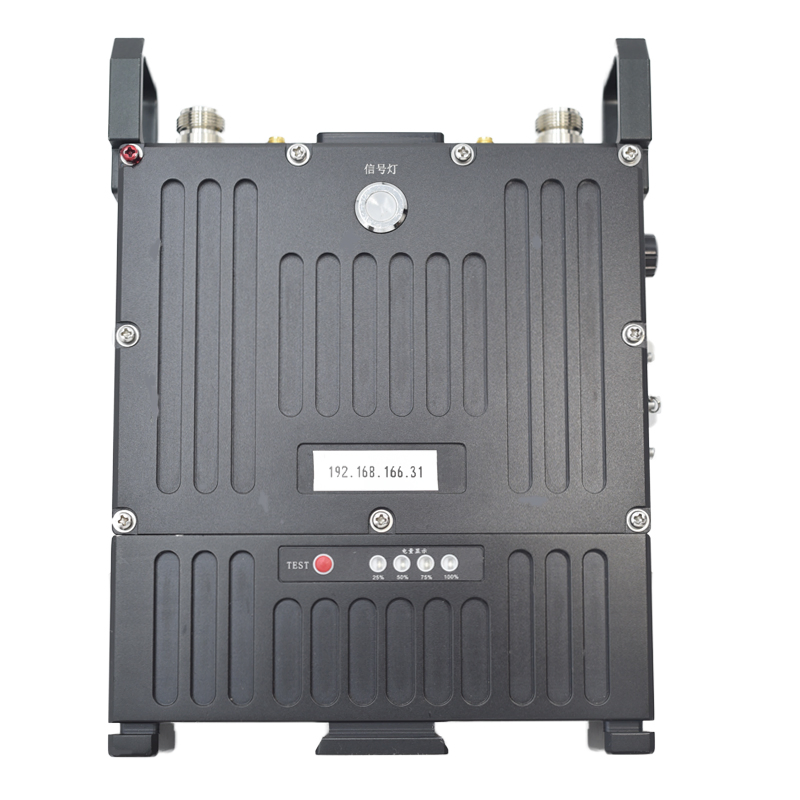

XK-V103TE is a high-performance wireless ad-hoc communication device that supports automatic relay and multi-hop. Without using any central base station, wireless voice communication, HDMI/ network video input, and 2-network data transmission among individual soldiers can be realized.

⚡ 2*2 MIMO Advantages
  • Long transmission distance.
  • Strong anti-interference.
  • Good diffraction.
  • Safe and reliable.
⚙️ XK-V103TE FEATURES
  • MIMO dual-channel ad-hoc network.
  • Ultra-wide frequency 350M-3.8GHz (customizable).
  • Centralized management platform, supporting GIS topologic maps.
  • 120Mbp of maximum speed, wireless networking bandwidth.
  • Supporting 2.4G WiFi.
  • Supporting HDMI input.
  • Removable battery.
📊 Product Performance
Item Performance
Networking frequency1400-1485MHz@4W MIMO 2*2
Encryption modeAES128
Modulation methodBPSK/QPSK/16-QAM/64-QAM
Transmitting power36dBm
Receiving sensitivityUp to -102dBm
Transmission delay1~2ms

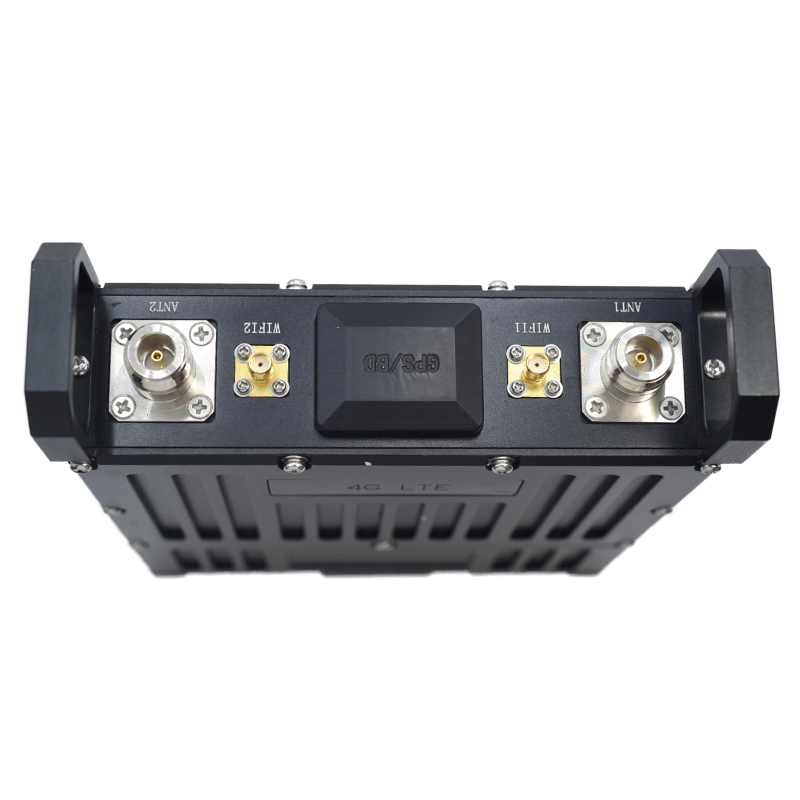

RF interfaceMESH N*2,WIFI SMA*2
Channel bandwidth2M/5M/10M/20M/40M (adjustable)
WiFi hotspot2.4G
Effective distanceLOS:3~5km; NLOS:800m~2km(ground to ground)
Configuration modeWEB and MESH management platform
Number of ad-hoc network nodesNo less than 50 nodes
SystemMESH ad-hoc network
Operating Humidity5% ~ 95%(non-condensing)
Overall power consumptionAverage device power consumption: 12W

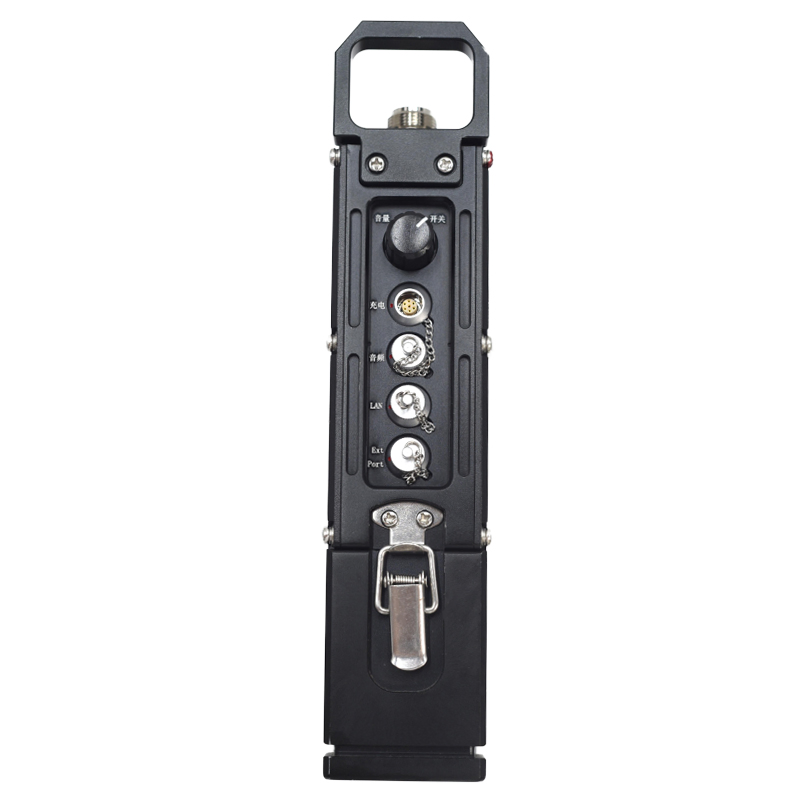

InterfaceNetwork, TTL, charging, PTT, Exp Port

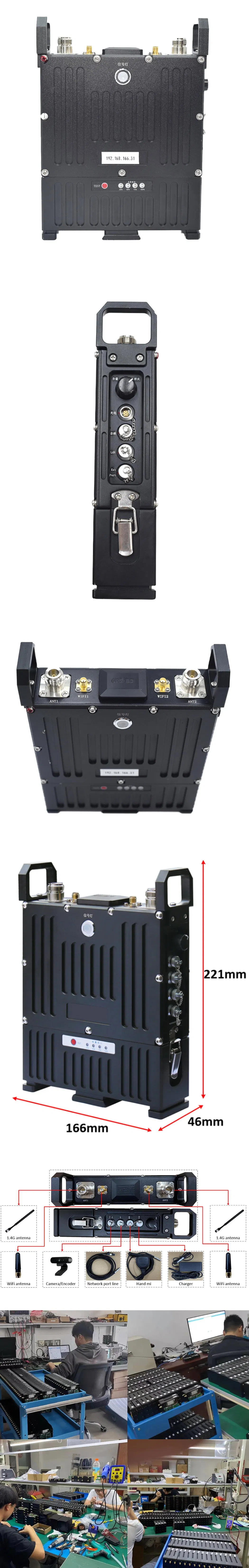

Tactical Long Range Communication
🔗 Related Products

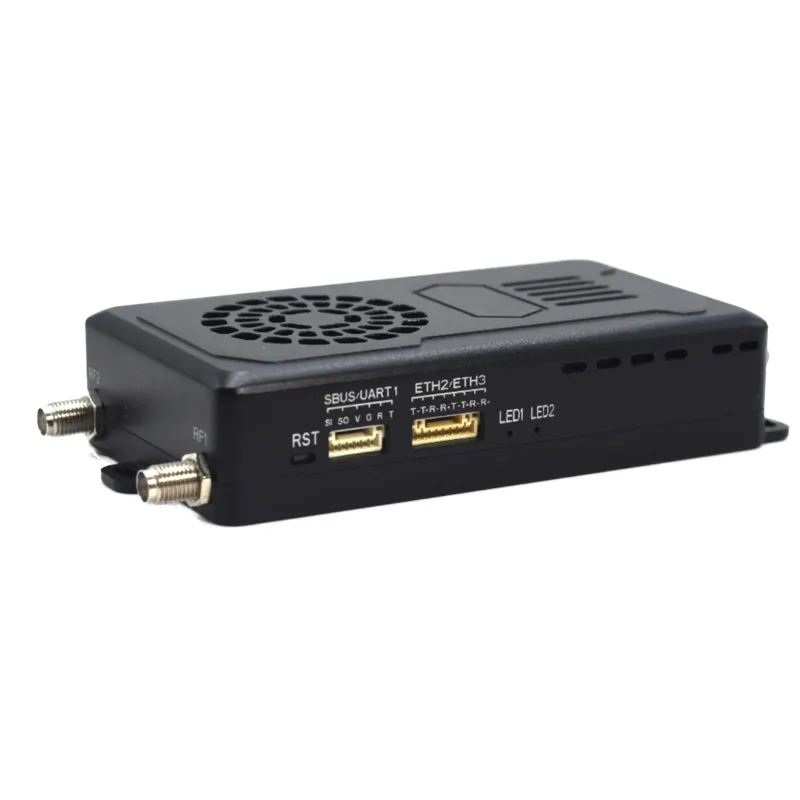

Video Link Telemetry

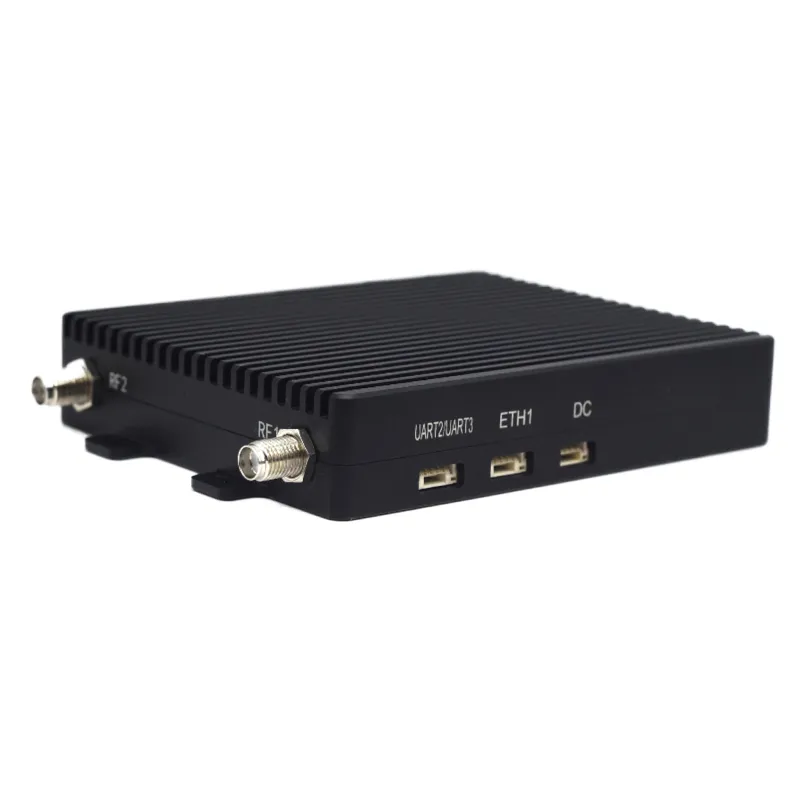

Drone Survey Equipment

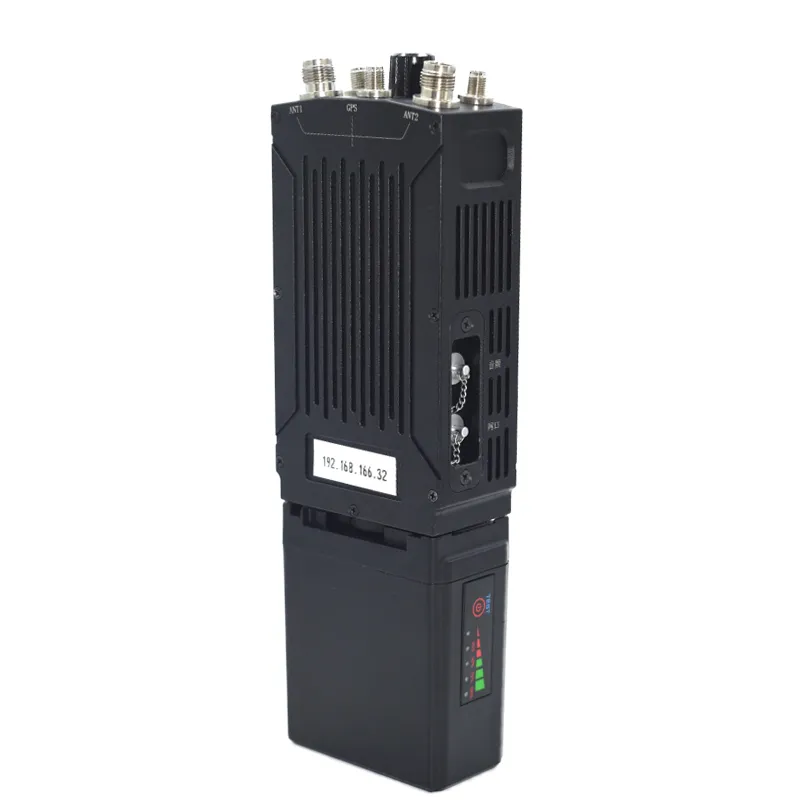

MIMO Mesh Tactical Radio

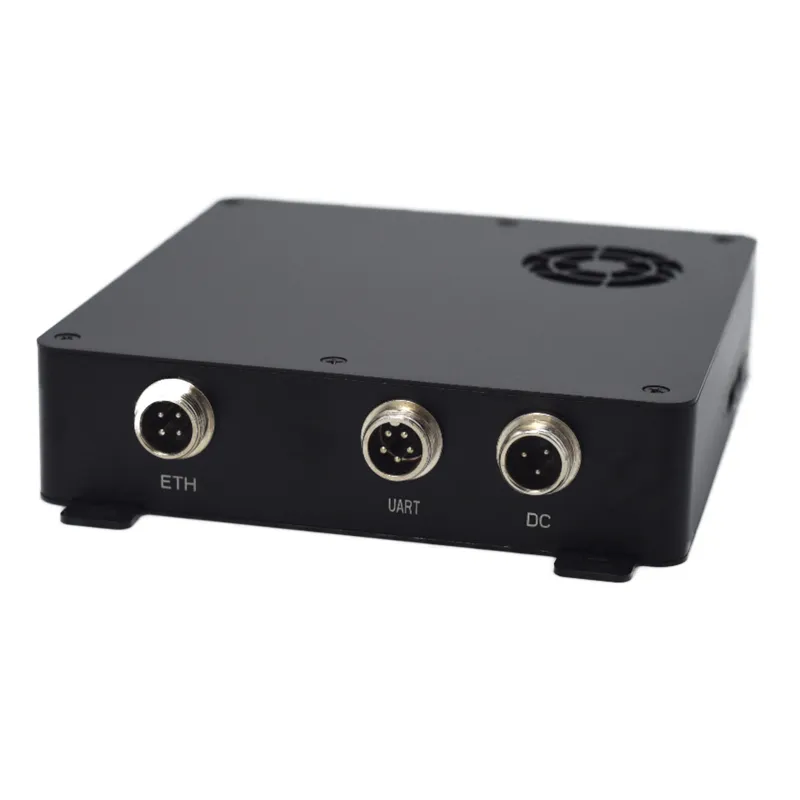

Relay Communication

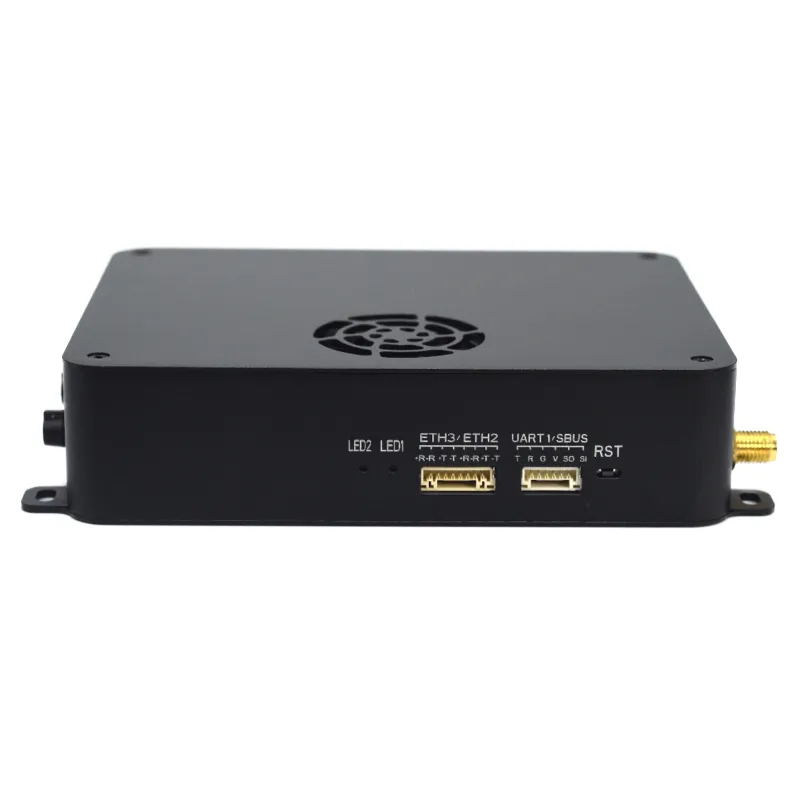

Wireless Telemetry

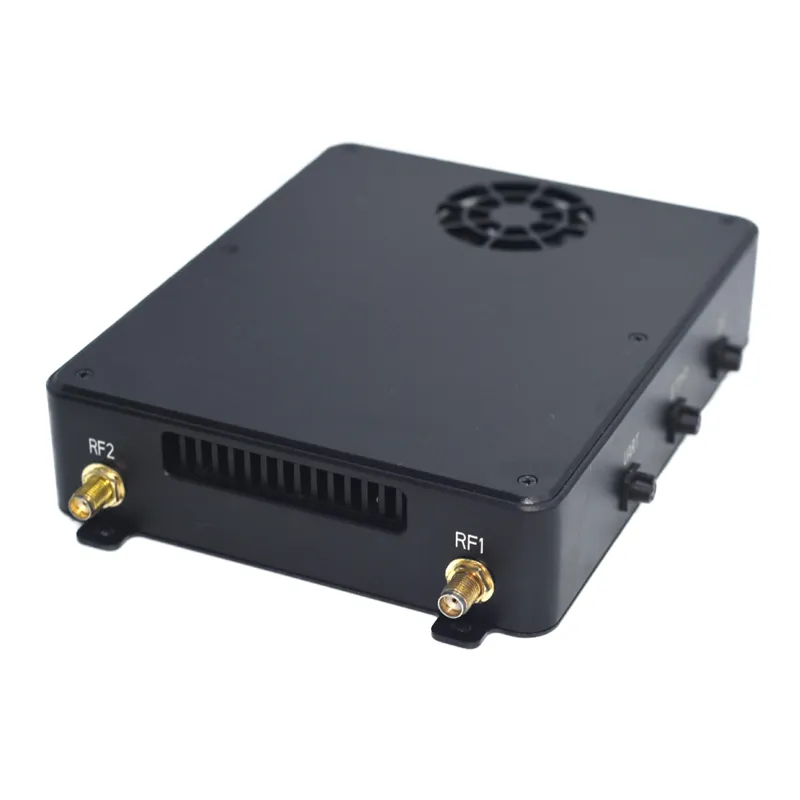

Broadband Wireless Relay
🏆 Our Advantages
  • Professional Team with extensive industry experience.
  • Factory Direct Pricing for competitive edge.
  • OEM & ODM support with Low MOQ.
  • 100% Quality Control testing before shipment.
  • Fast Delivery within 2-3 working days post-testing.
🚚 Packaging & Delivery

Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong

❓ Frequently Asked Questions
Q1: What is the maximum transmission speed of the XK-V103TE?
The device supports a maximum wireless networking bandwidth speed of up to 120Mbps.
Q2: How many nodes can the ad-hoc network support?
The system is highly scalable and supports no less than 50 individual nodes within the MESH network.
Q3: Does it support mobile monitoring via WiFi?
Yes, the device supports 2.4G WiFi hotspots for local wireless access and configuration.
Q4: What is the effective communication range?
It provides a Line-of-Sight (LOS) range of 3-5km and a Non-Line-of-Sight (NLOS) ground range of 800m to 2km.
Q5: Is the data transmission secure?
Yes, the device utilizes AES128 encryption mode to ensure safe and reliable data communication.
Q6: What are the primary power requirements?
The device has an average power consumption of 12W and features a removable battery for extended field operations.
