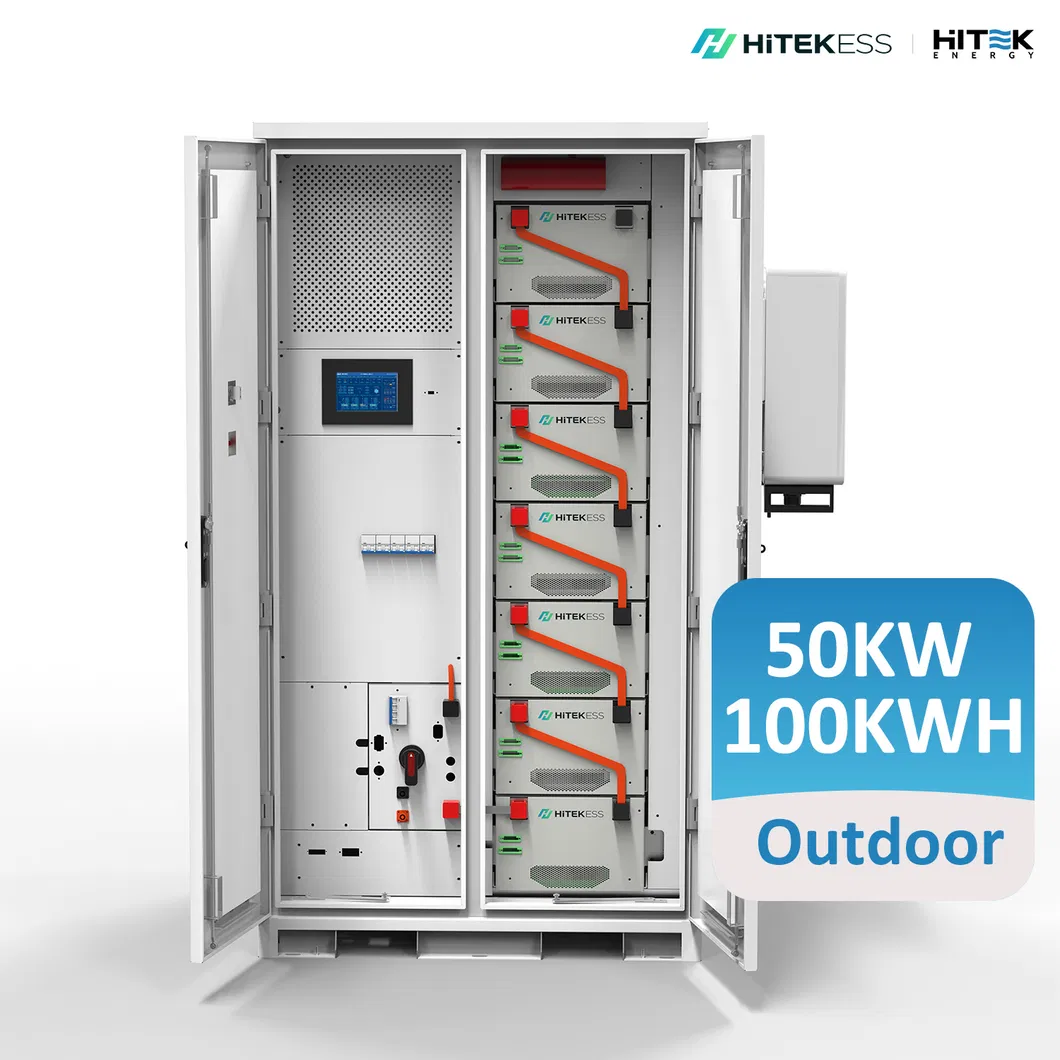

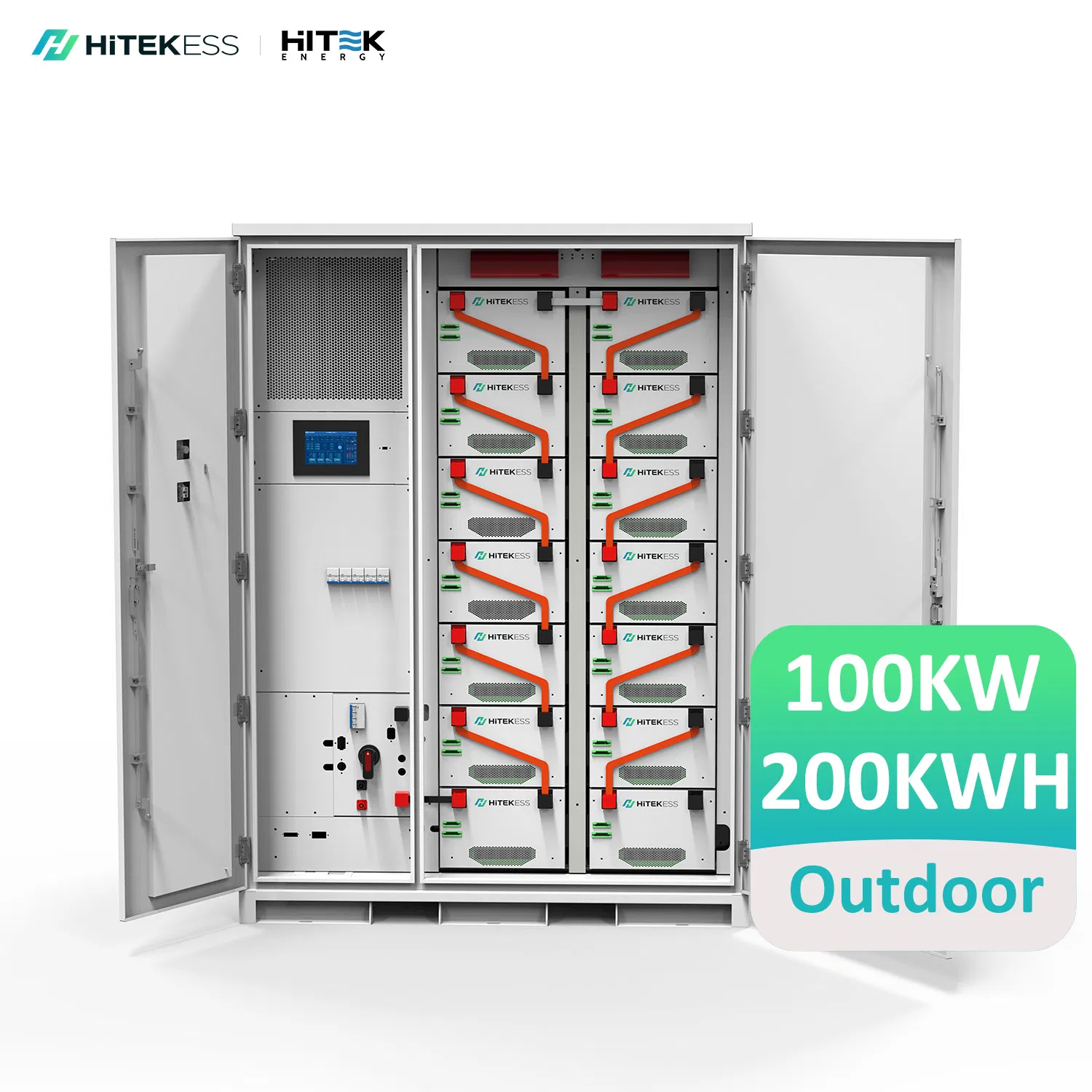

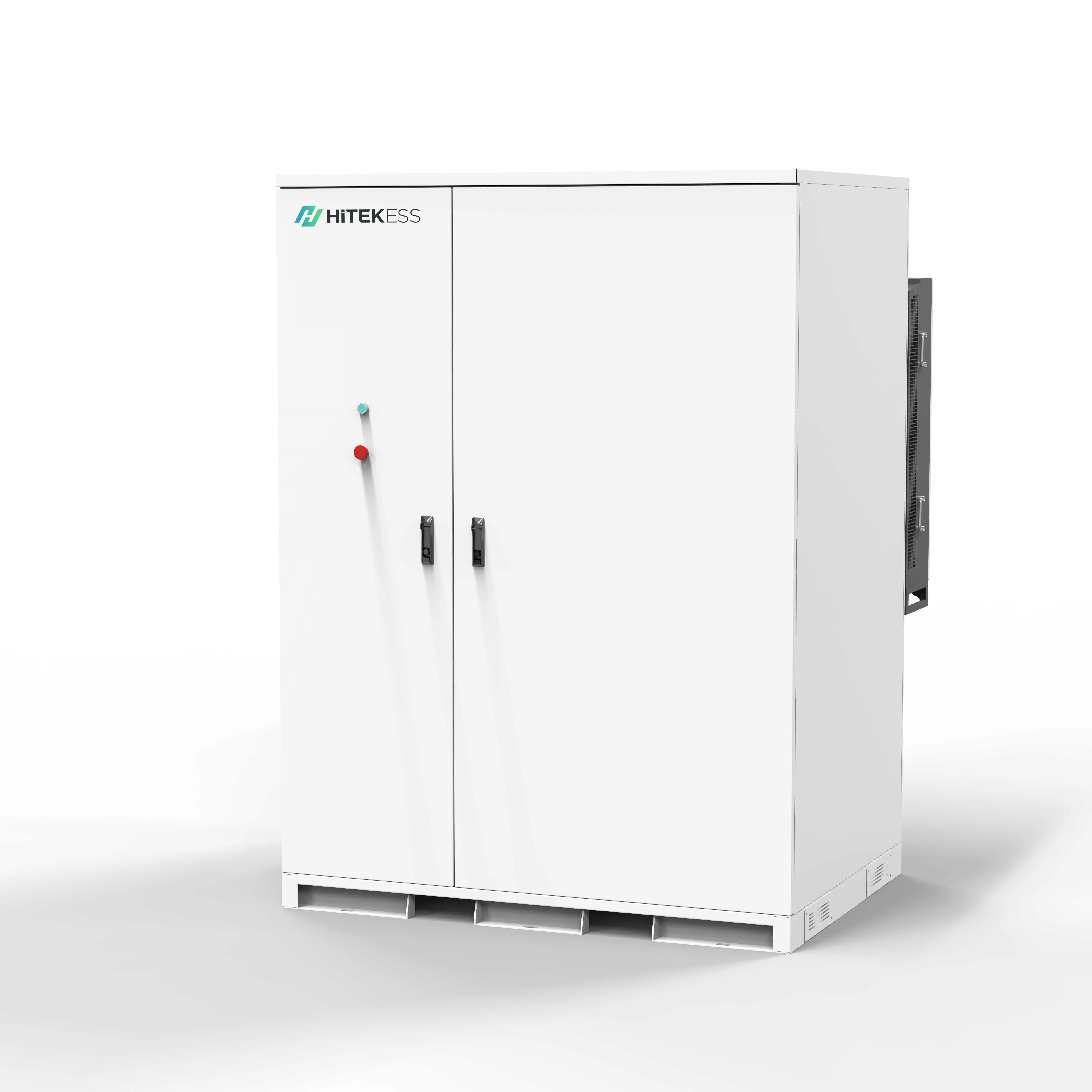

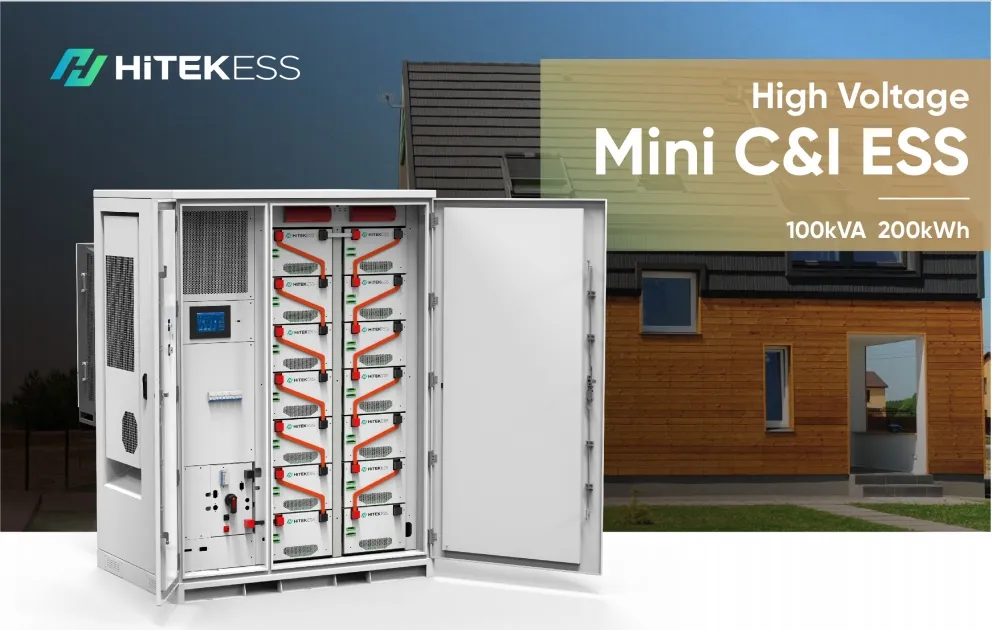

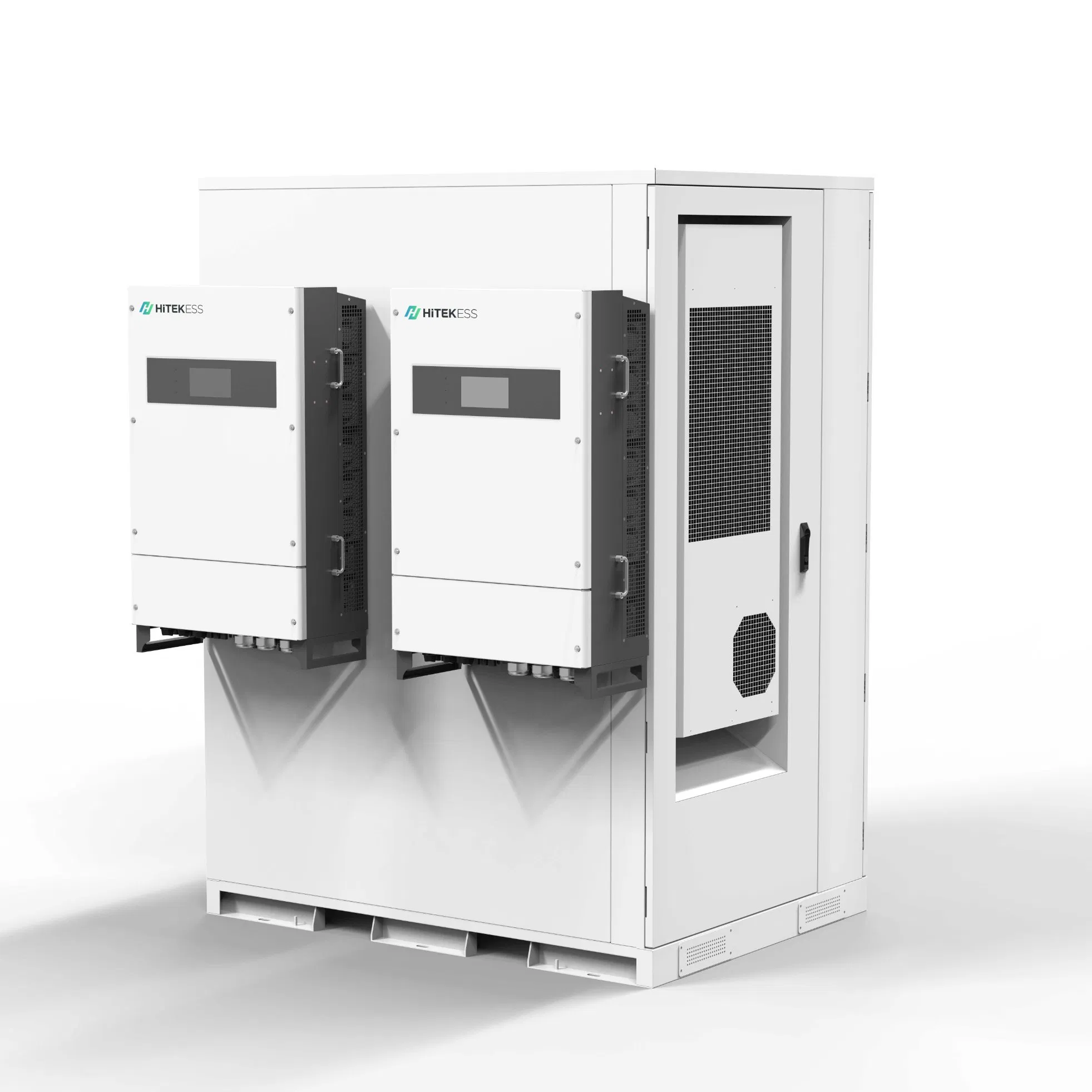

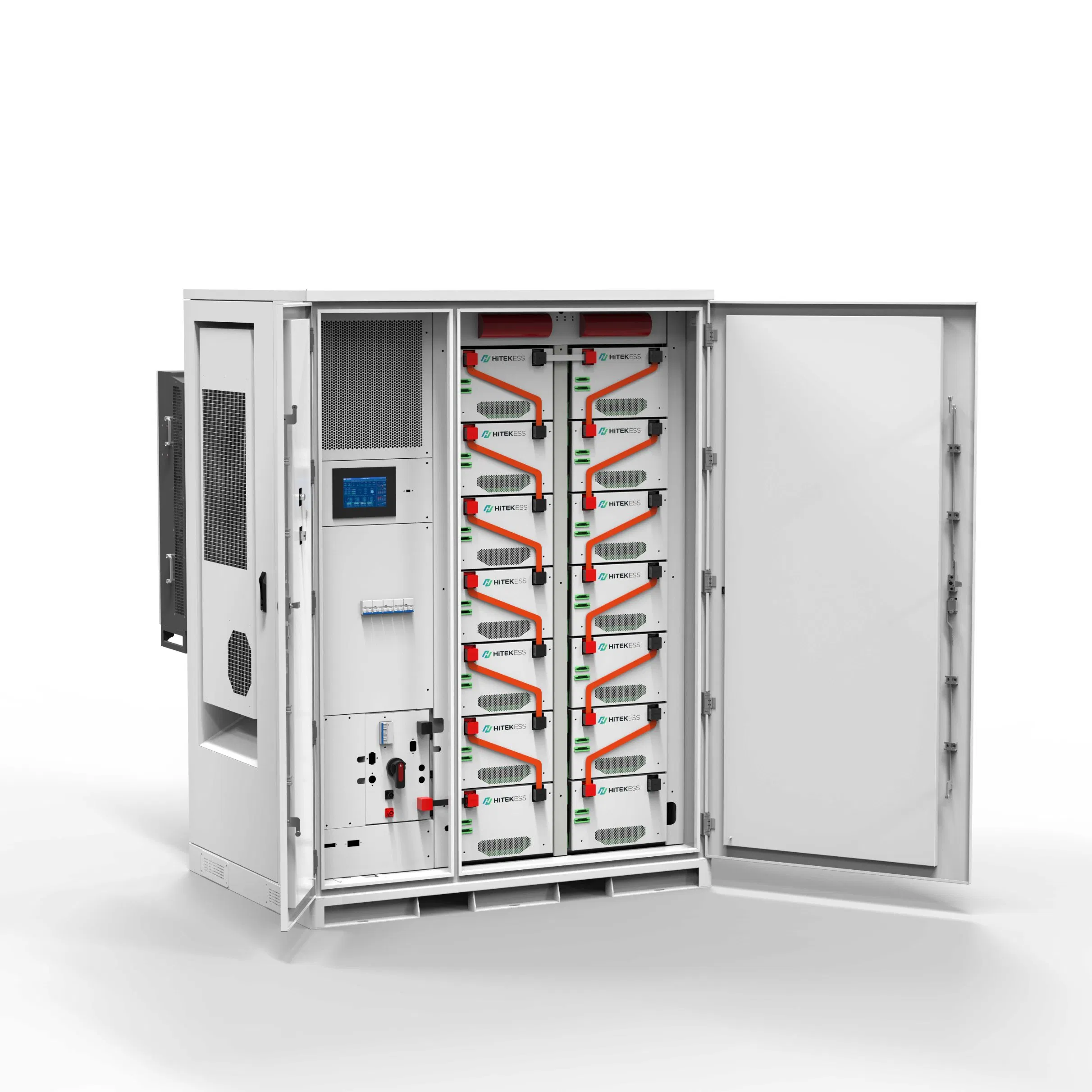

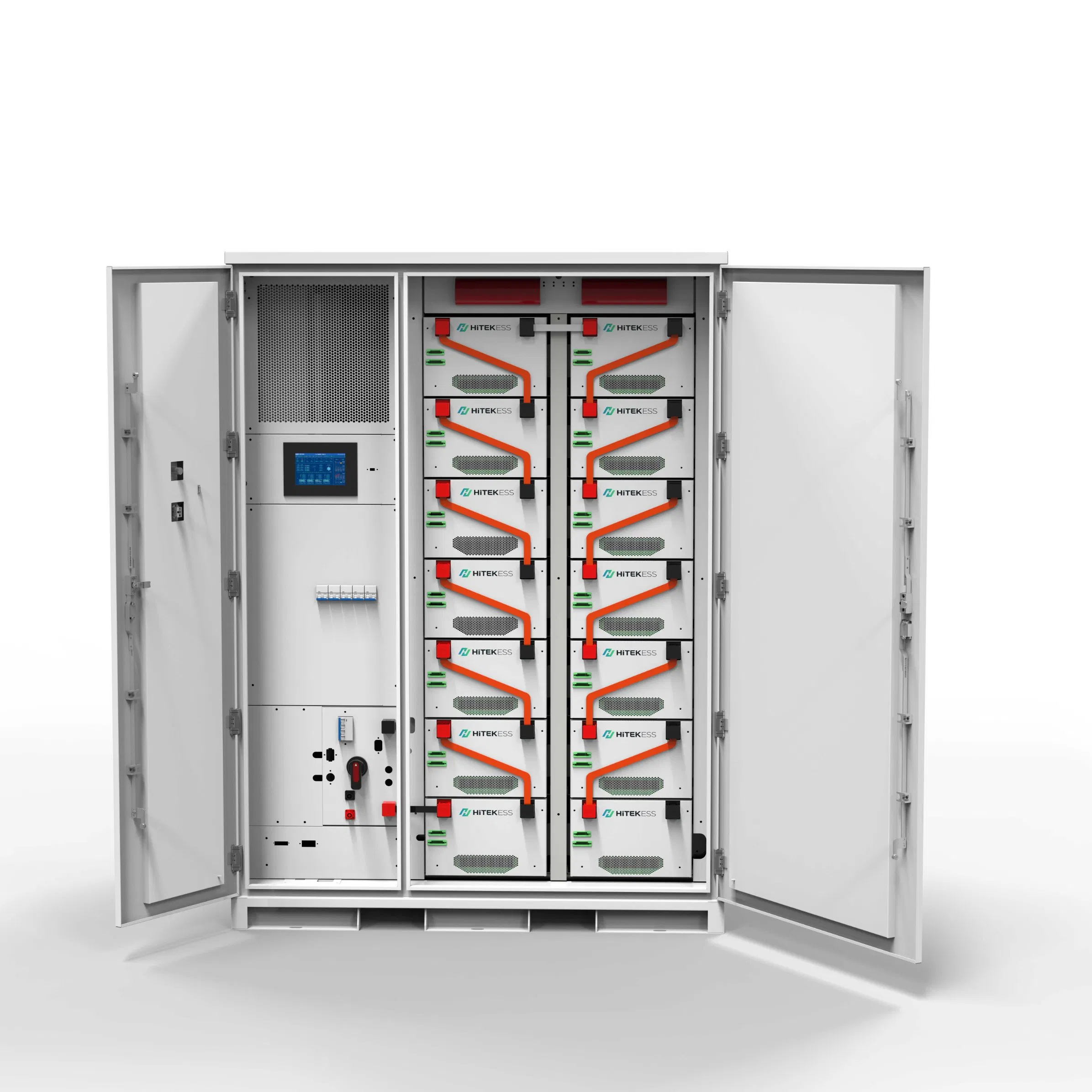

High Voltage 50kW/100kWh, 100kW/200kWh, 100kW/229kWh ESS Outdoor Cabinet Solution for fast install, includes inverter, lithium battery trays, racks, BMS, Microgrid Controller, HVAC, fire suppression, islanding switch, and outdoor rated enclosure.
Our ESS Cabinet features Safe Technology & Multi-level Protection, Easy & Flexible to Scale, and Powerful Performance. The modular design allows for easy capacity expansion.

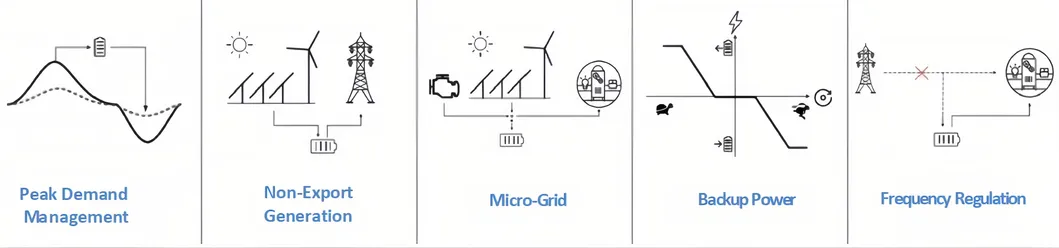

Peak Shaving Control: Optimize demand charge management through comprehensive load control and quantitative tracking.
Non-Export Generation: Ensure private generation without grid export.
Energy Island System: Establish self-contained microgrids with autonomous control.
Outage Resilience Unit: Provide backup battery support during grid outages.
Synchronous Compensation: Implement automatic frequency regulation for stability.
| Model | HTAC-50/100-OD | HTAC-100/200-OD | HTAC-100/215-OD | HTAC-100/229-OD |
|---|---|---|---|---|
| System Parameter | 50kW/100kWh | 100kW/200kWh | 100kW/215kWh | 100kW/229kWh |
| Cooling Method | Air-Cooling | |||
| Rated Battery Voltage | 358.4V | 716.8V | 768V | 409.6V |
| Battery type | Lithium Iron Phosphate Battery (LFP) | |||
| Max. PV Power | 100kW | 200kW | 200kW | 200kW |
| Protection Level | IP54 / IP65 | |||
| Communication | RS485 / CAN2.0 / Ethernet / Dry Contact | |||

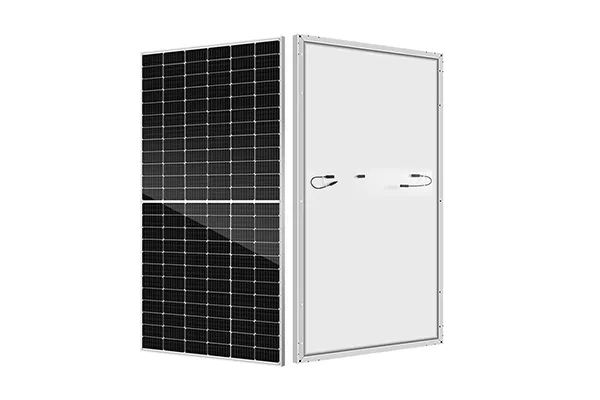

TOPCon Mono Solar Panel
600Wp Peak Power, High efficiency Mono cells.

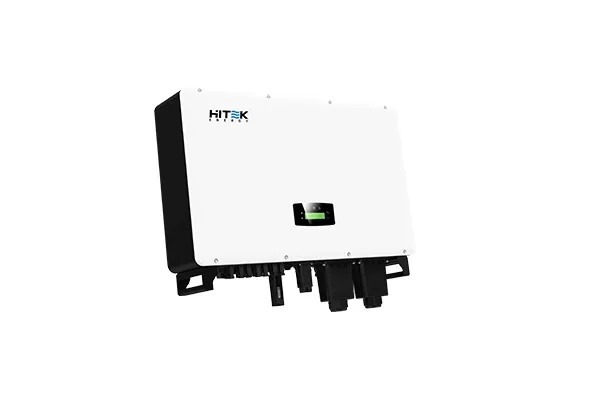

All-in-one Hybrid Solar Inverter
Smart Monitoring, remote upgrade, and built-in Anti-feed-in.

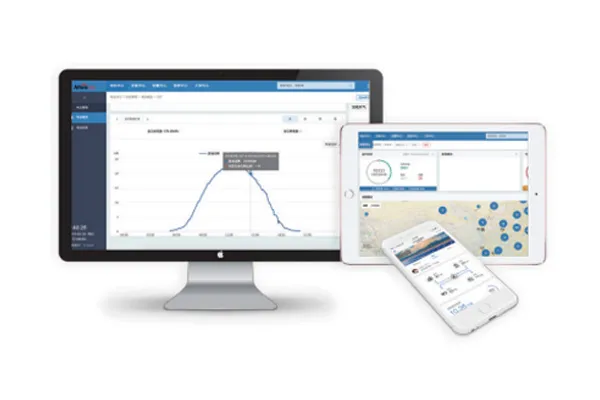

Online Monitoring System
Real-time data tracking and security reliability.

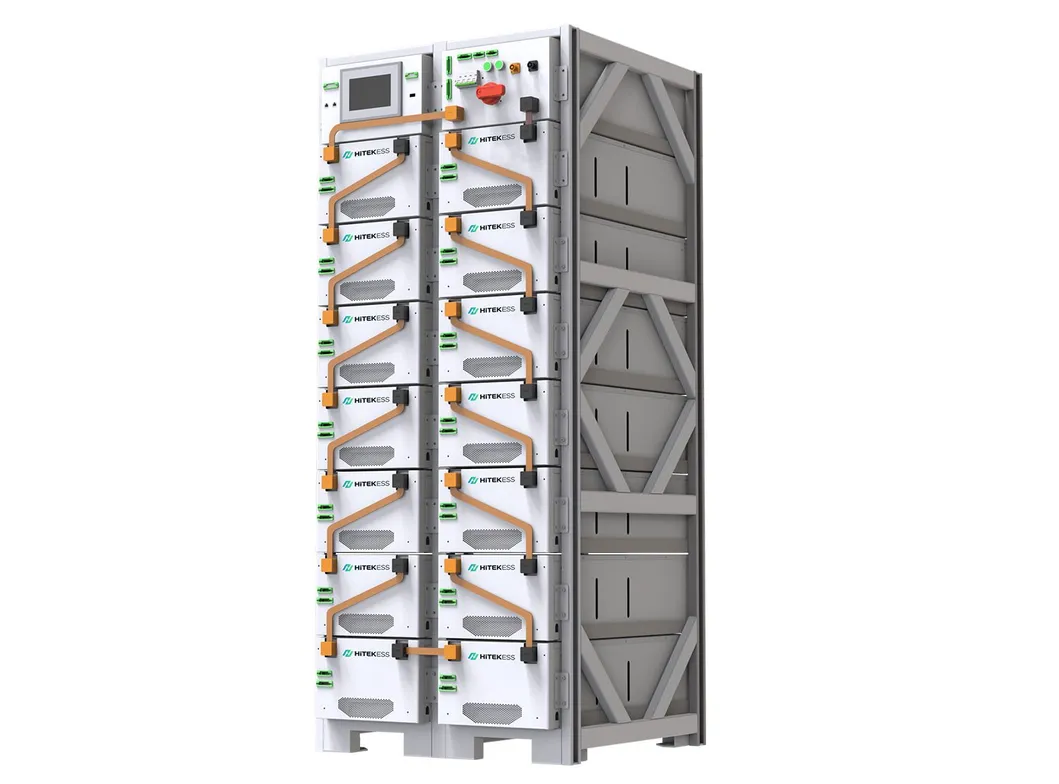

Solar Battery Rack
Deep Cycle LiFePO4, 6000+ cycles, 90% DOD.

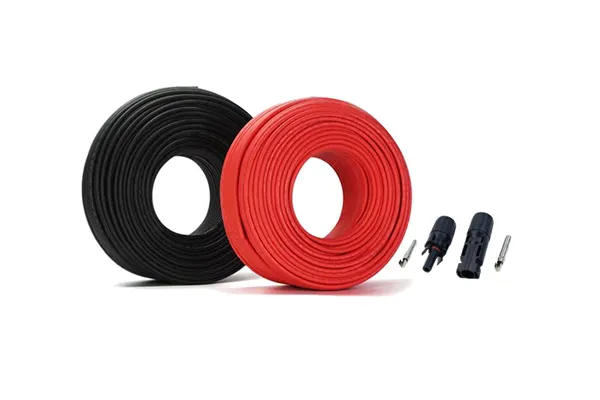

DC & AC Cables
TUV rated 600V/1000VDC, long lifetime durability.

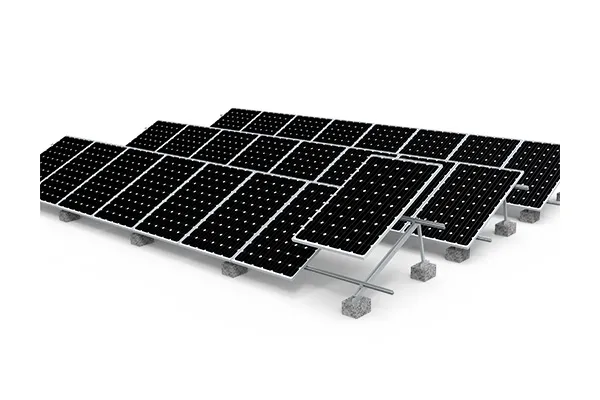

PV Mounting System
Aluminum 6005 & SUS304 bolts for all roof types.
