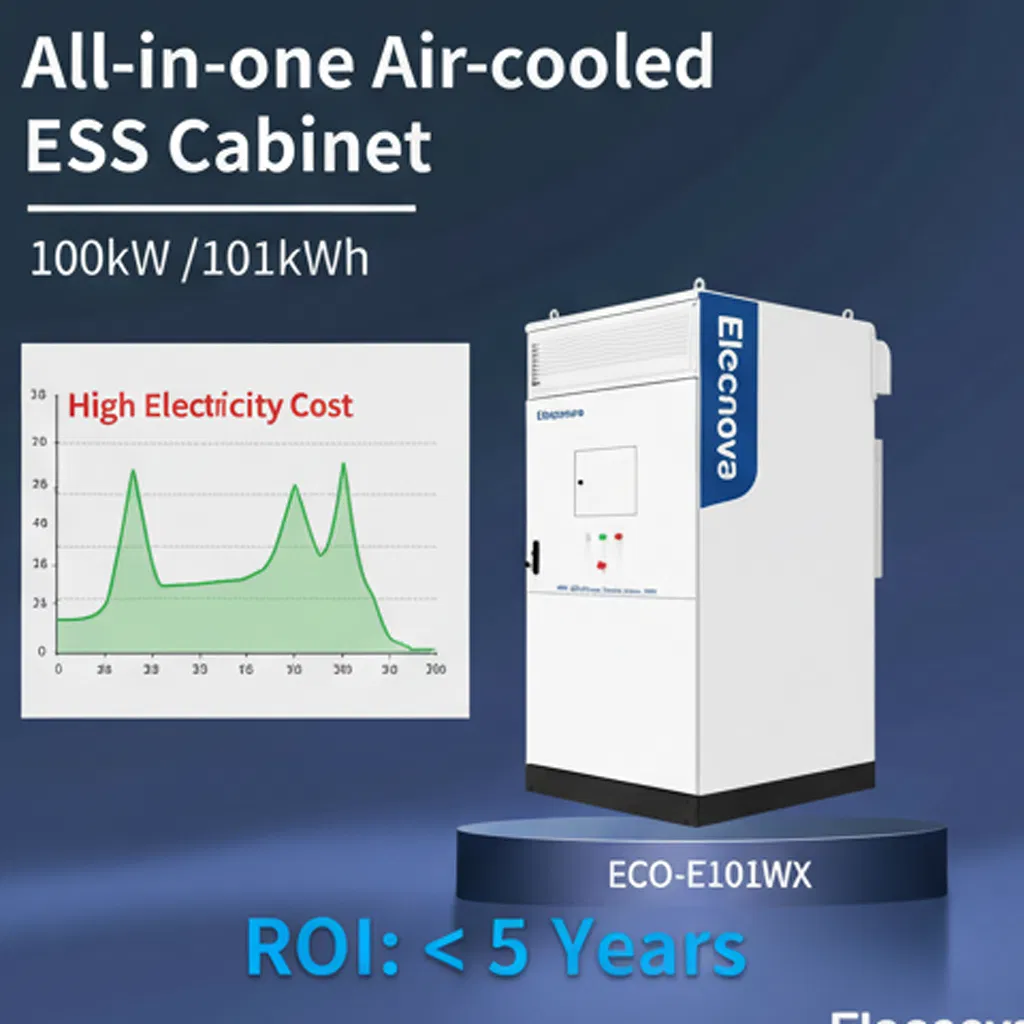

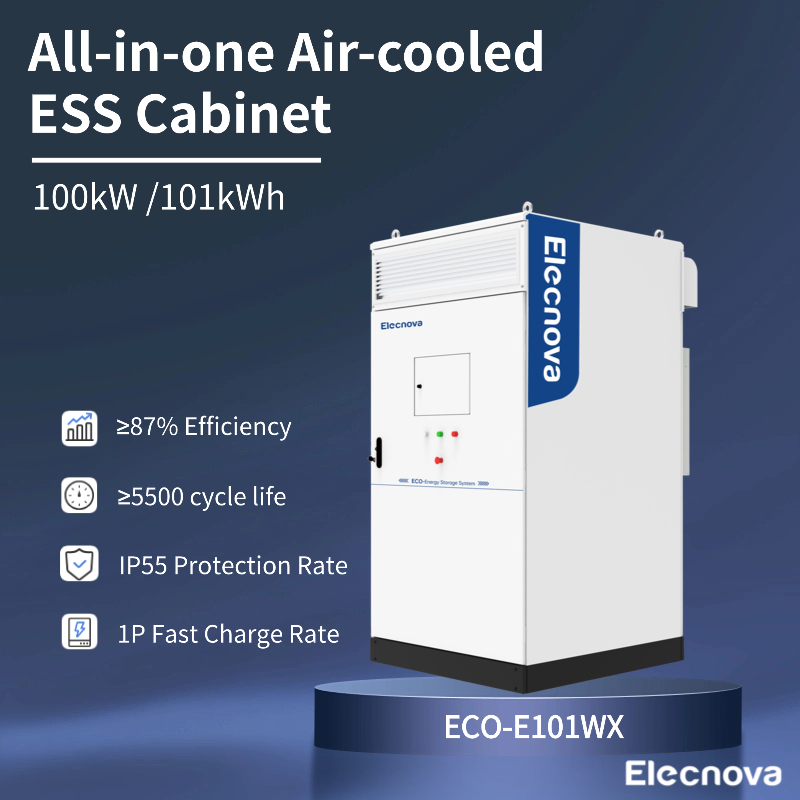

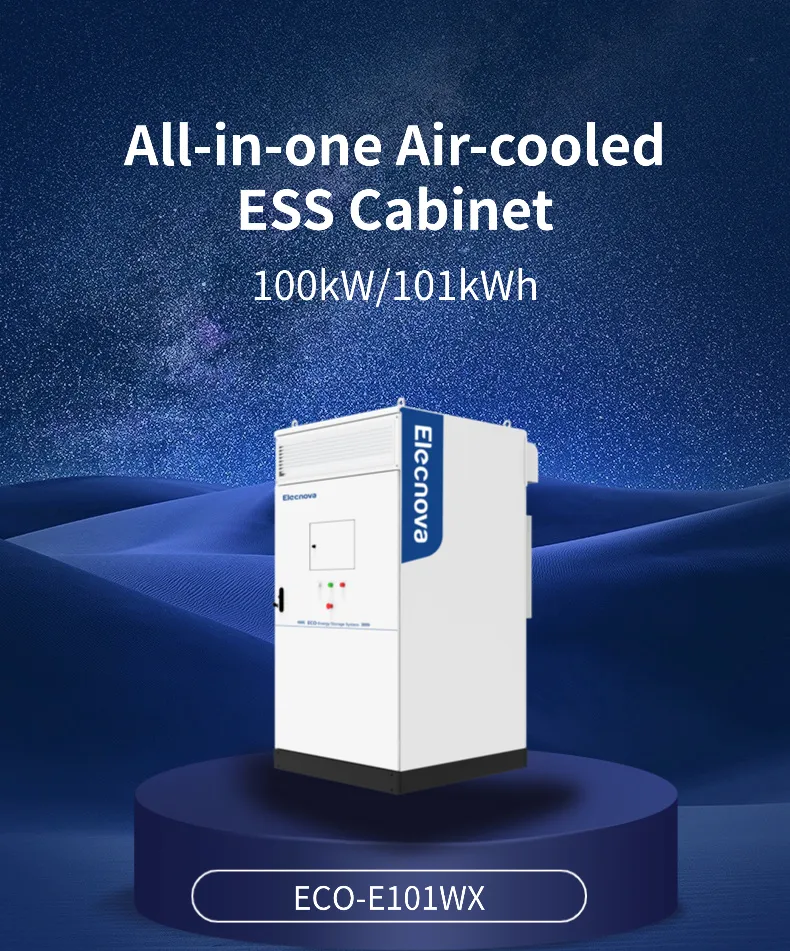

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

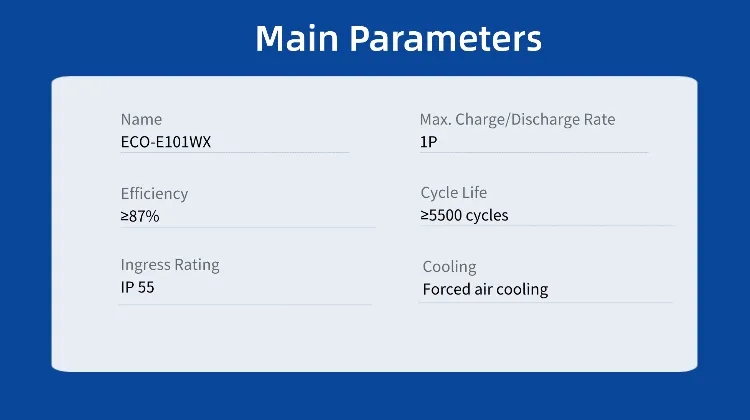

| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| General Data | |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |

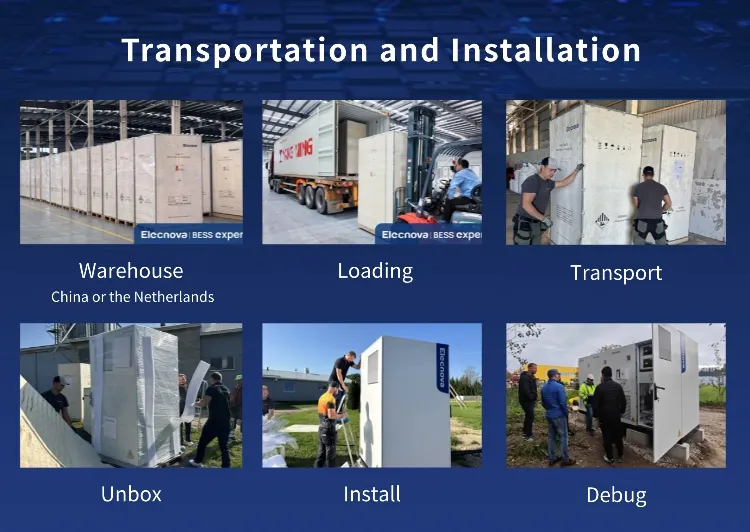

From specialized loading with strict protocols to global transport through trusted networks, we ensure every component is intact. Our process includes professional warehousing, precise installation, and thorough debugging by technical experts to ensure your BESS is fully optimized for grid connection.

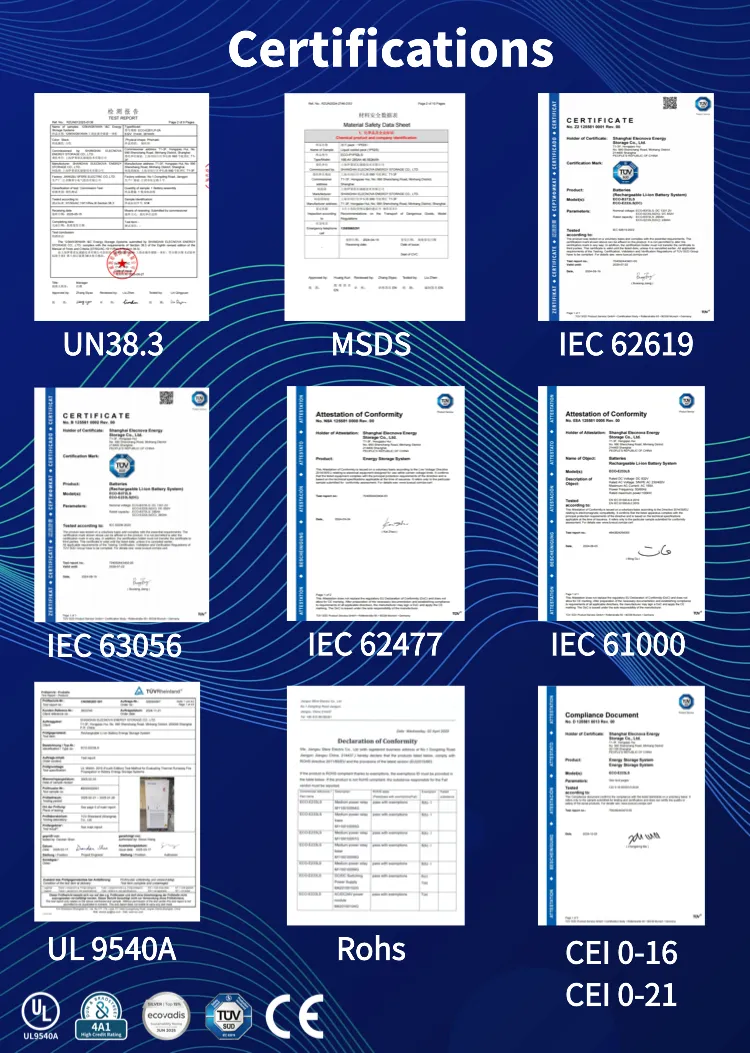

Our solutions comply with international standards including UN38.3, IEC 62619, IEC 63056, and UL 9540A. We provide a robust after-sales ecosystem including localized support, spare parts availability, and training services.
With 28 years of industry experience, we operate 2 ESS factories with a 2GWh production capacity. Our facility features automated Module and PACK production lines and holds CNAS laboratory certification, ensuring rigorous quality control and continuous R&D advancement.
A: It is primarily designed for Industrial, Commercial Factory, and EV charging station applications seeking safe and reliable energy storage.
A: Yes, we are a professional OEM & ODM manufacturer, though a minimum order quantity (MOQ) is required.
A: The standard warranty ranges from 5 to 10 years, depending on the specific project requirements.
A: The ECO-E101WX uses a forced air-cooling system integrated with thermal management for consistent performance.
A: The system holds multiple international certifications including UN38.3, IEC62619, IEC62477, and CE compliance.

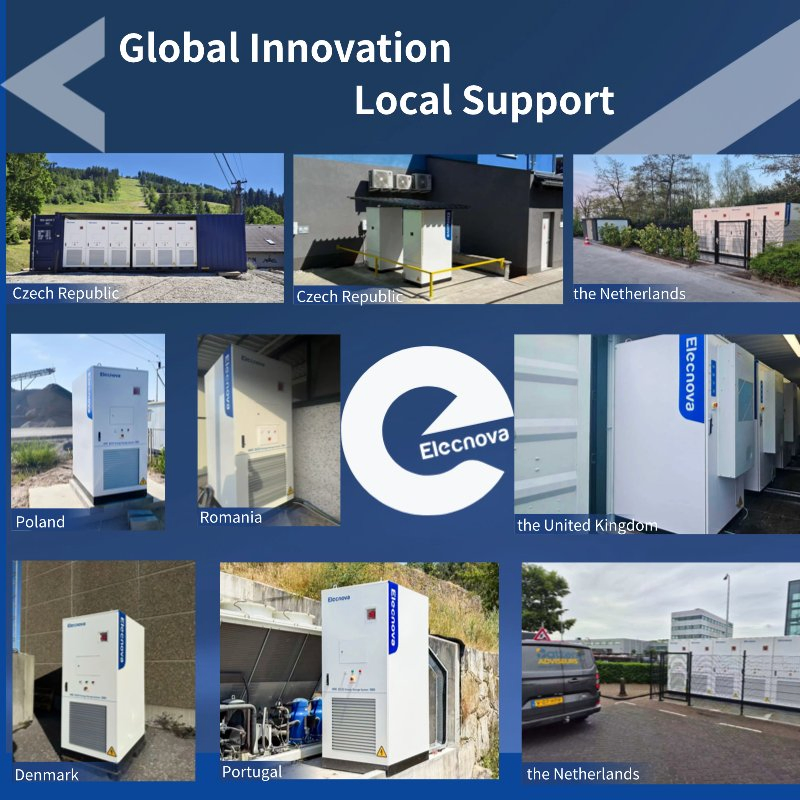

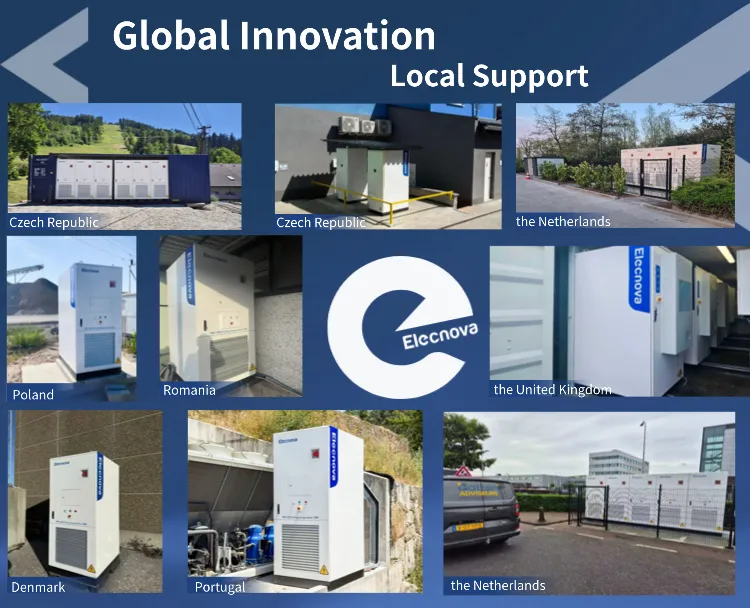

A: Yes, we have overseas branches and service partners that provide on-site repair, replacement, and technical training.
