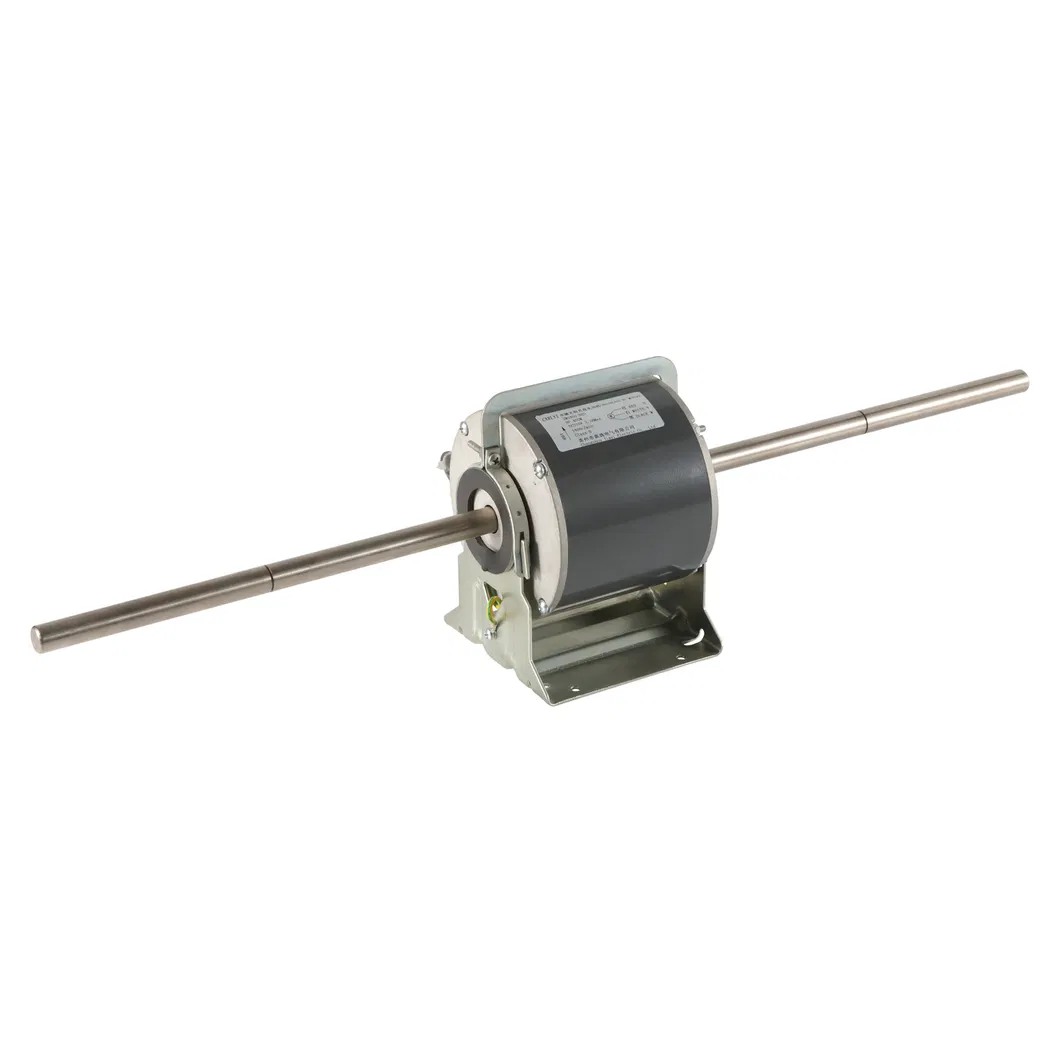

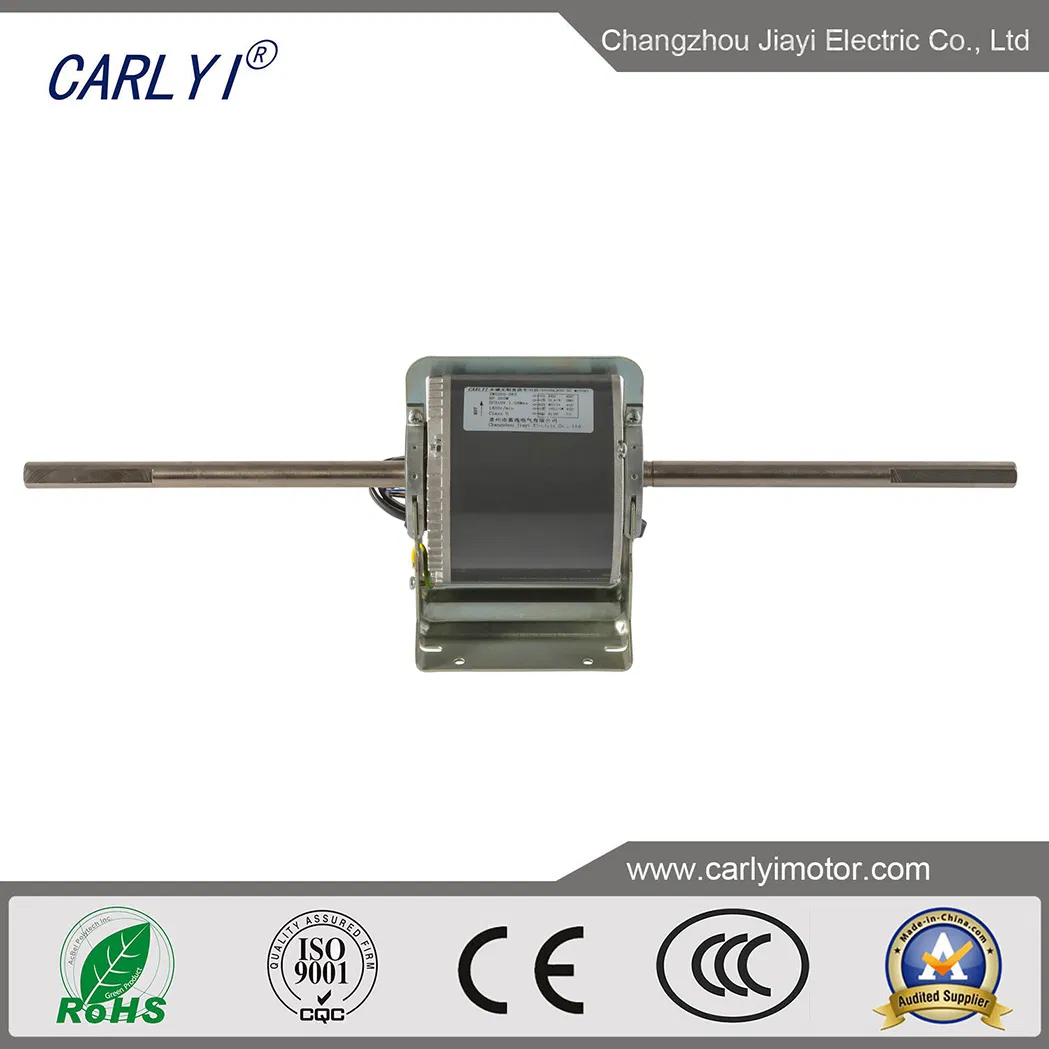

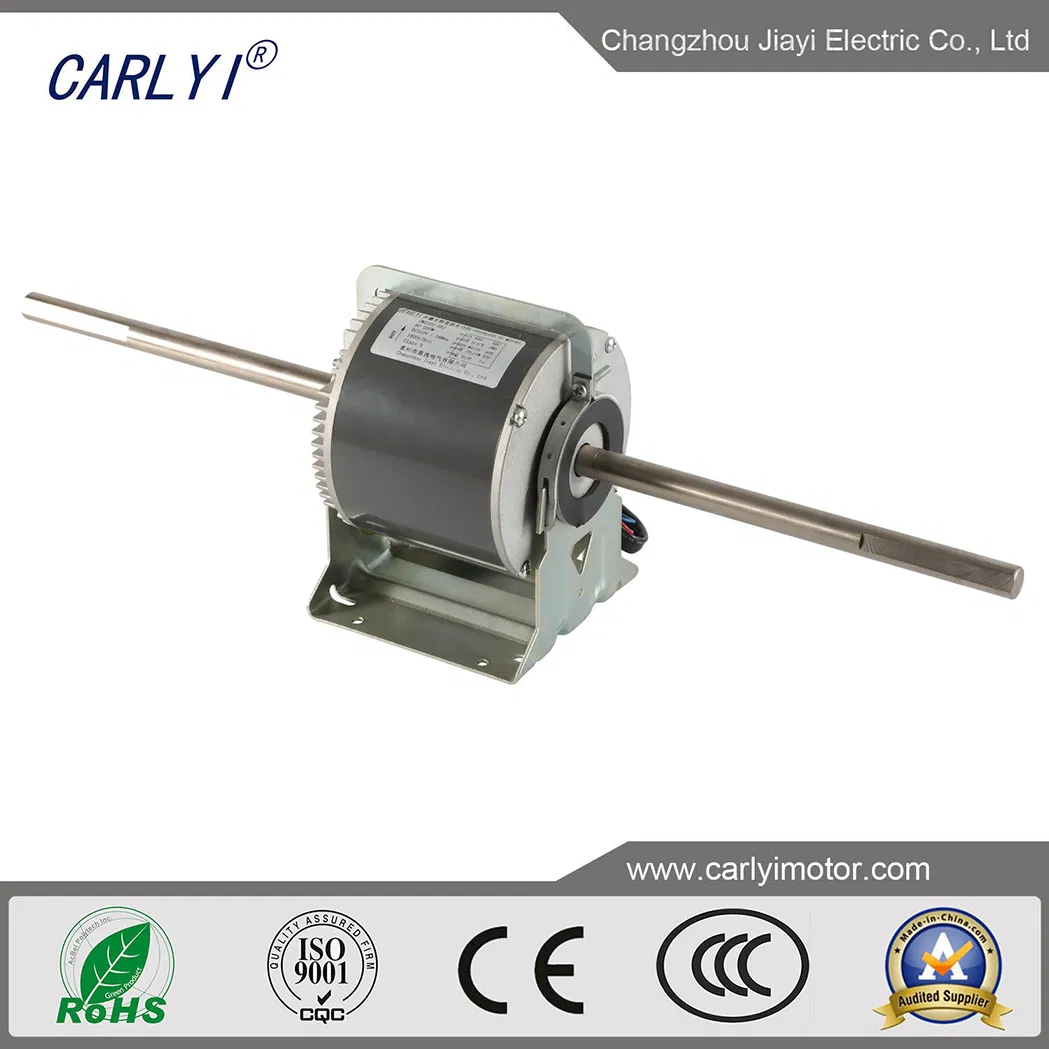

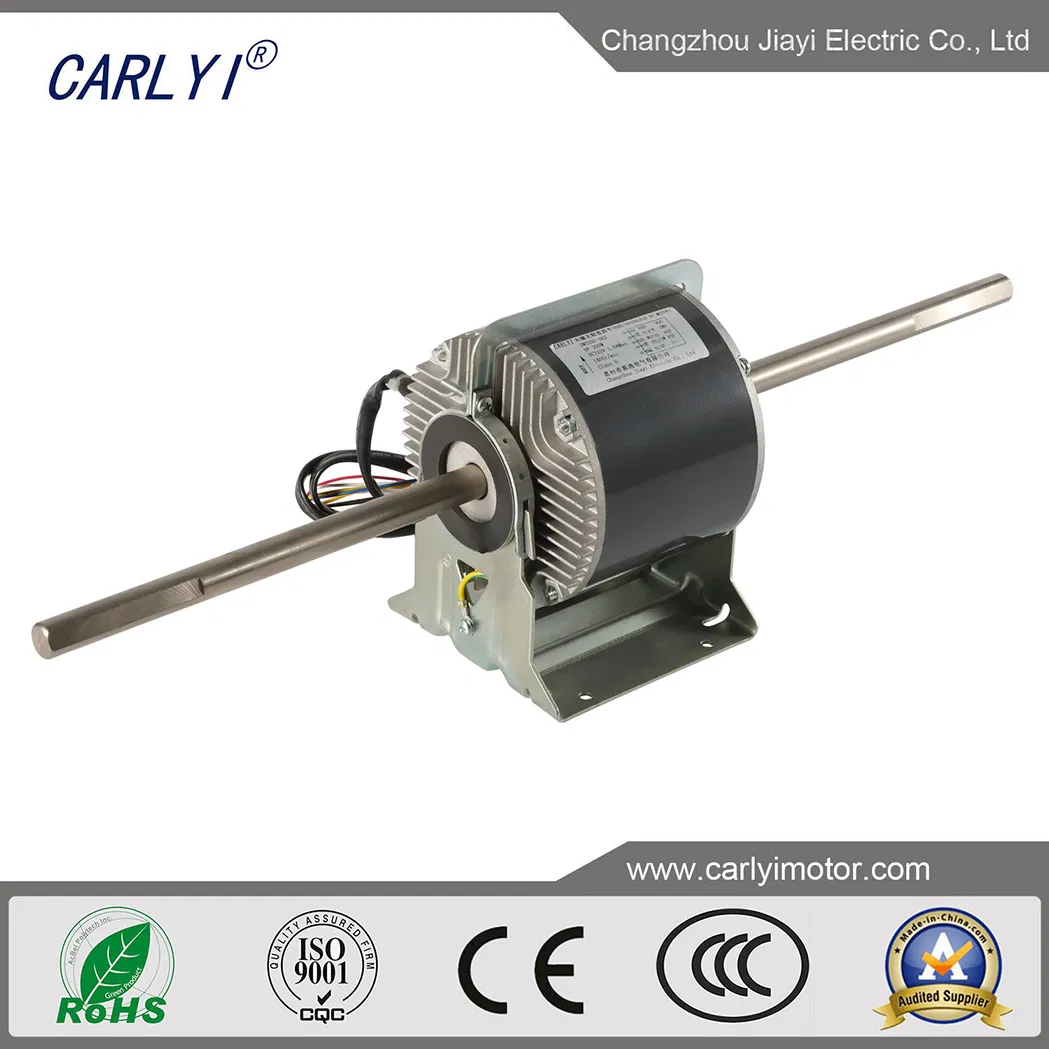

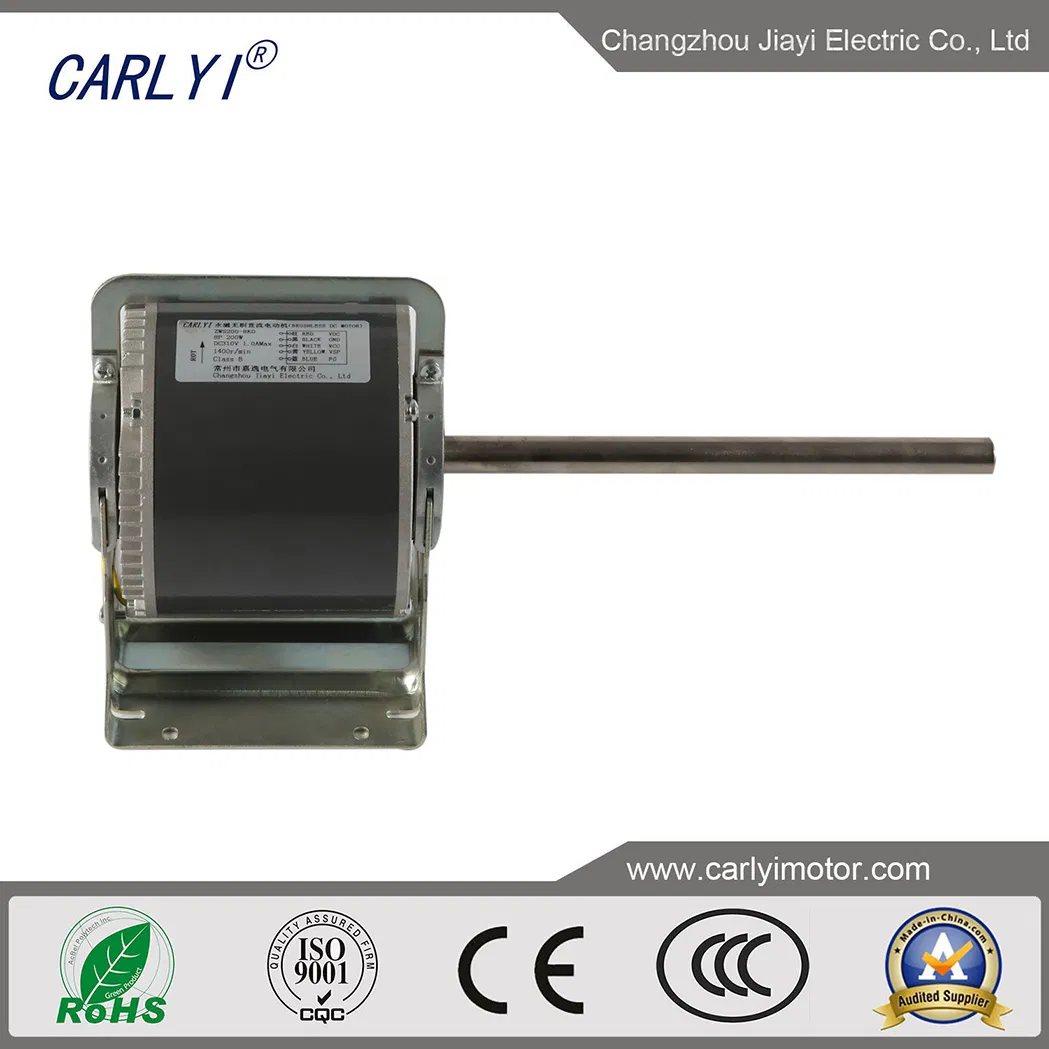

Elevate Your HVAC Experience with Precision Cooling: 1/2HP Dual-Axis Brushless DC Motor

Basic Specifications

Model NO.

ZWS400-8ES

Excitation Mode

Excited

Function

Control, Energy Saving, High Efficiency and Low Noise

Casing Protection

Closed Type

Number of Poles

8

Structure

Brushless

Type

BLDC

Certification

ISO9001, CCC, CE CQC RoHS ETL

Insulation Class

Class B

Protection Level

IP44 (Locked Rotor & Open Phase Protection)

Brushless DC Motor for HVAC Units

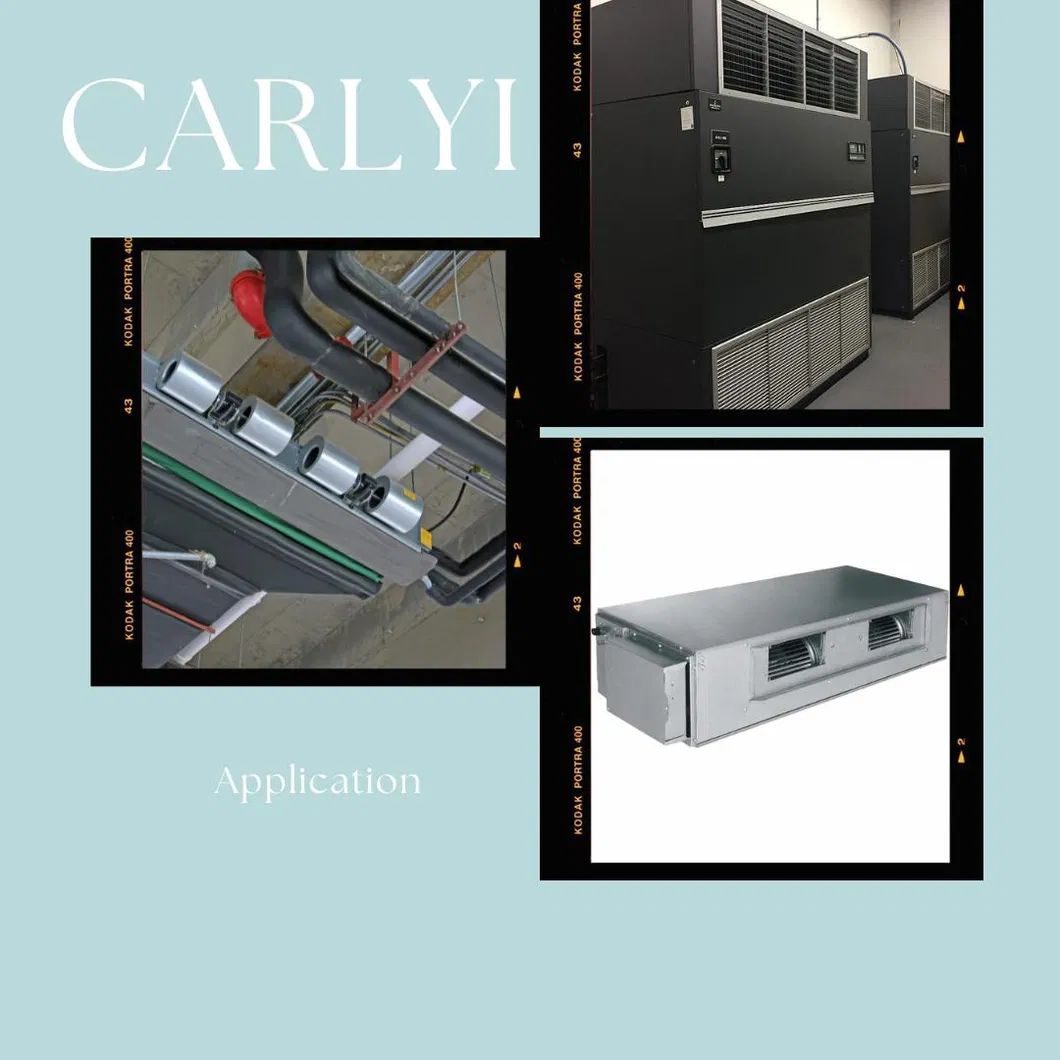

High-efficiency solutions for Fan Coil Units, VRF Indoor Units, and CRAC Units.

Model	Vol (V)	Freq (Hz)	AMPS (A)	RPM (r/min)	Output (W)	Vsp (V)
ZWS200-8KS	Vdc 310-360	50/60	0.8	300-1500	200	0-6.5
ZWS400-8ES	Vac 220-240	50/60	2.3	300-1500	400	0-6.5
ZWS560-8ES	Vac 220-240	50/60	3.1	300-1500	560	0-6.5

Core Advantages

Energy-efficient: Significant savings on power bills without compromising performance.
Silent Operation: Advanced brushless design coupled with silent bearings for low-noise environments.
Enhanced Protection: Features locked rotor, open phase, over-voltage, and overheating protection.
Durability: High-quality copper wire design and programmable features for a longer lifespan.

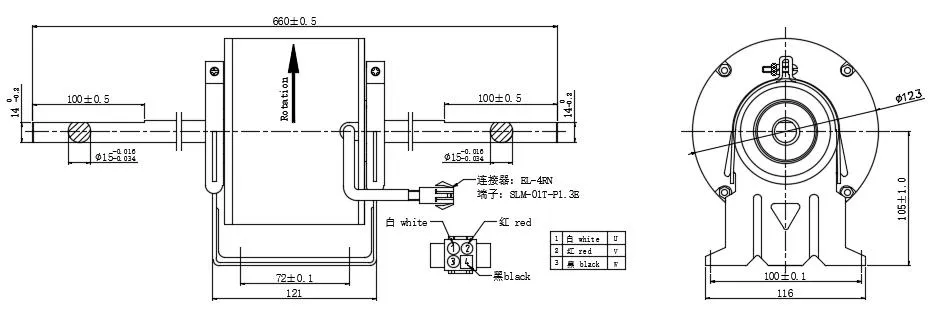

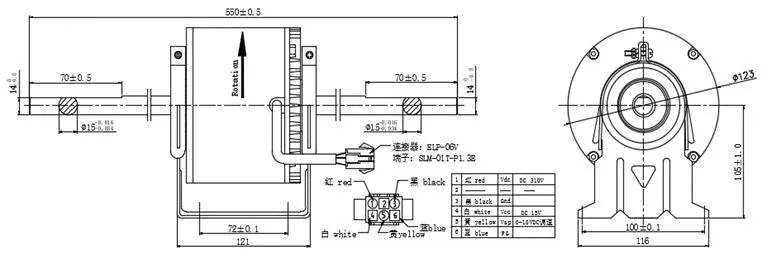

Technical Drawing & Recommendations

Trade Terms & Packaging

Trade Terms: FOB, CIF, CNF, EXW, Door to Door

Payment: T/T (50% deposit, 50% balance before delivery), L/C, Western Union

Delivery Time: 15-30 days after deposit

Package Size: 55.00cm * 13.00cm * 18.00cm | Gross Weight: 5.000kg

Frequently Asked Questions

Q1: What types of motors do you specialize in? We specialize in brushless DC (BLDC) and EC motors designed specifically for residential and commercial HVAC and refrigeration industries.

Q2: Are these motors energy-efficient? Yes, our motors use unique high-flux designs to ensure minimal energy consumption while delivering high torque and efficiency.

Q3: Can you provide customized motor solutions? Absolutely. We can design and manufacture motors according to specific customer requirements regarding voltage, power, and size.

Q4: What is the typical lead time for orders? Sample preparation takes about 3-7 days. Batch orders typically take 15-30 days, depending on the complexity of the requirements.

Q5: What certifications do your products have? Our motors are approved by CCC, ISO9001, CE, RoHS, and ETL certifications, ensuring compliance with international quality standards.

Q6: Do you provide a warranty? Yes, we offer an 18-month guarantee on our motors along with 24-hour technical support to ensure seamless operation.
