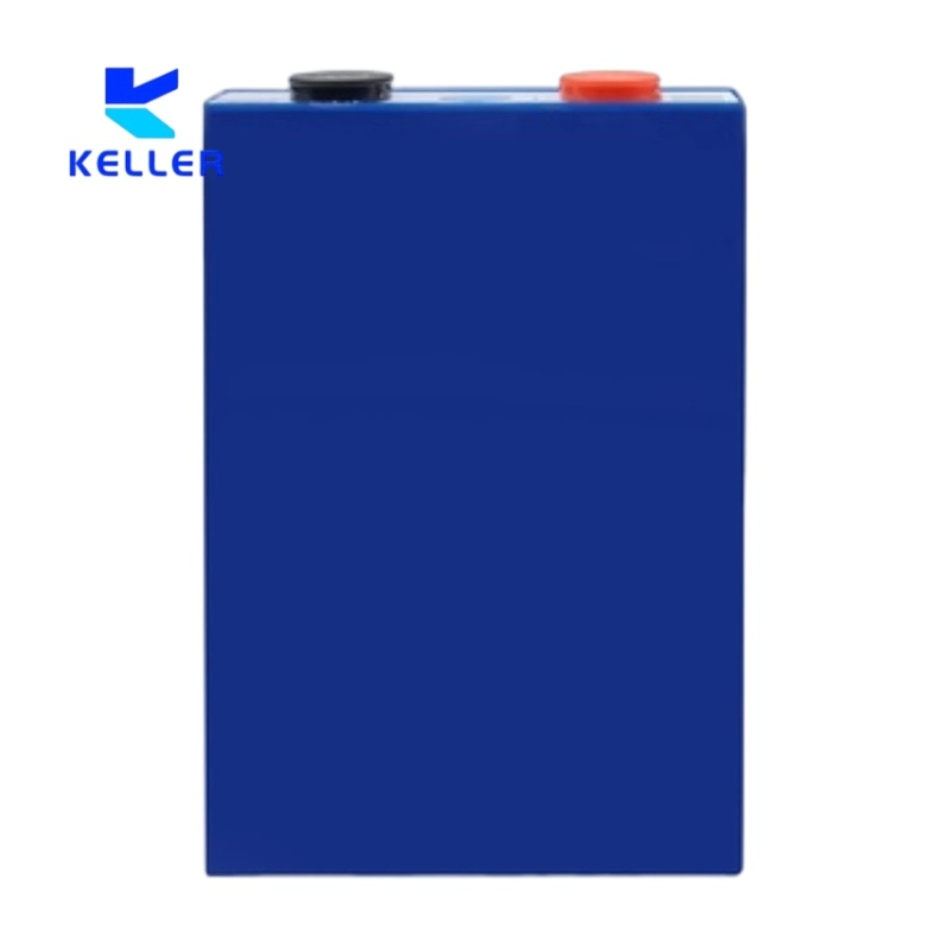

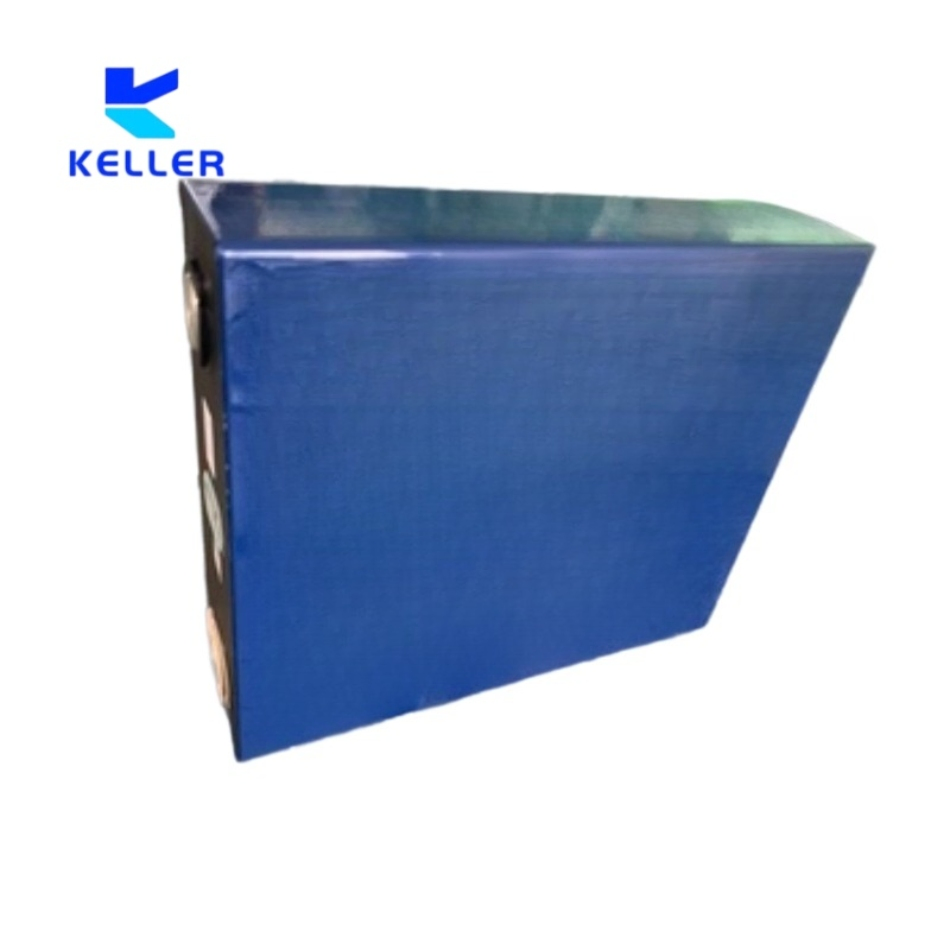

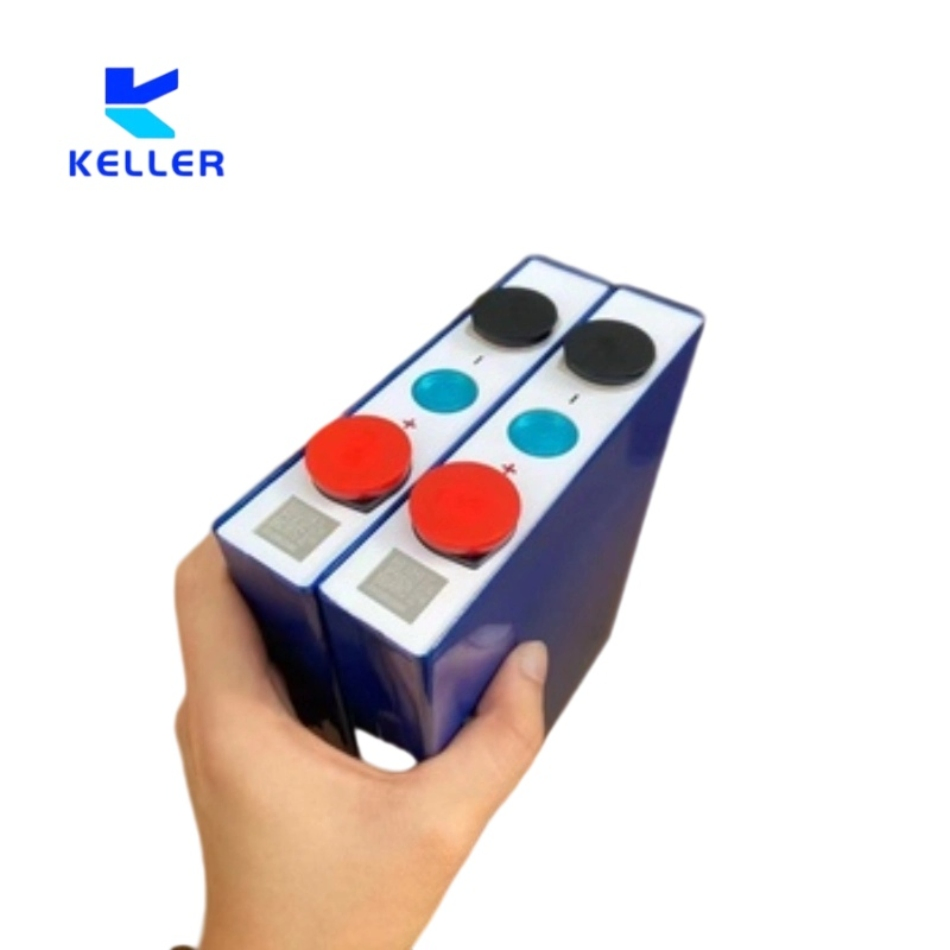

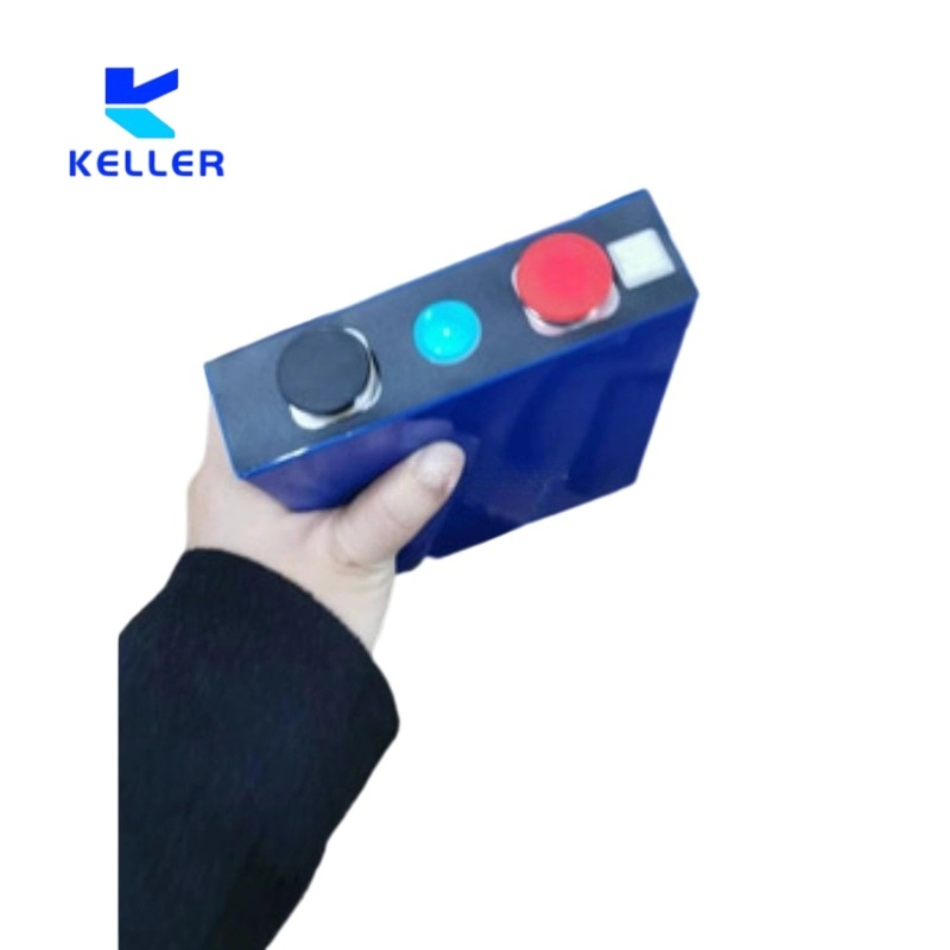

High Quality Battery Cell with Safety and Lock for EV Packs

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP

Product Description

Basic Specifications
ModelHigh Quality Battery Cell
RechargeableYes
Weight5.55kg
Cycle Life≥5000 Cycles
OriginChina
Capacity305Ah
Product Overview
Battery Cell View
Parameter Specification
Nominal Voltage3.2V
Nominal Capacity305Ah
Nominal Energy976Wh
Max Continuous Charge Current153A
Max Continuous Discharge Current305A
Cycle Life≥5000 cycles (70% capacity retention)
Operating Temperature-30ºC ~ +60ºC

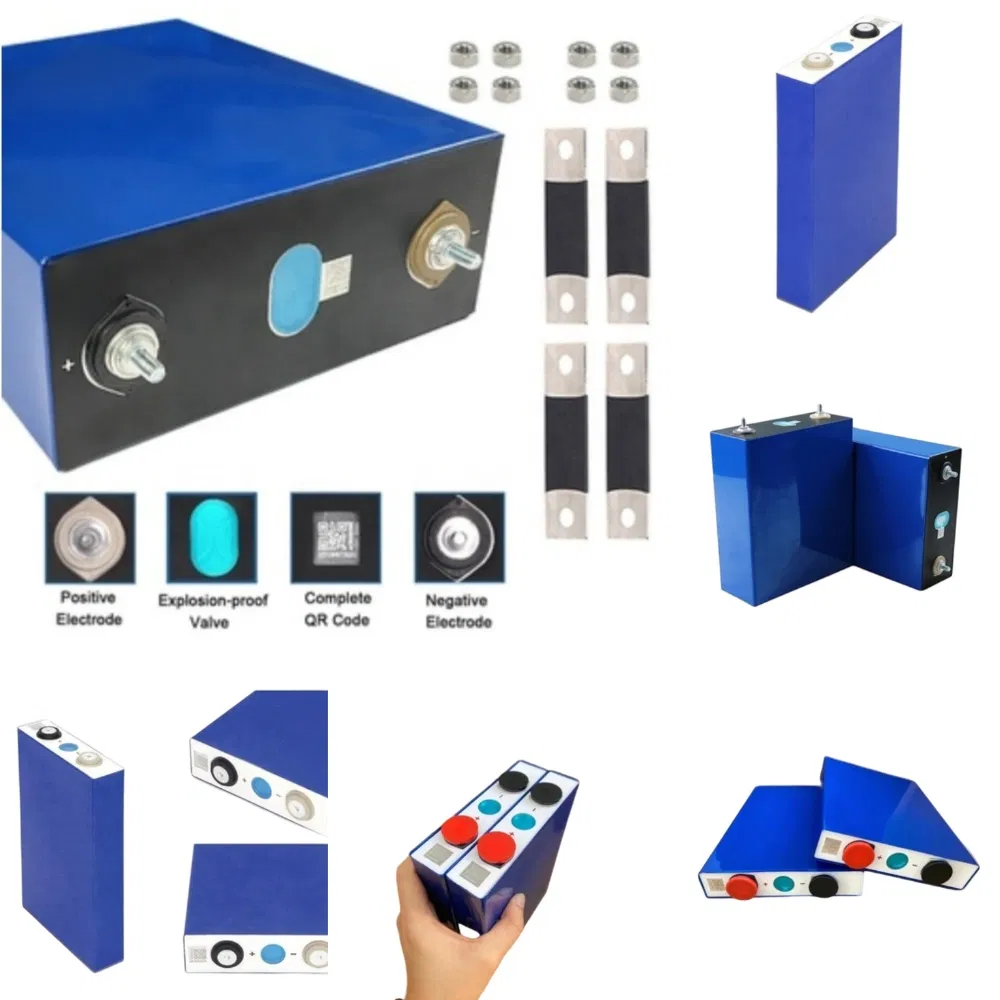

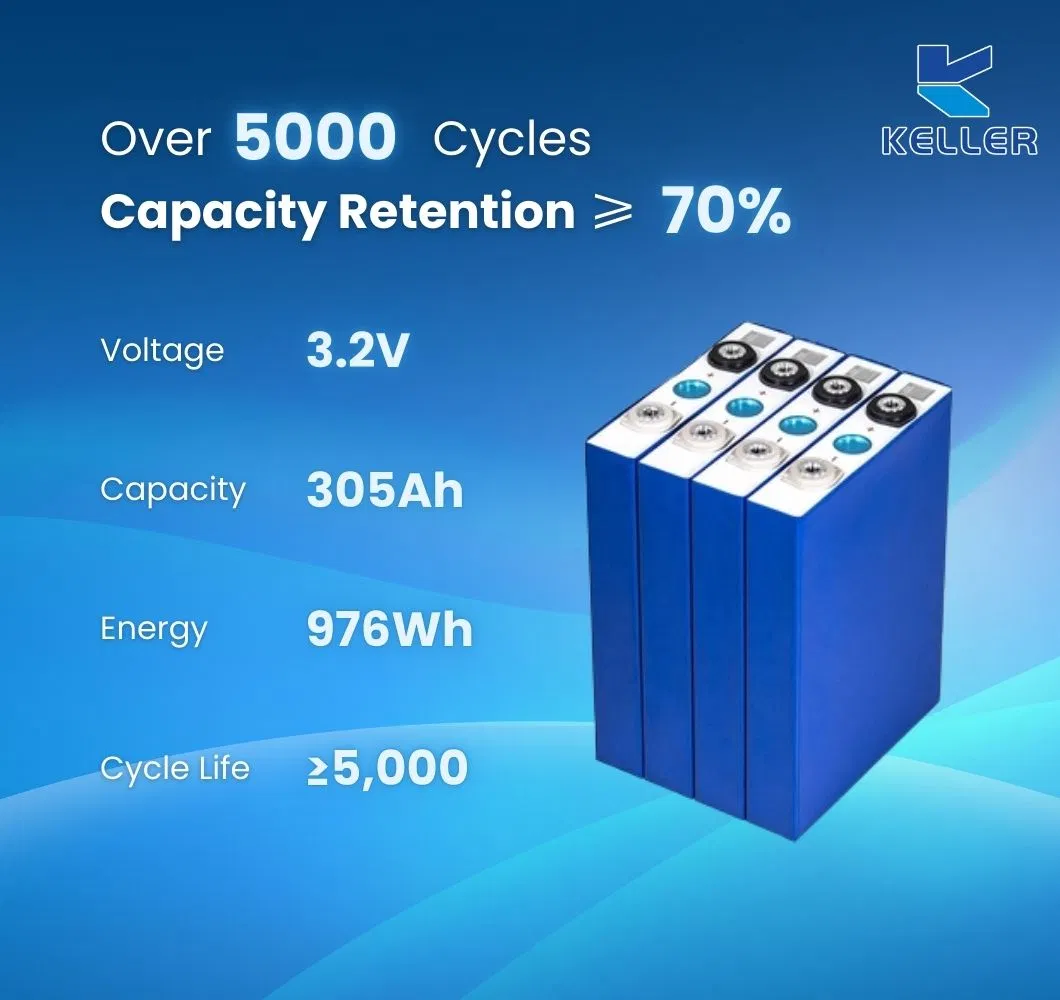

Cell Technical Drawing Cell Detail
Applications & Production
Applications

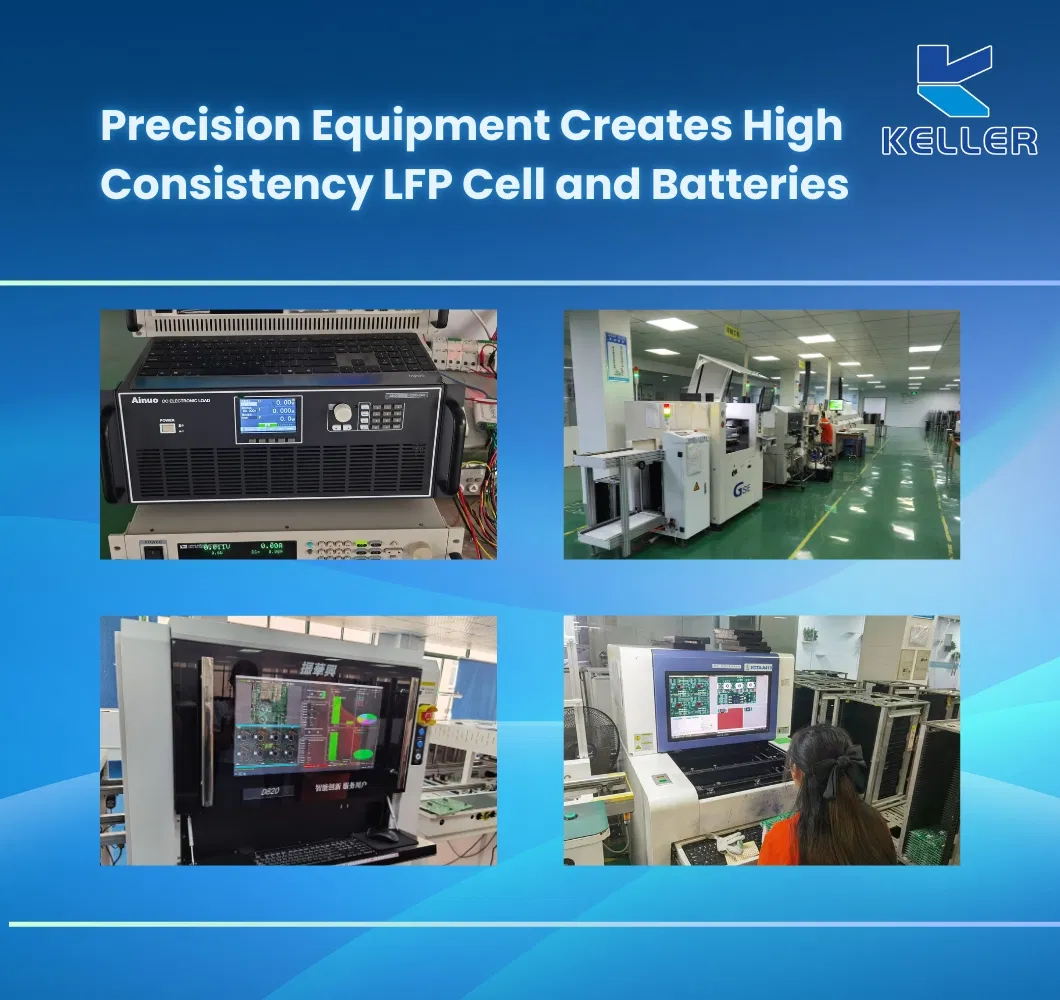

Certifications Factory Overview
Packaging & Logistics

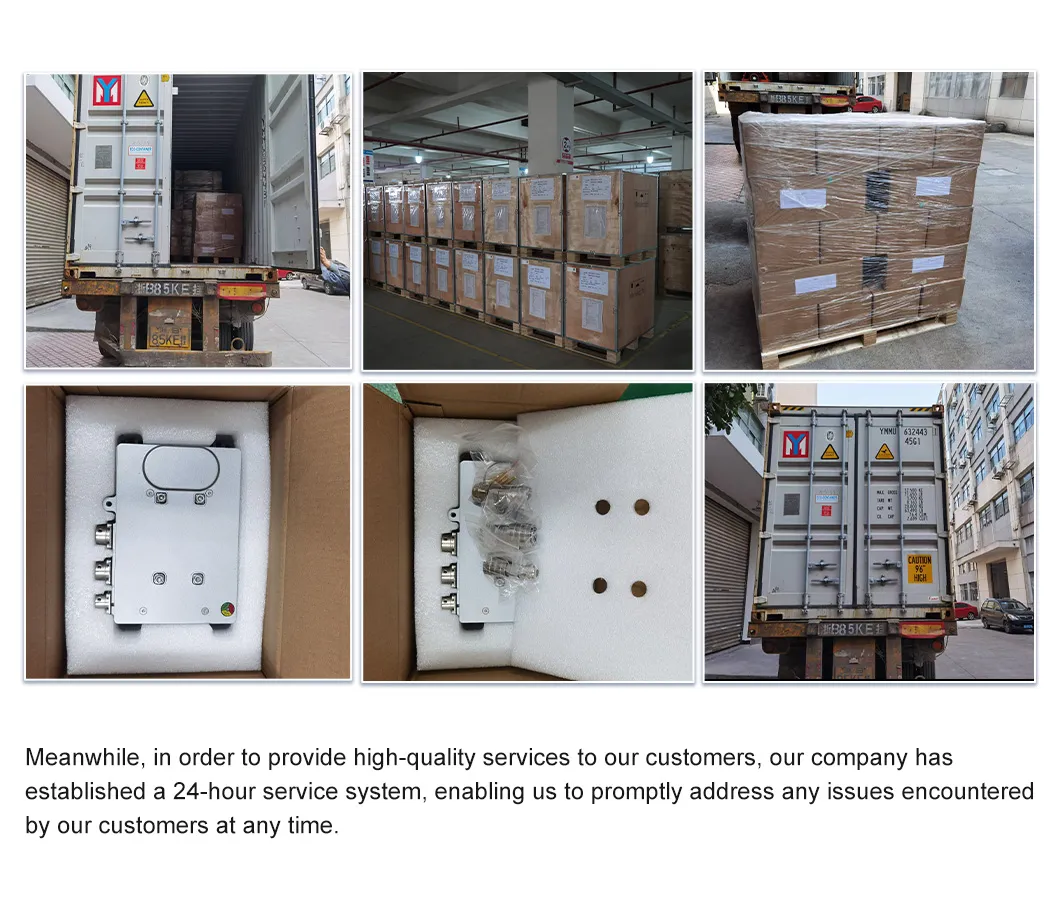

Shipping Carton Pallet Delivery
Packing Method Foam + Box + Carton + Wooden frame
Shipping Time 15-60 days based on quantity
Guarantee 1 Year
Frequently Asked Questions
Q: Does this LFP battery cell support fast charging? A: Yes, it supports a maximum continuous charging current of 153A (0.5C). Charging limits vary by temperature, with optimal speeds between 20~45°C.
Q: Can it be used in low-temperature environments? A: The cell features strong low-temperature performance with a discharge capacity ≥70% at -20°C. Usage below -30°C is not recommended.
Q: What safety tests has this cell passed? A: It has passed overcharge, over-discharge, short circuit, crush, drop, and thermal runaway tests (up to 130°C) with no fire or explosion.
Q: How should the battery be stored for the long term? A: Maintain a 30%~50% SOC at -10°C to +45°C and recharge every 6 months to ensure cell health.
Q: What is the cycle life of this cell? A: This cell provides a high cycle life of ≥5000 cycles while maintaining at least 70% of its original capacity.
Q: What safety measures are in place for leaks? A: If electrolyte contact occurs, rinse with water for 15 minutes. If overheating is detected, stop use immediately and move to a ventilated area.
