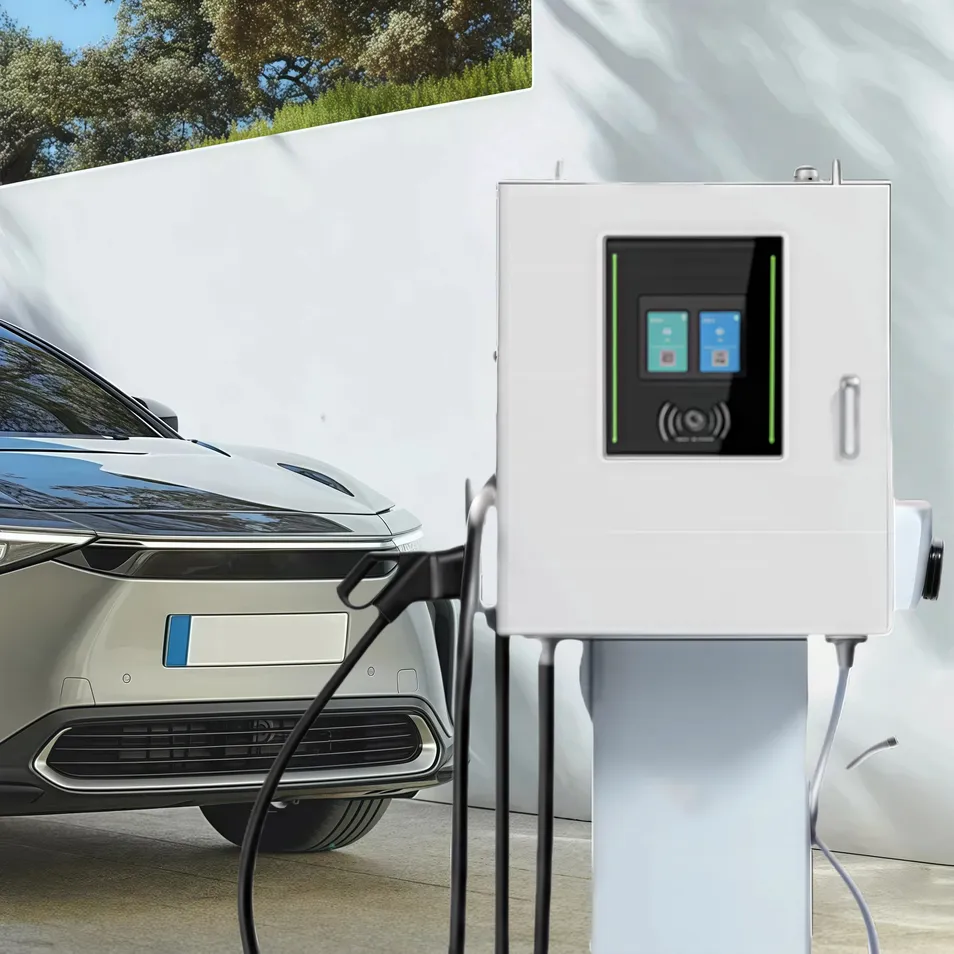

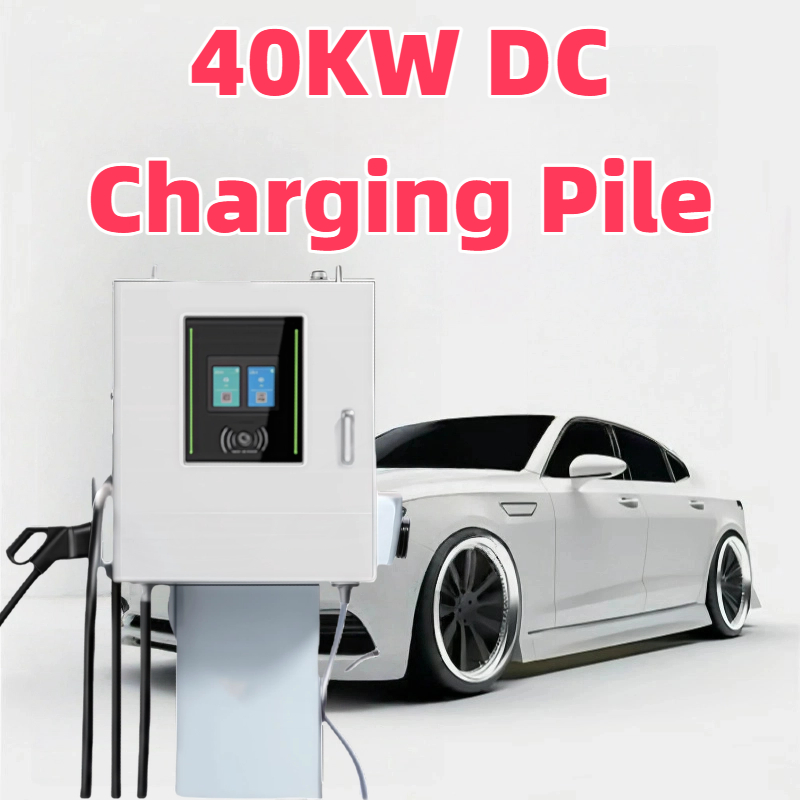

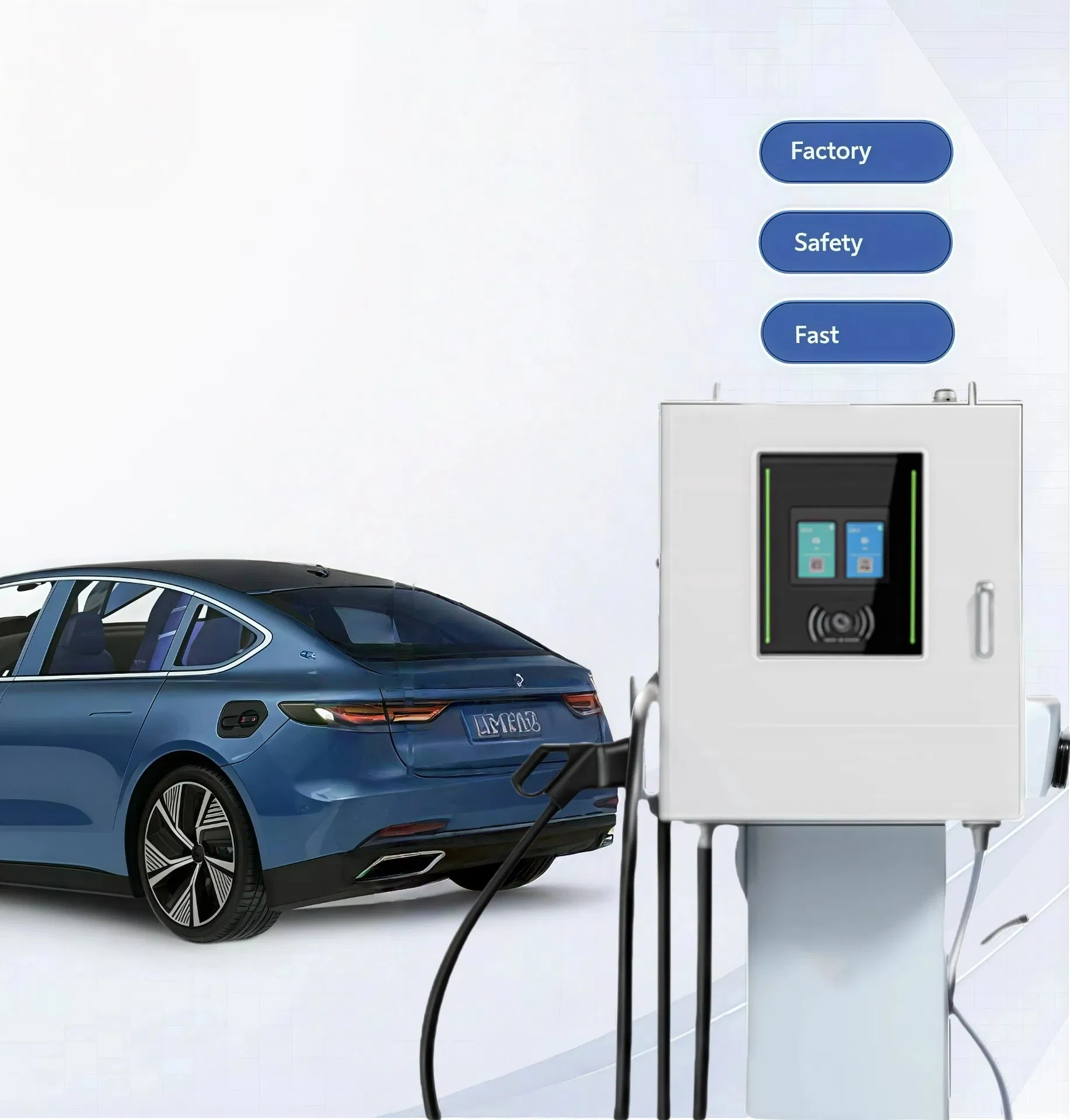

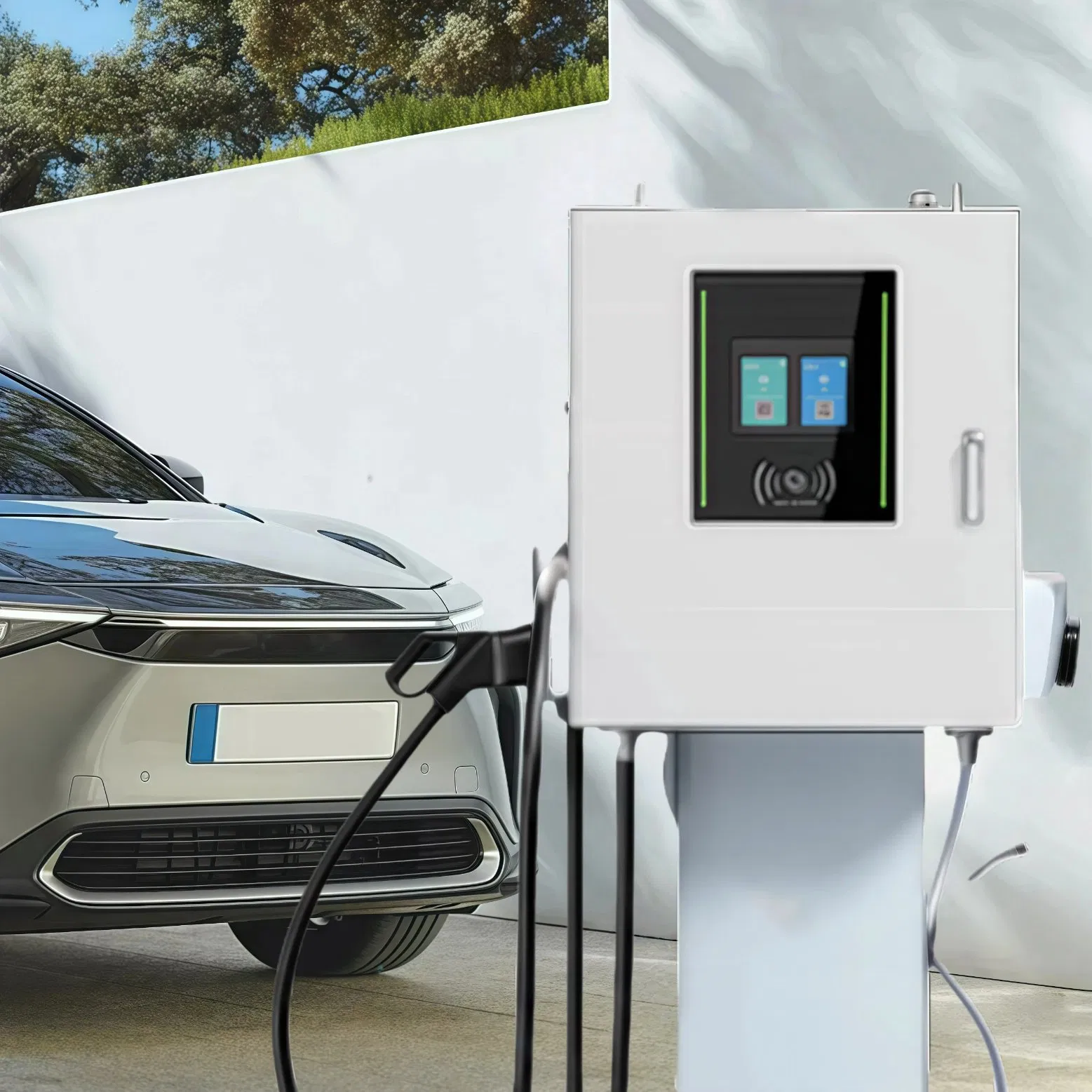

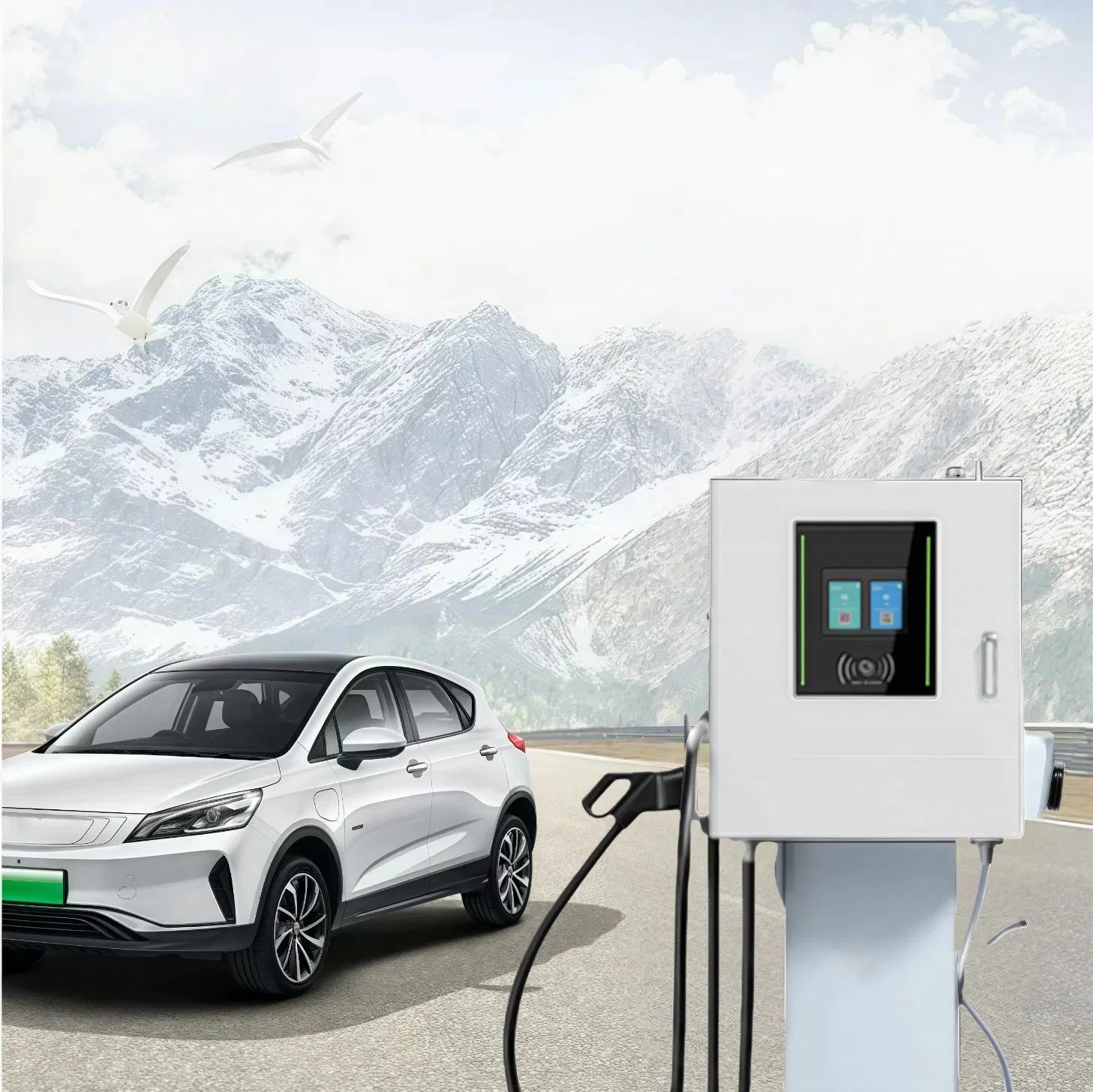

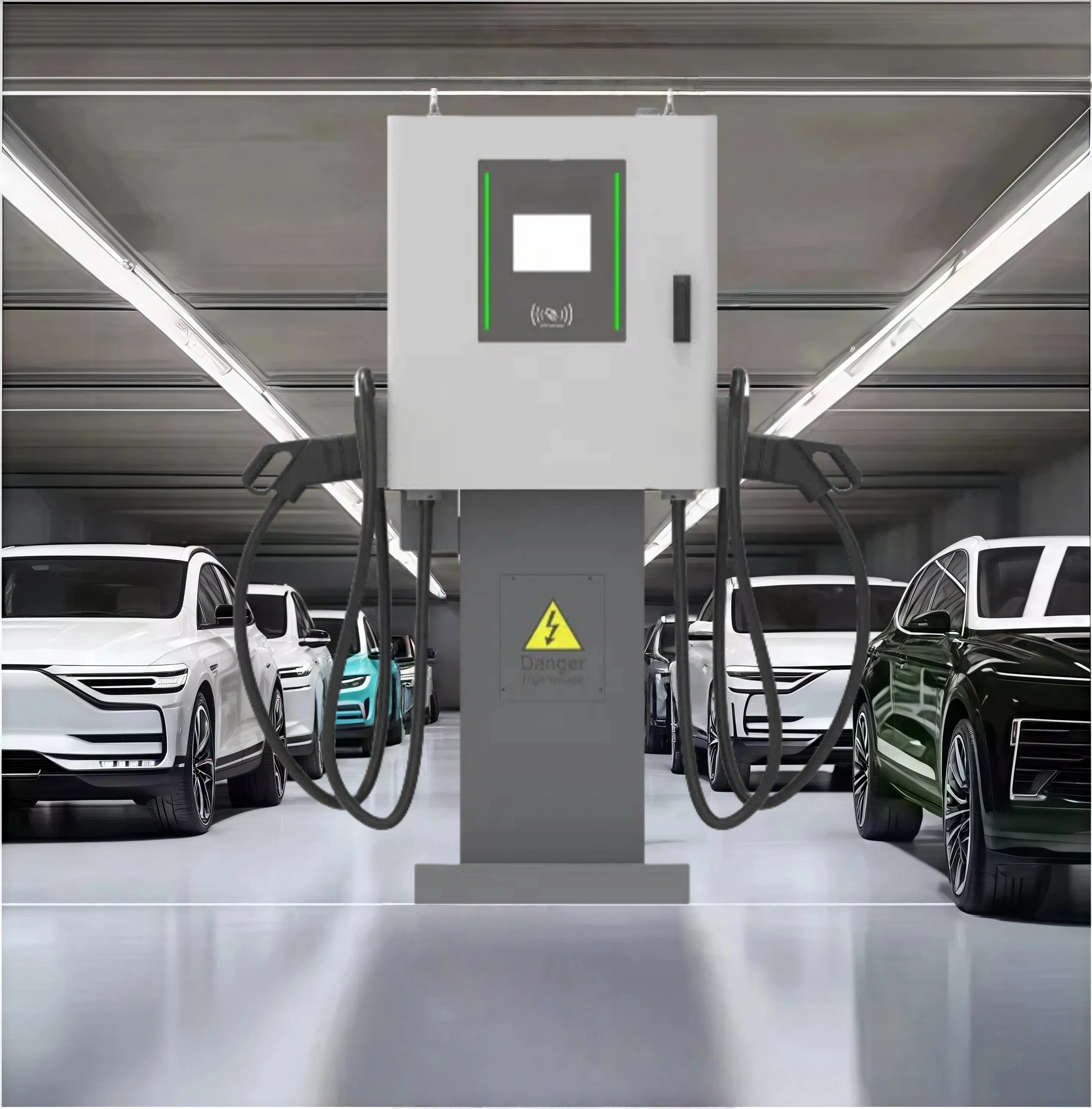

200A, 40kW Smart Charger for Home or Commercial (with OCPP 1.6J) Use
| Model NO. | GHDC40K-J-L1 |
| Location | Private & Public |
| Charging Interfaces | One Pile with One Charge |
| Start Mode | Credit Card Payment, Mobile Remote Operation, RFID Authentic, POS |
| Transport Package | Carton Box |
| Product Size | 690*357*1686mm |
| Origin | China |
| HS Code | 8504409990 |
| Production Capacity | 100/Month |
Multiple Protections:

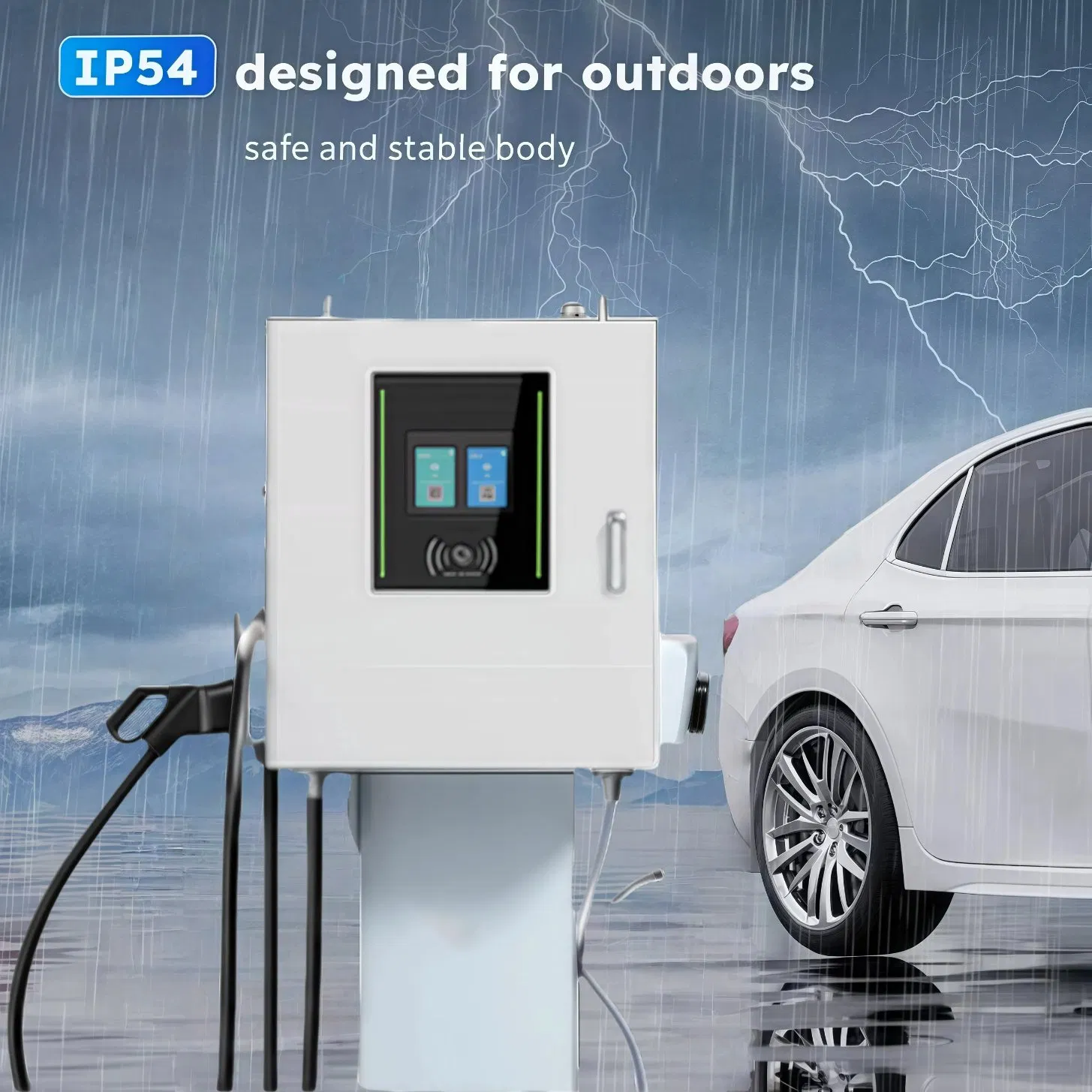

(1) IP54 for Outdoor Use
(2) Emergency Stop Button
(3) Leakage Protection
(4) Over Temperature Protection
(5) Lightning Protection
(6) Over Current Protection
(7) Over/Under Voltage Protection
(8) Short Circuit Protection
Multiple Control Modes:
(1) App Remote Control via WiFi, Bluetooth
(2) RFID Card Control
(3) POS payment charging
| Power Output | 30kW, 40kW, 60kW |
| Input Voltage | AC 400V±15% to AC 480V±10% |
| Operating Frequency | 45~65Hz |
| Input PF | ≥0.99 |
| Max Output Current | 125A - 200A |
| Output Voltage Range | DC 150-1000V |
| Max Efficiency | ≥94% (100% Loading) |
| Communication | OCPP1.6 JSON, LAN / 4G (Optional) |
| Display | 8 inches Touch LCD Screen |
| Protection Rating | IP54 |
| Operating Temp | -30℃ ~ +50℃ |
Professional Quality Control: ITAF 16949 Certified Factory with professional testing labs. Up to 2 hours endurance tests are performed on all products before shipment.

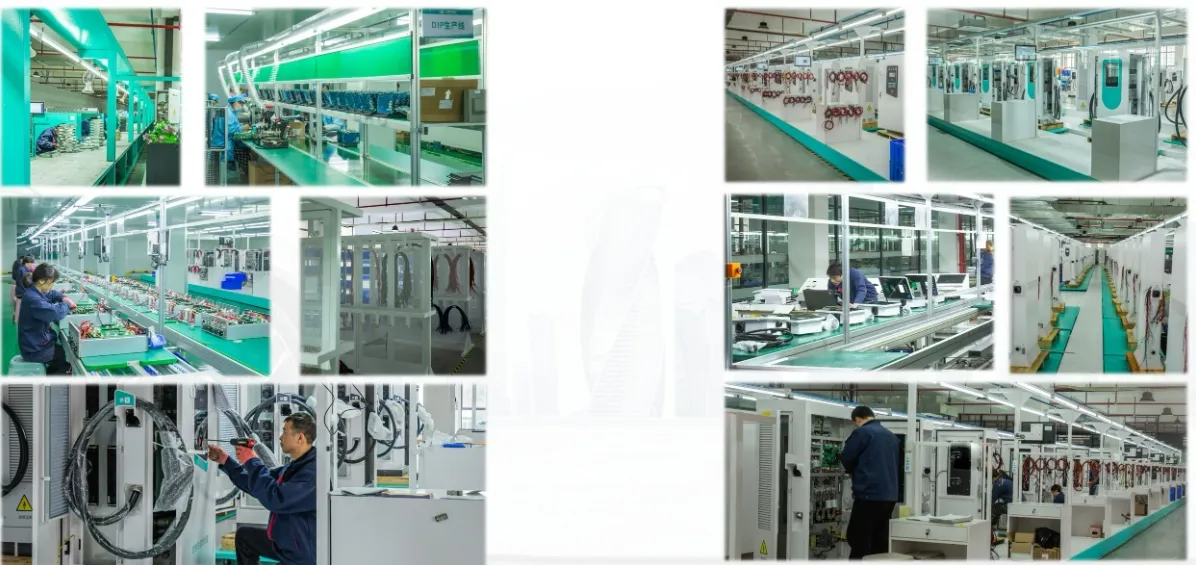

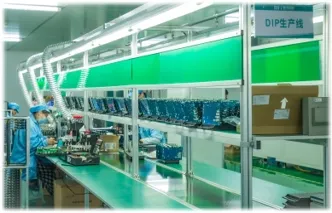

Production Capacity: 5,000 units/month
24-Month Warranty
Comprehensive coverage against manufacturing defects.
Free Replacement
Core components replacement provided for free within warranty.
Technical Support
Lifetime technical support on working days for zero cost.
ISO9001
SGS Certificates
TUV Certificates
