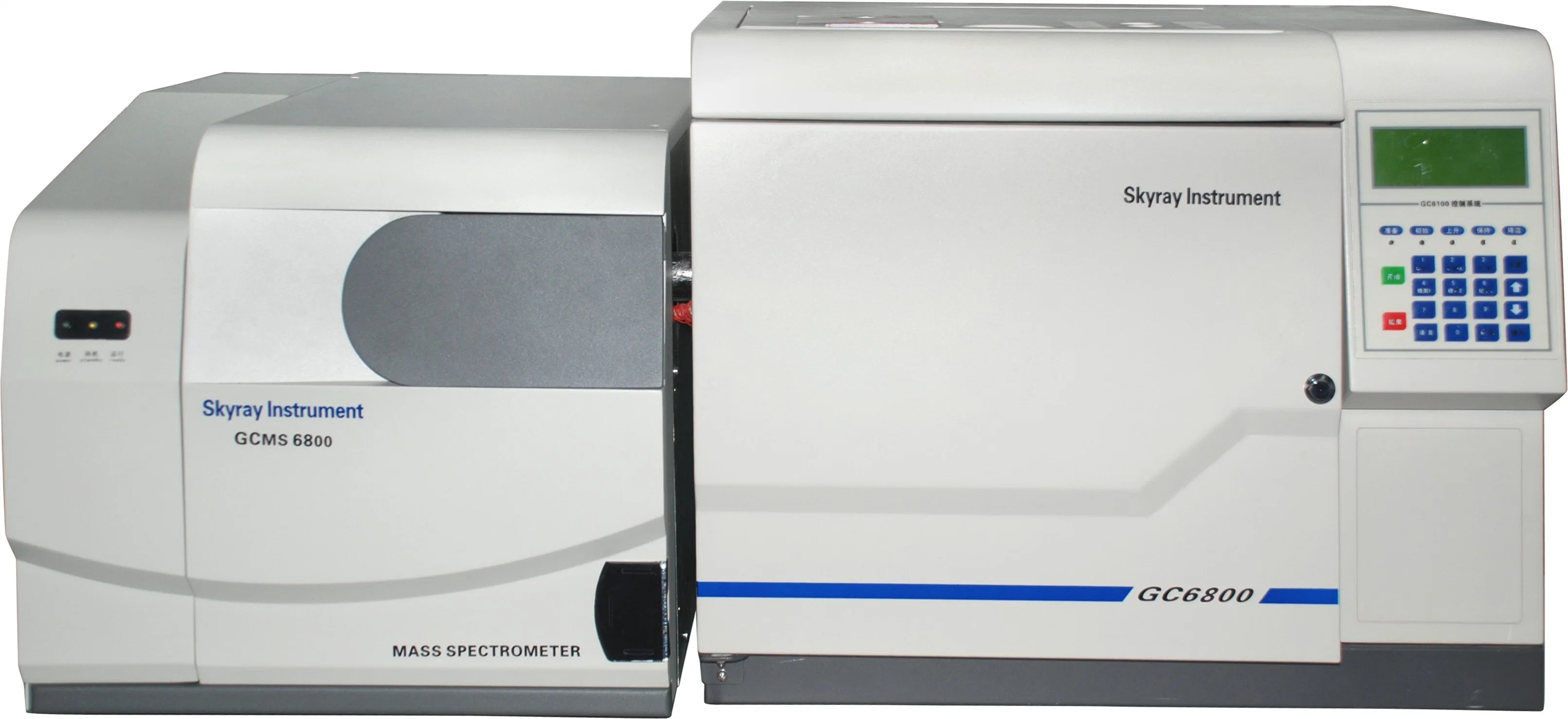

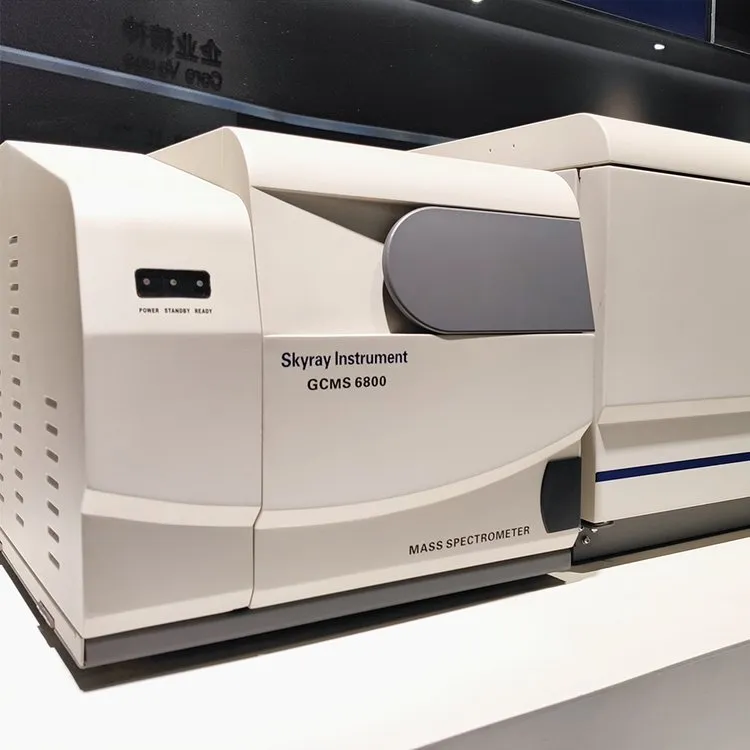

Instrument introduction: GC-MS 6800 is a cost-effective gas chromatograph mass spectrometer. The products hold several patented technologies, and are widely used in industrial inspection, food hygiene, environmental protection, etc.
⚙️ Hardware Features
- Electronic pressure/flow control system (EPC/EFC) for self-developed GC 6800 system.
- Patented EI filament set provides highly efficient electron emission, a maximum of 350μA.
- Quality mass analyzer with pre-filter reduces quadrupole pollution.
- High-energy dynode electron multiplier ensures good sensitivity.
- Vacuum system with quality mechanical and turbo molecular pumps guarantees stability.
- RF power supply digital compensation technology ensures better sensitivity and resolution.
💻 Software Controls
- ChemAnalyst software controls auto sampler (AS), gas chromatograph (GC) and mass spectrometer (MS).
- Full Scan and selective Ion Monitoring (SIM) modes available.
- Supports manual and automatic tuning, display of TIC and mass chromatogram (MC).
- Authorized NIST database access for compound identification and free online upgrades.
Industrial: Textile, Electronics, Plastic
Food: Pesticide residues, Fragrances
Environmental: Air, Water, Soil Analysis
Pharmaceutical: Drug inspection
Petrochemical: Oil refineries
Security: Forensic evidence
❓ Frequently Asked Questions (FAQ)
Q1: What are the primary applications for the GC-MS6800?
A: It is widely used for food hygiene testing, industrial inspection of textiles and electronics, environmental monitoring (air, water, soil), and pharmaceutical analysis.
Q2: What type of vacuum system does this instrument use?
A: The system utilizes a high-quality vacuum configuration with both mechanical and turbo molecular pumps for maximum stability.
Q3: Does the software support the NIST database?
A: Yes, it uses the ChemAnalyst software which supports compound searching in the NIST database for accurate qualitative and quantitative analysis.
Q4: What is the maximum heating rate for the column oven?
A: The column oven supports a rapid heating rate of up to 120ºC/min.
Q5: Is an auto-sampler available for this model?
A: Yes, an automatic sampler is available as an optional add-on to enhance testing efficiency.
