Basic Specifications
Model:QMP90/4.2-ZY
System Type:Inert Gas Fire Suppression
Discharge Time:15-30s
Working Temp:-50°C ~ +110°C
Application Class:Class D
Filling Density:≤0.60 kg/L
Product Description

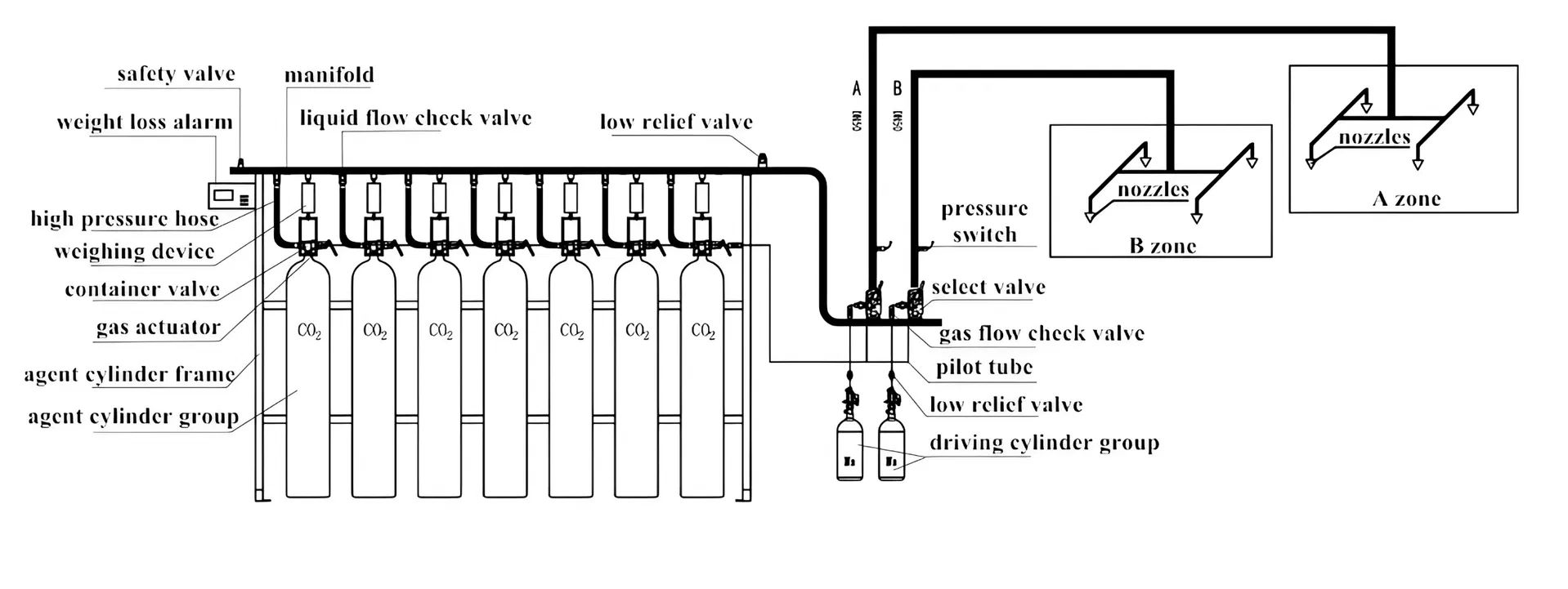

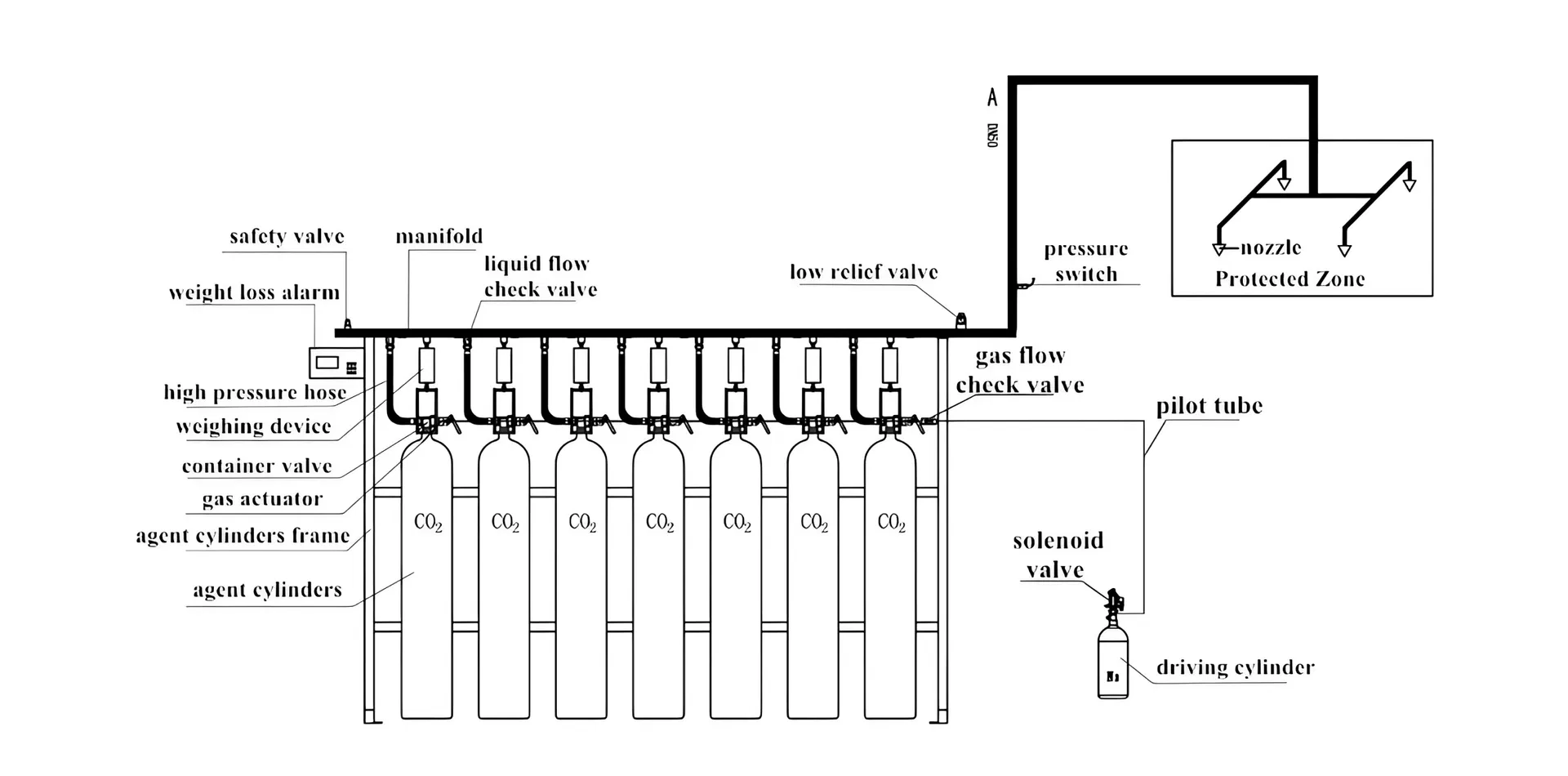

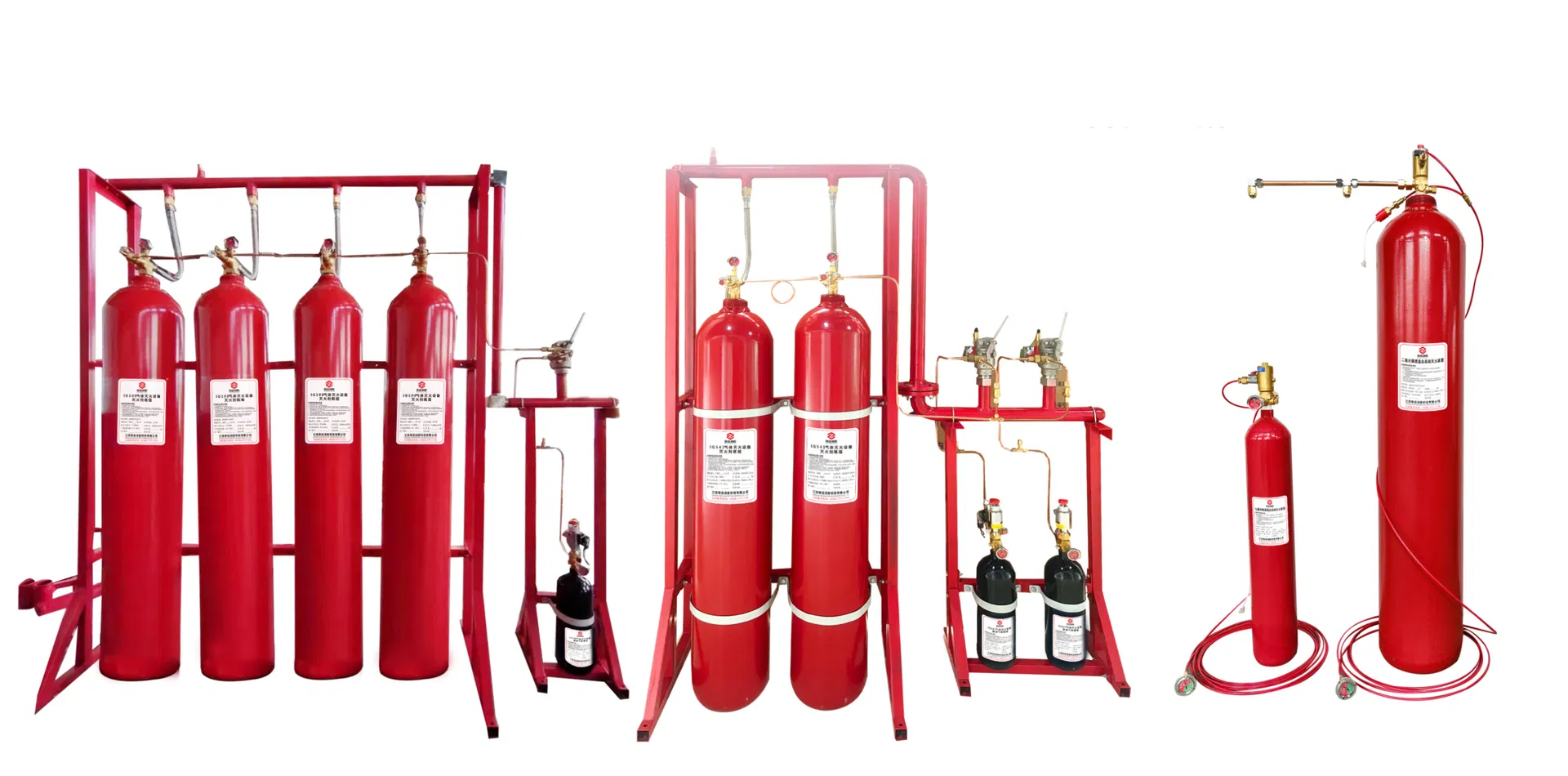

IG-541 Inert Gas Fire Suppression System
IG-541 is a clean agent fire extinguishing system utilizing an inert gas mixture consisting of 52% Nitrogen, 40% Argon, and 8% Carbon Dioxide. It is widely accepted as the best-performing, cost-effective, and environmentally friendly solution for total flooding systems.
- Environmentally Friendly: Natural gas composition, zero ODP, and harmless to humans.
- Total Flooding: Provides rapid suppression in enclosed environments.
- Flexible Activation: Supports automatic, manual, and emergency mechanical release.
- No Residue: Non-conductive and requires no cleanup after discharge.
Key Advantages
- Factory Direct Supply for competitive pricing and stability.
- 20+ Years industry experience in professional fire suppression.
- Fully Certified: ISO, CE, and CCC approvals.
- OEM/ODM Customization supported.
- Professional After-Sales technical support.
Technical Specifications
| Model |
Volume (L) |
Storage Pressure |
Max Pressure |
Discharge Time |
Activation |
| QMH15 |
80L |
15MPa |
17.2MPa |
≤60s |
DC24V / 1.5A |
| QMH20 |
90L |
20MPa |
23.2MPa |
≤60s |
DC24V / 1.5A |

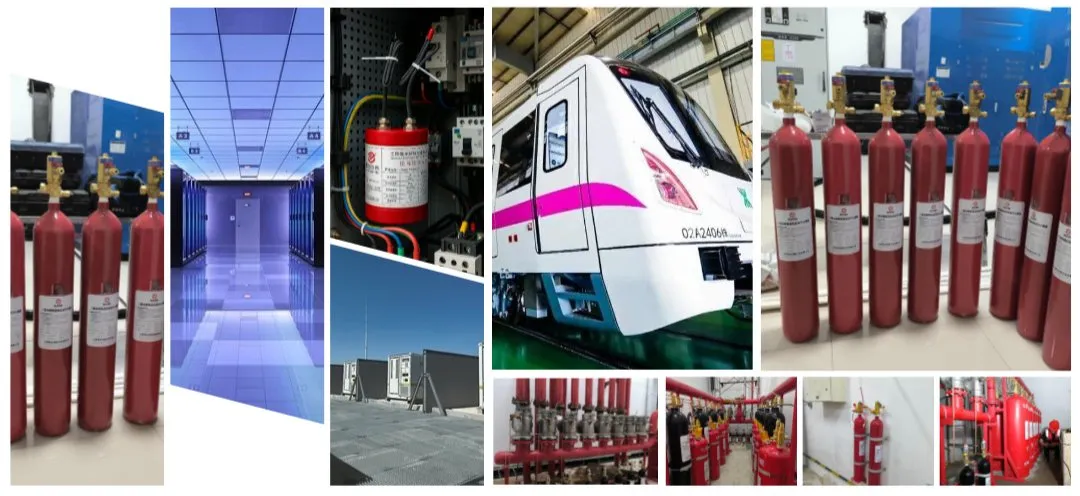

Typical Applications
Ideal for protecting high-value assets and sealed spaces:
Transformer & Power Rooms
Cable Tunnels & Subways
Server Rooms & Telecom Centers
Archives, Museums & Libraries
Quality & Certifications
Our facility operates under a standardized testing laboratory environment, utilizing modern enterprise operation mechanisms ("1234" corporate culture) to ensure high-tech fire protection development and reliable product delivery.
Frequently Asked Questions
Q: Are you a factory or a trading company?
A: We are a factory providing high-quality fire suppression products at direct manufacturing prices.
Q: Can you provide sample orders?
A: Yes, we accept sample orders with a reasonable charge plus shipping costs.
Q: What is the standard lead time for delivery?
A: For small orders, we can deliver in 7 days. Bulk production typically takes 3-30 days depending on the quantity.
Q: What payment terms do you support?
A: We support T/T, L/C, and Western Union for your convenience.
Q: Is the IG-541 system safe for human-occupied areas?
A: Yes, IG-541 consists of natural gases that are non-toxic and safe for human exposure at design concentrations.
Q: Do you offer OEM or ODM services?
A: Yes, we fully support customization and OEM/ODM services to meet specific project requirements.
