Family Solar Energy Storage Battery Cooling Thermal Management System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

battery thermal management system

Certification

RoHS

Application

Oil Cooler, Water Chiller, Industrial Aircondition

Material

Aluminum/Copper

Dimension

Max. 2000*1000*1000 mm

Cooling Capacity

1 to 10 Kw

Coolant Material

Water, Glycol, Refrigerant, or PCM, etc.

Main Technique

Vacuum Brazing & Arc Welding

🔍 Technical Parameters

Product Name	Battery thermal management system
Material	Aluminum alloy or copper for cooling elements
Cooling Capacity	1 to 10 KW
Cooling Method	Liquid cooling or other custom cooling solutions
Total System Weight	Below 60 kgs

💡 Product Description

A Battery Thermal Management System (BTMS) helps to maintain a battery pack at its optimal temperature range of 20°C to 45°C regardless of ambient temperature. For each vehicle design, the required performance and cycle life of the battery pack will be considered to determine the specific set point for the battery pack temperature.

This solution is a complete thermal system that maintains critical operating temperature ranges for vehicle batteries, available for both active and passive cooling circuits.

Core Features:

Standard packaging or customized solutions available.
Field proven patented master controls system.
Specialized battery radiator and condenser for BTMS applications.
2 - 12 kW electric heating down to -20ºC coolant temperature.
System weight under 60 kg.
Supports HV (400 - 800 VDC) and LV (12 or 24 VDC) options.

🛠️ Main Components

Cooling plate
Chiller unit
Radiator with fan and pump
Controller (temperature or flow rate control)
Accessories: hoses, connector clamps, housing, valves, etc.

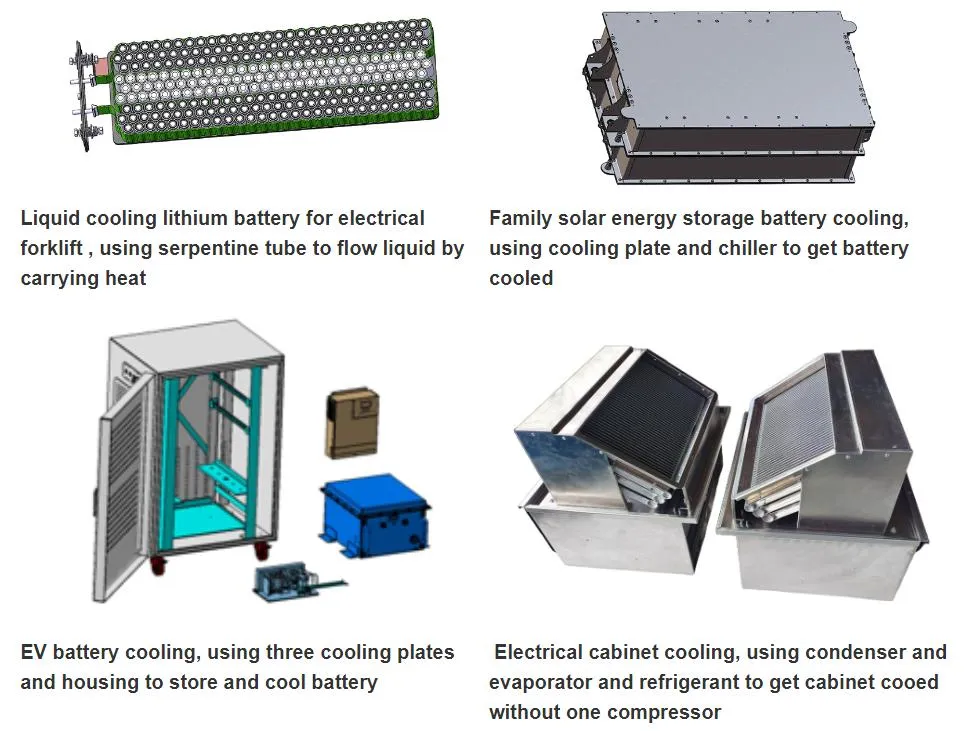

⚡ Available Cooling Solutions

Air Cooling: Includes fan and heat sink.
Liquid Cooling: Includes cooling plate, radiator, fan, pump, and controller.
Chiller Liquid Cooling: Includes cooling plate, chiller, and controller.
2-Phase Change Cooling: Includes cooling plate and condenser.
Refrigerant Cooling: Includes cooling plate, condenser, and compressor.
Custom Solutions: Specialized options like immersion cooling.
