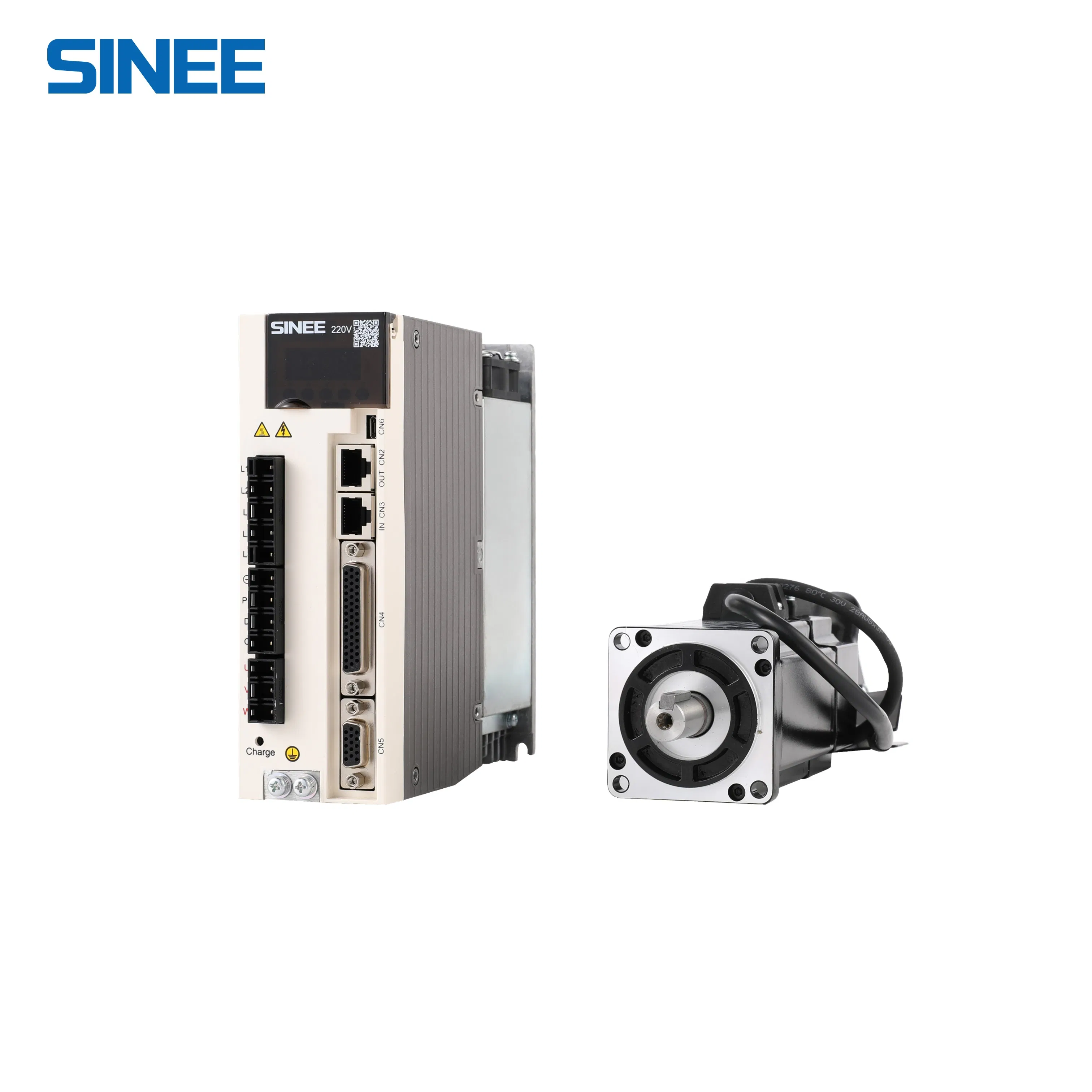

CE Certification Good Quality Cheap Price Servo System with Pump for Injection Mold Machine

1 / 5

CE Certification Good Quality Cheap Price Servo System with Pump for Injection Mold Machine

Customization:	Available
Task:	Program
Structure:	Closed-Loop

Send Inquiry

Product Description

📊Basic Info.

Model NO.

EA180

Mathematical Model

Linear

Signal

Continuous

Function

Automatic Control

Certification

ISO: 9001, CE

Material

Aluminum Alloy

Control Type

IGBT PWM Control

Protection Degree

IP10

⚙️Product Description

CE Certification Good Quality Servo System with Pump for Injection Mold Machine

🚀 High-speed response performance

Up to 1.0KHz speed frequency response.
Shortened positioning time.
High-speed and high-accuracy real-time synchronous communication.

🎯 High-accuracy positioning

Encoder of 17 bit incremental and 23 bit absolute value.
Positioning accuracy less than 5 encoder pulses.

📱 Small Size

Dimensions similar to Panasonic A6 series, helping to minimize system volume.

📝Product Parameters

Basic Specification		Detail
Control Features	Control Type	IGBT PWM control sine wave current driving
	Feedback	2500 ppr encoder / 17 bit incremental / 23 bit absolute
	Control Modes	Speed, Position, Torque, and mixed modes
	Cooling	Fan Cooling
Environment	Temperature	Operating: 0~40°C, Storage: -20°~ 85°C
	Protection	IP10
	Communication	RS232, RS485 (Modbus RTU)

🛠️Installation Instructions

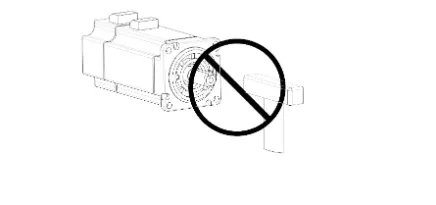

⚠️ Critical Notes for Encoders: The shaft extension shall not be impacted during installation, otherwise the encoder inside will be cracked.

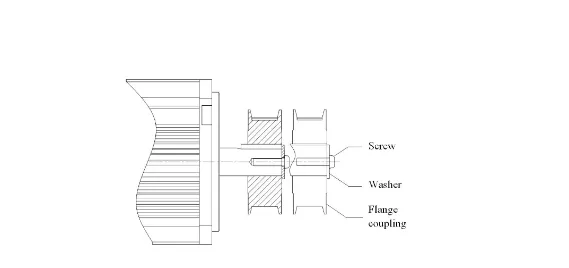

⚙️ Pulley Installation: Use screw holes at the shaft end for installation. Always use a pulley remover to prevent impact on bearings during removal.

🏢Company Profile

❓Frequently Asked Questions

What is the frequency response of the EA180 series?

The EA180 series offers a high-speed frequency response of up to 1.0KHz, significantly shortening positioning time.

Which communication protocols are supported?

The system supports Modbus RTU via RS232 and RS485 interfaces, with options for EtherCAT and CANopen in specific network types.

What type of encoders are compatible with this servo system?

It supports 2500 ppr incremental encoders, 17-bit incremental encoders, and 23-bit absolute encoders for high-accuracy positioning.

Can this system be used in humid or vertical installations?

Yes, it can be installed horizontally or vertically. For vertical installations or damp environments, ensure the use of motors with oil seals to prevent contamination.

How does the intelligent resonance suppression work?

The system features four notch filters (including two FFT-based ones) to eliminate high-frequency resonance and minimize machine vibration.
