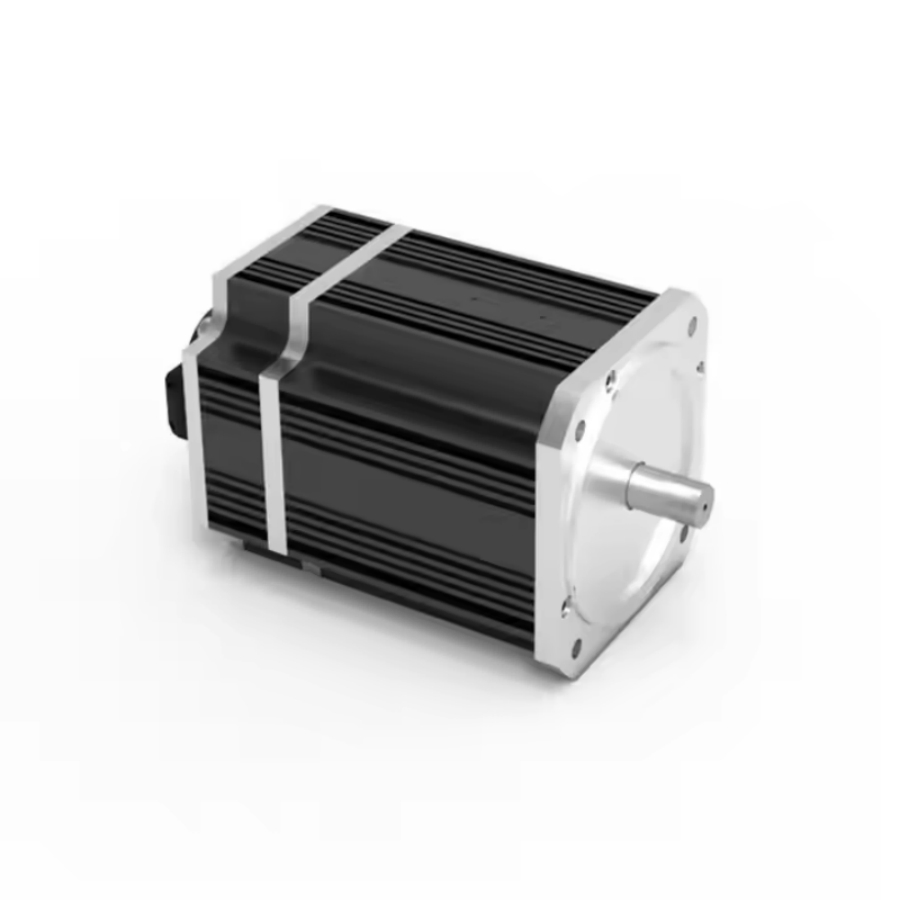

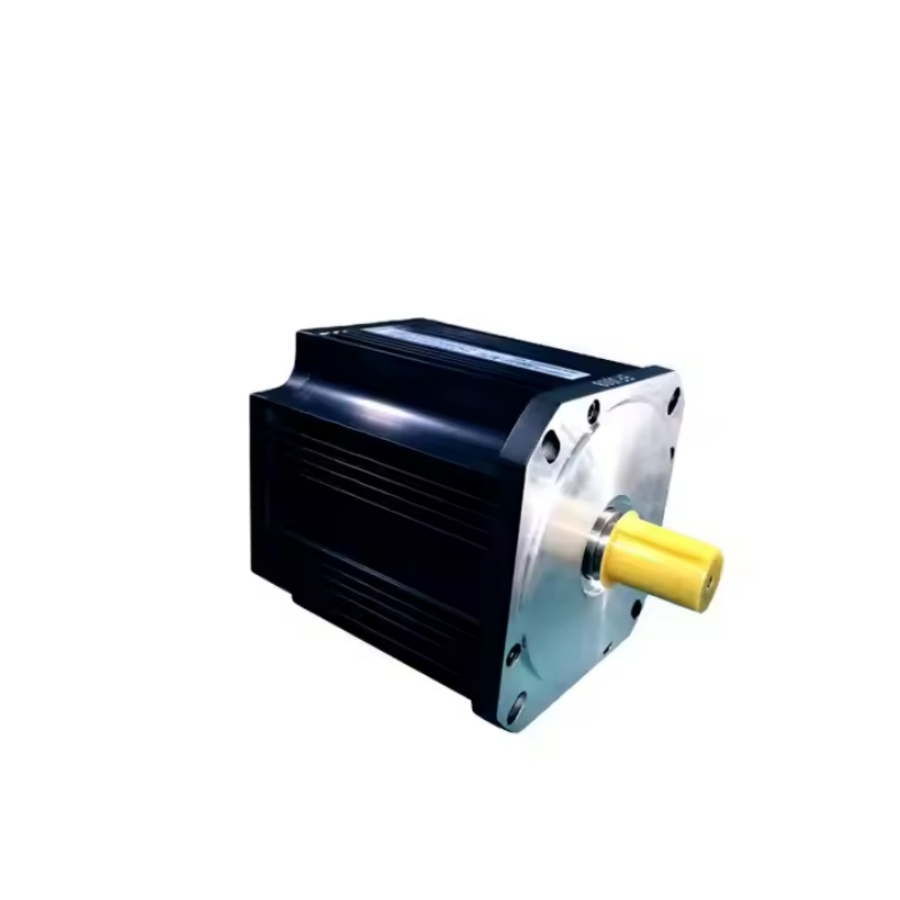

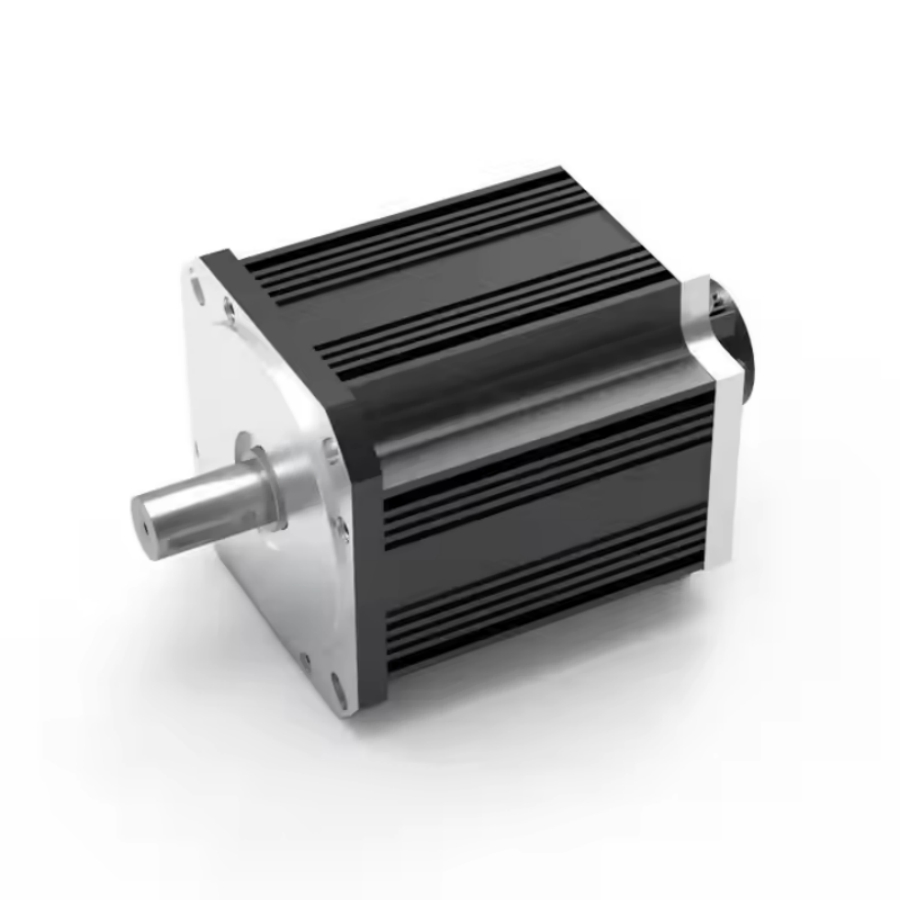

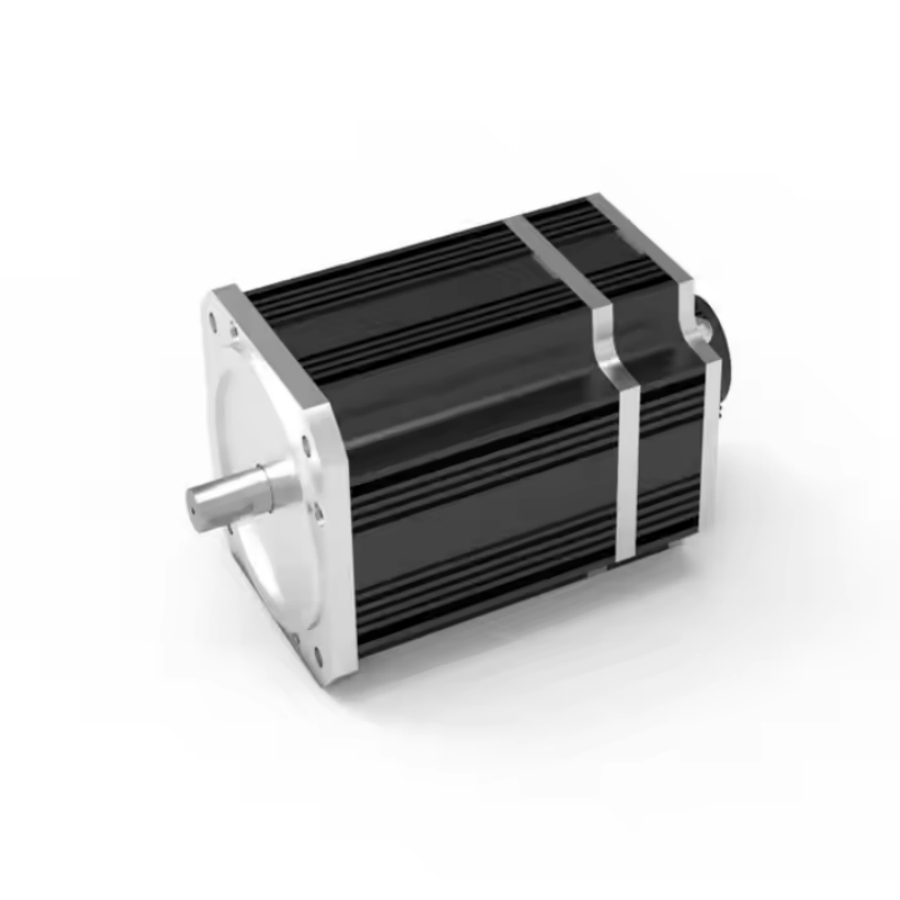

Brushless Customized Big Power High Torque 96V 5000W 5 Kw 3000rpm BLDC Servo Motor with Encoder /24V Brake for Agv/EV Conversion Kit/Car/Boats/Mobile Robots

1 / 5

Brushless Customized Big Power High Torque 96V 5000W 5 Kw 3000rpm BLDC Servo Motor with Encoder /24V Brake for Agv/EV Conversion Kit/Car/Boats/Mobile Robots

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Brushless Customized Big Power High Torque 96V 5000W BLDC Servo Motor

With Encoder / 24V Brake for AGV, EV Conversion Kit, Mobile Robots

Model: KY200ACS09150-30B

Basic Information

Model NO.:KY200ACS0950-30B

Function:Driving / Brushless

Power:5000W

Voltage:96V

Rated Speed:3000rpm

Rated Torque:15.9nm

Number of Poles:10

Protection:IP55 / Protection Type

Weight:21kg

Certification:ISO9001, CE

Product Technical Overview

Rated Current	65A / Max 130A
Max Torque	31.8NM (Instantaneous)
Feedback	Incremental encoder (Standard); Absolute encoder (Optional)
Brake	Optional 24V Power Loss Braking (50N.M Static Function)
Cooling Method	Natural Cooling
Ambient Temp	-25 to +50ºC

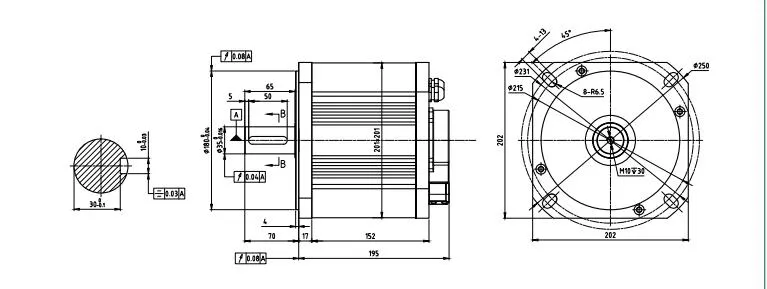

Technical Drawing

Related Products Range

Model	Rated Power	Voltage	Rated Speed	Rated Torque
KY200ACS0950-30	5000W	96V	3000RPM	15.9N.M
KY200ACS0975-30B	7500W	96V	3000RPM	23.9N.M
KY200ACS09100-30B	10000W	96V	3000RPM	31.8N.M

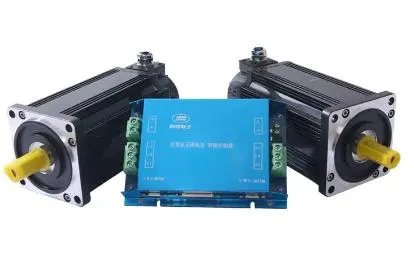

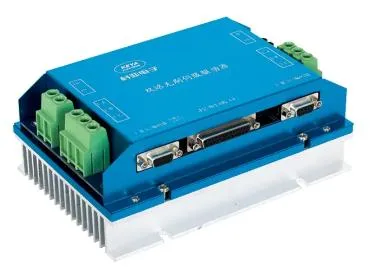

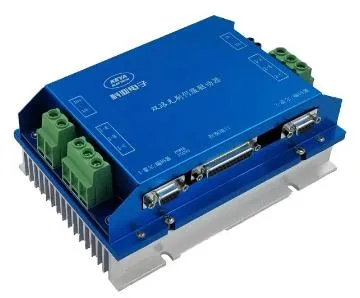

Recommended Controllers

KYDAS91601A / KYDAS93001A	High Performance DSP, SVPWM Space Vector Control, Intelligent PID Motion Control, Energy Feedback Function.

KYDAS91601A / KYDAS93001A

High Performance DSP, SVPWM Space Vector Control, Intelligent PID Motion Control, Energy Feedback Function.

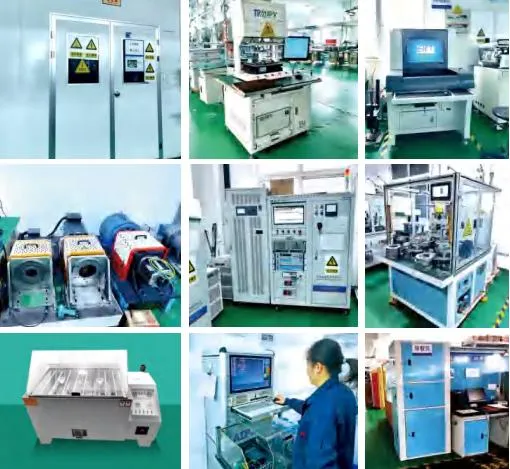

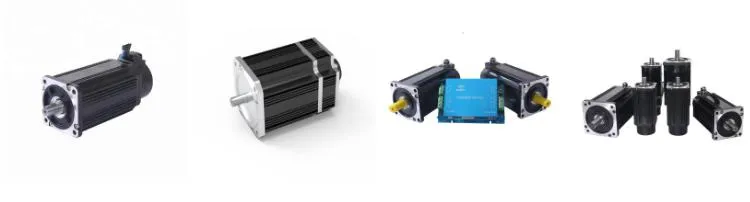

Detailed Photos & Certificates

Packaging & After-Sales

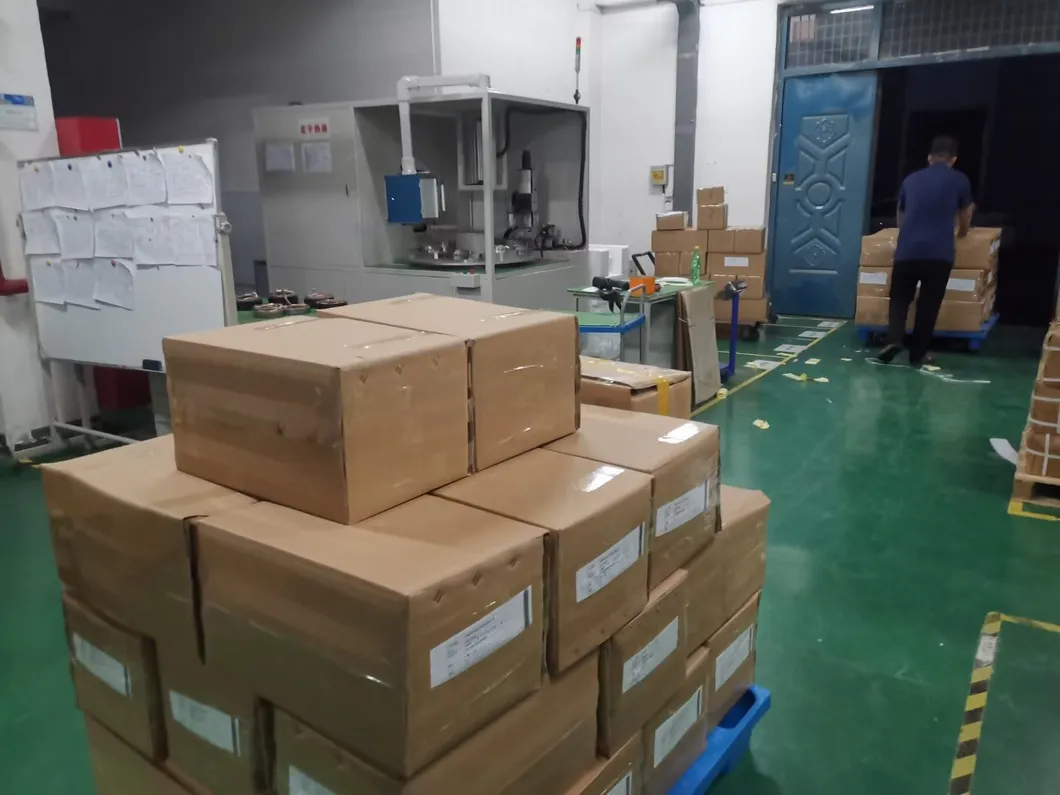

Standard export carton with protective sponge
Customized dimensions based on order quantity
Full tracking and shipping data confirmation
24 hours online problem-solving support
Sample testing and factory viewing support

Frequently Asked Questions

What are the main product specializations?

We specialize in high-power BLDC Servo Motors and matched drivers for industrial and mobile applications.

How long is the industry experience?

With more than 15 years in the field, our team includes engineers with over 20 years of industry experience.

Do you support R&D for custom requirements?

Yes, R&D is our core competitiveness. We provide customized products according to specific customer requirements and cooperate with research institutions.

What is the standard delivery time?

Regular products in stock can be delivered within 3 working days. For bulk or custom orders, timelines depend on the exact model.

What are the available payment terms?

We accept various payment methods including TT, PayPal, and Western Union for your convenience.
