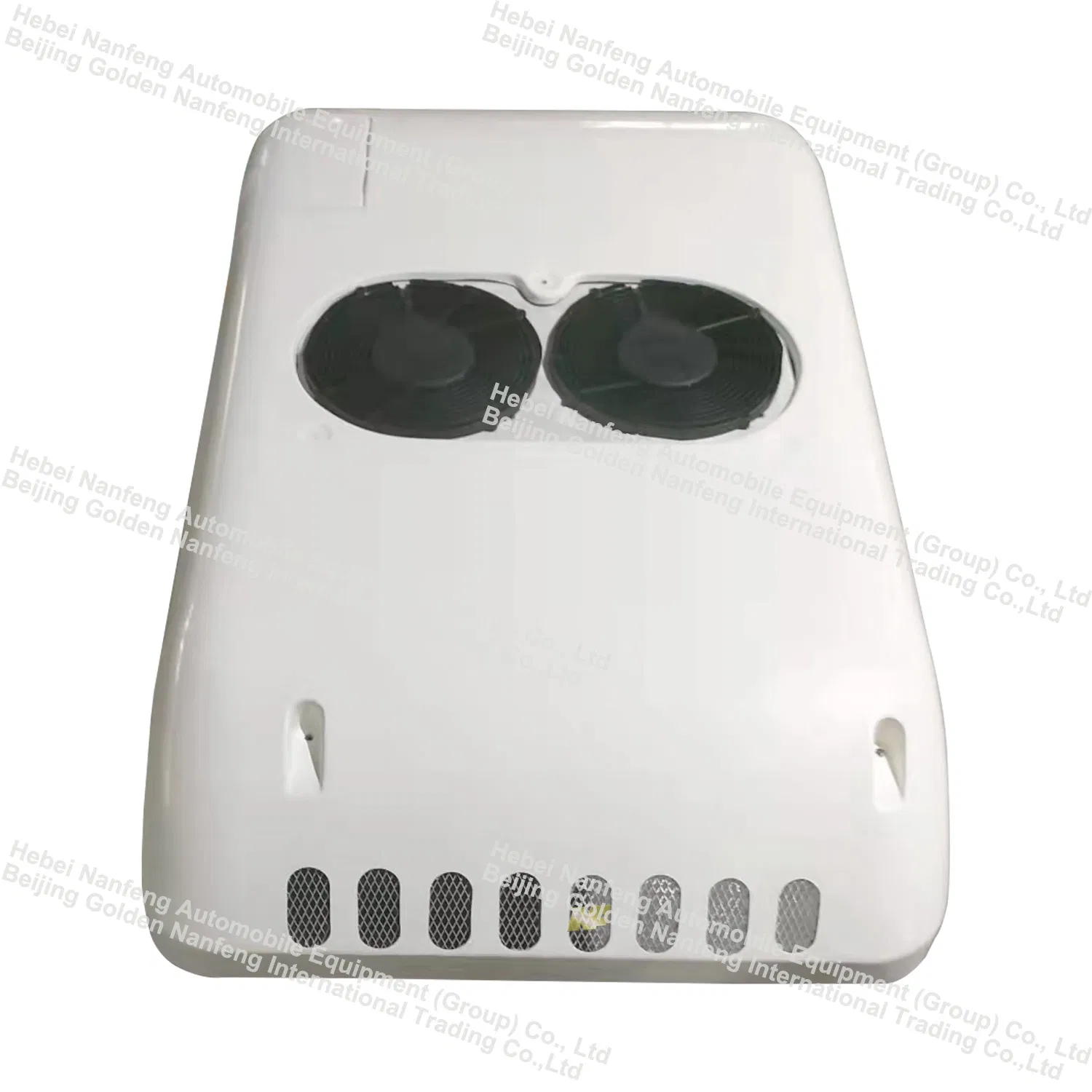

NF 7.5kw Cooling Capacity Battery Thermal Management System

1 / 5

NF 7.5kw Cooling Capacity Battery Thermal Management System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.NFXD-288D

FunctionCooling & Heating, Ventilating

CertificationCE

RefrigerantR134A

Cooling Capacity7.5kw

Unit Weight60kg

Dimension1345*1049*278

Applicable Models8-12m Electric Bus

Product Description

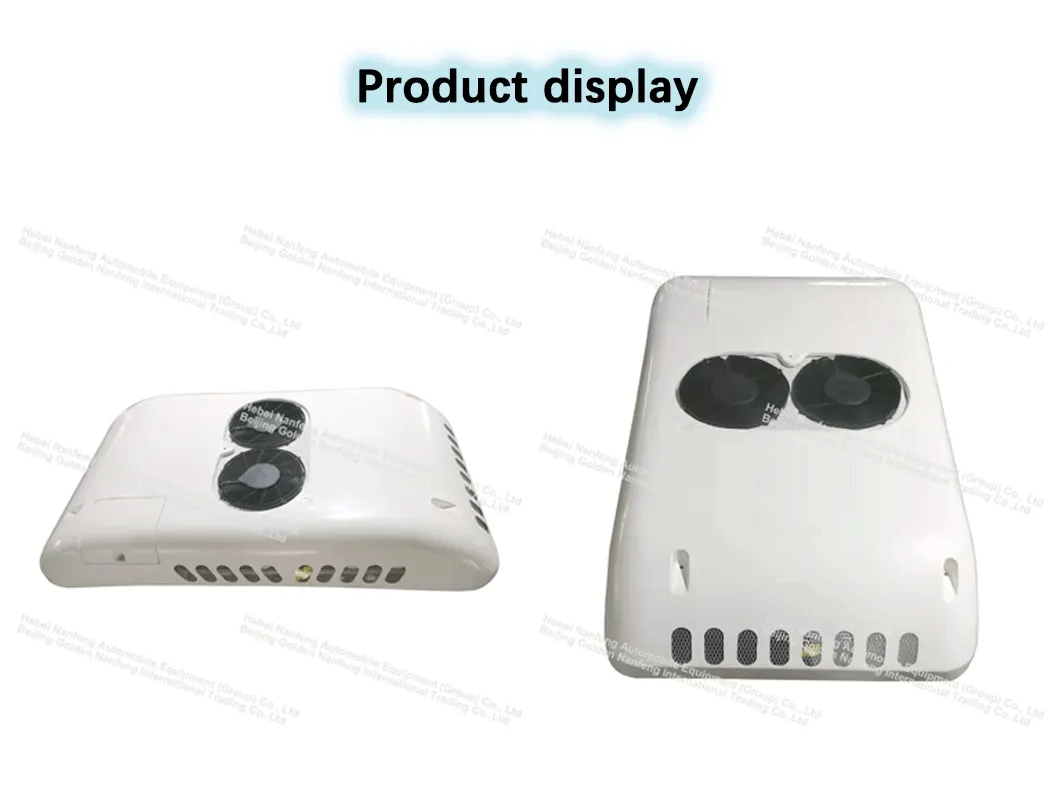

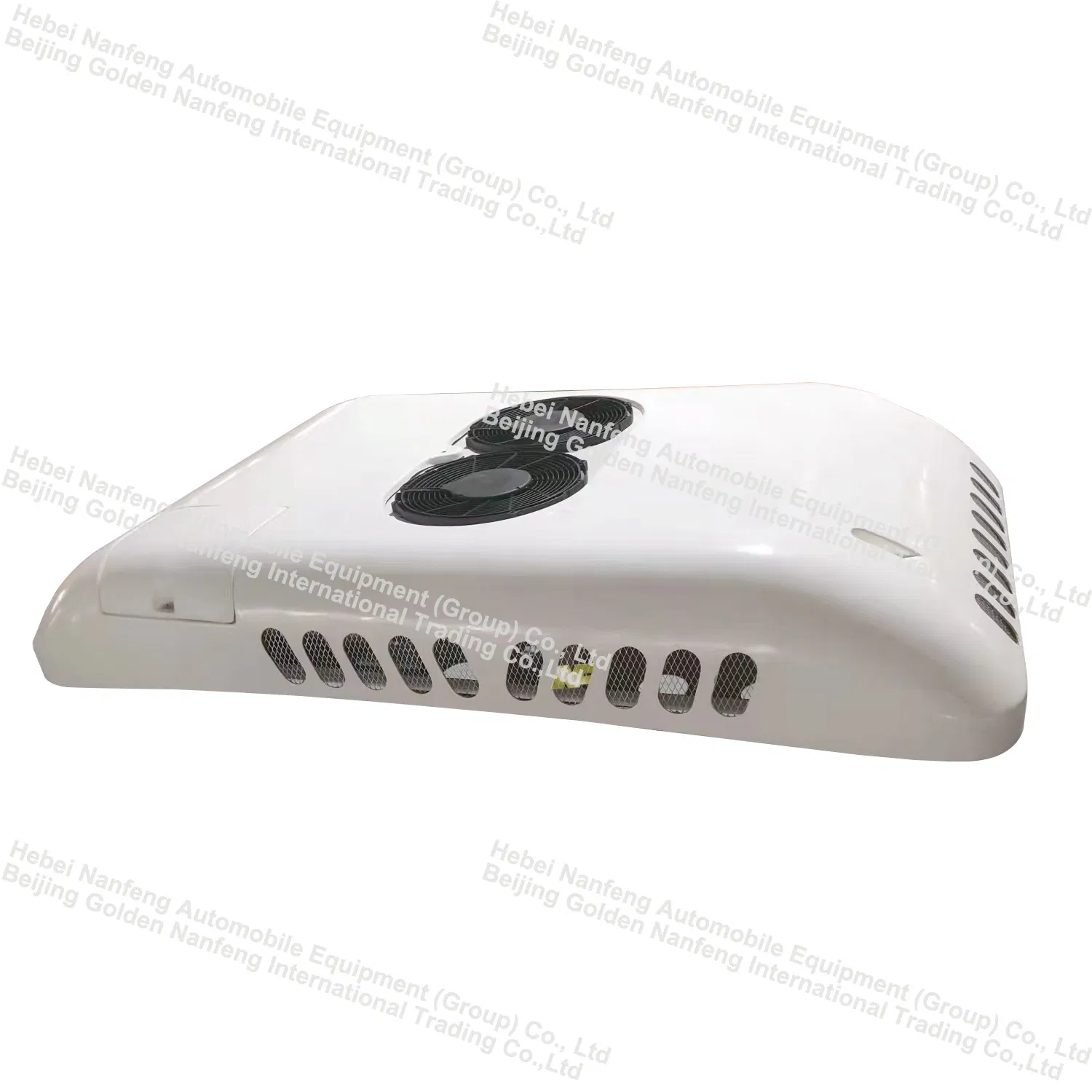

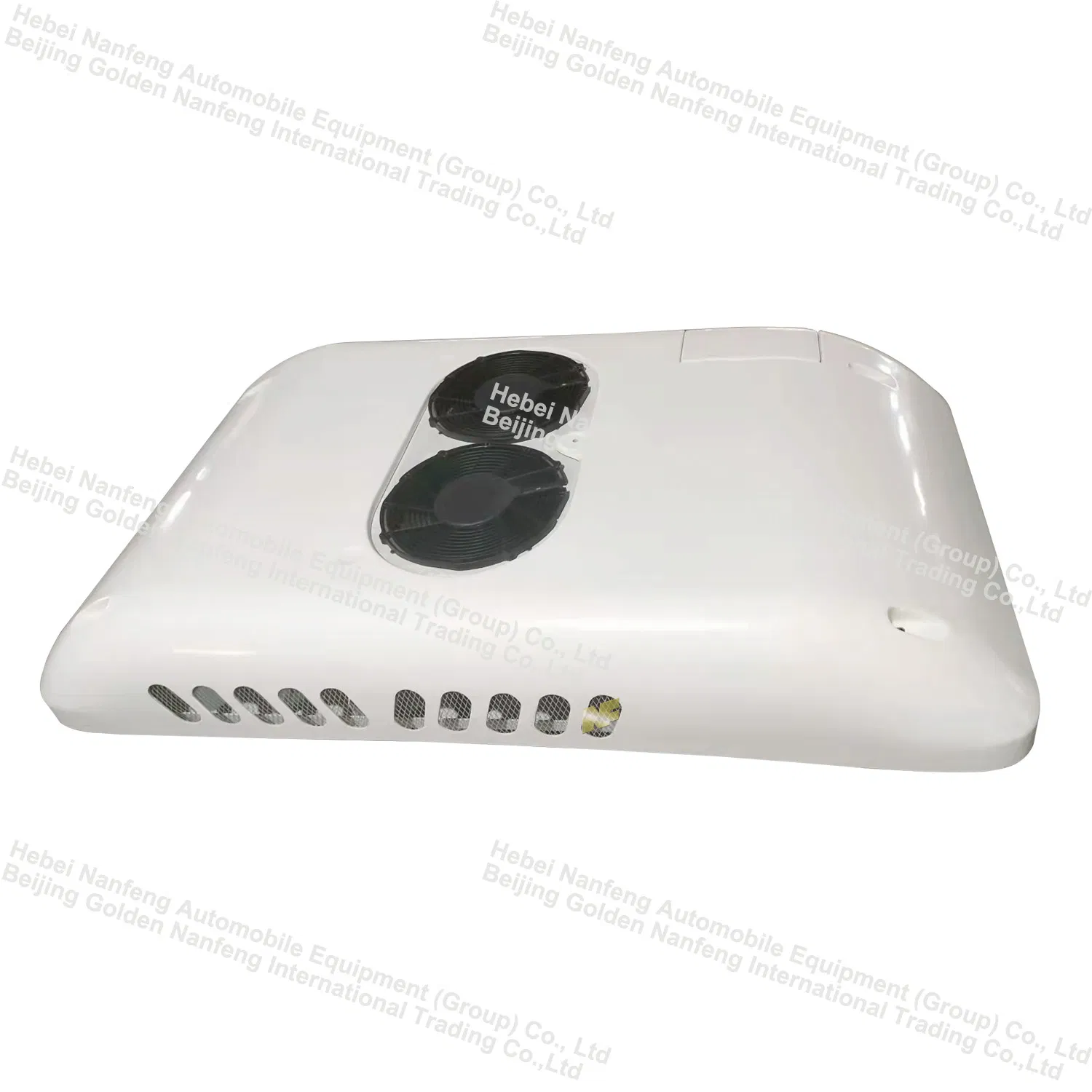

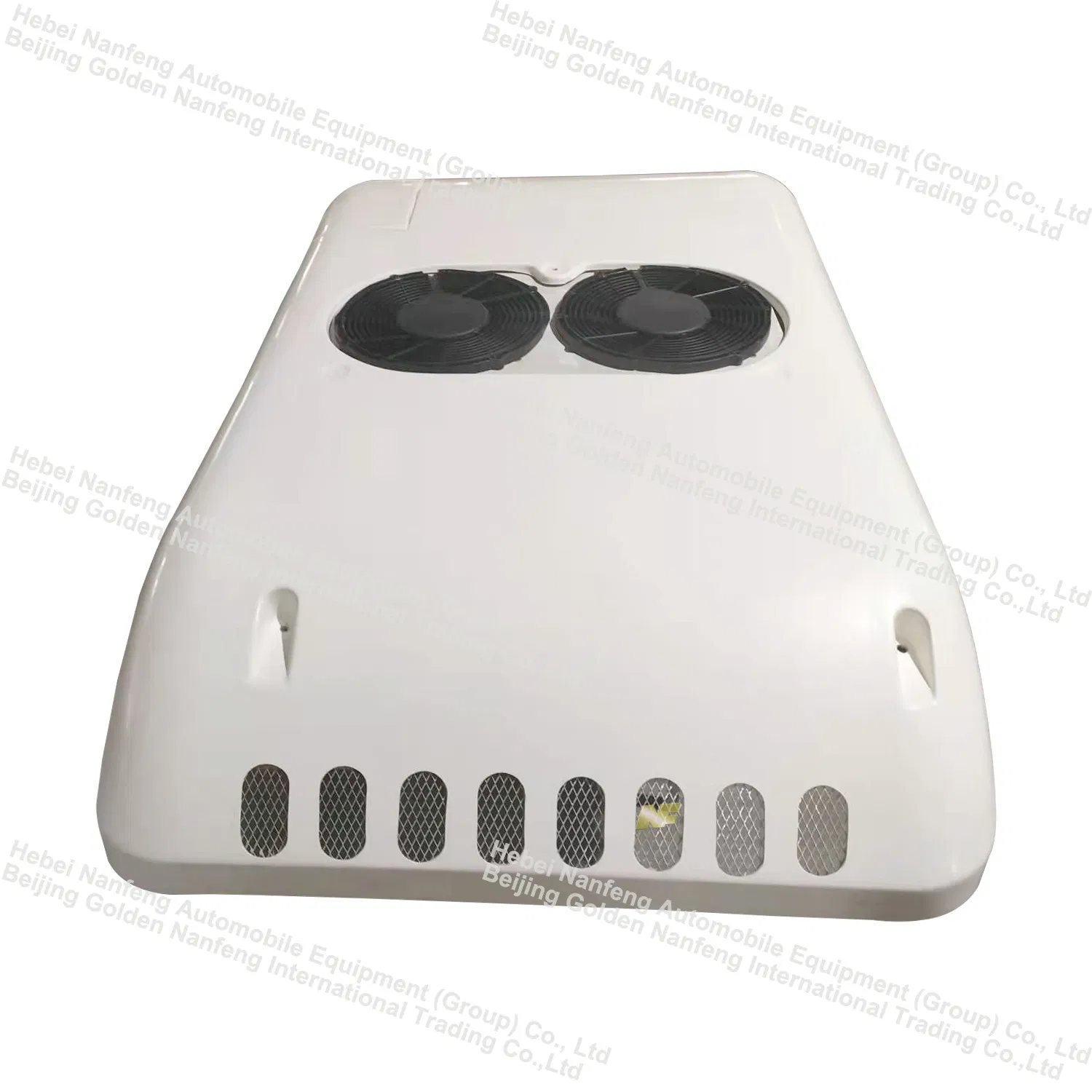

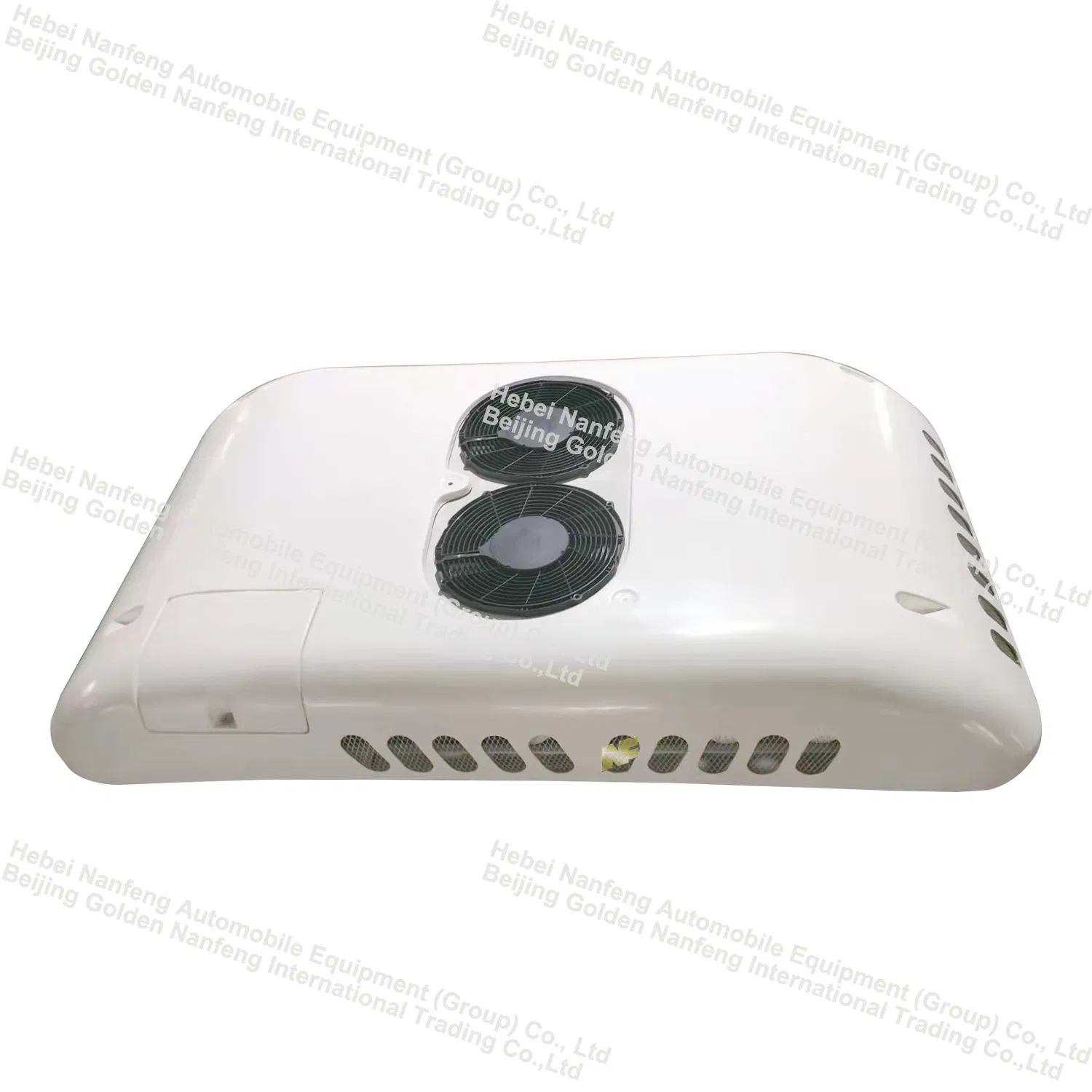

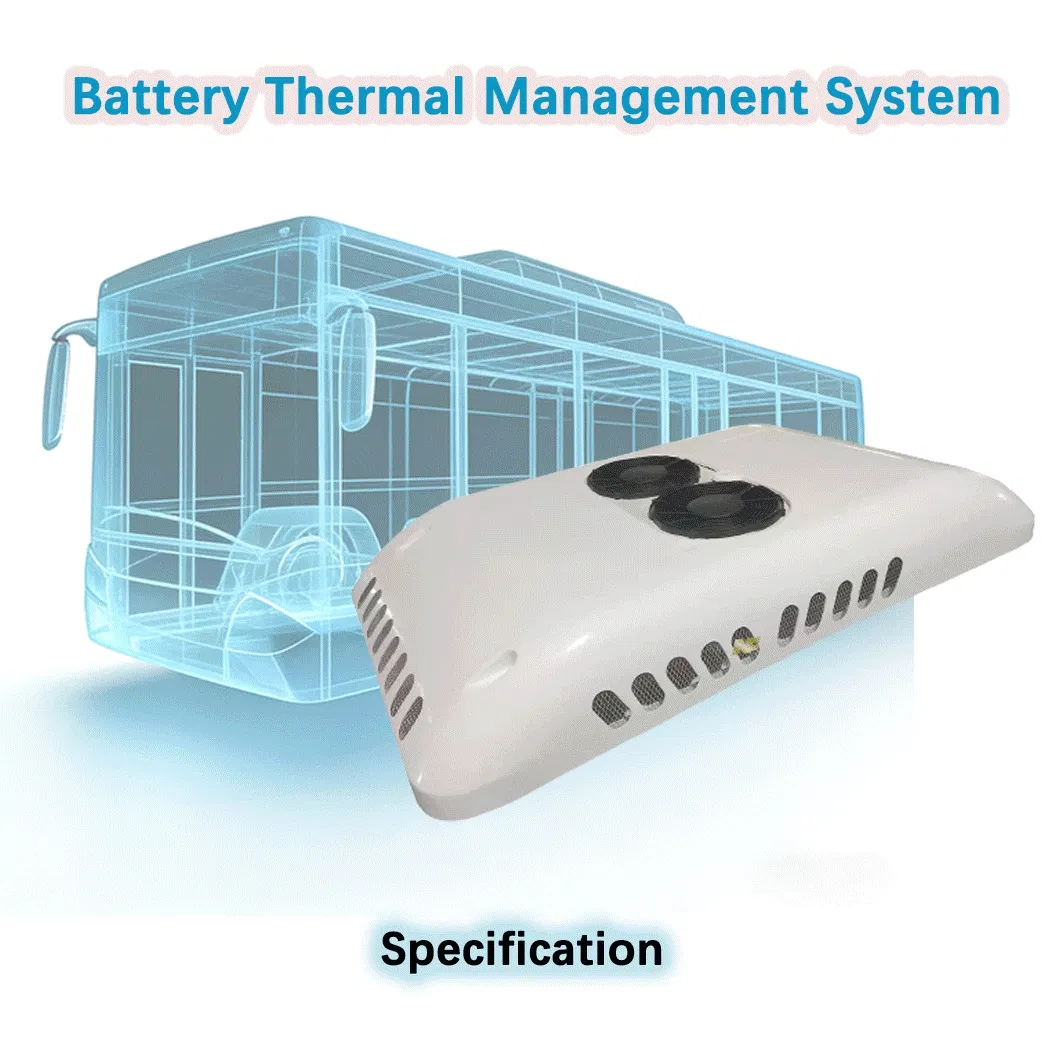

NF Roof Top Battery Thermal Management System

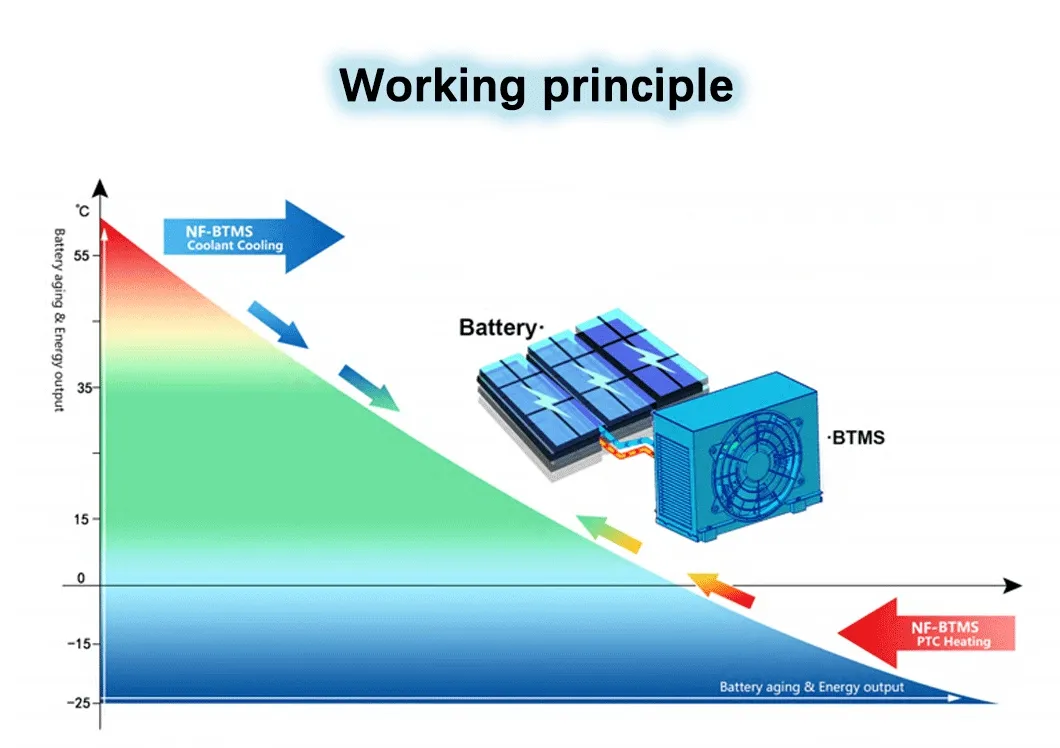

This water-cooling unit obtains low-temperature antifreeze through evaporative cooling. It efficiently removes heat generated by the battery via convection heat exchange. With a high heat transfer coefficient and large capacity, it ensures optimal temperature consistency for the battery pack, even in cold weather through heating capabilities.

Technical Parameters

Cooling Capacity	7.5kw	LV Power Consumption	≤35A
Compressor Displacement	50CC/r	Refrigerant	R134a
Air Volume	4400m³/h	HV Power Consumption	≤15A

Key Features

🚀 Full-range Temperature Control: Combined low-temperature heating & high-temperature cooling (-30°C~50°C) with ±1°C precision.

🚀 Advanced Algorithms: PID & energy-demand algorithms enable precise outlet control (±0.5°C) and OTA upgrade capability.

Performance Characteristics

Beautiful and durable design with modular installation.
Real-time monitoring via CAN communication with comprehensive protection (over-voltage, over-temperature, etc.).
Roof-top installation saves interior vehicle space.
Suitable for electric buses, hybrid trucks, excavators, and forklifts.
