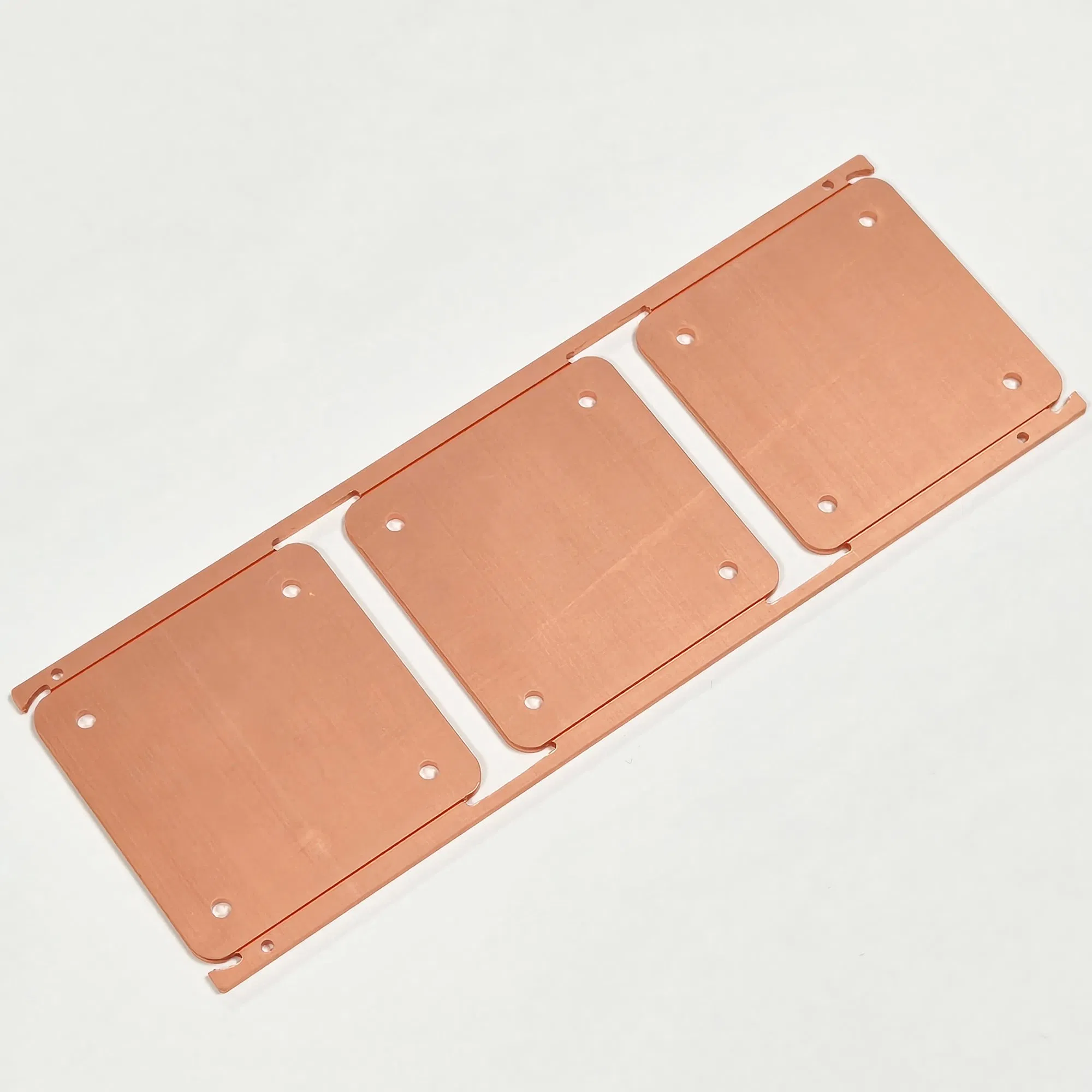

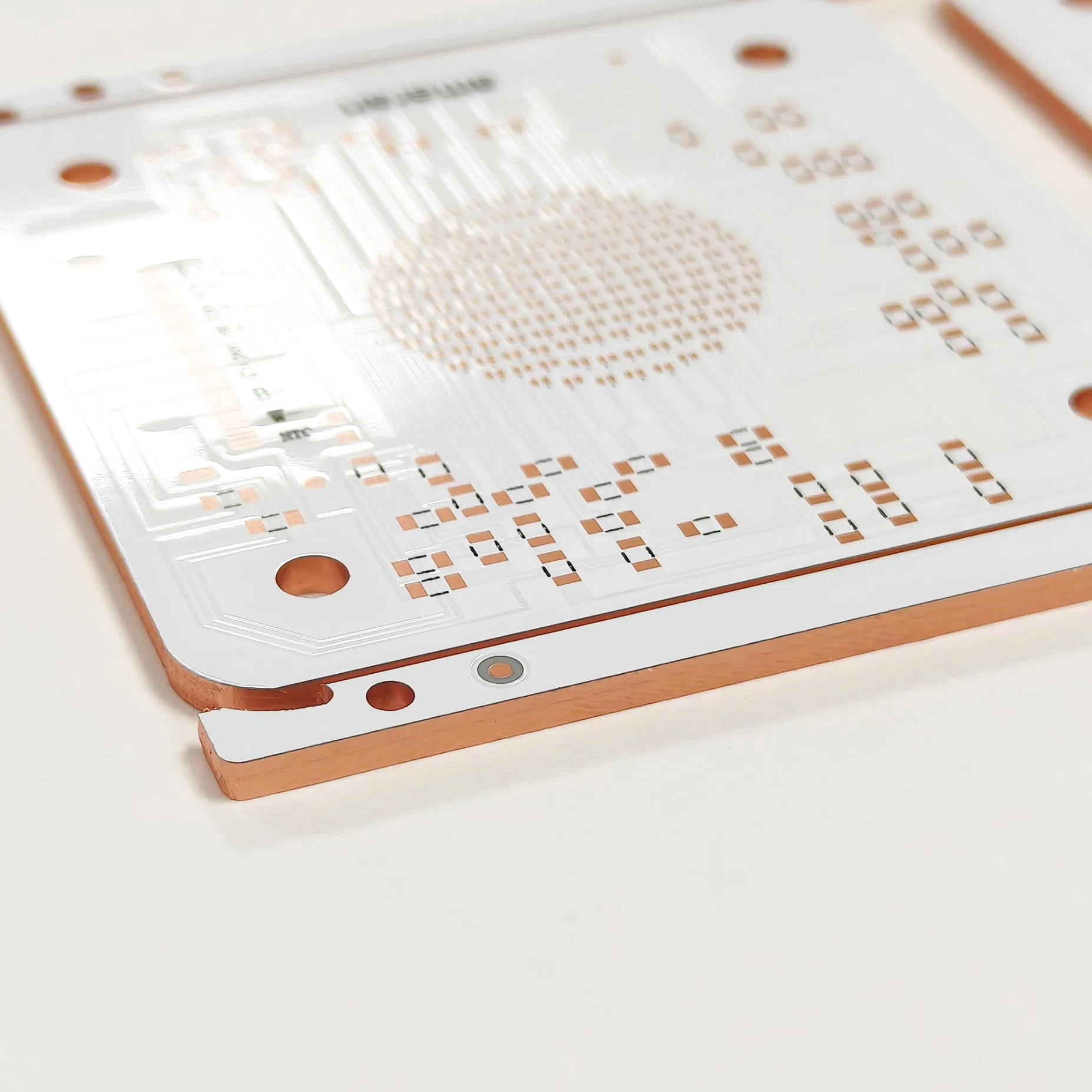

📋 Basic Information

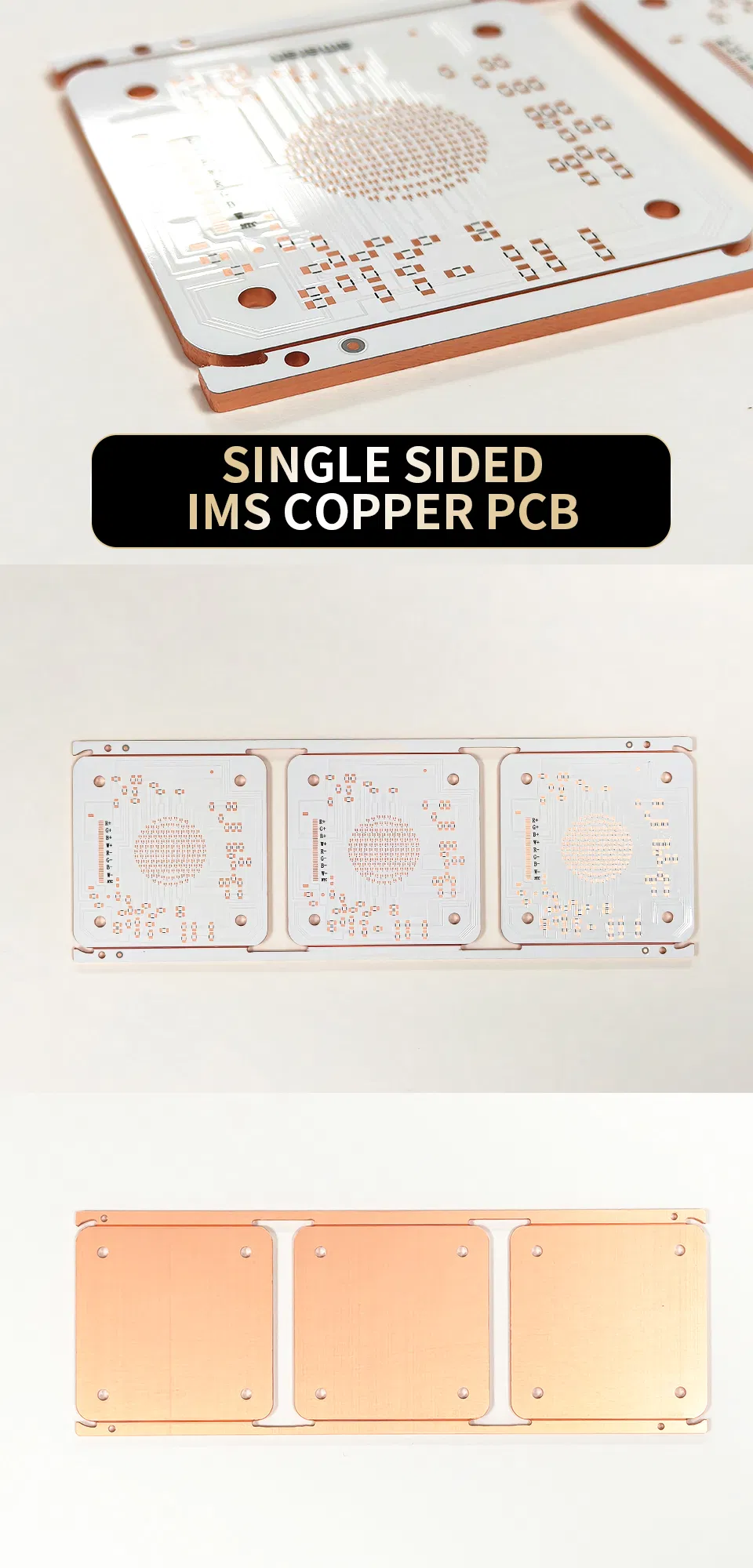

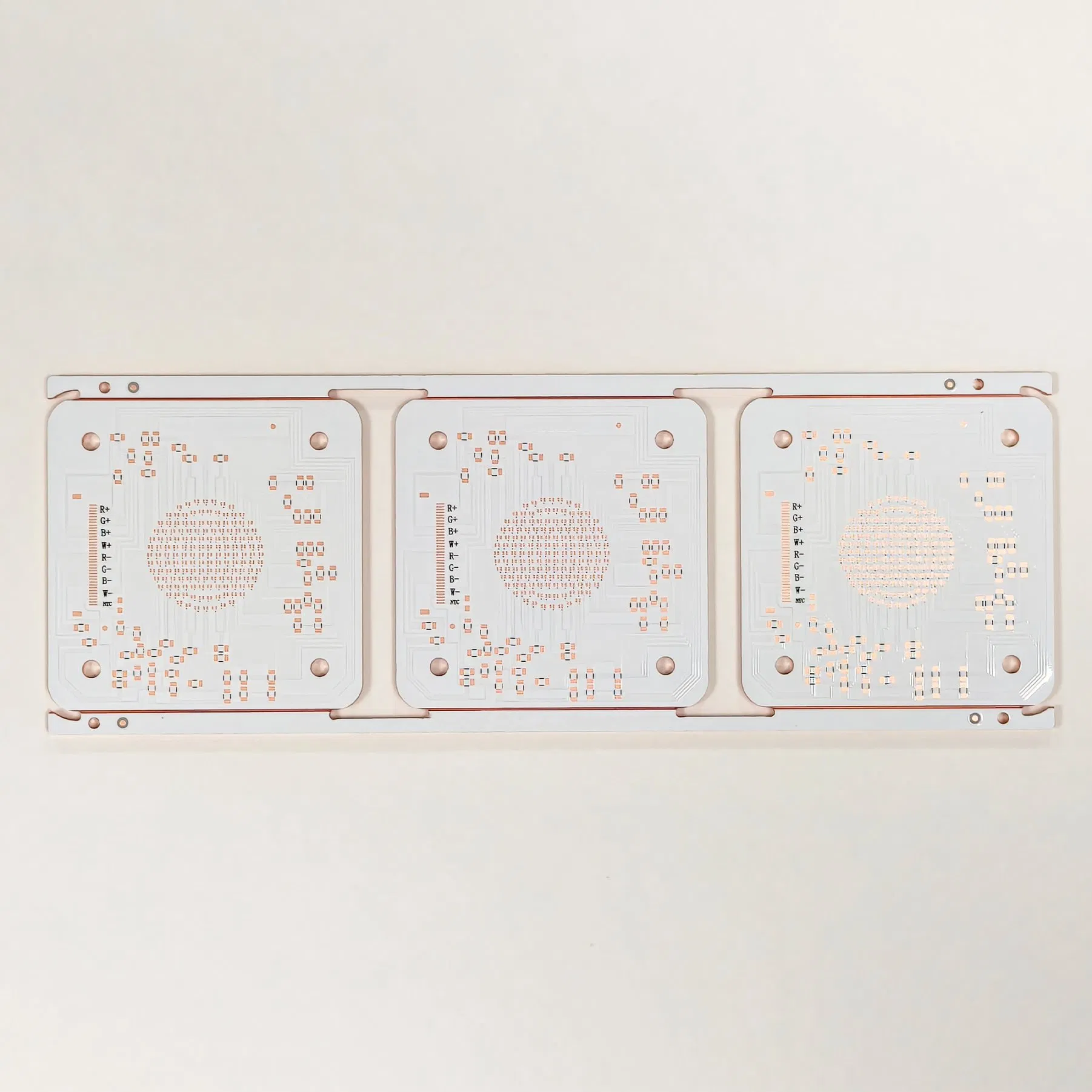

| Model NO. | Sided -sided IMS-CU PCB |
| Dielectric | MCPCB\Fr4\Bt |
| Base Material | Double-Sided/Multilayer Aluminum/Copper |
| Application | New Energy Vehicle Electronic Control Board |
| Mechanical Rigid | Rigid |
| Board Thickness | 1.5mm |
| Thermal Conductivity | 398W/M·K (Dielectric Layer) |
| Copper Foil | 70/70μm |
| Tg | 150°C |
| Production Capacity | 950,000 Pieces/Year |
📦 Product Description
📐 Specification
| NO. |
Project |
Conventional Capability |
Extreme Capability |
| 1 | Layer | 1-10 | 10 |
| 2 | Product Type | MCPCB\FR4\BT | MCPCB\FR4\BT |
| 3 | Surface Treatment | HASL/OSP/ENIG/IAg/Sn | HASL/OSP/ENIG/IAg/Sn |
| 4 | Thermal Conductivity | 1-10W | 10W |
| 5 | Copper Thickness | 0.5-6 OZ | 20 OZ |
| 6 | Finished Size (MAX) | 600*800mm | 800*1220mm |
| 7 | Aperture (min) Metal | 1.5±0.05mm | 1.2±0.05mm |
| 8 | Voltage Test | AC3000V | AC4500V |
🚚 Packing & Delivery

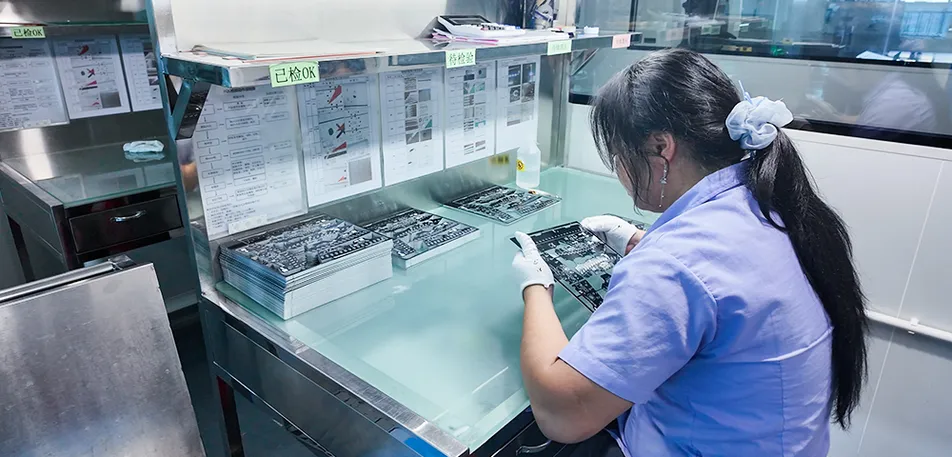

Traceable delivery via production-line ESD packaging (anti-static trays & tagged workstations) + verified dispatch — eliminating blind spots between manufacturing and logistics.
🏭 Technical Capabilities

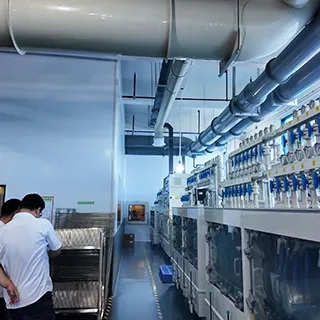

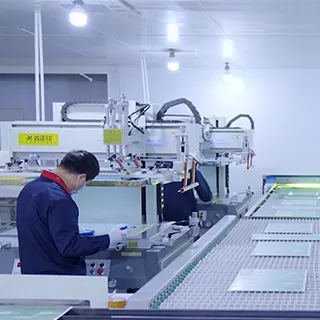

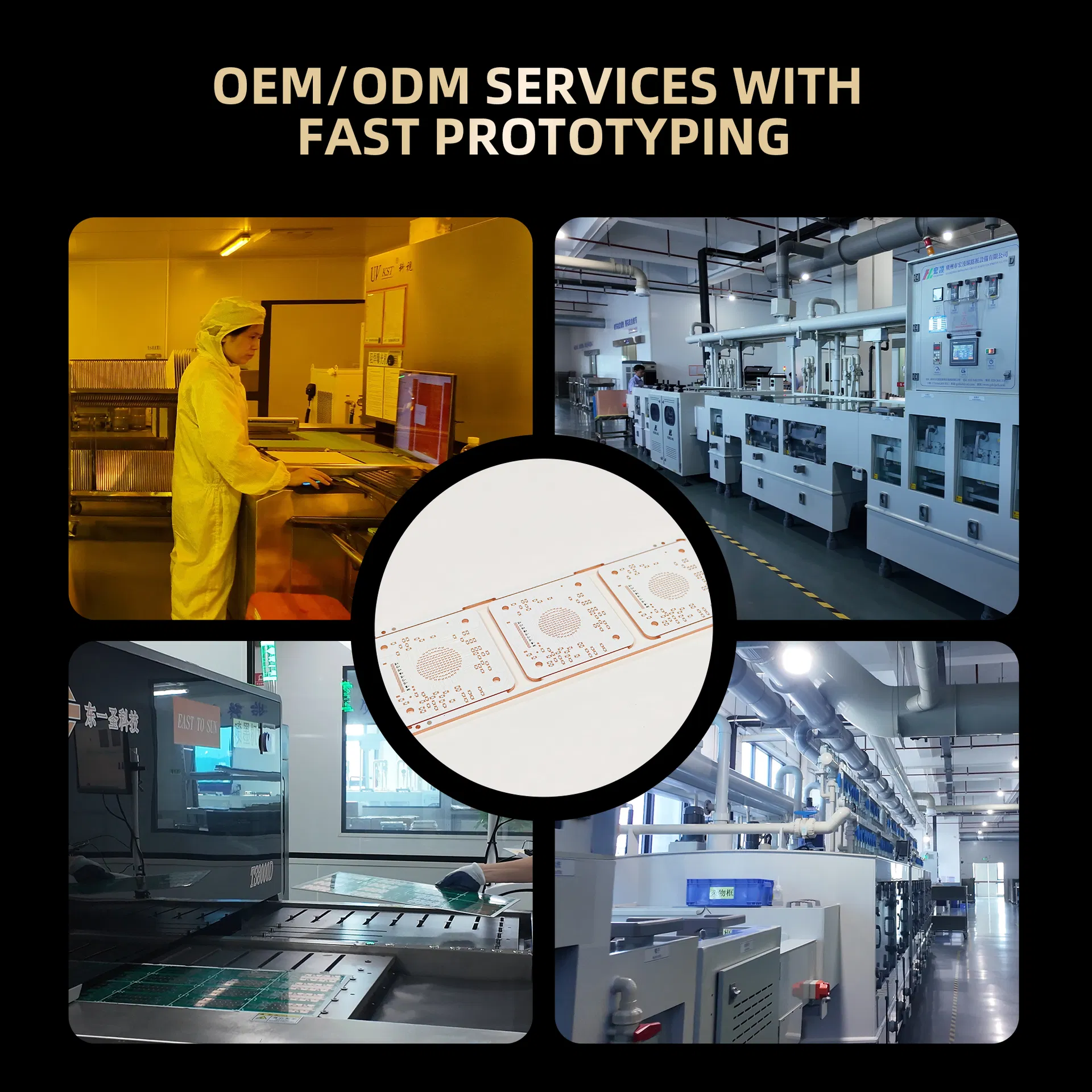

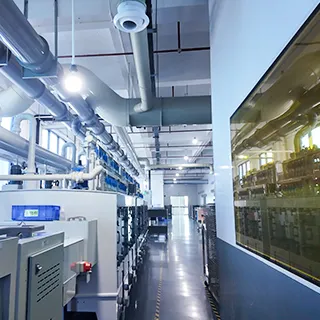

Operating from a 50,000 square meter smart facility with 450 professionals (45 R&D experts). With 950,000 square meter monthly capacity, we pioneer PCB innovation through automated production and tech-talent synergy.
Frequently Asked Questions
What PCB products do you specialize in?
We specialize in Mini-LED, Backlight Units (BLUs), Automotive, Double-Sided/Multilayer Aluminum/Copper-Based, Power Supply, and Electronic Control PCBs.
What is your maximum production capacity?
We have a monthly capacity of up to 950,000 square meters, including 300,000 square meters of high-end metal substrates.
What international certifications do you hold?
We are certified with ISO 9001:2015, UL, and fully compliant with RoHS & REACH environmental standards.
What are the available payment methods for global orders?
We accept TT, PayPal, and L/C. For new customers, a 30% deposit is required, with the balance due before shipment.
What is the thermal conductivity of your dielectric layers?
Our dielectric layers offer high thermal conductivity of 398W/M·K, suitable for demanding automotive electronic controls.
Can you handle extreme copper thickness requirements?
Yes, we have the processing technology to handle extreme copper thicknesses up to 20 OZ.
