Emy Car
1 / 5
| Feature | Highlights & Description |
|---|---|
| Bluetooth Remote Control | Optional Bluetooth remote control feature for convenient operation from a distance. |
| Emergency Stop | Built-in mechanical emergency stop switch for immediate power cutoff, ensuring safety. |

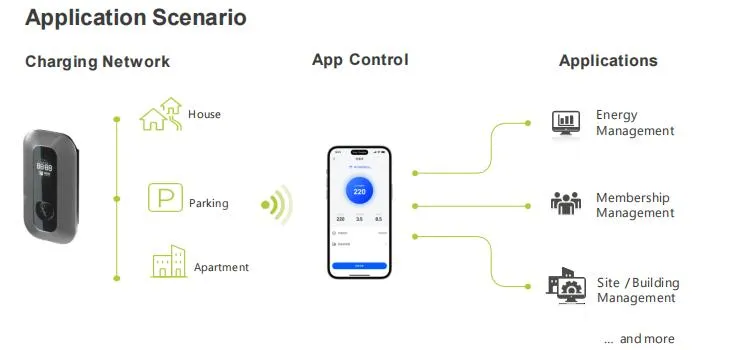

| Monitoring Modes | Reserved interfaces for RS485 and Ethernet, facilitating remote management. |
| Protection Functions | Equipped with multiple protective mechanisms for safety and reliability. |
| User Friendly | Designed for easy installation, operation, and maintenance. |
| Charging Type | Mode 3 |
| Output Power | 7kW max |
| Input Voltage | 200Vac - 240Vac, 50/60Hz, L1+N + PE |
| Output Current | 32A max |
| Protection Grade | IP65 / IK10 |
| Working Temperature | -25°C to +50°C |
| Safety Features | Emergency shutdown, overvoltage, undervoltage, overcurrent, leakage, grounding, and temperature protection. |
We provide a professional technical team, international standard designs, and smart back-end services. Our products have passed laboratory tests and we are capable of achieving both CE and UL certifications.
Yes, we have implemented projects globally, including integrating EV chargers with PV systems in the UK and installing fast chargers along major USA freeways.
Our products feature telecom-level design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wide voltage ranges, and advanced modular design for cooling and protection.
CCS-1 is for North America, CCS-2 for Europe, CHAdeMO for Japan, and GB/T for China. Our chargers are designed to be compatible across these specific regional requirements.
Not necessarily. Charging speed is often limited by the vehicle's battery. However, high-power chargers are significant for dual-connector support and future-proofing as battery technology improves.
We provide comprehensive technical training, materials, and videos. For urgent situations, we provide professional technician support to ensure master maintenance and parts replacement.
