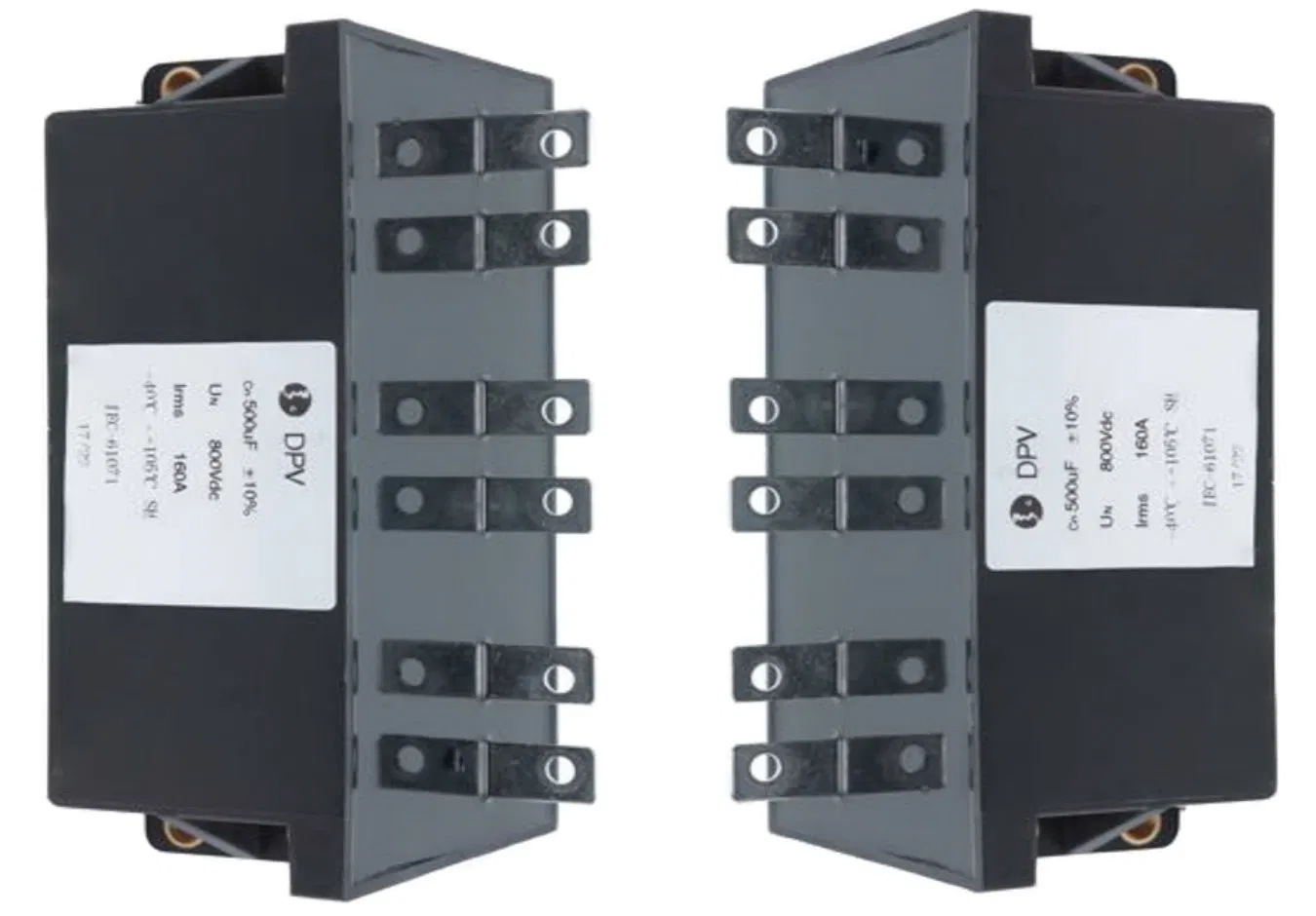

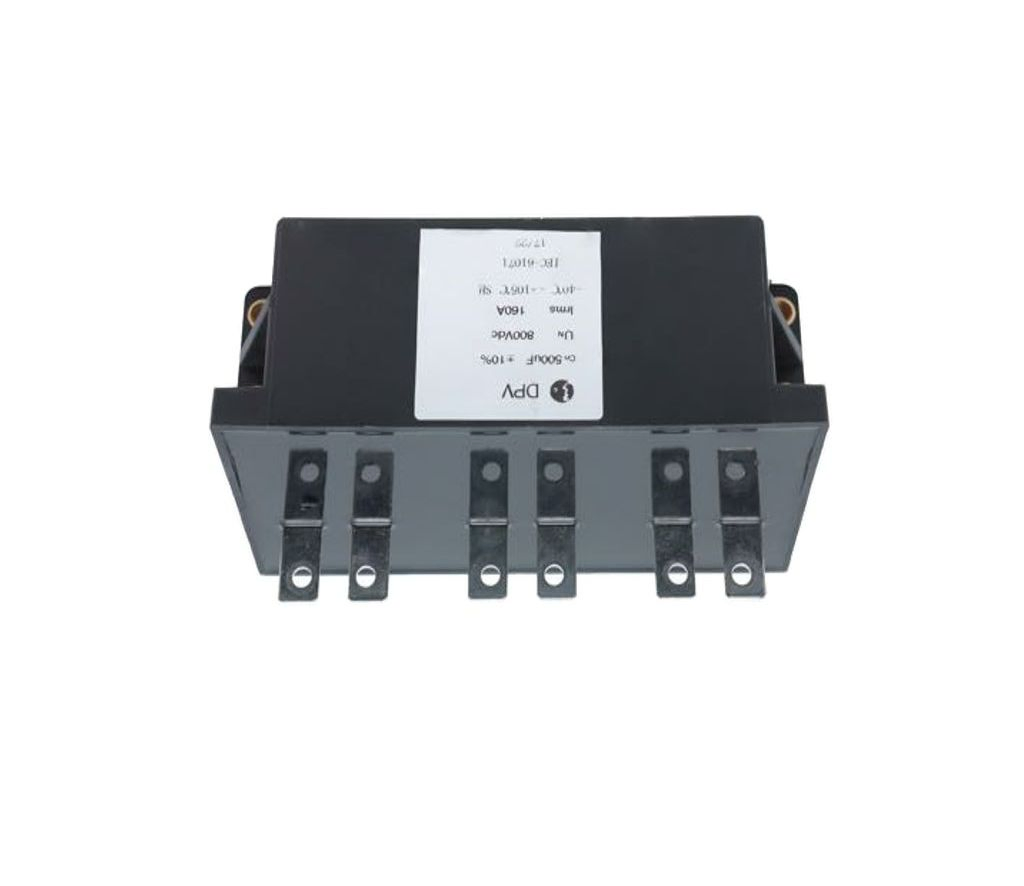

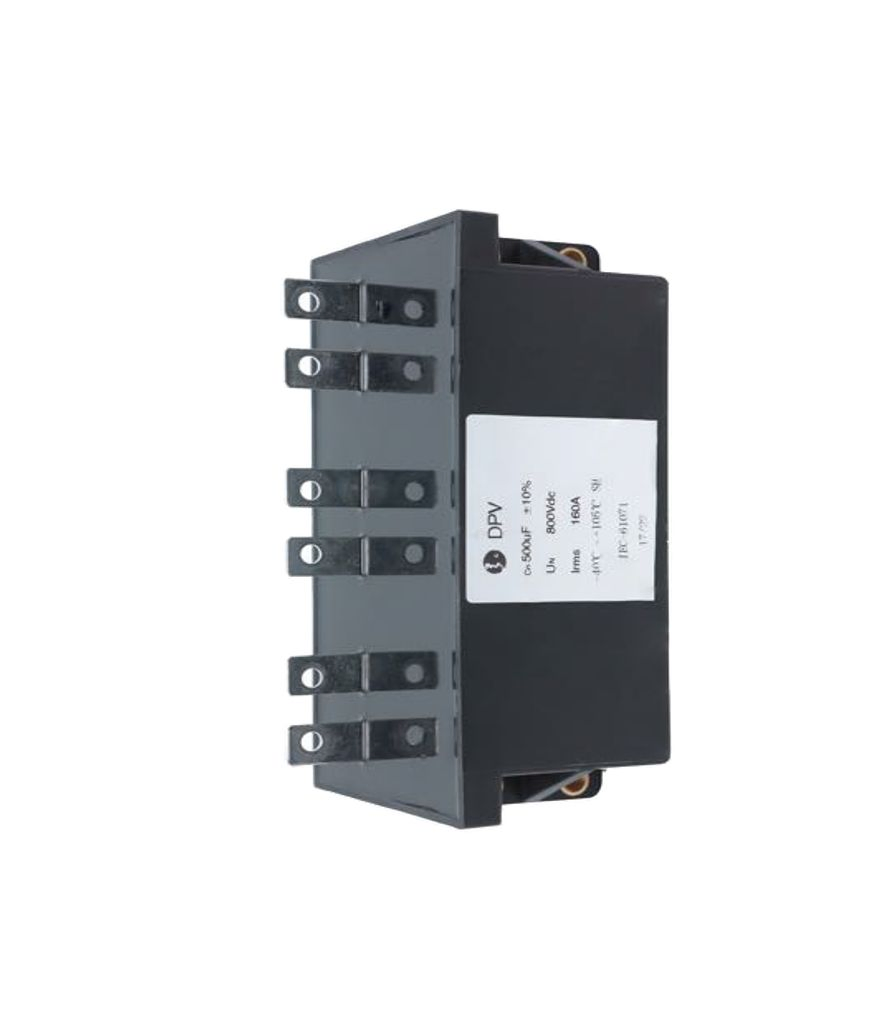

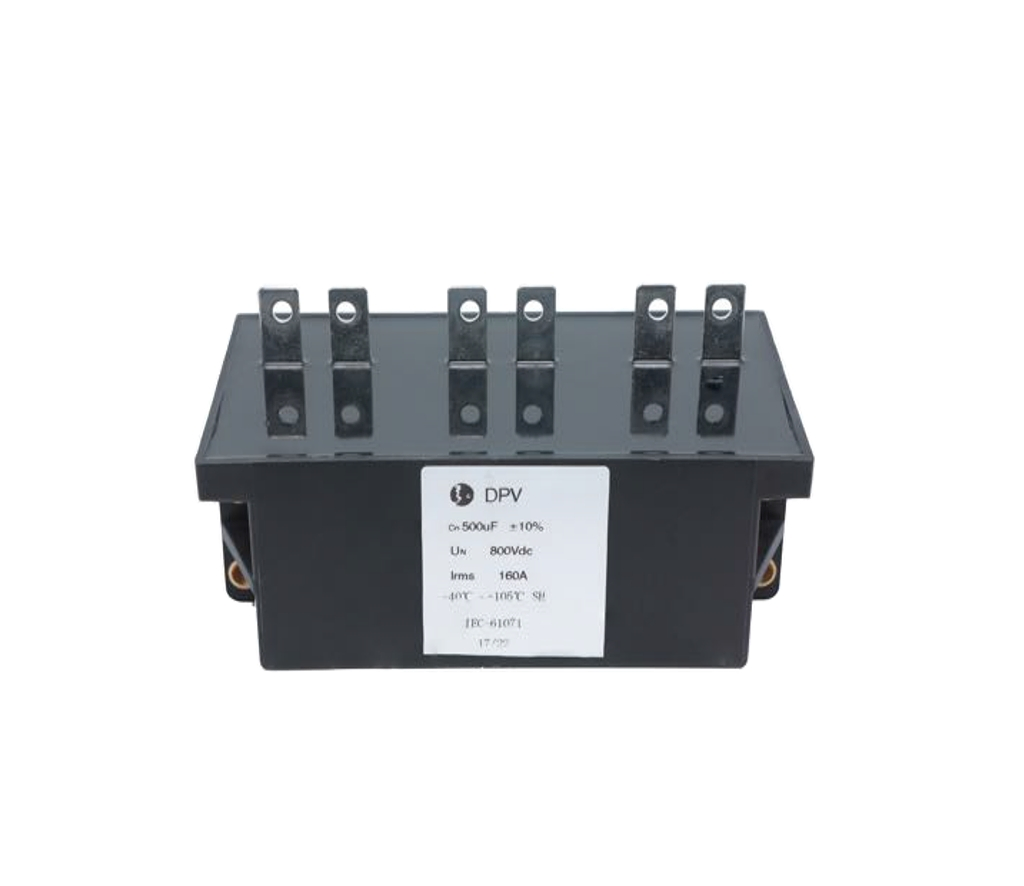

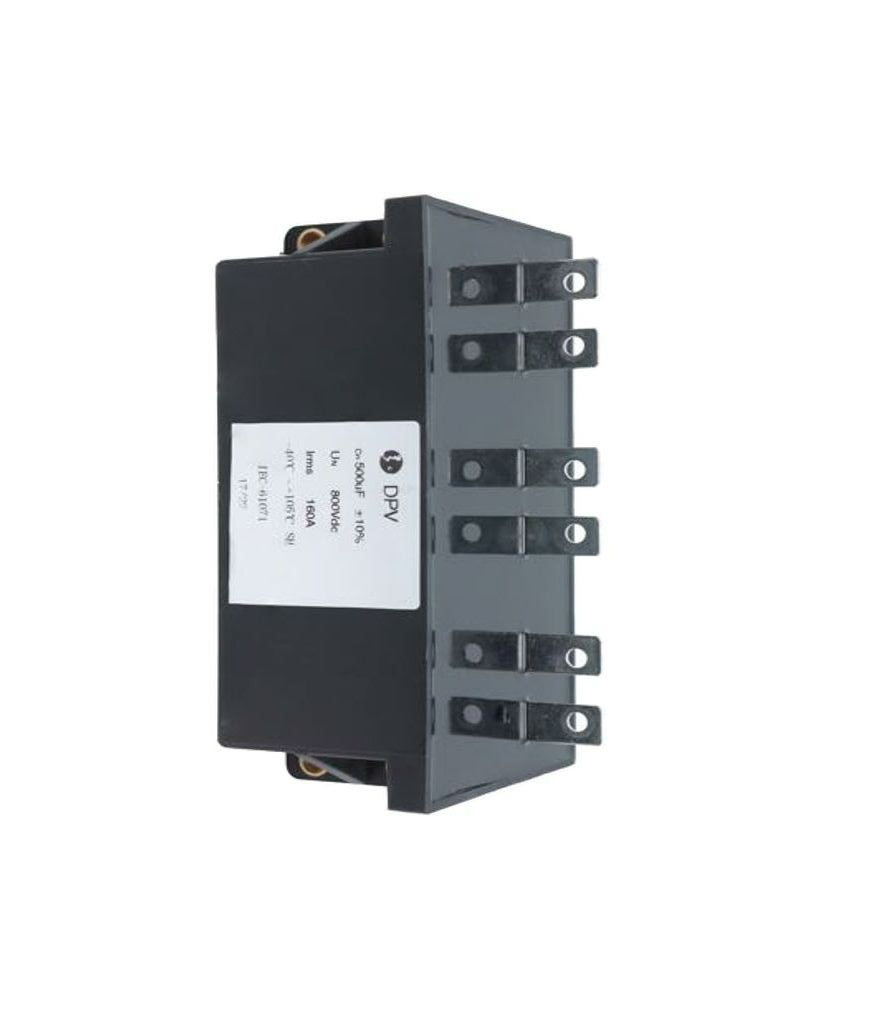

Long-Lifetime DPV with High Ripple Current (Low ESR, low ESL)
Features
- Low ESR, low ESL
- Self-healing property
- Long lifetime
- High ripple current
Applications
- Transportation: EV/HEV DC-Link circuits

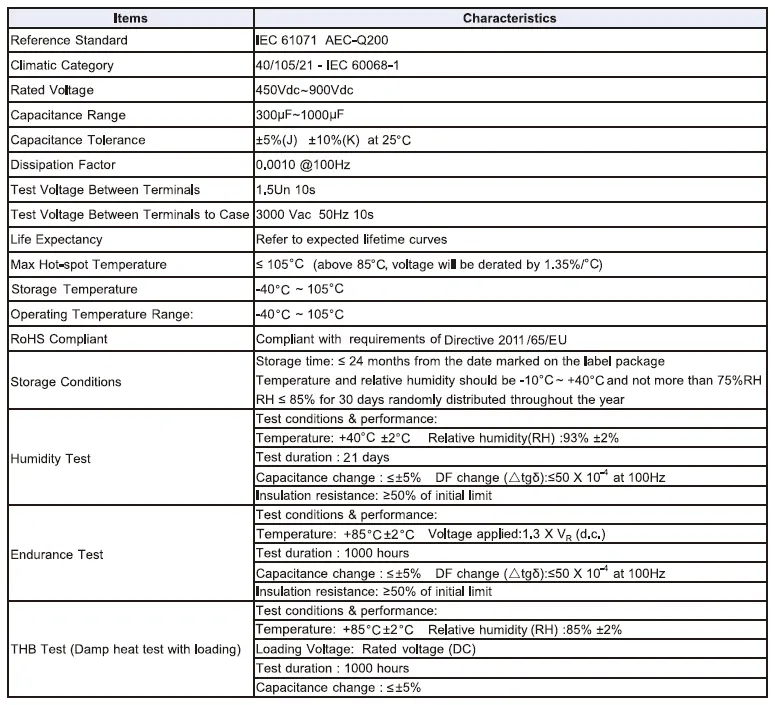

Specifications

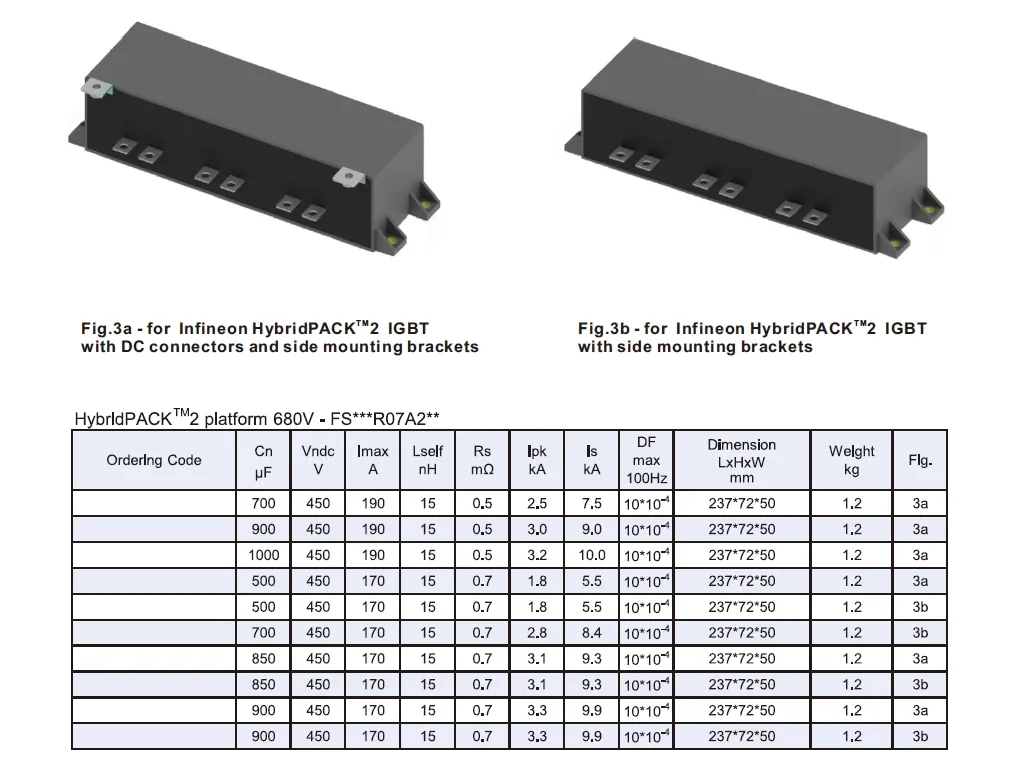

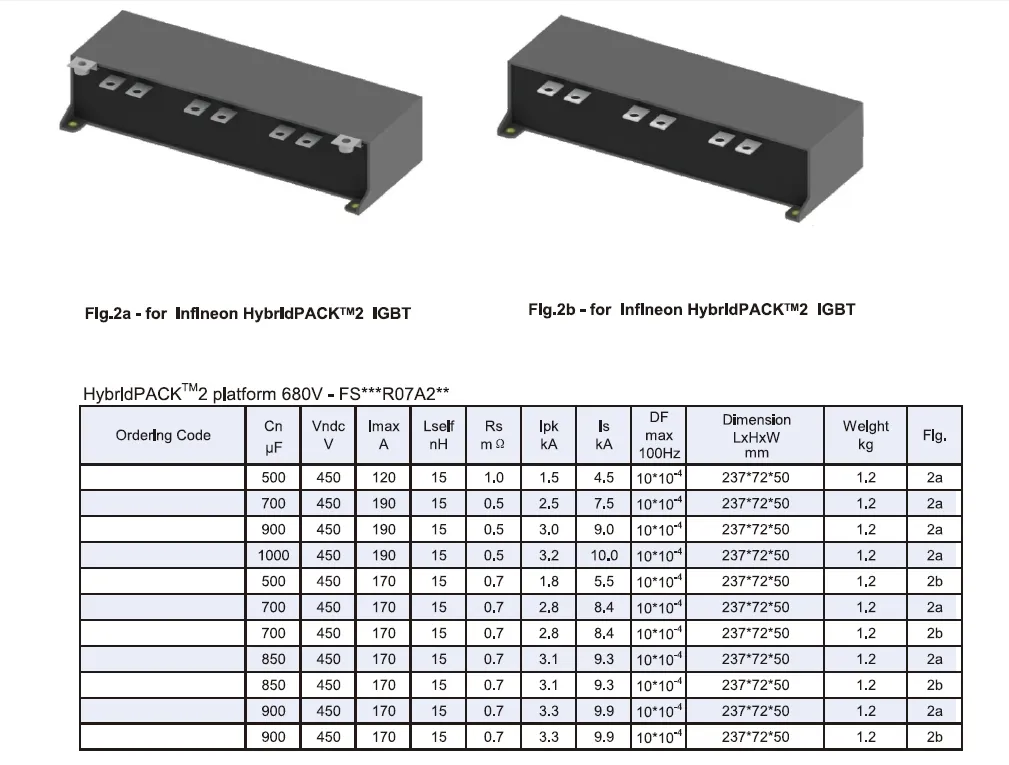

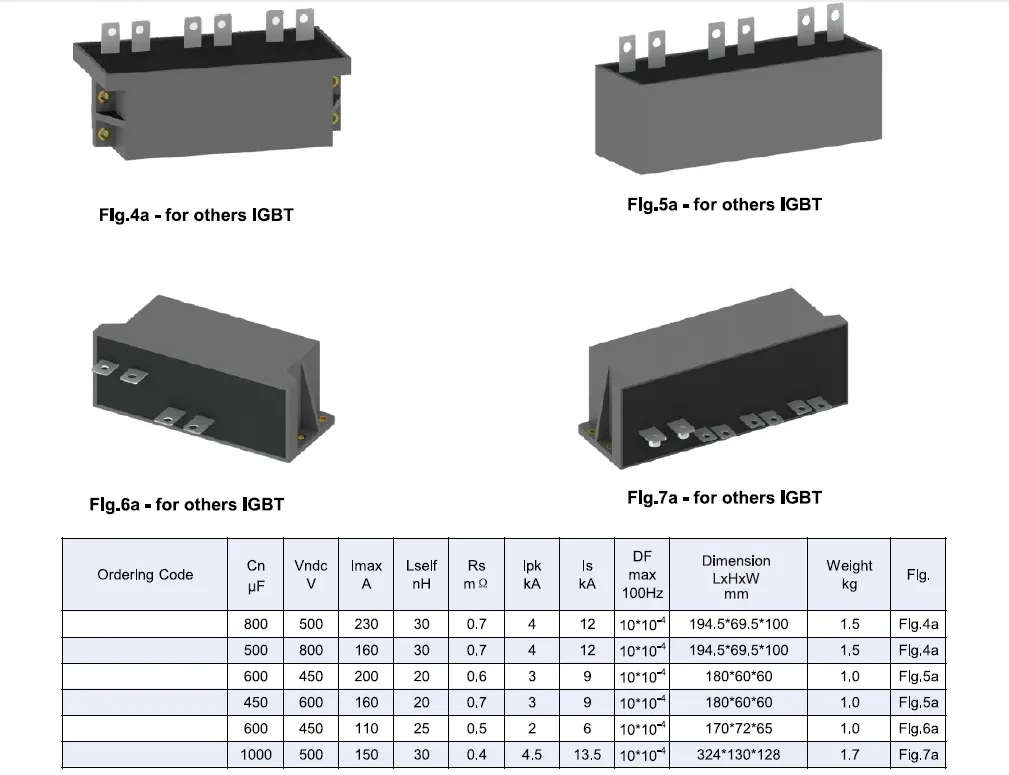

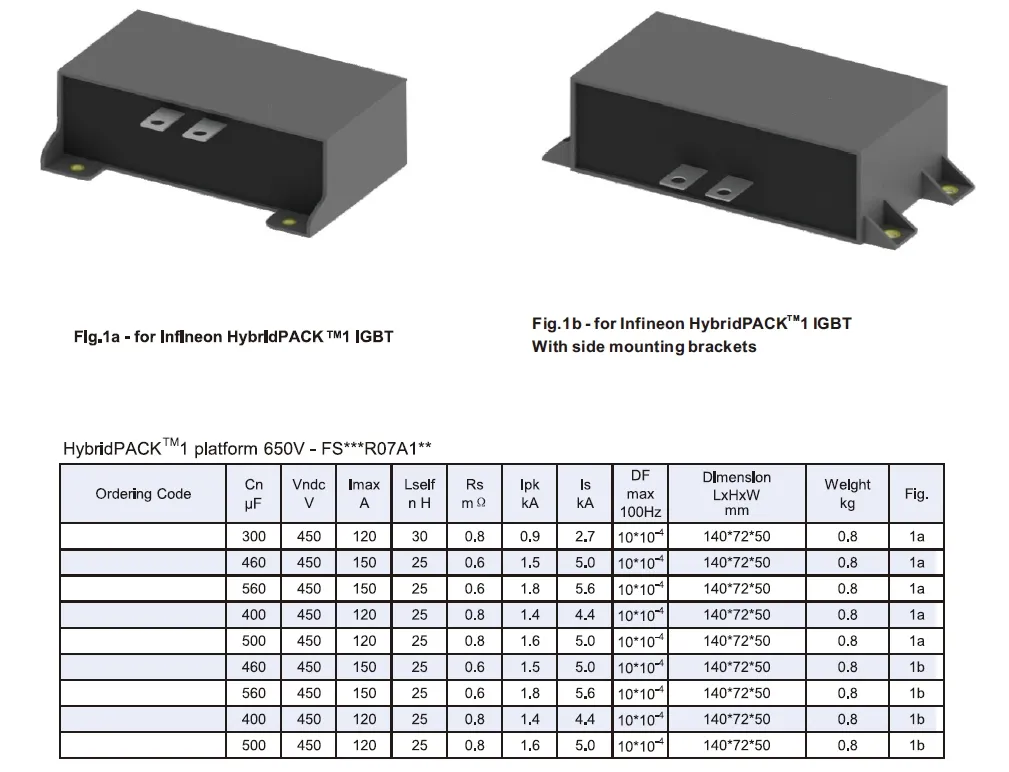

Outline Drawing
Frequently Asked Questions
1. What are the primary advantages of DPV series capacitors?
The DPV series features low ESR and ESL, a long operational lifetime, and excellent self-healing properties, making them ideal for high-ripple current applications.
2. In which applications are these film capacitors most commonly used?
They are widely used in DC-Link circuits for Electric Vehicles (EV), Hybrid Electric Vehicles (HEV), and renewable energy systems like wind and solar power.
3. What is the standard capacitance range for the DPV model?
The standard capacitance range is between 300μF and 1000μF, with available tolerances of ±5% or ±10%.
4. Do these capacitors comply with international standards?
Yes, they are manufactured in accordance with the IEC 61071 and AEC-Q200 reference standards for electronic components.
5. What is the climatic category for these components?
The climatic category is 40/105/21 as per IEC 60068-1, ensuring reliable performance in varied environmental conditions.
6. What is the monthly production capacity for this series?
We maintain a high production capacity of approximately 500,000 units per month to meet global demand.
