5mwh Bess Solar Energy Storage System Power Management Unit with Quality Thermal System

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Basic Information

Nominal Voltage	1331.2V	Warranty	3 Years
Nominal Capacity	5015kWh	Cycle Life	10 Years (2 Charges/Discharges Daily)
Rated Power	5mwh	Operating Voltage Range	1164.8V - 1497.6V DC
IP Rating	IP54	Method	Liquid Cooling

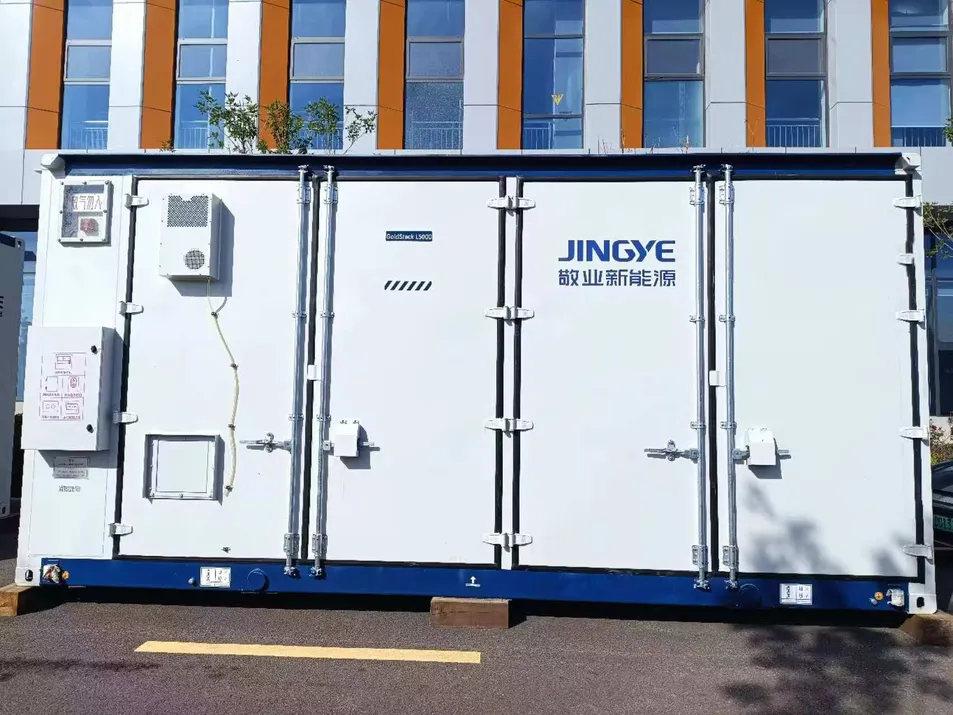

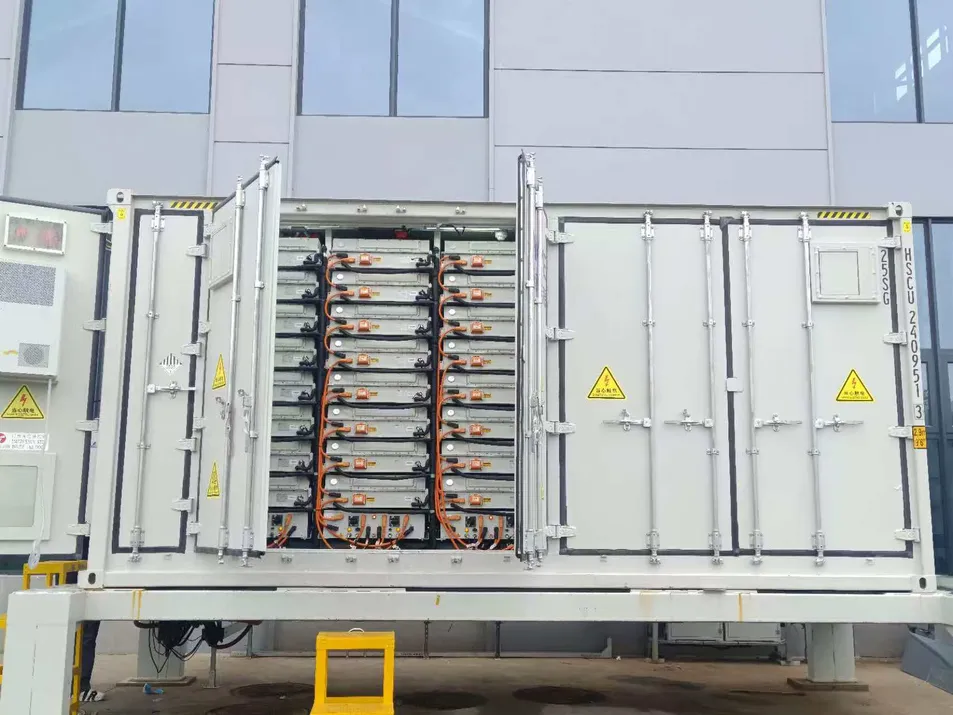

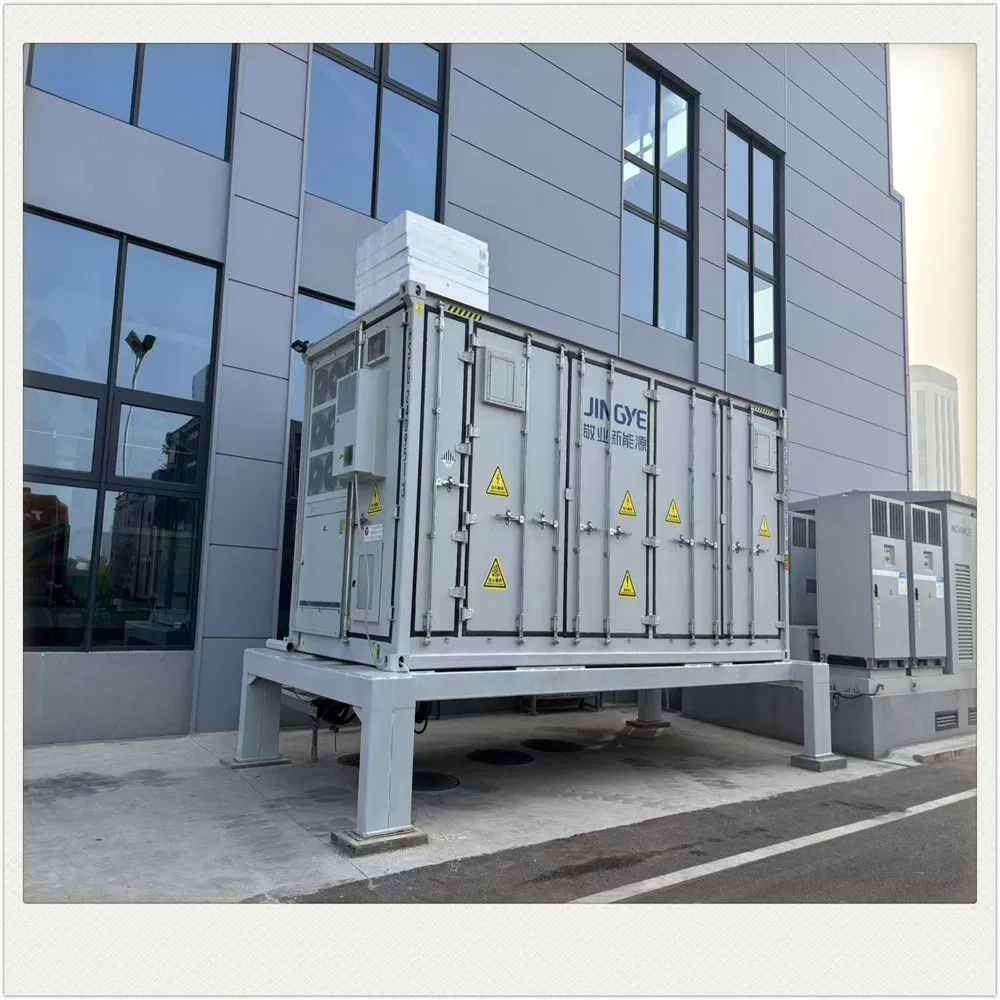

Energy Storage Container

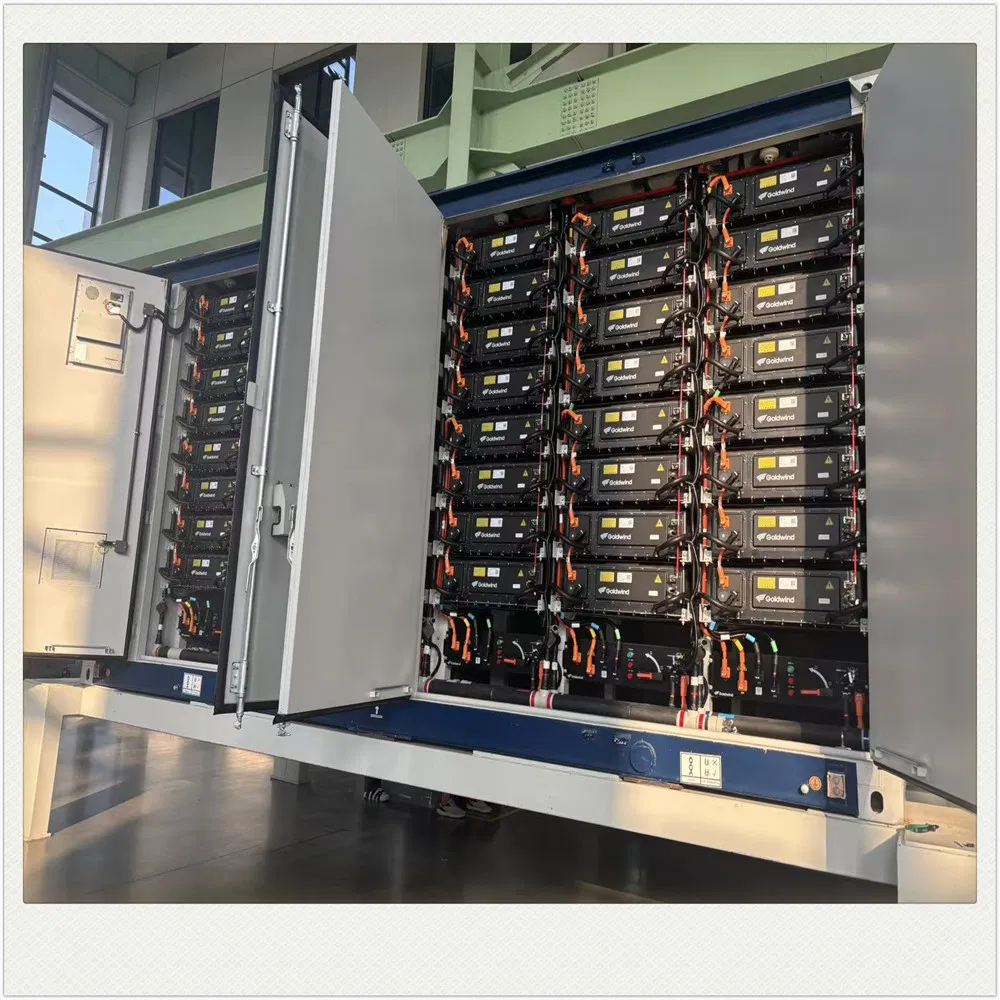

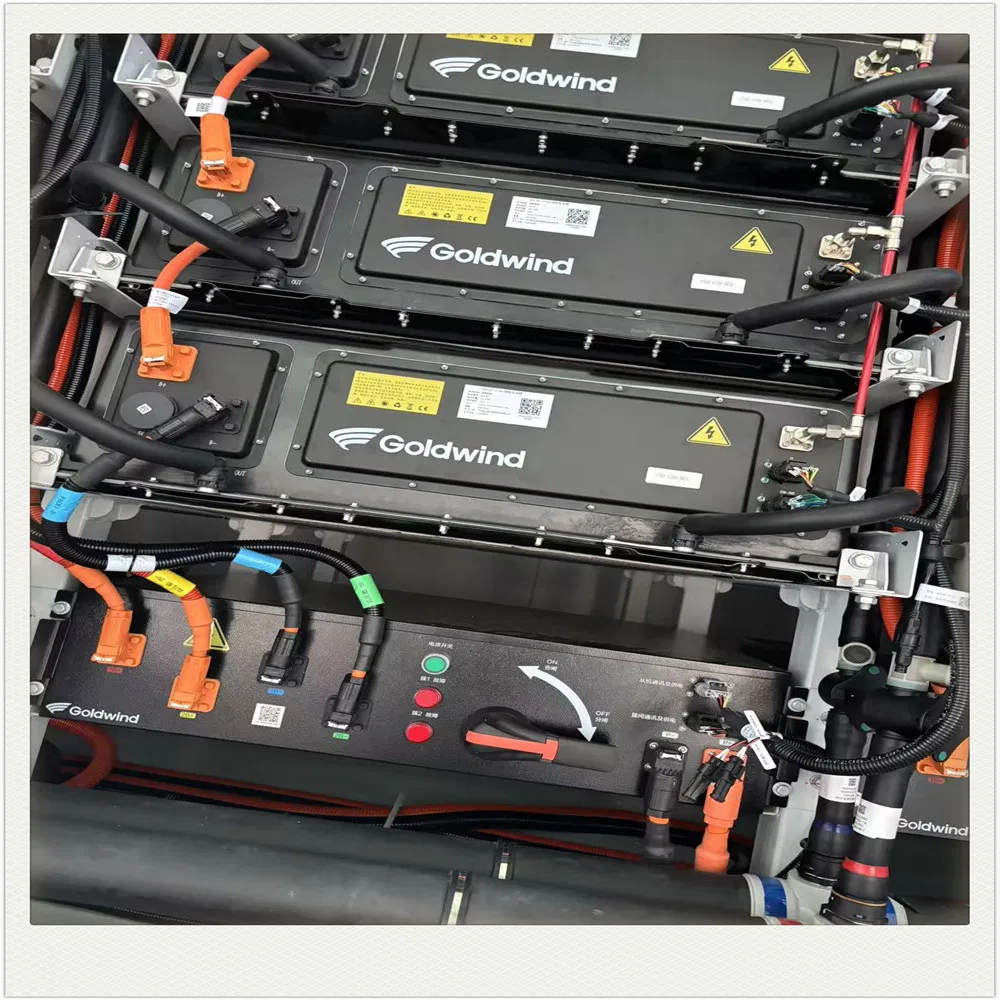

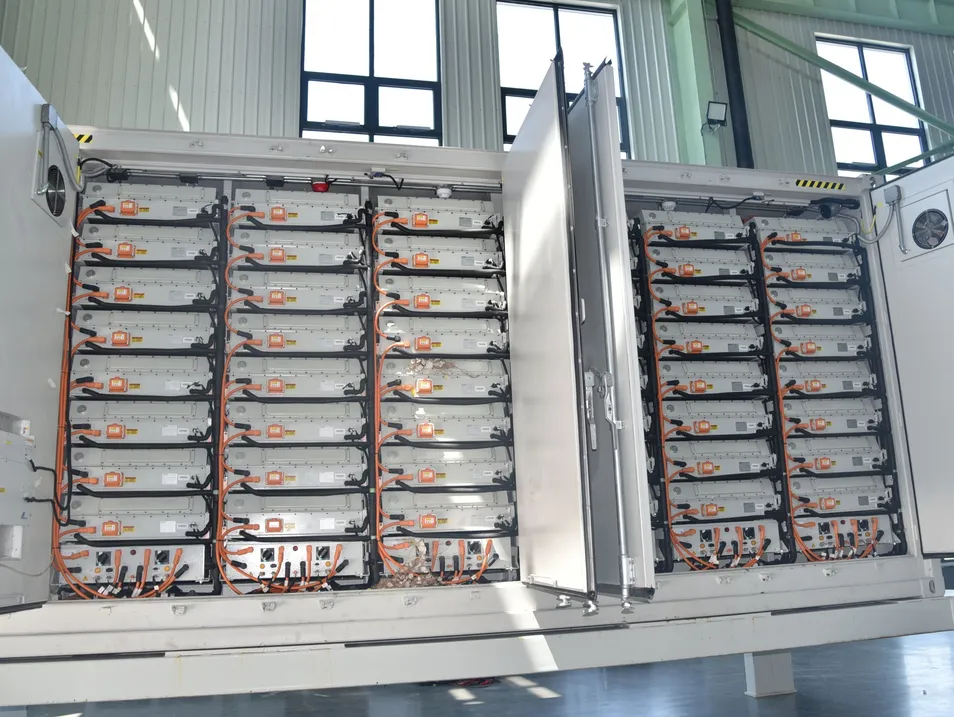

5015KWh Liquid Cooling energy storage system based on domestic high-capacity 314Ah energy storage cells. The system integrates PACK, battery cluster units, BMS, fire protection, and thermal management within a standard 20-foot container (L6058 x W2438 x H2896mm).

Product Features

Battery Technology: High-efficiency, long-life LFP batteries.
Thermal Management: High-precision control (ΔT ≤ 3℃ inside PACK).
Safety: Three-level automatic alarm and perfluorohexane/aerosol fire extinguishing.
Monitoring: Real-time smoke, temperature, and video monitoring.

Technical Specifications

5MWh Liquid Cooling Battery Container
Configuration	12(1P104S4)
Rated Voltage	1331.2VDC
Charging/Discharge Power	≤ 2.5MW
Operating Temperature	Work: 0℃ to 60℃ (charge) / -30℃ to 60℃ (discharge)
Dimensions	L6058 x W2438 x H2896mm
Communication	Ethernet, CAN, ModbusRTU

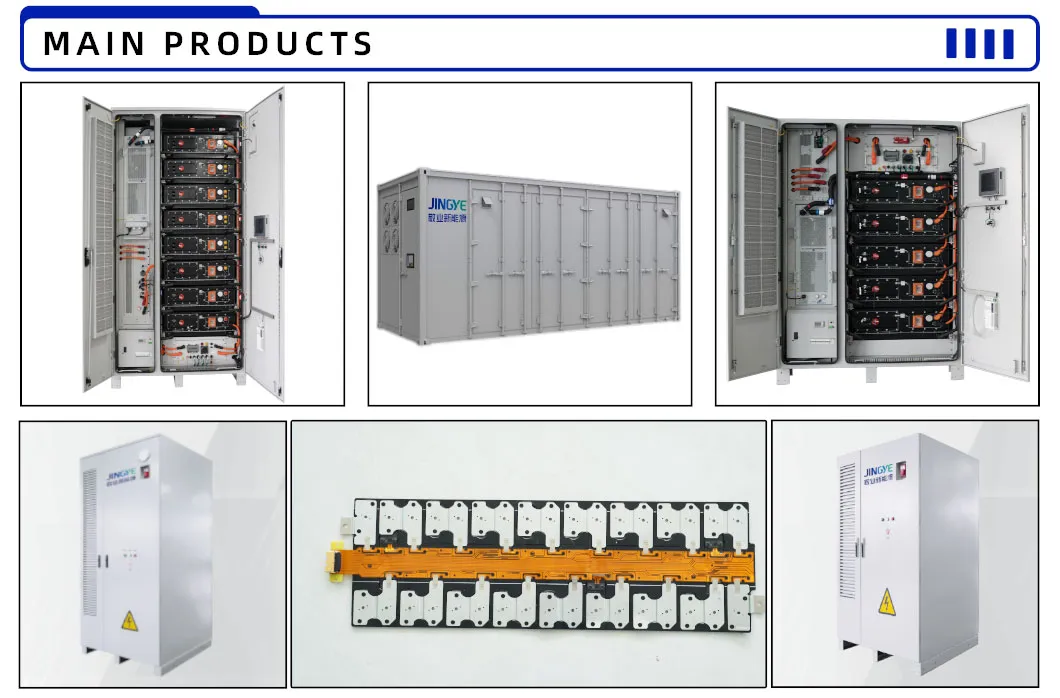

Main Products & Workshop

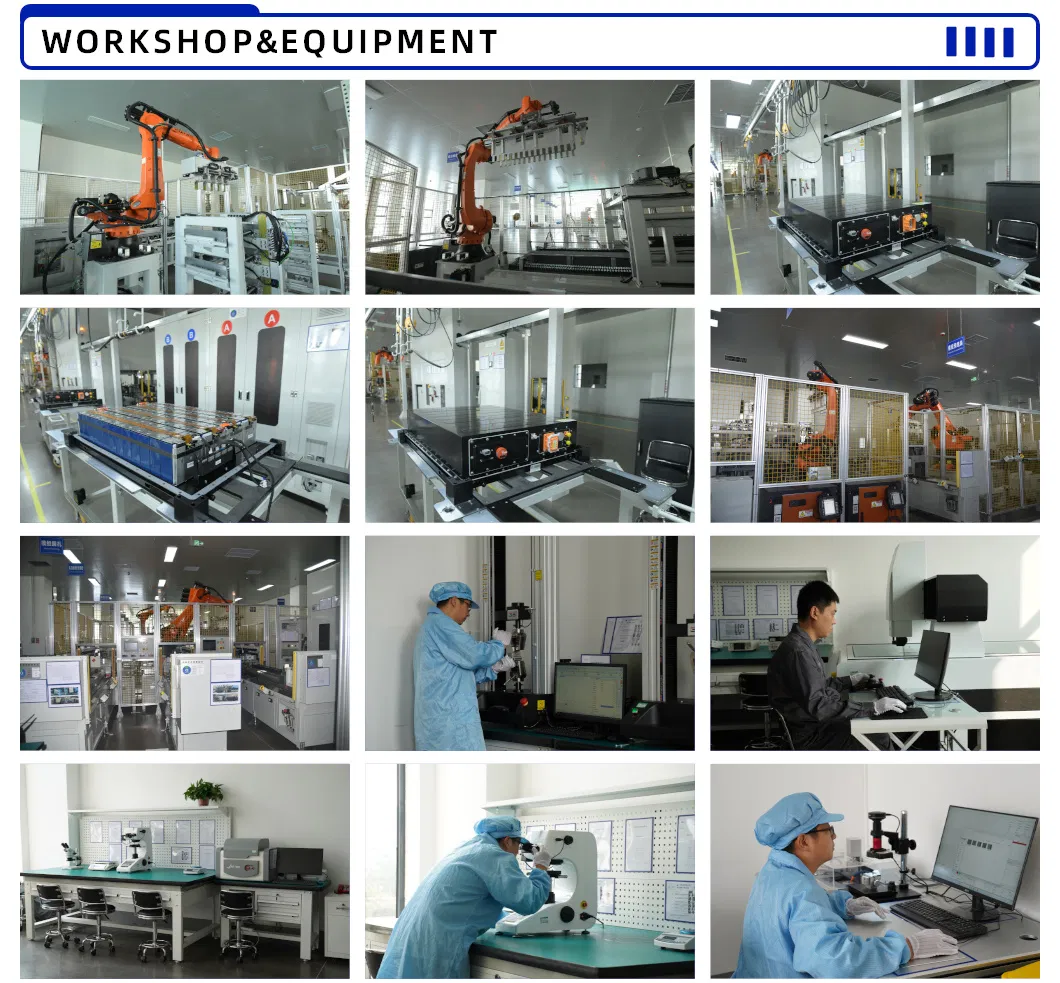

Equipped with advanced automated production lines, the facility maintains an annual capacity of 5 GWh for energy storage systems and 2.4 million units of CCS busbars. These solutions serve smart grids, industrial-commercial storage, and green transportation sectors globally.

Certifications & Global Presence

Frequently Asked Questions

Q1: What are the primary products available?

We specialize in 5MWh Energy Storage Containers, Commercial & Industrial Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Are customization services supported?

Yes, we offer flexible customization services for energy storage products across diverse process types and technical requirements.

Q3: How is production and delivery on-time?

With automated production lines and professional technical staff, we ensure stable manufacturing processes and reliable on-time delivery schedules.

Q4: How can I request a detailed technical quotation?

You can reach out via our online service portal. Our team will promptly analyze your requirements and provide a detailed quotation.

Q5: Are you a direct manufacturer?

We are a formal source factory with standardized production processes, allowing us to provide competitive pricing along with top-tier product quality.

Q6: What cooling method is used in the 5MWh system?

The system utilizes advanced Liquid Cooling technology with a 50% ethylene glycol aqueous solution as the coolant for optimal thermal management.
