480kw Large Power Split Type Car Charging Station 8guns EV Charger 250A Flexible Charging Solution Safety Charging for Car

1 / 5

480kw Large Power Split Type Car Charging Station 8guns EV Charger 250A Flexible Charging Solution Safety Charging for Car

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.DCF480E

TypeFast EV Charging Station

Capacity480KW

Warranty24 Months

CertificationCE, ISO, RoHS

ProtectionIP54

AuthenticationQR Code/RFID/Password

Input VoltageAC380V±15%

⚡ Product Description

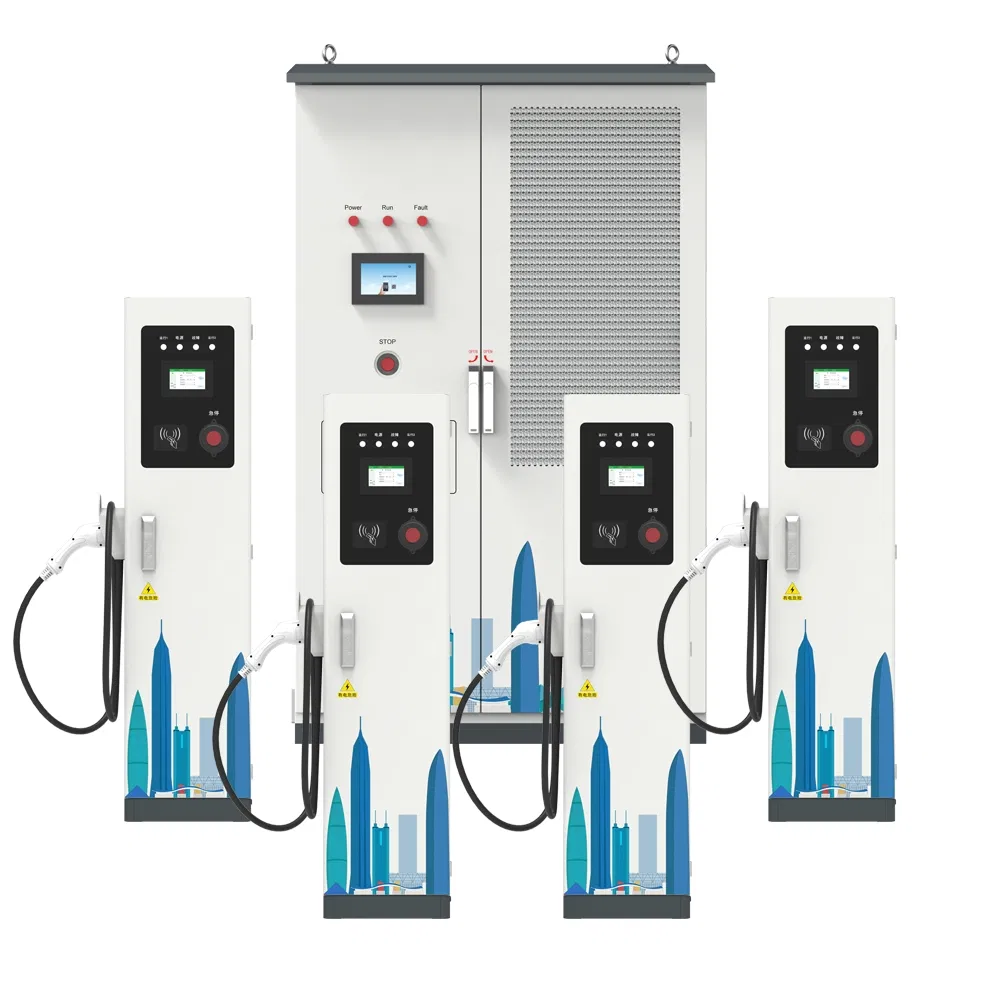

Product Name: DC 480KW Eight Guns CCS2 EV Charging Station

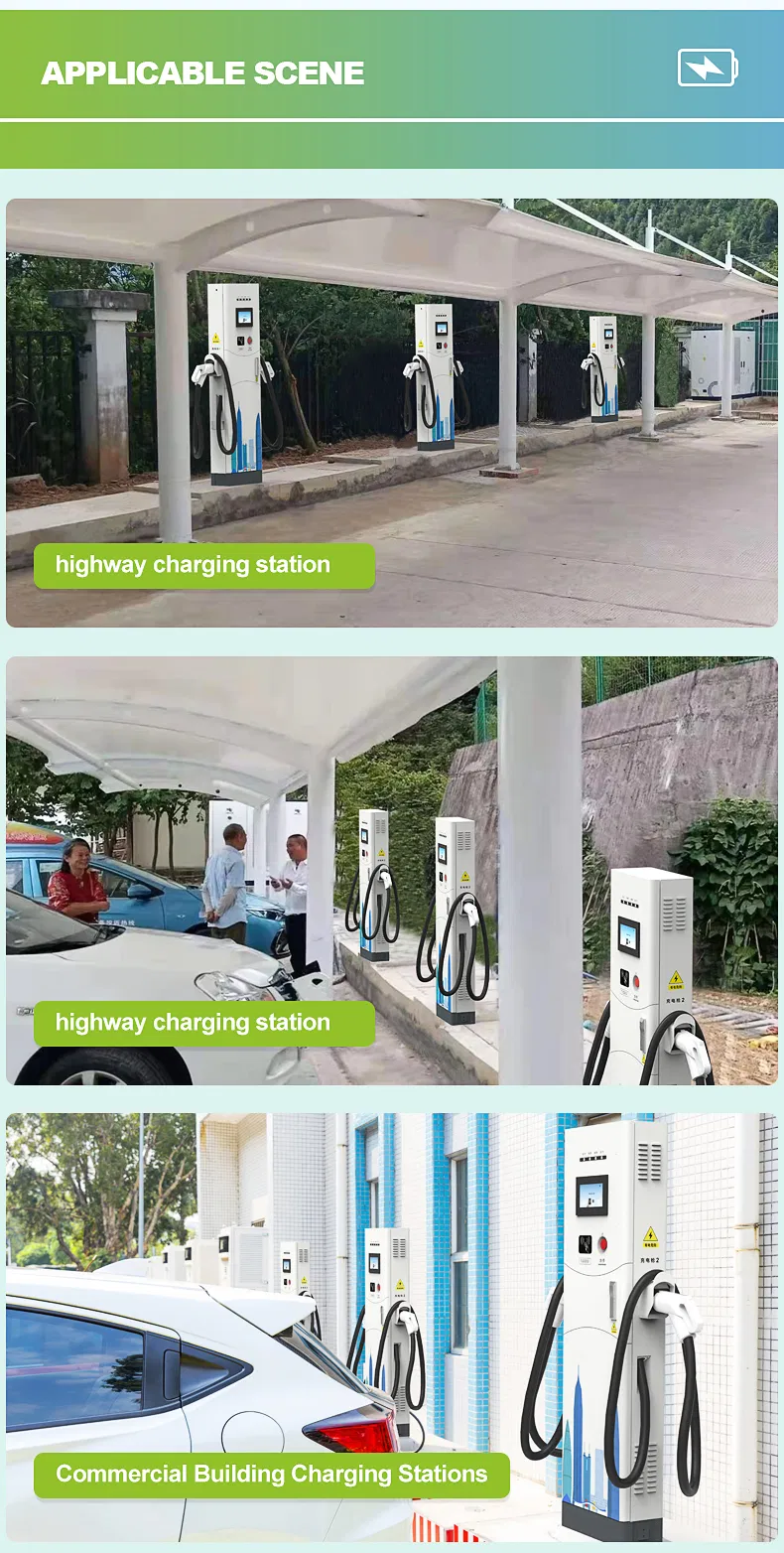

Applications: Ideal for city special charging stations (bus, taxi, logistics), public service vehicles, intercity highway stations, and high-demand fast charging scenarios.

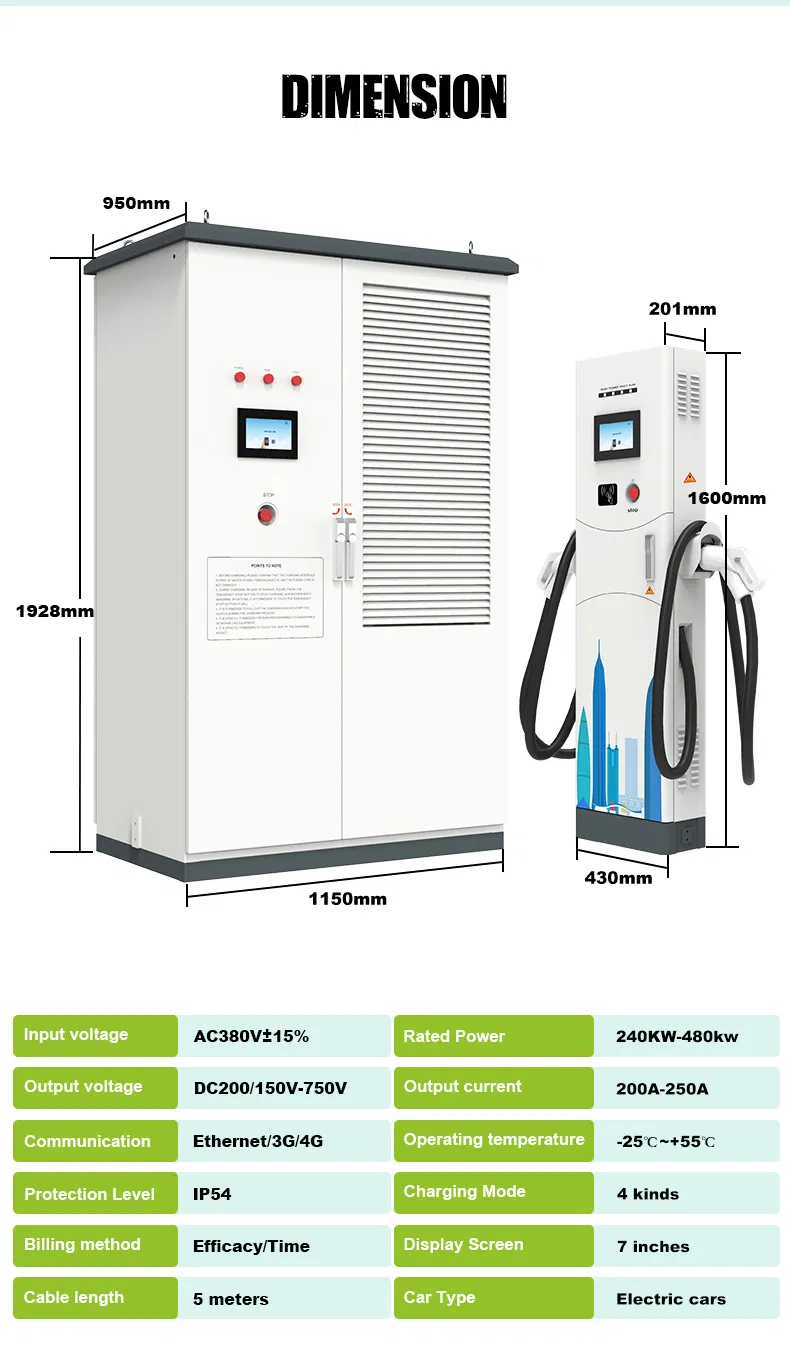

⚙️ Technical Specifications

Input Requirements
AC Supply System	Three-Phase, 5 Wire AC system
Nominal Input Voltage	AC380V±15%
Input Frequency	45-65Hz
Output Requirements
Number of Outputs	8 Guns
Type of Each Output	DC 200-750V (Customizable to 1000V)
Single Output Max. Current	200A / 250A
Safety & Protection

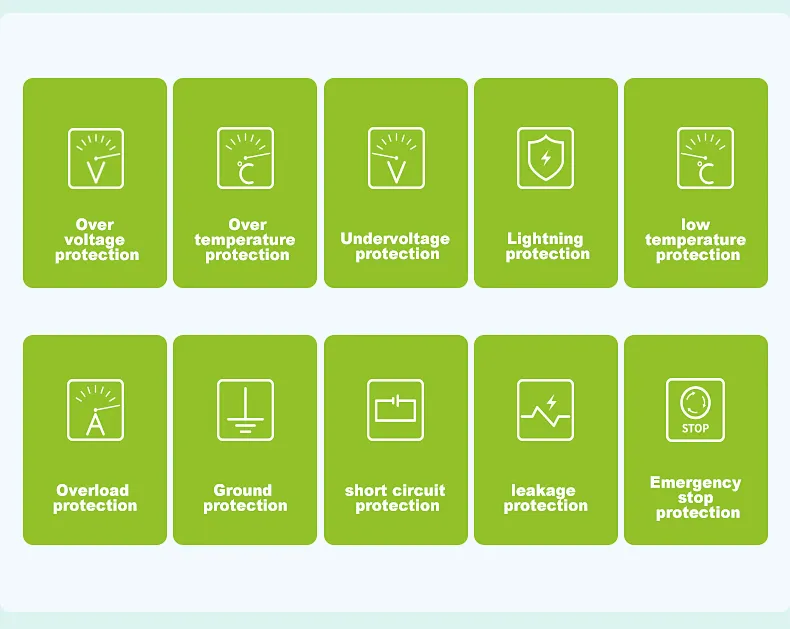

Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage, Short Circuit, Over Temperature
Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, CHAdeMO

❓ Frequently Asked Questions

What is the maximum charging power of the DCF480E?

The station provides a total output capacity of 480KW, supporting large-scale fast charging for multiple vehicles simultaneously.

How many vehicles can be charged at once?

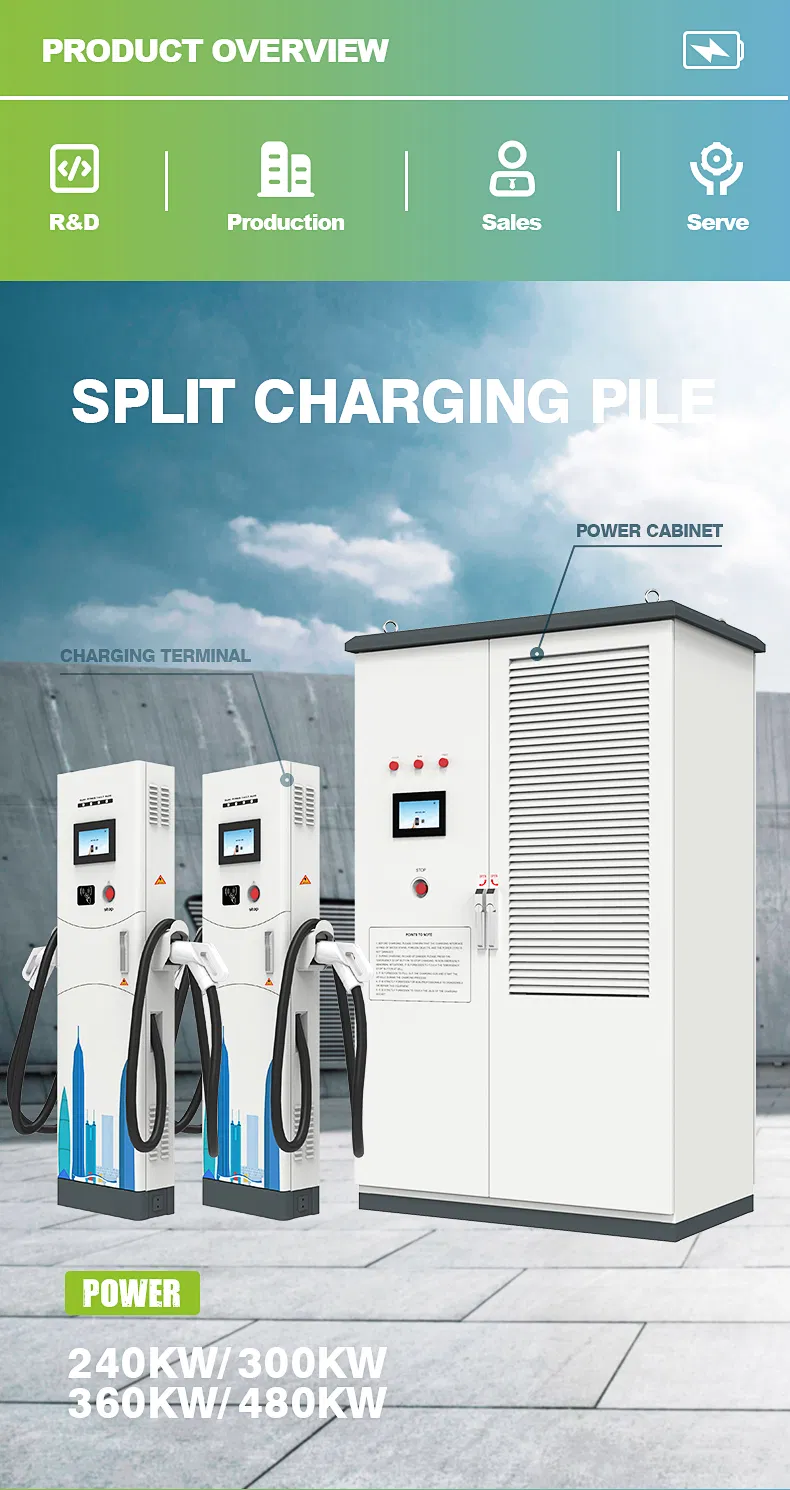

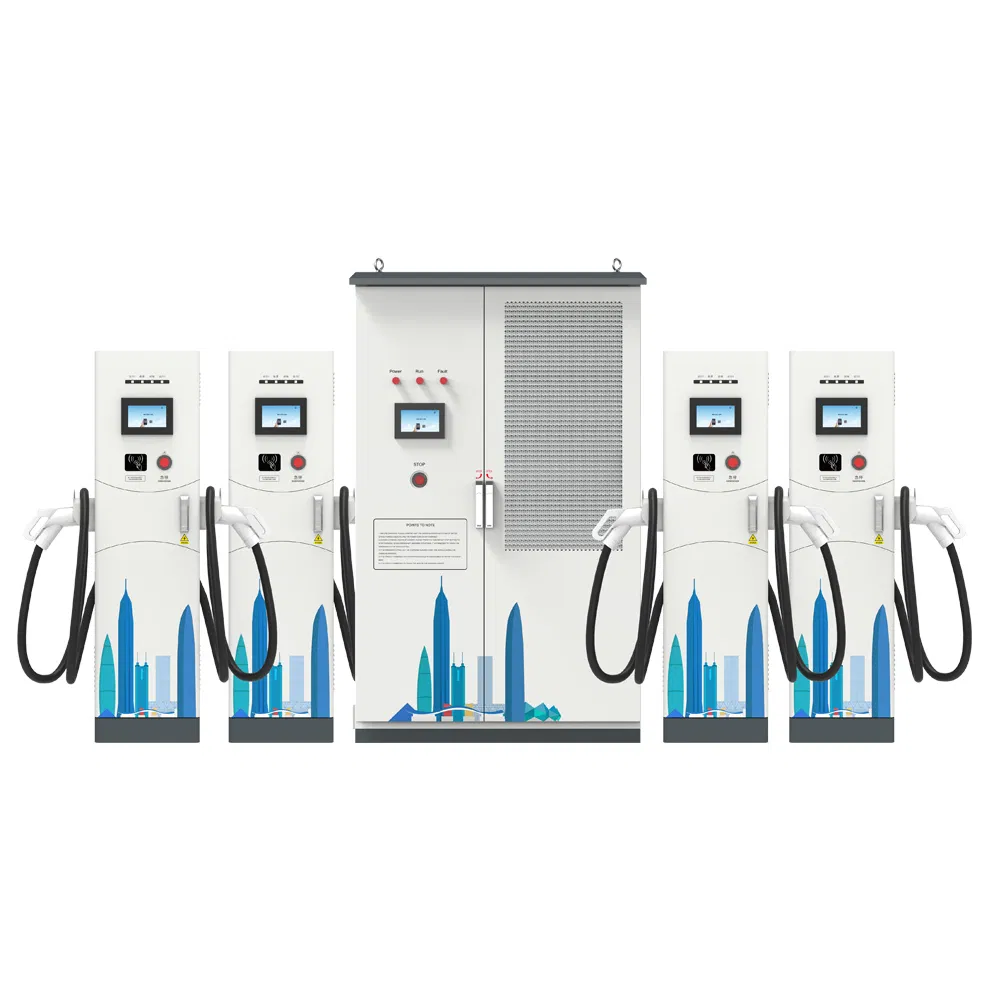

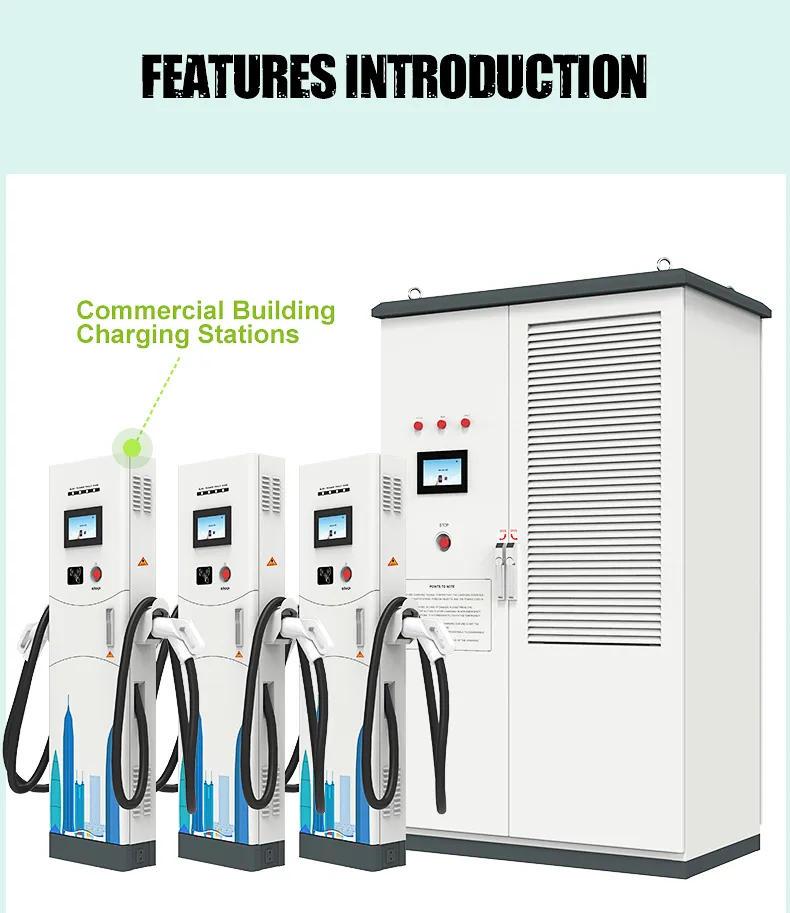

This station is a split-type system equipped with up to 8 charging guns, allowing for flexible charging of multiple electric vehicles.

What safety protections are included?

It features comprehensive protection including over current, under voltage, residual current, surge protection, leakage protection, short circuit, and over-temperature protection.

Is it compatible with different EV standards?

Yes, it complies with IEC62196, IEC61851, SAE J1772, CHAdeMO, and GB/T standards to ensure wide compatibility.

What user authentication methods are supported?

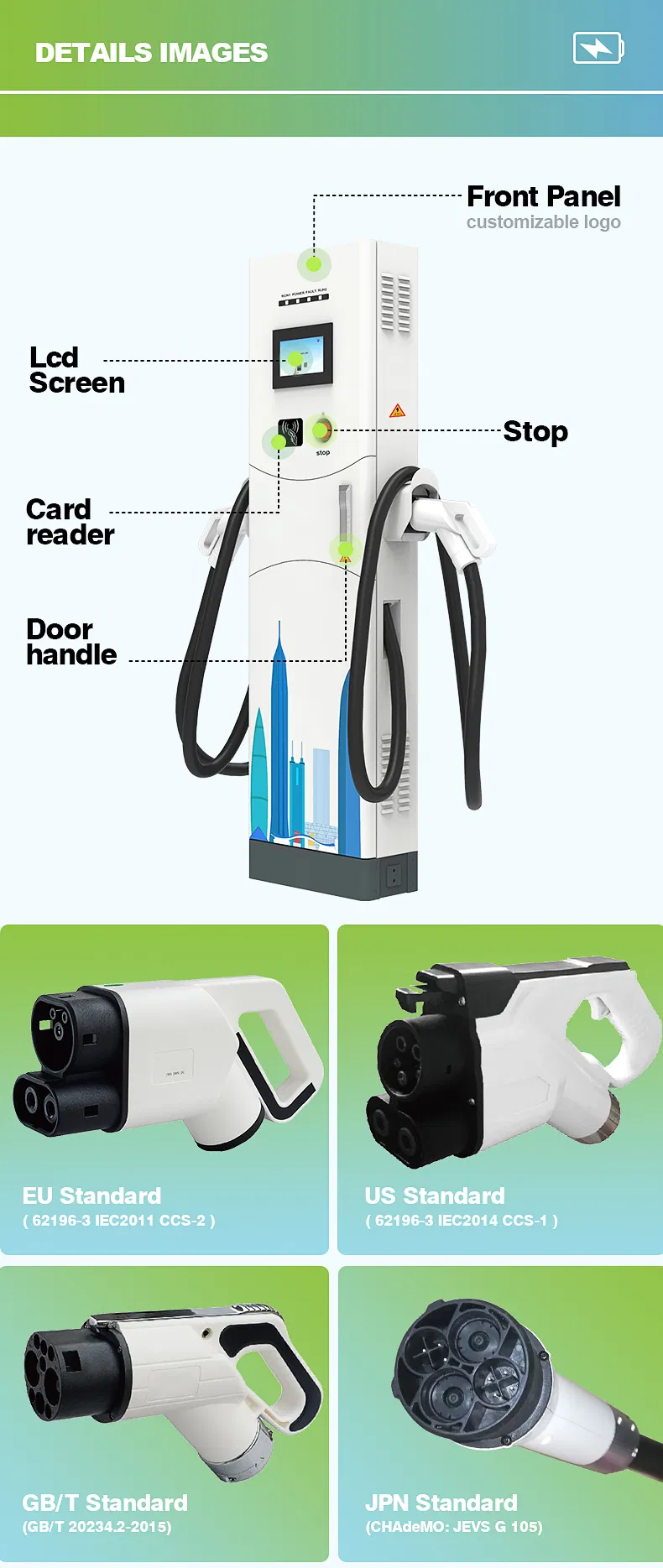

Users can authenticate via QR Code, RFID Card, or Password Login through the 7-inch touch screen interface.

Can it connect to a central management system (CMS)?

Yes, it supports OCPP 1.6J protocol and can connect via Ethernet, 3G, 4G, or Wi-Fi for remote monitoring and management.
