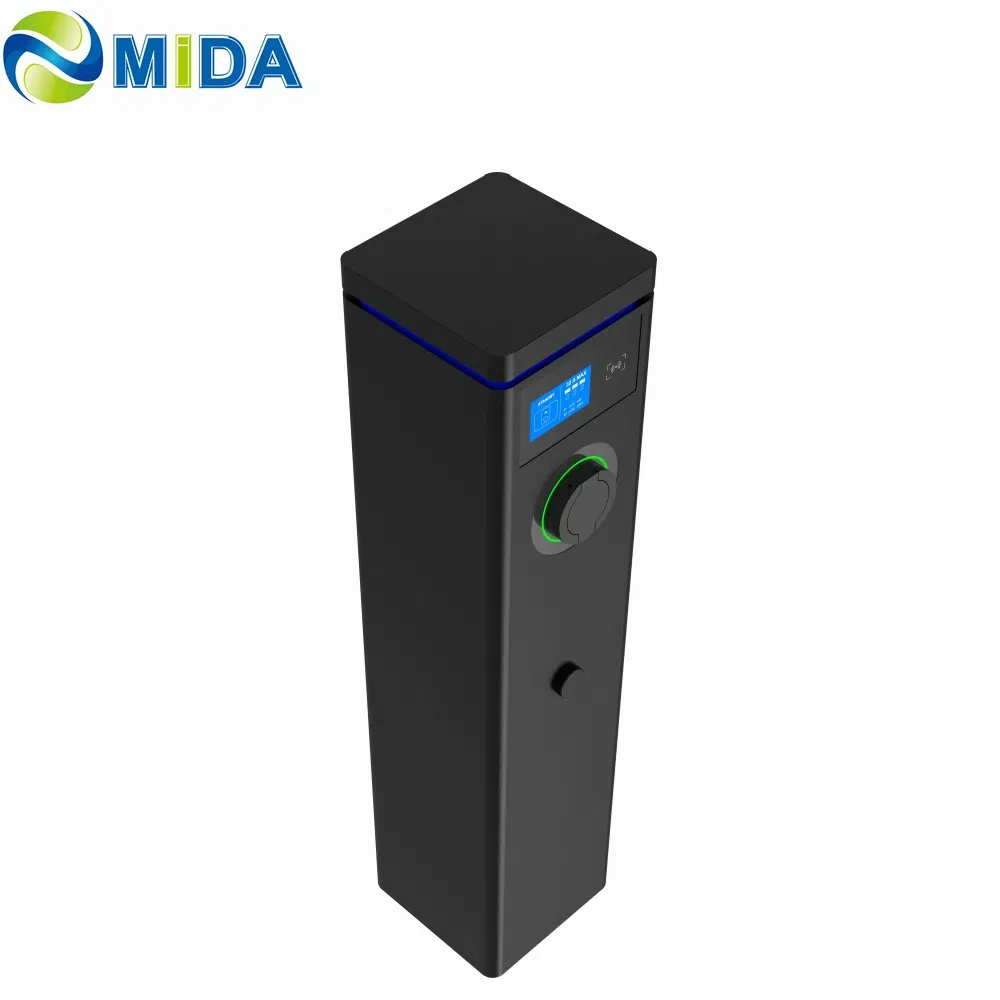

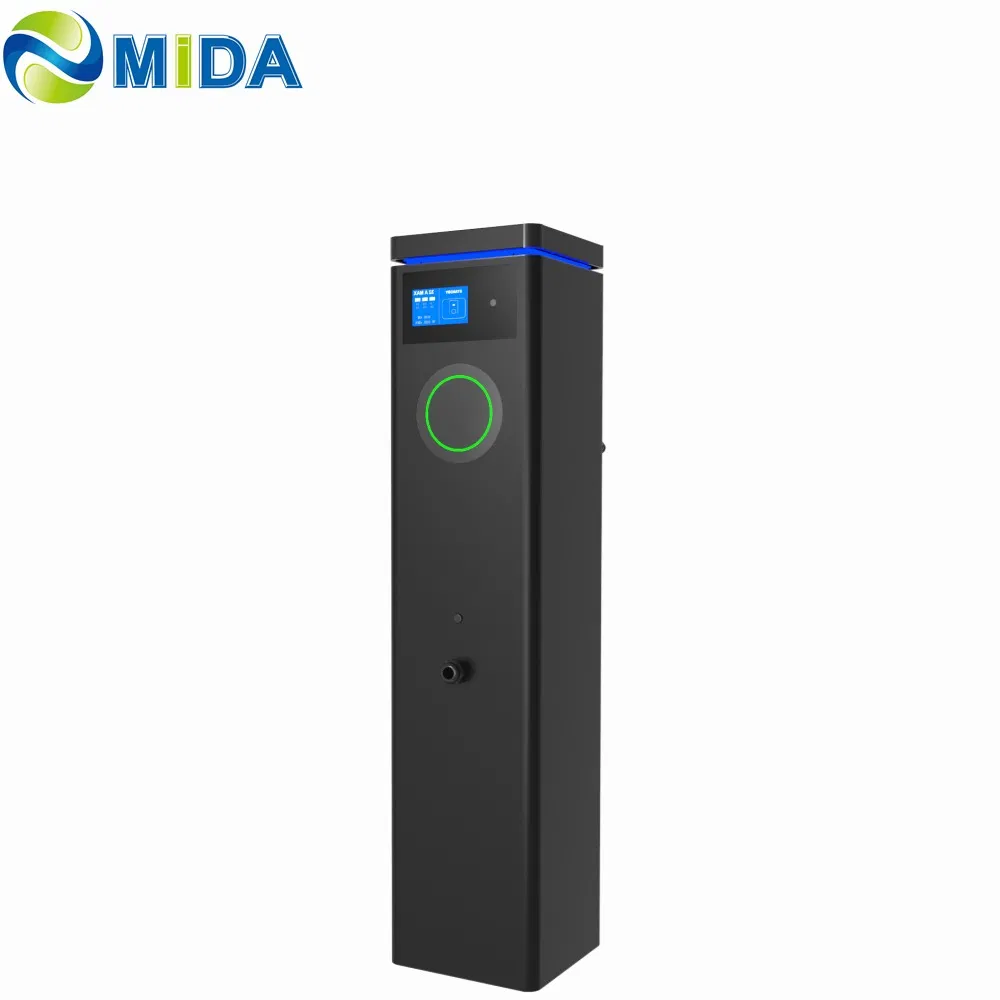

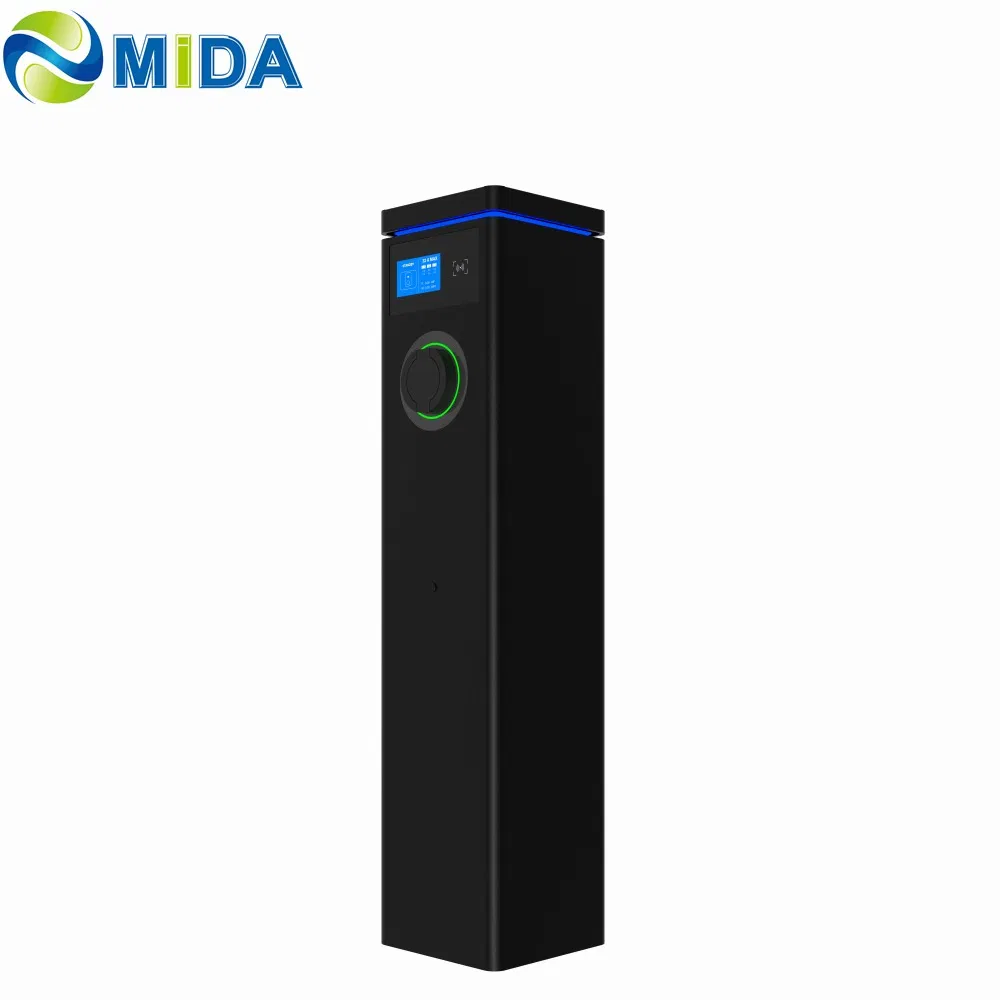

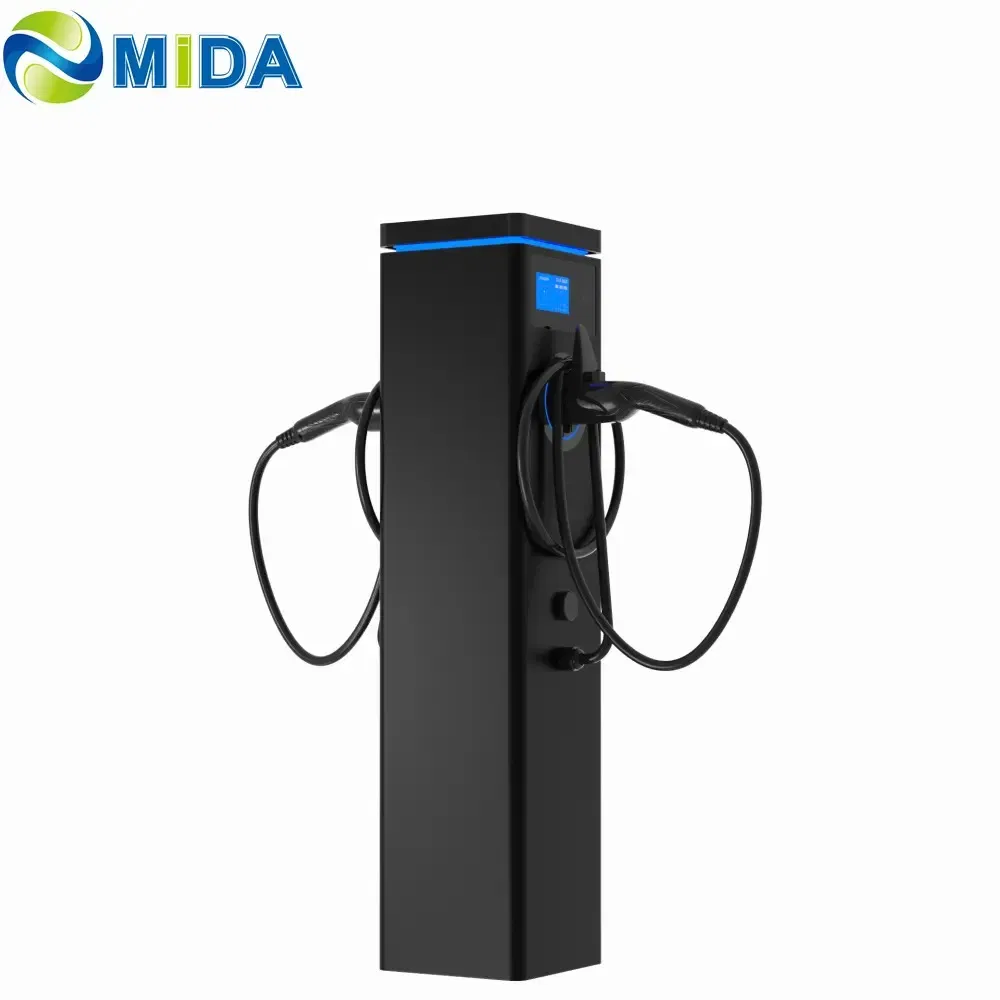

44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station
44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station
44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station
44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station
1 / 4
44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station
44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station
44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station
44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station

44kw Wallbox 2 X 22kw EV Charging Station with Dual Type 2 Socket AC Public Charging Station

Customization: Available
Number of Charging Interfaces: One Pile with Multiple Charges
Location: Private Use
Send Inquiry

Product Description

Basic Information
Model NO.:MIDA-EVST-44KW
Installation:Wall Mounted
Rated Current:32AMP
Voltage:AC 250V Single Phase
Protection:IP55 / Type B RCD
Material:Aluminum Alloy
Temperature:-30°C to +60°C
Certification:TUV, CE Approved
Product Description
44kW Wallbox 2 X 22kW EV Charging Station With Dual Type 2 Socket
EV Charging Station 1 EV Charging Station 2
⚡
Powerful Performance: Heavy-duty and outdoor-ready 44kW dual plug AC public charging station.
🛡️
Waterproof Design: IP55 rated protection for all-weather durability.
📱
Smart Connectivity: Bluetooth & WiFi enabled with App control and OTA firmware updates.
✅
Universal Compatibility: Compatible with every Type 2 EV on the market.
Technical Specifications
Electrical Parameter32A Max Per Socket / 7.2 kW to 44kW versions
VoltageOne phase 230VAC / Three phase 400VAC
Cable & Connector16.4FT/5.0m cable (Standard) IEC62196-2
Smart ConnectivityBuilt-in Wi-Fi / Bluetooth (Optional)
Standard ComplianceIEC 61851-1, OCPP 1.6, CE, FCC, ETL
Dimensions300mm × 160mm × 120mm
Warranty2 years limited product warranty
Applicable Scenes
  • Residential: Perfect for homeowners requiring high power home charging.
  • Workplace: Ideal for offices and factories for employee EV charging.
  • Public Areas: Suitable for public parking lots and commercial common areas.
  • Fleet: Efficient solution for businesses operating electric vehicle fleets.
Product Overview & Production

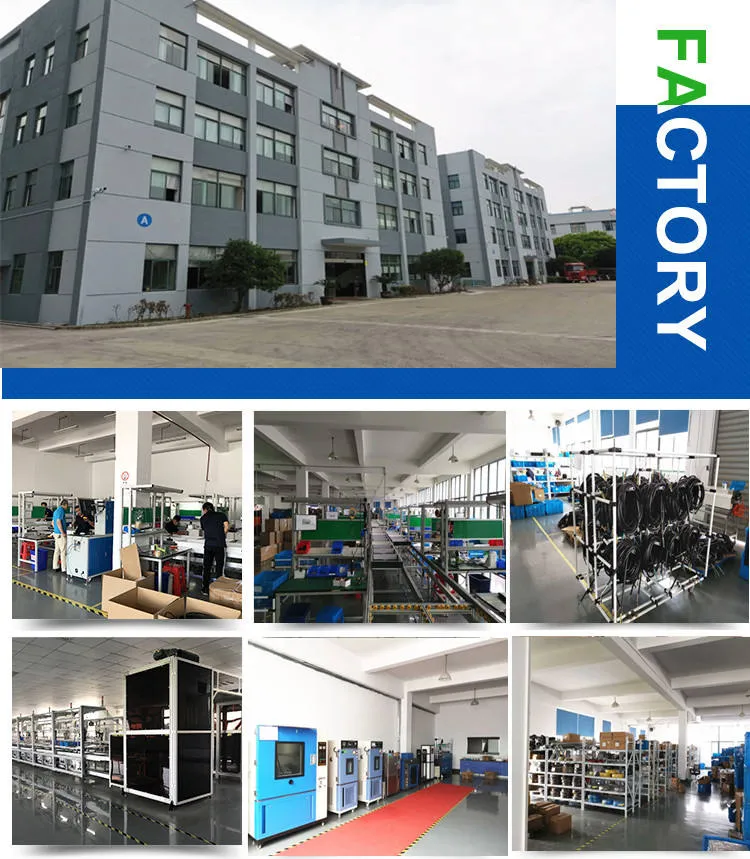

Factory Overview Production Detail 1 Production Detail 2 Production Detail 3
Frequently Asked Questions
Q: What is the maximum power output of this charging station?
A: This station supports dual sockets with up to 22kW each, providing a total of 44kW power output.
Q: Is the charging station suitable for outdoor installation?
A: Yes, it is rated IP55, meaning it is protected against dust and water, making it perfect for outdoor environments.
Q: Can I manage the charger remotely?
A: Yes, with built-in Wi-Fi and Bluetooth connectivity, you can use dedicated Apps to manage charging and receive OTA updates.
Q: Does it support all electric vehicles?
A: It uses the standard Type 2 (IEC62196-2) connector, which is compatible with most modern EVs on the market.
Q: Is RFID card support available?
A: Yes, RFID functionality is an optional configuration for secure access control.
Q: What certifications do your products have?
A: All products are certified by TUV, CE, FCC, and ETL to ensure safety and quality standards.
