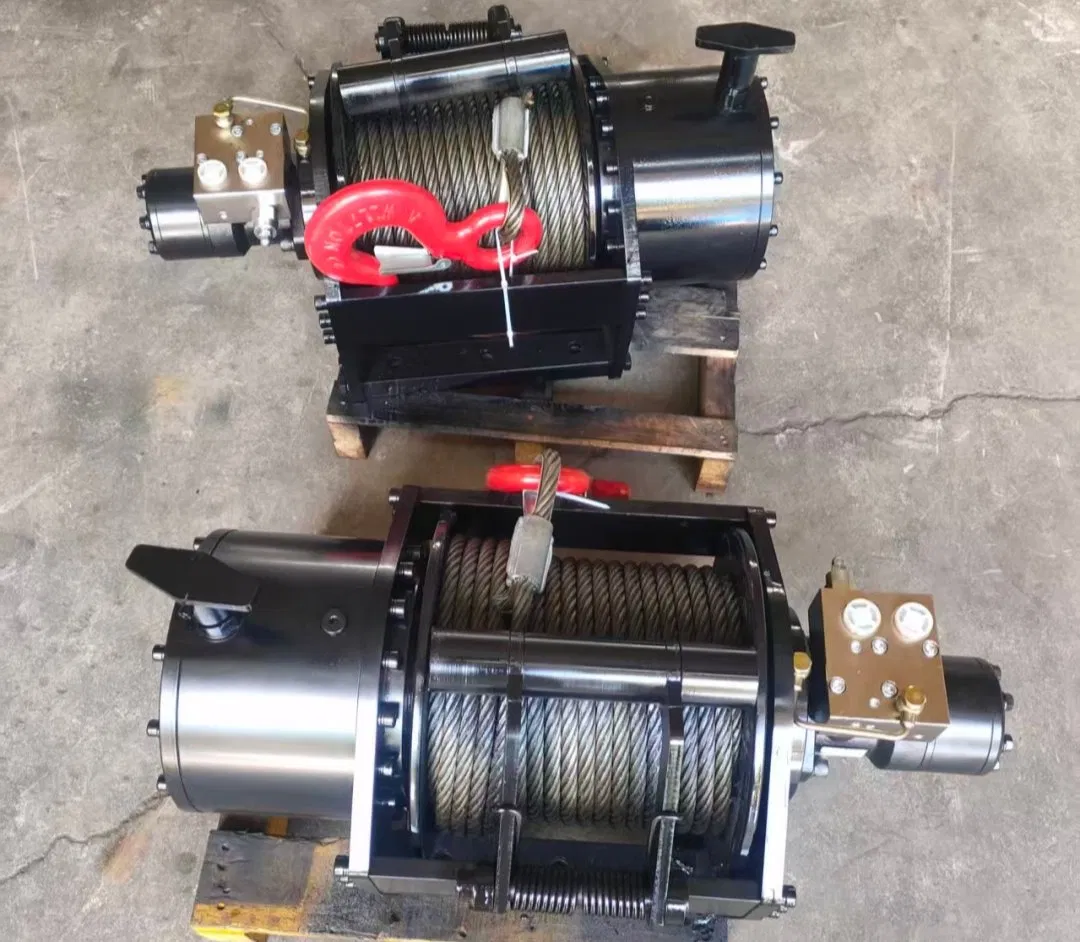

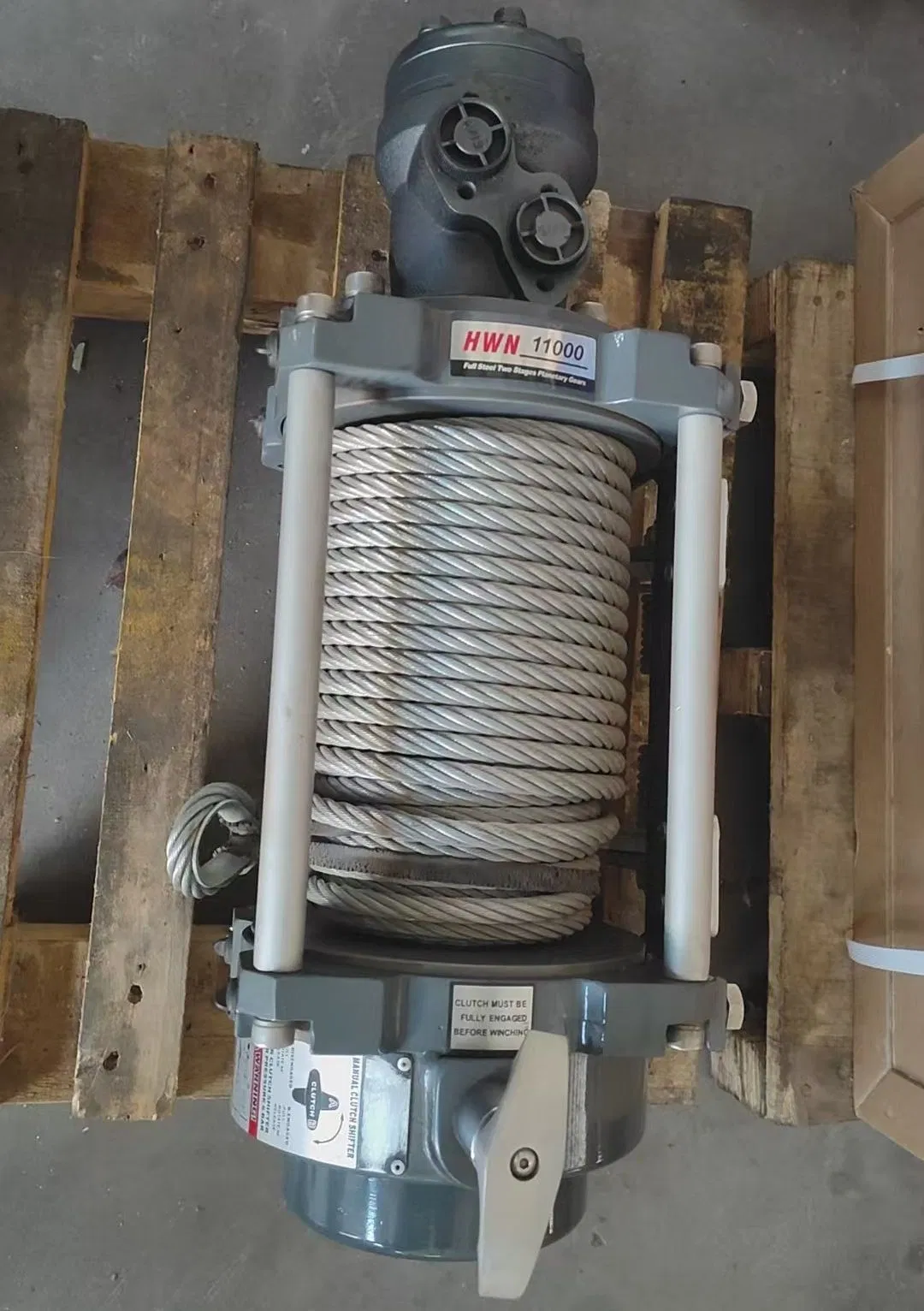

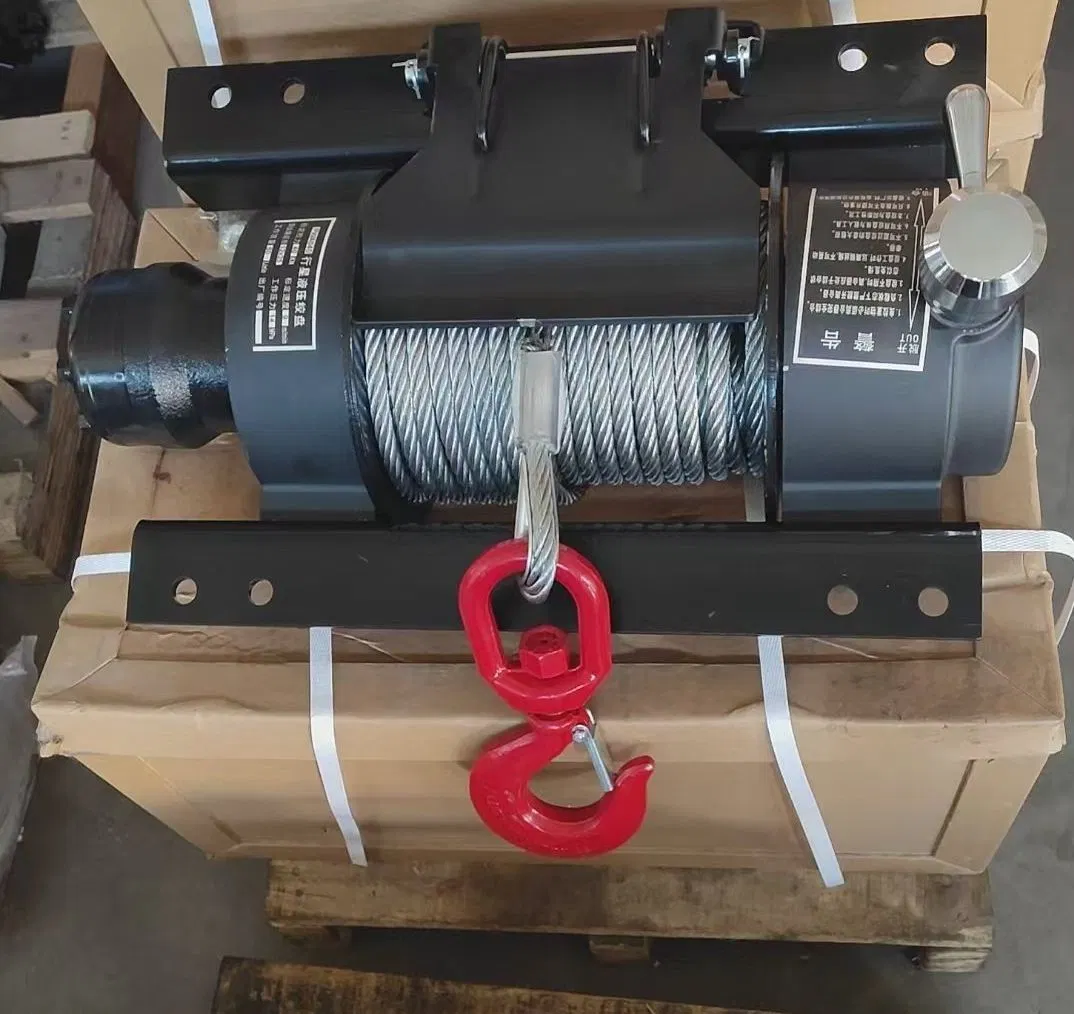

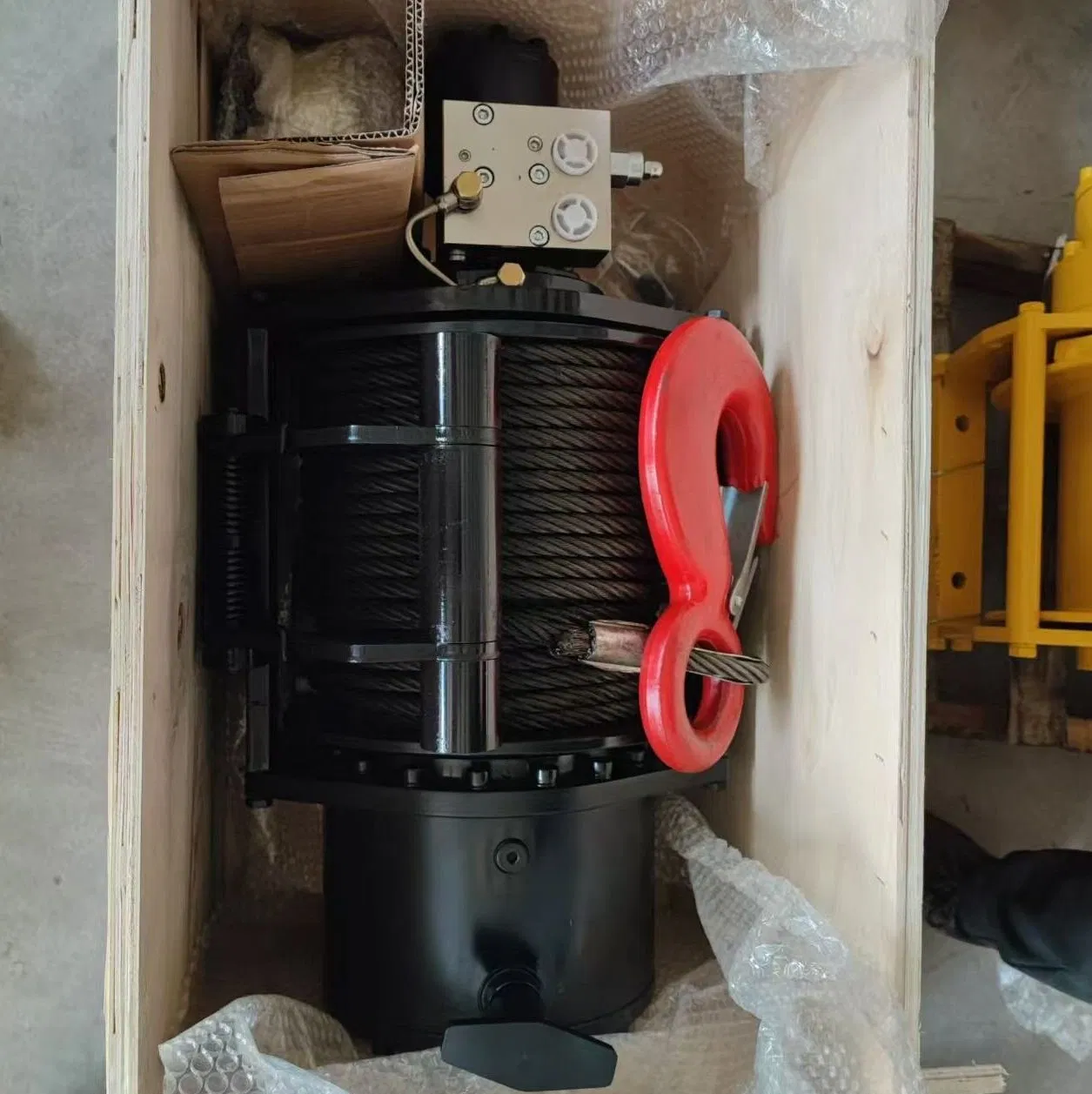

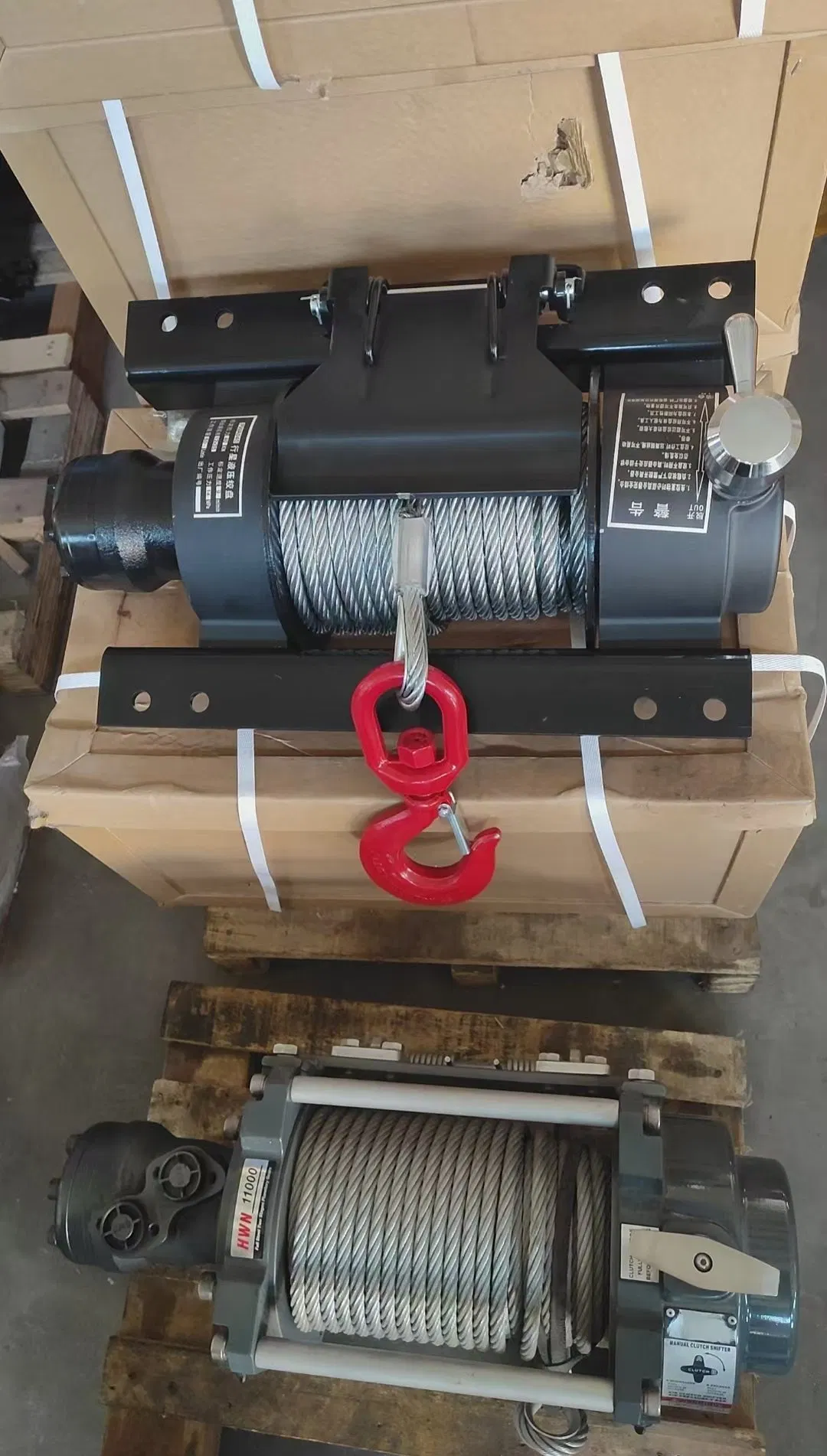

5-ton wrecker towing and rescue winch
Our company mainly manufactures 4-60 ton towing winches. The ST series hydraulic winches come in various models with pulling capacities from 0.5T to 50T and more.

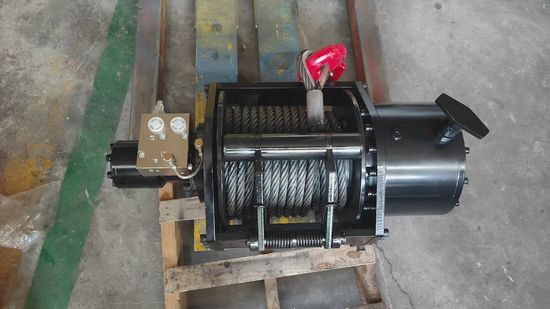

Key Configurations: The structure primarily consists of a hydraulic motor, multi-disc brakes, planetary gear reduction mechanism, drum, and frame. These winches offer high mechanical efficiency, high starting torque, and excellent low-speed stability. They effectively address issues like secondary slippage and empty hook jitter, ensuring smooth lifting and braking.

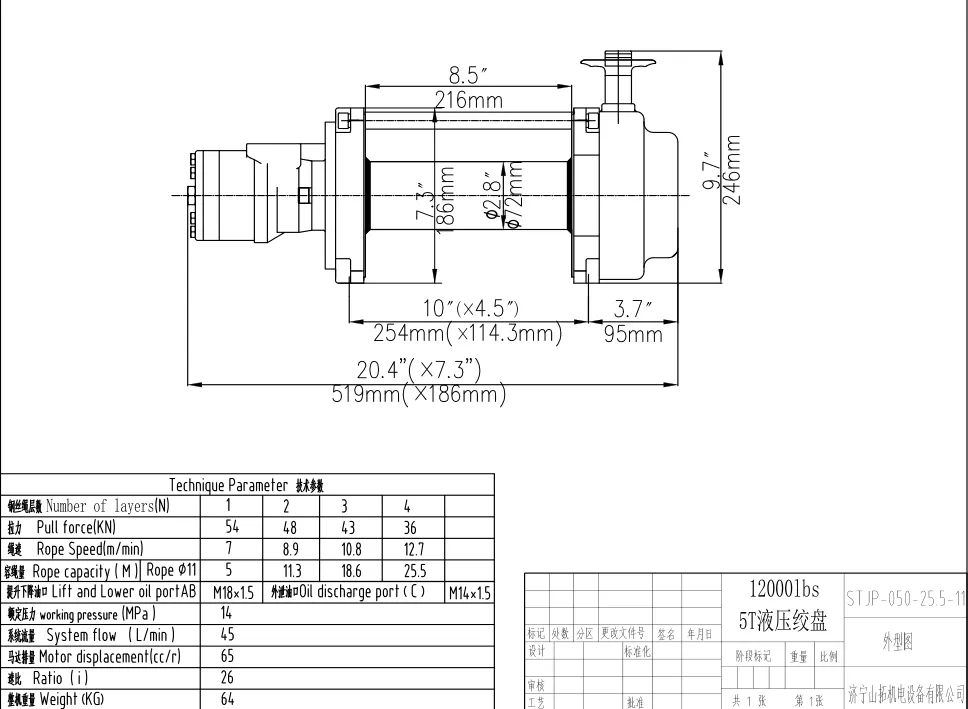

| Model | 12000LBS | STJP-100 | STJP-300 |
|---|---|---|---|
| Pull force (KN) | 50 | 100 | 300 |
| Rope speed (m/min) | 7-13 | 8-12 | 3.2-4.8 |
| Rope capacity (m) | 25 | 80 | 60 |
| Pressure (Mpa) | 14 | 17 | 16 |
| Weight (kg) | 64 | 240 | 850 |
