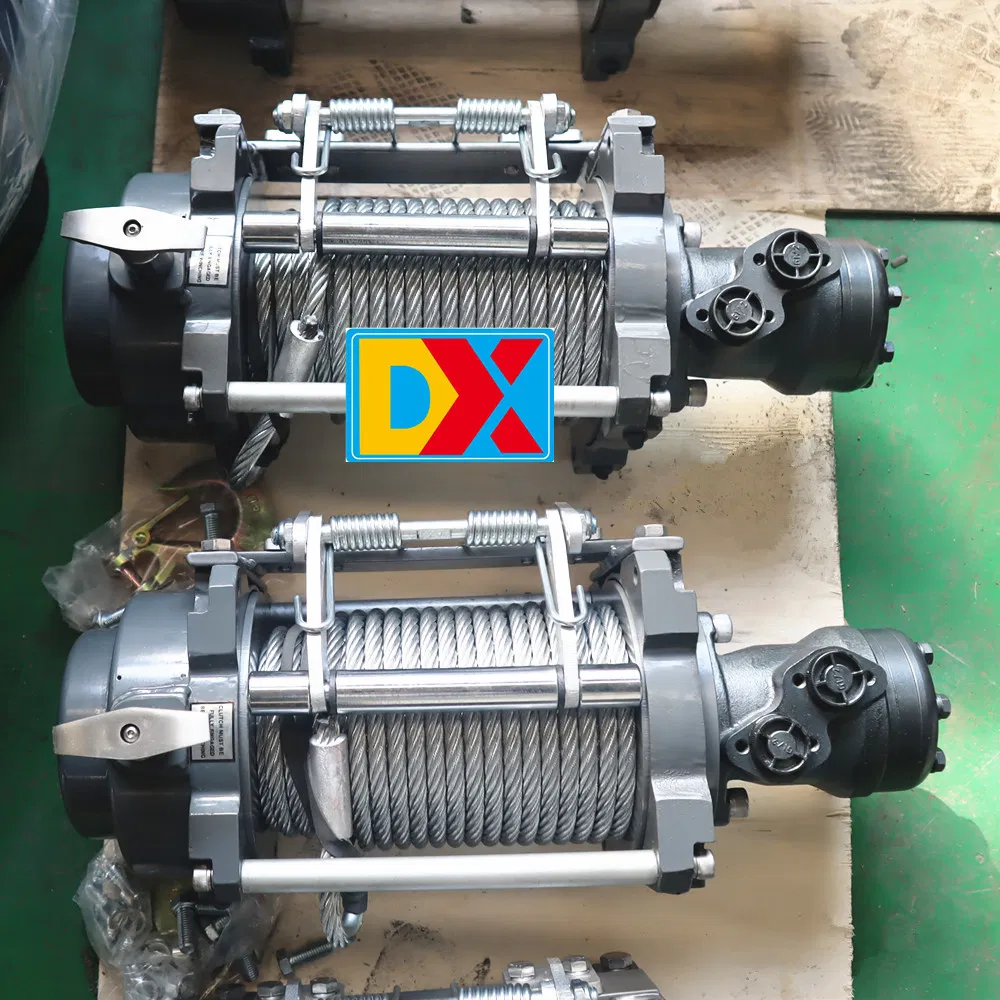

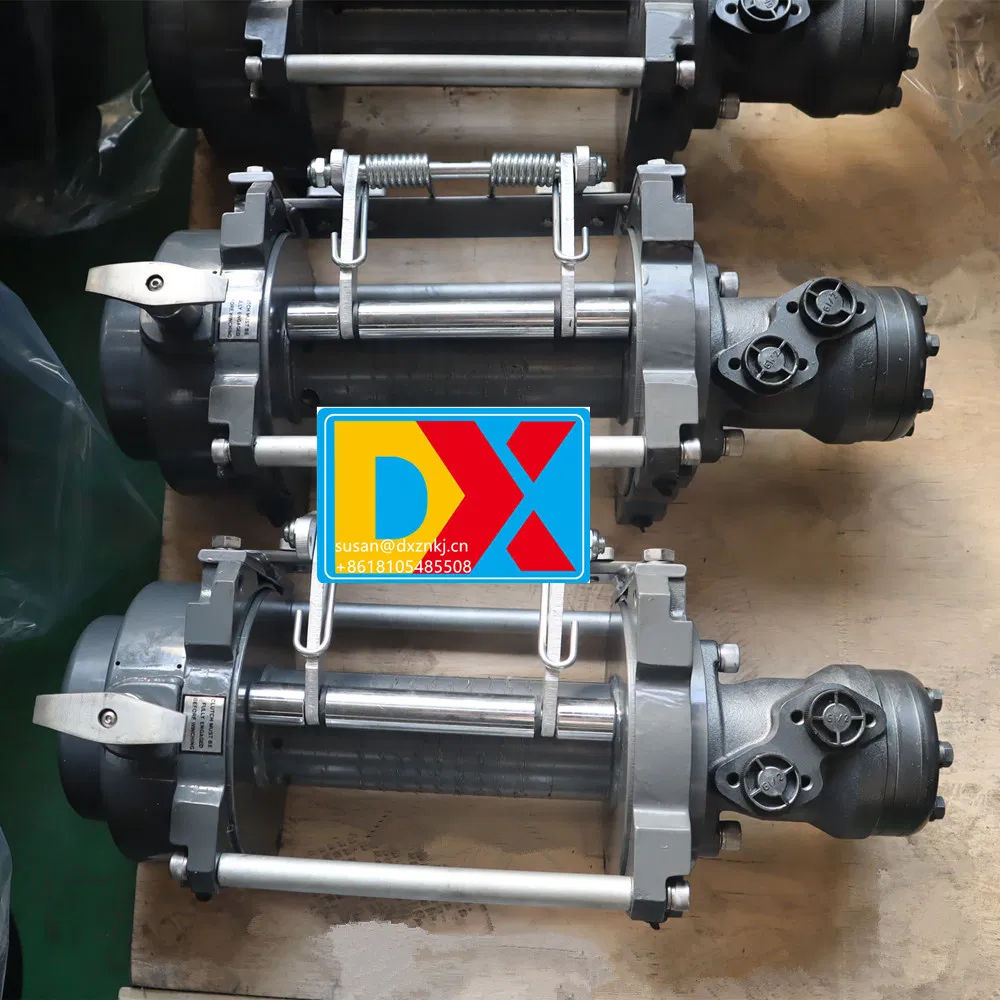

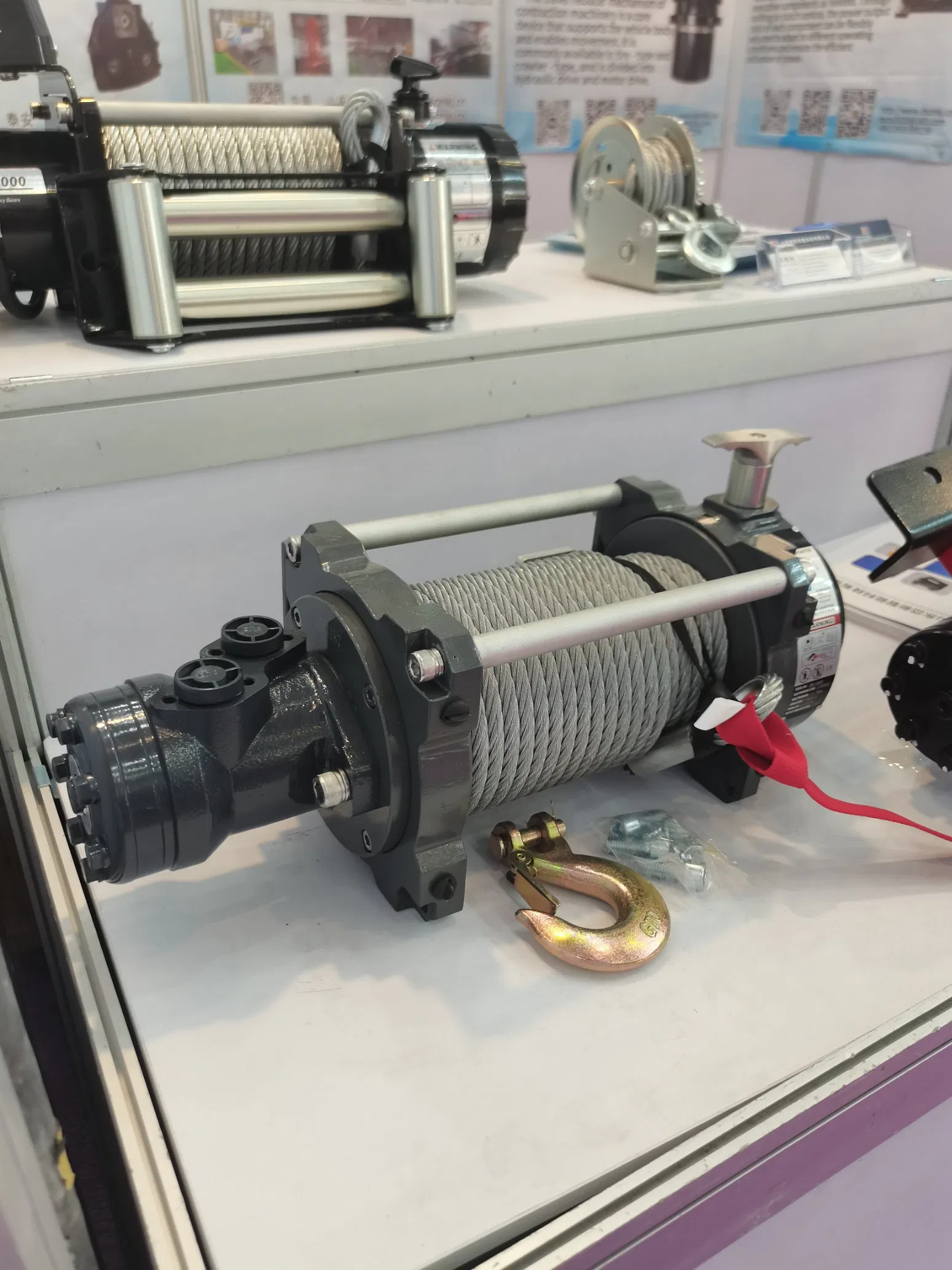

Hydraulic winch is mainly composed of hydraulic motor (low speed or high speed motor), brake, gear box, drum, support shaft, frame, rope device (optional), etc.
Our winches can be widely used in all kinds of lifting equipment, such as railway locomotive and truck crane, ship, oil field drilling, coal mine, port, small engineering machinery and so on.
| Product Type | Hydraulic winch |
| Model | DJ050YD |
| Line Pull Capacity | 5 Ton (11000 lbs) |
| Pulling Force (1st layer) | 40 KN |
| Line Speed (1st layer) | 5.2 m/min |
| Wire Rope Capacity | 30 m |
| Wire Rope Diameter | 10 mm |

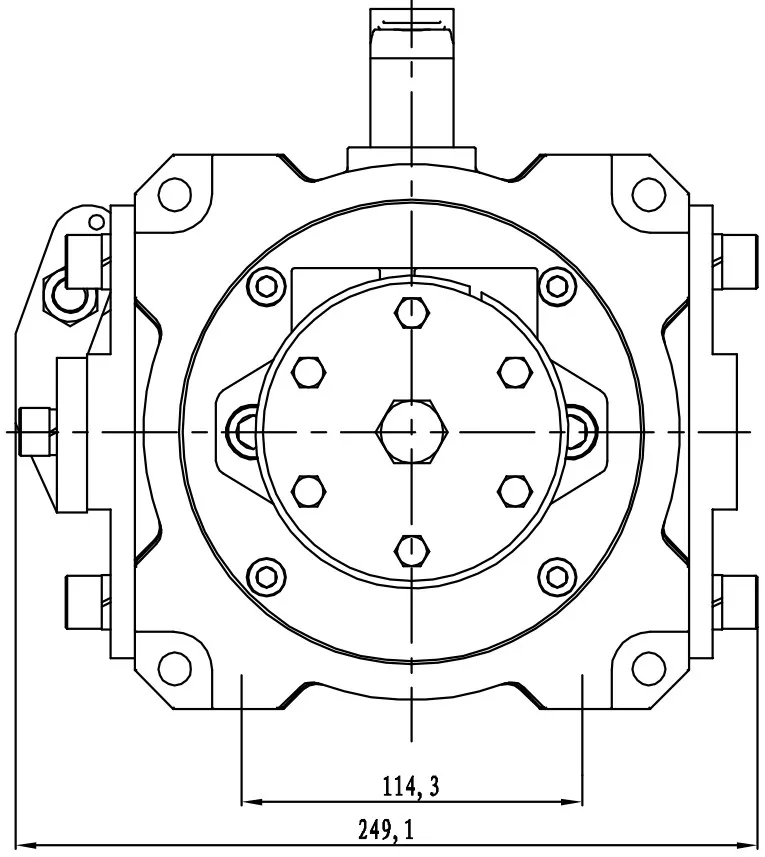

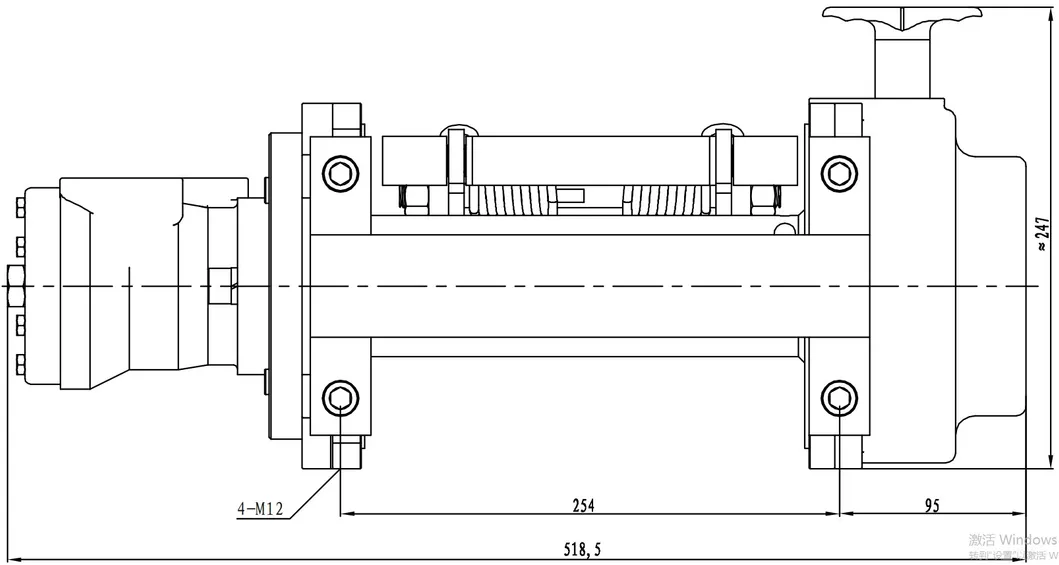

| Dimensions (LxWxH) | 500 x 350 x 270 mm |
| Winch Weight | 56 kg (with package) |
| Hydraulic Motor | BMR 80 |
| Application | Wrecker, recovery truck, tow truck, self loader platform, forestry, etc. |

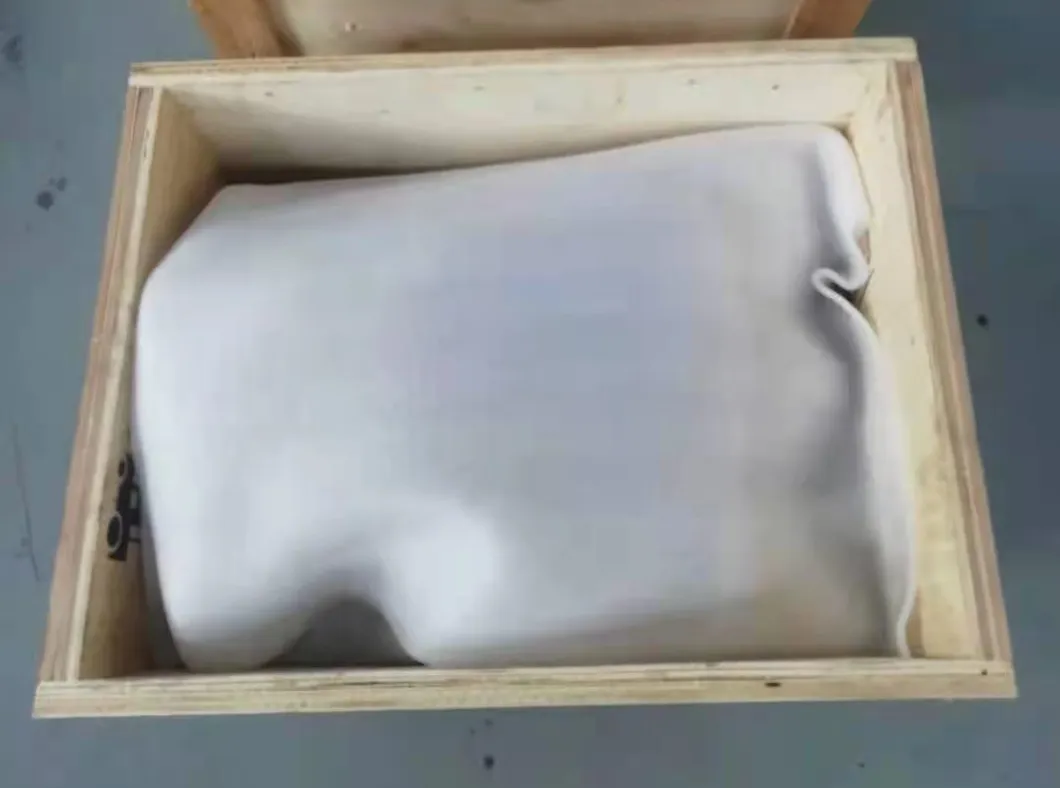

Packing method: Strong plywood box (1 pc / box) for international shipping safety.
