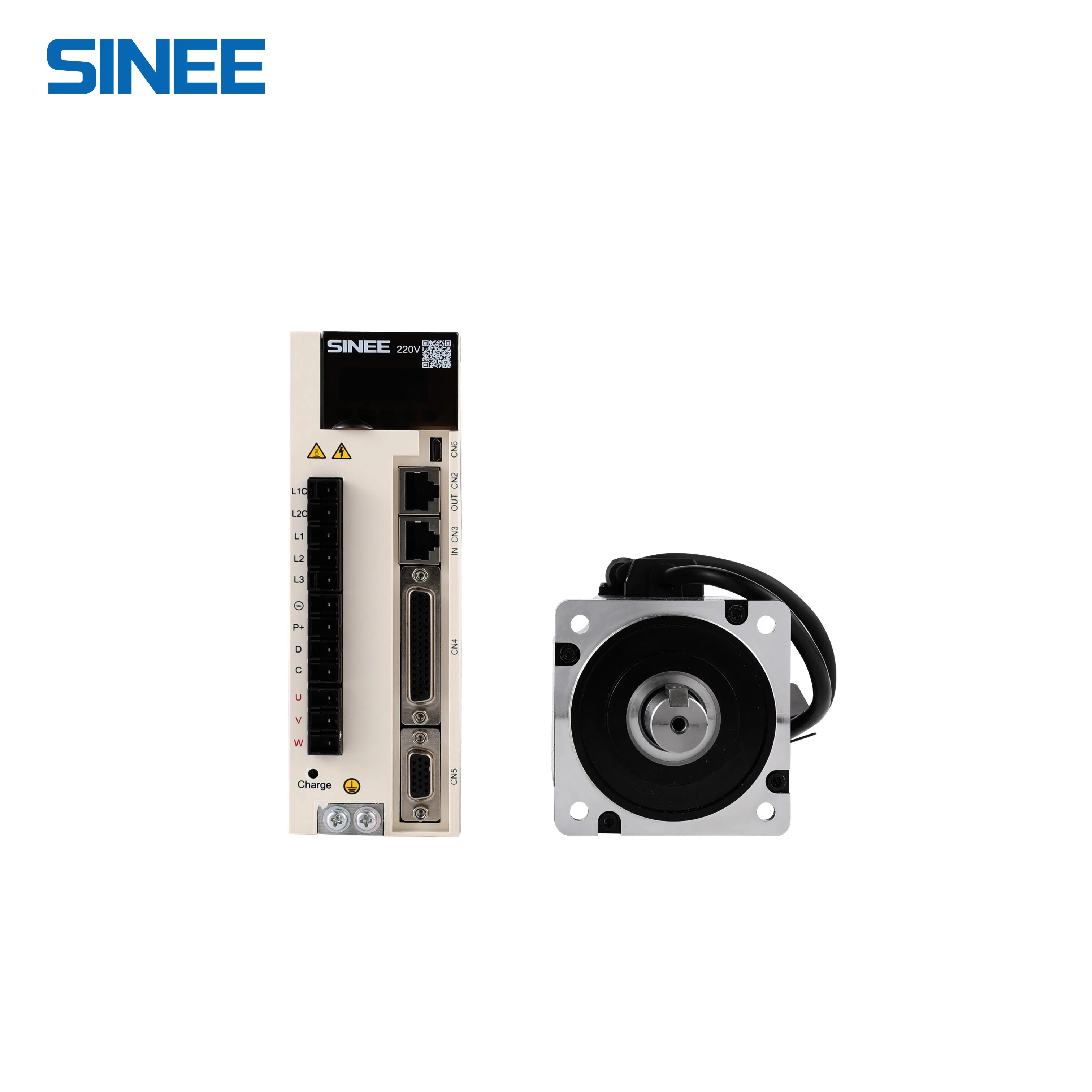

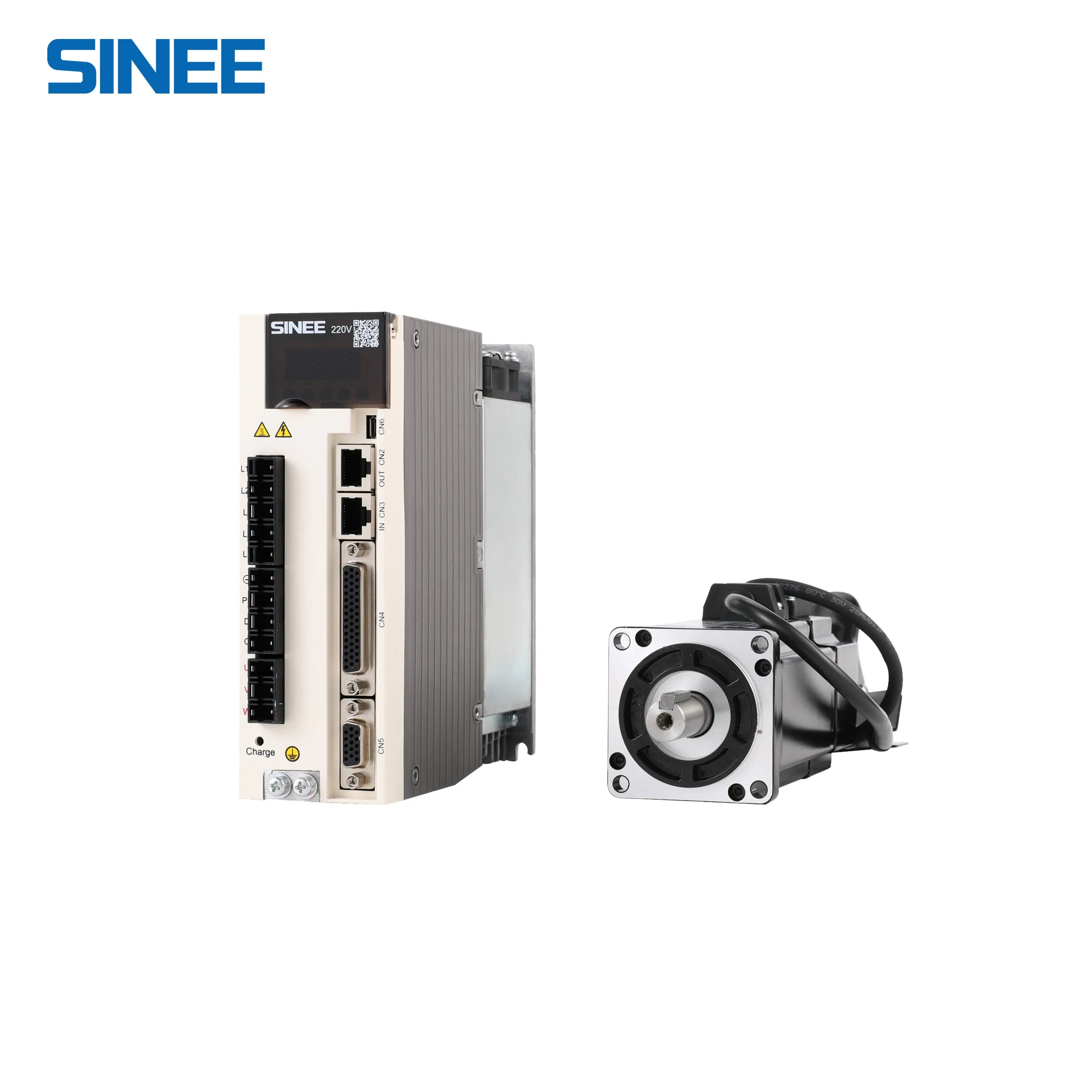

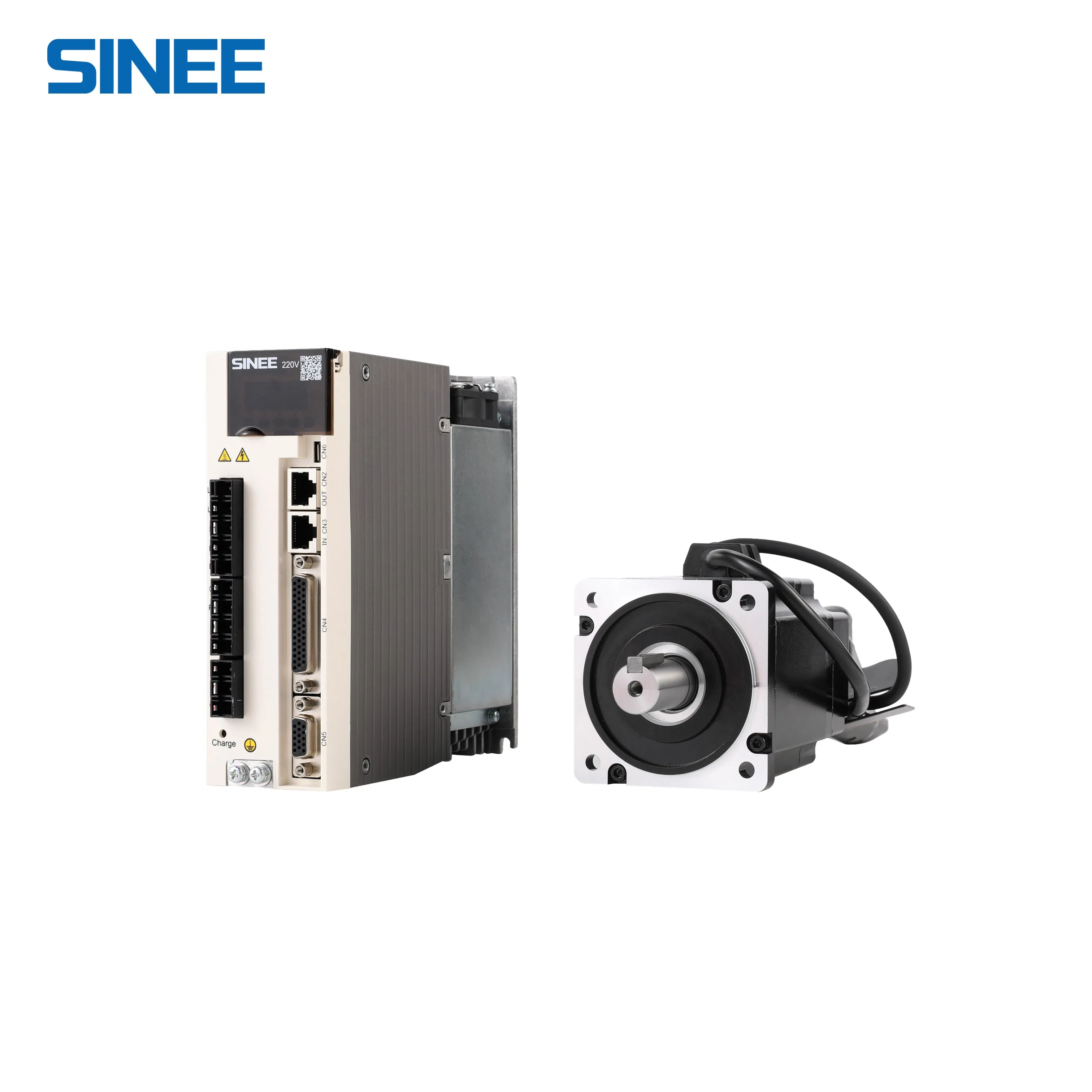

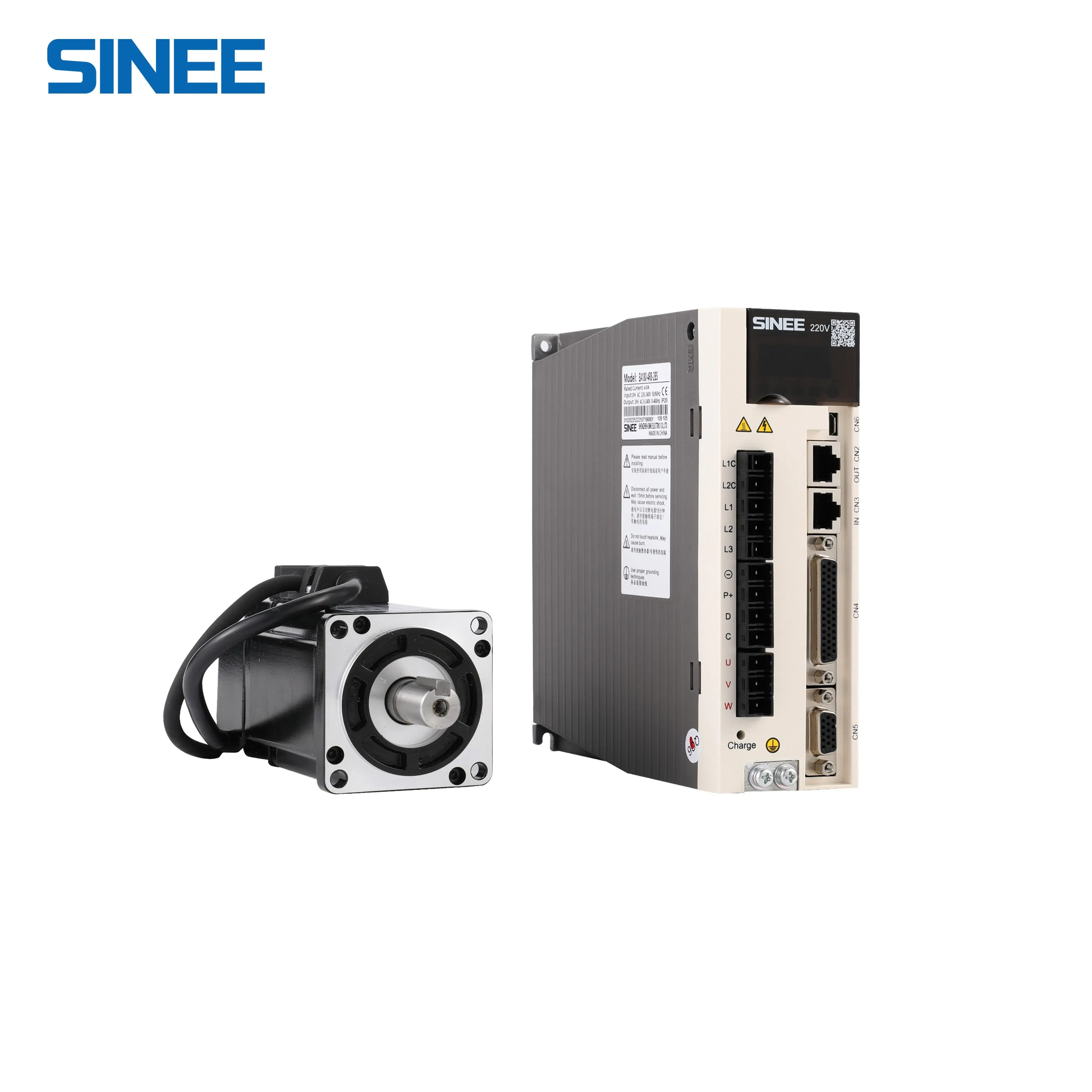

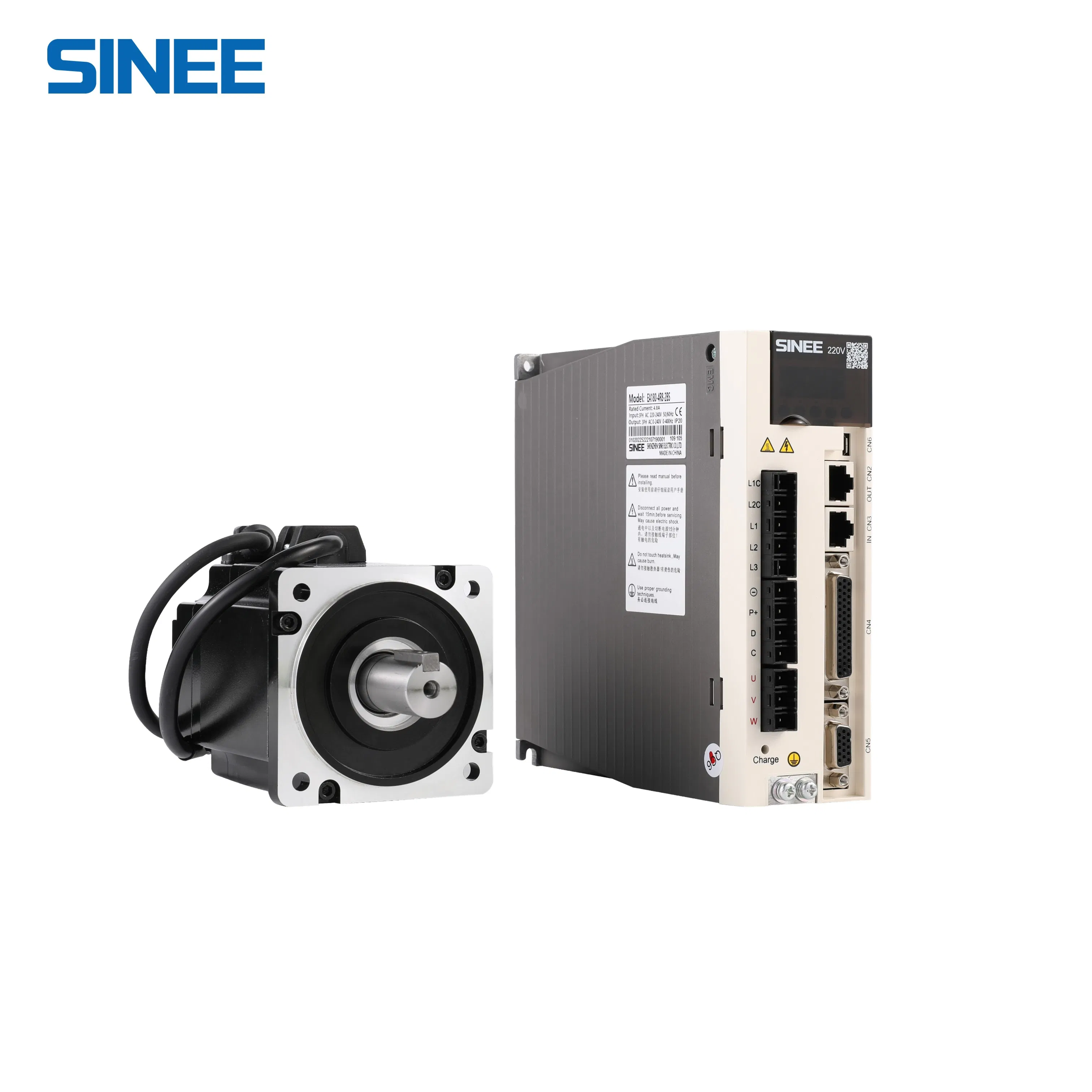

0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
1 / 5
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm
0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm

0.75kw Servo Driver Servo Motor Automation Control Servo System for Industrial Robot Arm

Customization: Available
Task: Program
Structure: Closed-Loop
Send Inquiry

Product Description

Basic Information
Model NO.
EA180
Model
Linear
Signal
Continuous
Function
Automatic Control
Certification
ISO: 9001, CE
Material
Aluminum Alloy
Control Type
IGBT PWM Control
Cooling TYPE
Fan Cooling
Product Presentation

0.75KW Servo Driver Servo Motor Automation Control System

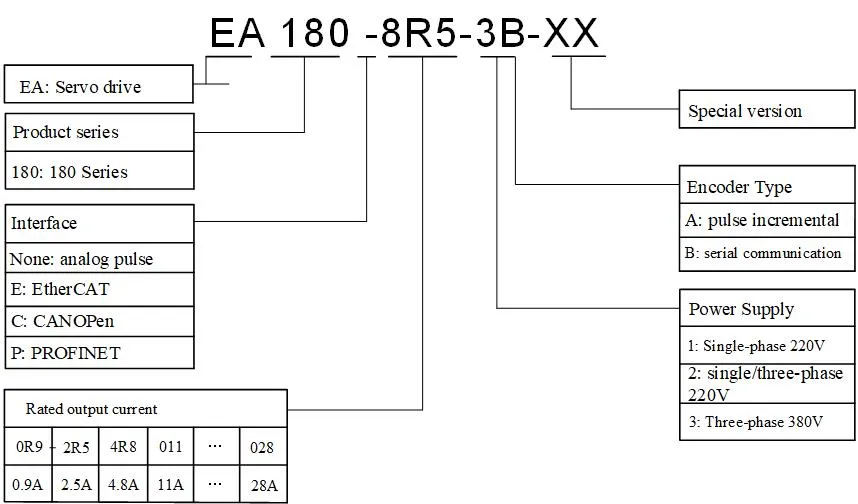

Servo Driver
Control System
🌟 Key Features
  • 🚀 High-speed Response: Up to 1.0KHz frequency response and shortened positioning time.
  • 🎯 High-accuracy Positioning: 17-bit incremental and 23-bit absolute encoders available.
  • 📦 Compact Design: Small size similar to industry standard drives to minimize system volume.
  • 🛡️ Intelligent Controls: FFT-based resonance suppression and vibration filters for long-arm machines.
  • 💪 High Reliability: EMC design optimization and resin-encapsulated motor materials.

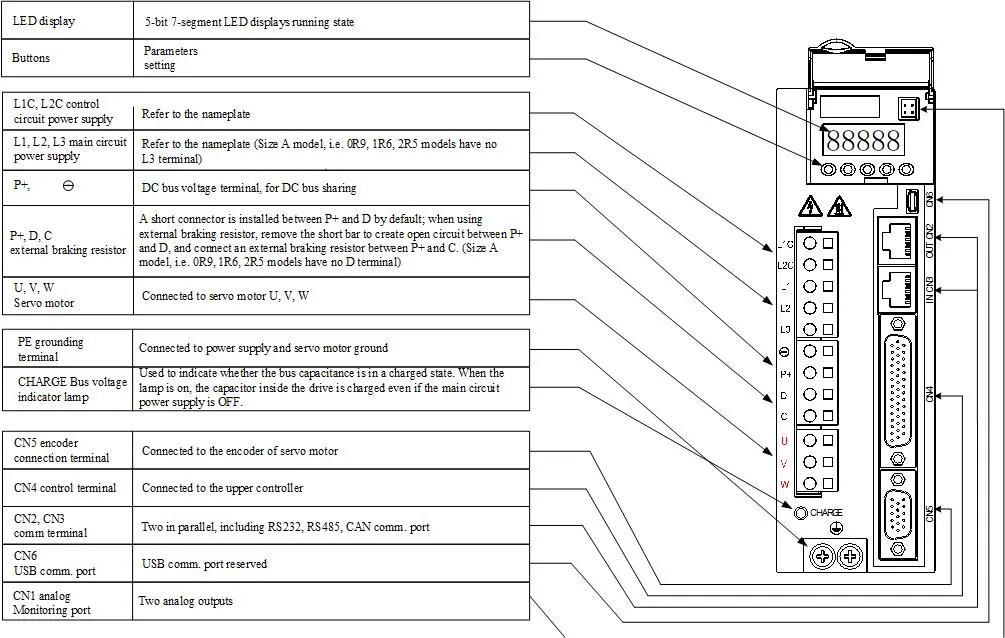

Internal Structure

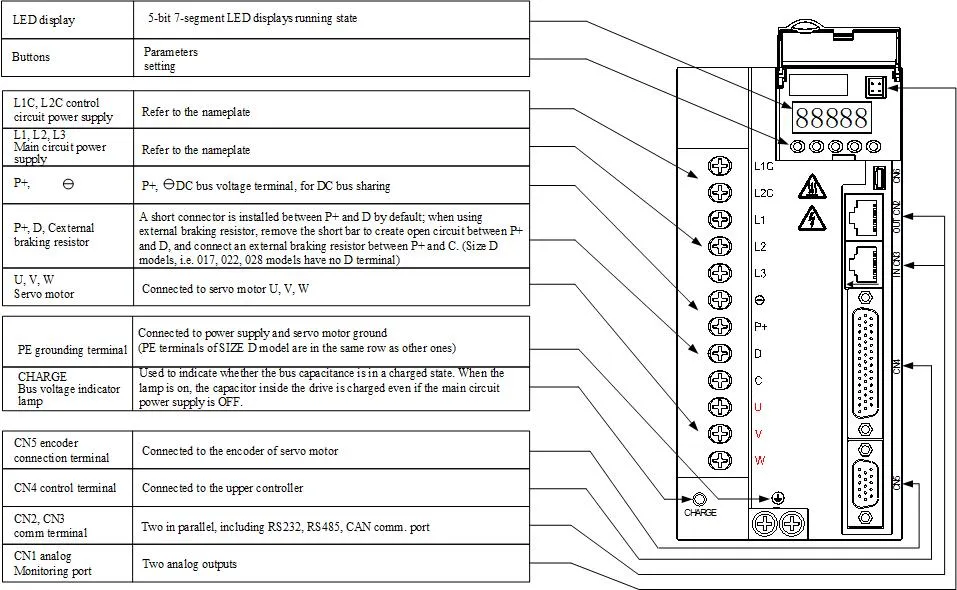

Performance Chart
Detailed Parameters
Item Specification
Control Type IGBT PWM control sine wave current driving
Feedback Support 2500 ppr encoder, 17 bit incremental, 23 bit absolute
Control Modes Speed, Position, Torque, and Mixed Modes
Regenerative Brake Built-in braking unit and resistor
Environment 0~40°C Operating; Humidity ≤90%RH
Communication RS232, RS485 (MODBUS RTU)
Installation Guidelines

📍 Shaft Handling: Wipe off rust inhibitor before treatment. Avoid impacts to the shaft extension to protect the internal encoder.

📍 Mounting: Can be installed horizontally or vertically. Ensure centering alignment within 0.03mm radial runout.

📍 Connectors: Always connect the main circuit cable first and ensure reliable grounding.

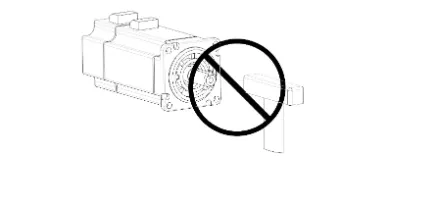

Encoder Notes

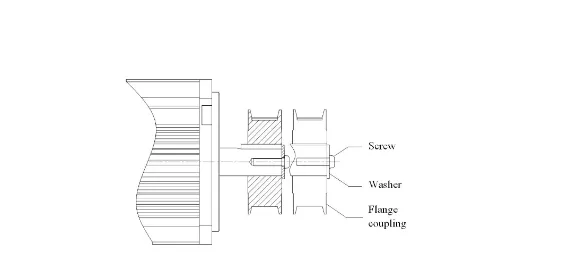

Pulley Installation

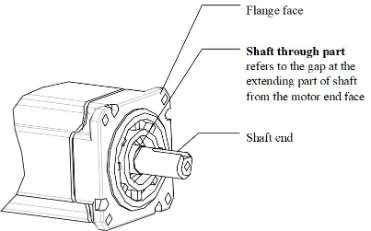

Oil Seal Usage
Manufacturing Overview
Manufacturing Process
Frequently Asked Questions
What is the response speed of the EA180 servo driver?
The system features a high-speed frequency response of up to 1.0KHz, significantly shortening positioning time.
Which encoder types are supported?
It supports 2500 ppr incremental encoders, 17-bit incremental encoders, and 23-bit absolute value encoders.
Can it support many protocols?
Yes, it supports multiple protocols including EtherCAT, CANopen, and RS485 (Modbus RTU).
How does the system handle resonance?
It utilizes four high-frequency resonance suppression notch filters (including FFT-based ones) and vibration suppression filters.
Is the driver protected against oil and water?
The system has an IP10 protection degree. For environments with oil or water, specialized servo motors with oil seals should be used.
